OTOFIX D1 Max OE పూర్తి సిస్టమ్ డయాగ్నోస్టిక్స్ స్కానర్ యూజర్ మాన్యువల్

1. పరిచయం

The OTOFIX D1 Max is a new generation, high-end diagnostic scan tool designed for comprehensive vehicle diagnostics and maintenance. It combines powerful hardware with advanced software capabilities to provide efficient and accurate solutions for automotive professionals and enthusiasts. This manual provides detailed instructions on setting up, operating, maintaining, and troubleshooting your OTOFIX D1 Max scanner.

Image 1.1: OTOFIX D1 Max Scanner highlighting key features like 40+ HOT Services, 3X Faster AutoScan 2.0, All System Diagnostics, Guided Functions, Blu. Wireless VCI, Wide Coverage, CAN-FD & DoIP, 2015+ Renault SGW, and 2 Years Update.

2. ఉత్పత్తి ముగిసిందిview

The OTOFIX D1 Max is engineered for superior performance and user experience. It features a robust design and advanced functionalities to meet the demands of modern vehicle diagnostics.

2.1 ముఖ్య లక్షణాలు

• ECU Coding & Offline ECU Programming: Advanced capabilities for vehicle personalization and module replacement.
• 40+ సేవా విధులు: Comprehensive maintenance solutions including Oil Reset, TPMS Reset, Injector Coding, Suspension, and Throttle Matching.
• Active Test (Bi-directional Control): Perform component tests by sending commands to vehicle modules.
• OE-level Full-System Diagnostics: Access all available vehicle systems for reading/clearing codes, live data, and ECU information.
• విస్తృత వాహన కవరేజ్: Supports over 80 brands and 10,000+ vehicle models (1996-2025).
• Advanced Protocols: Supports DoIP & CAN FD for faster data transfer and diagnostics.
• Secure Gateway Access: Compatible with FCA (2018+) and Renault (2015+) SGW-equipped vehicles.
• Auto VIN 2.0: Faster and more accurate automatic vehicle identification.
• Wi-Fi ప్రింటింగ్: Wirelessly print diagnostic reports.
• 2-Years Free Software Updates: Ensures continuous functionality and compatibility.

2.2 హార్డ్‌వేర్ స్పెసిఫికేషన్‌లు

Image 2.1: Visual representation of OTOFIX D1 Max hardware specifications including Android 11.0, 4-Core CPU, 10.4" screen, 4+128G memory, 7250mAh battery, and 5MP/8MP cameras.

3. సెటప్

3.1 అన్‌బాక్సింగ్ మరియు ప్రారంభ తనిఖీ

Upon receiving your OTOFIX D1 Max, carefully open the packaging and inspect all components for any signs of damage. Ensure all items listed in the package contents are present.

3.2 ప్యాకేజీ విషయాలు

The OTOFIX D1 Max package typically includes the following items:

• 1x OTOFIX D1 MAX Diagnostic Tool (Tablet)
• 1x OTOFIX V1 (Vehicle Communication Interface)
• 1x USB-C కేబుల్
• 1x AC/DC Power Adapter (12V)
• 1x క్యారీయింగ్ కేస్
• 1x Packing List
• 1x త్వరిత సూచన గైడ్
• 1x Soft Cloth

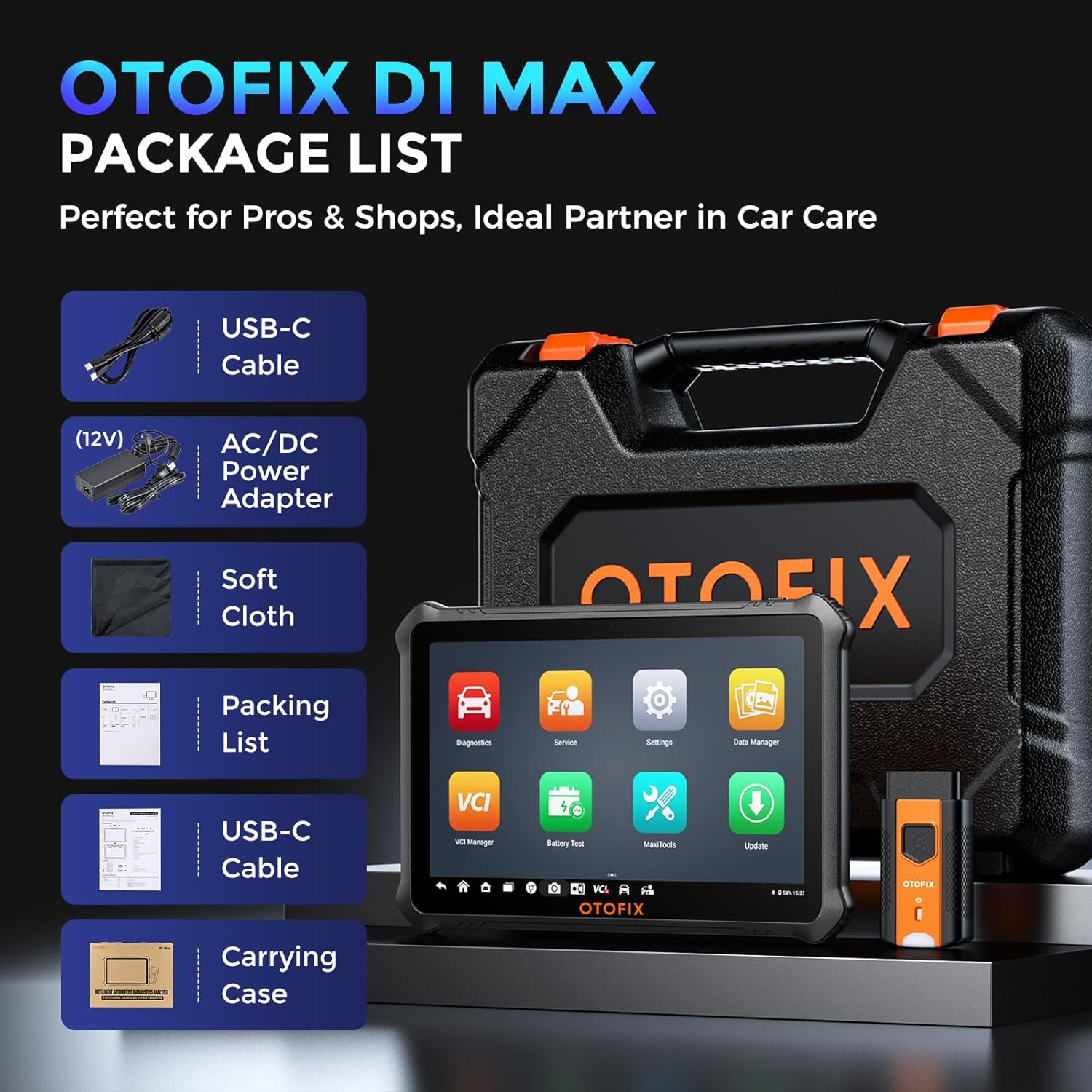

Image 3.1: Contents of the OTOFIX D1 Max package, including the tablet, VCI, cables, power adapter, carrying case, and documentation.

3.3 పవర్ ఆన్ మరియు ప్రారంభ కాన్ఫిగరేషన్

1. Connect the AC/DC Power Adapter to the OTOFIX D1 Max tablet and a power outlet to ensure the device is charged.
2. Press and hold the Power button until the OTOFIX logo appears on the screen.
3. Follow the on-screen prompts to complete the initial setup, including language selection, Wi-Fi connection, and time zone settings.
4. Register your device and activate the software updates as prompted. A stable internet connection is required for this step.

4. ఆపరేషన్

4.1 వాహనానికి కనెక్ట్ చేయడం

1. వాహనం యొక్క OBDII పోర్ట్‌ను గుర్తించండి, సాధారణంగా డ్రైవర్ వైపు డాష్‌బోర్డ్ కింద ఉంటుంది.
2. Plug the OTOFIX V1 (VCI) into the vehicle's OBDII port. The VCI's indicator light should illuminate.
3. On the OTOFIX D1 Max tablet, ensure Bluetooth is enabled and the VCI is paired. The VCI Manager application can be used to manage the connection.
4. వాహనం యొక్క ఇగ్నిషన్‌ను ఆన్ స్థానానికి మార్చండి (ఇంజన్ ఆఫ్).

4.2 OE-Level All System Diagnostics

The OTOFIX D1 Max can access all available vehicle systems to perform comprehensive diagnostics.

• కోడ్‌లను చదవండి: Retrieve Diagnostic Trouble Codes (DTCs) from all control modules.
• కోడ్‌లను క్లియర్ చేయండి: మరమ్మతులు పూర్తయిన తర్వాత DTC లను తుడిచివేయండి.
• ప్రత్యక్ష డేటా: View real-time data streams from various sensors and components.
• ఫ్రేమ్ డేటాను ఫ్రీజ్ చేయండి: Capture a snapshot of vehicle conditions when a DTC was set.
• ECU సమాచారం: Retrieve detailed information about the Electronic Control Unit.

Image 4.1: Illustration of OE-level all system diagnostics, showing the scanner connected to a car and accessing various systems like Engine, ABS, EPB, and BMS.

4.3 ECU Coding & Advanced Functions

This function allows for advanced vehicle customization and module adaptation.

• ఆన్‌లైన్ కోడింగ్: Automatically retrieves coding values from the server for quick and precise operations. Compatible with brands like Volkswagen, Audi, Skoda, Peugeot, Citroen, DS, Porsche, BMW, Mini, Nissan, Infiniti, Nissan GT-R, Renault.
• ఆఫ్‌లైన్ కోడింగ్: Allows manual input of coding values, suitable for experts and a wider range of car builds. Compatible with Ford, Ford AU, Ford EU, Subaru, Land Rover, Jaguar, Peugeot, Citroen, DS, Volkswagen, Volkswagen Brazil, Audi, Skoda, Volkswagen CV.
• Offline ECU Programming: Replace or update ECU software, program new blank ECUs, and fix software-controlled issues. Compatible with Ford, Ford AU, Ford EU, Land Rover, Jaguar, Opel, Vauxhall.
• వ్యక్తిగతీకరణ: Customize vehicle settings such as disabling auto start-stop, activating daytime running lights, and other comfort functions.
• V.A.G Guided Functions: Provides step-by-step procedures for complex diagnostics on Volkswagen, Audi, Skoda, and VW vehicles, skipping channel numbers and security codes.

చిత్రం 4.2: వివరణాత్మకమైనది view of ECU Programming & Coding capabilities, including open/close functions, module matching, personalization, parameter reset, and fixing complex issues.

5. సేవా విధులు

The OTOFIX D1 Max offers over 40 maintenance and service functions to address common vehicle issues.

• ఆయిల్ రీసెట్: ఆయిల్ మార్పు తర్వాత ఆయిల్ లైఫ్ సిస్టమ్‌ను రీసెట్ చేయండి.
• TPMS రీసెట్: Reset tire pressure monitoring system.
ఇంజెక్టర్ కోడింగ్: Code new injector numbers to replace the previous ones when fitting new injectors or after replacement is completed.
• SAS రీసెట్: స్టీరింగ్ యాంగిల్ సెన్సార్‌ను క్రమాంకనం చేయండి.
• EPB రీసెట్: Reset the electronic parking brake pads after replacement.
• థ్రాటిల్ మ్యాచింగ్: Relearn the throttle body position.
• BMS రీసెట్: Register the new battery after replacement.
• ABS రక్తస్రావం: Perform ABS brake bleeding to get a firm brake pad.
• సస్పెన్షన్: Adjust the vehicle height sensor for suspension calibration.
• Clutch Learning: Perform clutch adaptation.

చిత్రం 5.1: ముగిసిందిview of 40+ service functions, including Oil Reset, SAS Reset, EPB Reset, Injector Coding, Throttle, BMS Reset, and Clutch Learning.

6. Bi-directional Control (Active Test)

The bi-directional control feature allows the scanner to send commands to vehicle modules to perform specific tests, narrowing down diagnostic scope and quickly pinpointing problems.

• Activate components like windows, headlights, wipers, sunroof, radiator fans, fuel pump, A/C clutch, etc.
• Test the functionality of various actuators without disassembling the vehicle.

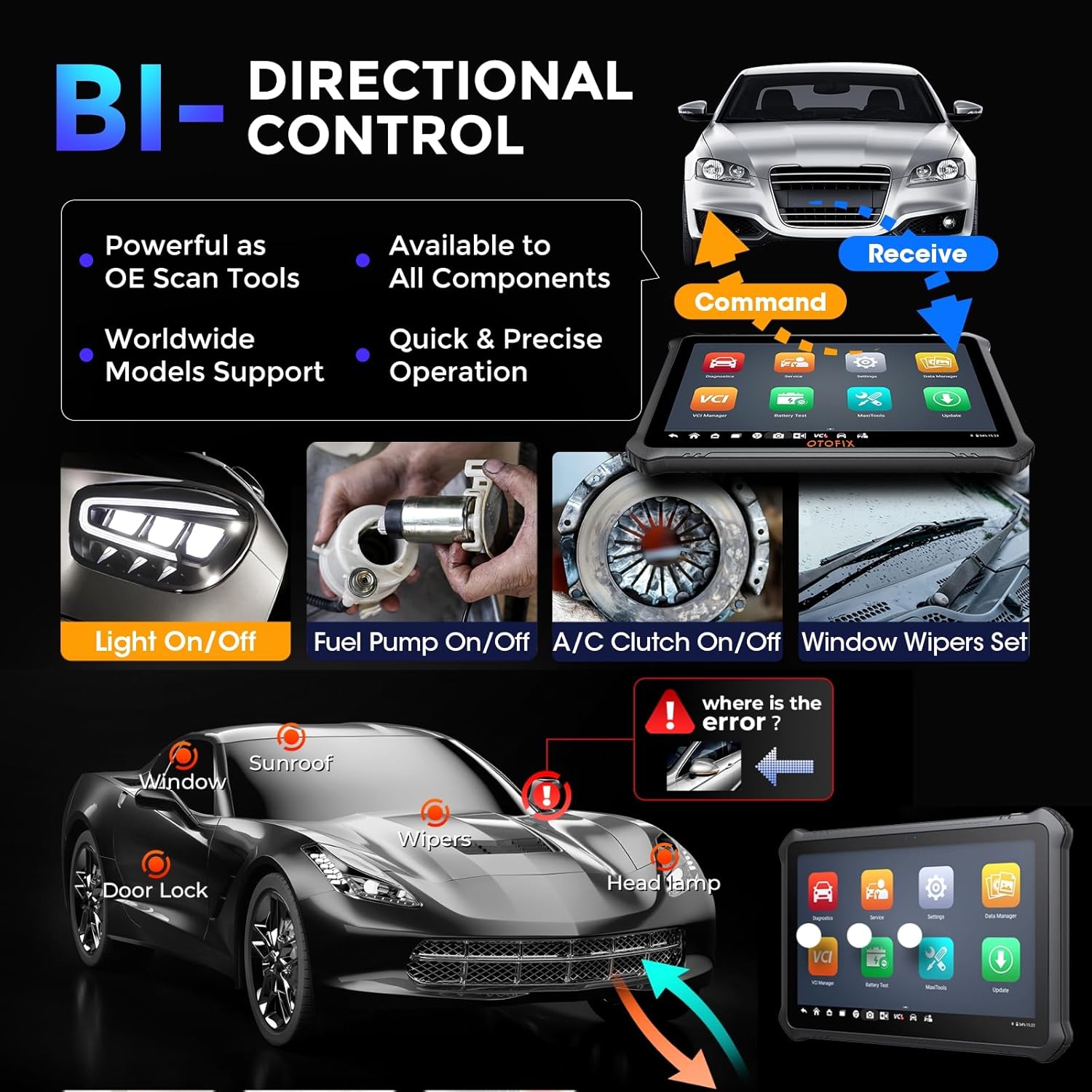

Image 6.1: Demonstration of bi-directional control, showing the scanner sending commands to vehicle components like lights, fuel pump, A/C clutch, and window wipers.

7. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your OTOFIX D1 Max scanner.

• సాఫ్ట్‌వేర్ అప్‌డేట్‌లు: Regularly update the software to ensure compatibility with new vehicle models and access to the latest features. The device includes 2 years of free updates.
• శుభ్రపరచడం: ఒక మృదువైన ఉపయోగించండి, డిamp టాబ్లెట్ స్క్రీన్ మరియు బాడీని శుభ్రం చేయడానికి వస్త్రాన్ని ఉపయోగించండి. రాపిడి క్లీనర్లు లేదా ద్రావకాలను నివారించండి.
• నిల్వ: Store the device in its carrying case in a cool, dry place when not in use. Avoid extreme temperatures.
• బ్యాటరీ సంరక్షణ: బ్యాటరీ ఆరోగ్యాన్ని కాపాడుకోవడానికి, పరికరం తరచుగా ఉపయోగంలో లేకపోయినా, బ్యాటరీని క్రమం తప్పకుండా ఛార్జ్ చేయండి.
• VCI Care: Keep the VCI clean and free from debris. Ensure the OBDII connector pins are not bent or damaged.

Image 7.1: Information regarding the included 2 years of free software updates, emphasizing cost savings.

8. ట్రబుల్షూటింగ్

This section provides solutions to common issues you might encounter with your OTOFIX D1 Max scanner.

8.1 సాధారణ సమస్యలు మరియు పరిష్కారాలు

• పరికరం ఆన్ చేయడం లేదు: Ensure the battery is charged. Connect the power adapter and try again. If the issue persists, contact support.
• VCI కనెక్ట్ కావడం లేదు: Check if the VCI is securely plugged into the vehicle's OBDII port. Ensure Bluetooth is enabled on the tablet and the VCI is paired. Restart both the tablet and the VCI.
• Unable to communicate with vehicle: Verify the vehicle's ignition is ON. Check the OBDII port for power. Ensure the vehicle model and year are correctly selected in the software. Try a different vehicle to rule out vehicle-specific issues.
• Software freezing/slow performance: Close unnecessary applications. Clear cache if available in settings. Ensure sufficient storage space. Perform a software update if available.
• డయాగ్నస్టిక్ ఫంక్షన్ పనిచేయడం లేదు: Ensure the vehicle supports the specific function. Some advanced functions may require specific vehicle conditions or procedures. Refer to the on-screen guided functions or vehicle service manual.

8.2 మద్దతును సంప్రదిస్తోంది

If you encounter issues that cannot be resolved using the troubleshooting steps above, please contact OTOFIX customer support. Provide detailed information about the problem, including any error messages, vehicle details, and steps taken to troubleshoot.

ఇమెయిల్: otofixaftersales-amz@outlook.com

Support is available Monday-Friday 9:00 AM - 6:00 PM EST, with 24/7 support available via email.

9. స్పెసిఫికేషన్లు

Detailed technical specifications for the OTOFIX D1 Max scanner.

10. వారంటీ మరియు మద్దతు

OTOFIX provides comprehensive support and warranty for the D1 Max scanner.

• వారంటీ: 1-year quality undertaking.
• సాఫ్ట్‌వేర్ అప్‌డేట్‌లు: 2 years of free software updates included.
• సాంకేతిక సహాయం: Lifetime technical assistance is available.
• రిటర్న్ పాలసీ: Hassle-free return policy within 30 days.
• కస్టమర్ సేవ: 24/7 support via email.

For any inquiries or support needs, please contact OTOFIX at otofixaftersales-amz@outlook.com.
