DROK DC 8-120V 0.02-100A 6-in-1 మల్టీ-మీటర్ యూజర్ మాన్యువల్

1. పరిచయం

The DROK DC 8-120V 0.02-100A 6-in-1 Multi-meter is a versatile device designed to monitor various electrical parameters of DC power systems. It provides real-time measurements of voltage, current, power, capacity, temperature, and run time, offering comprehensive insights into battery health and performance. This manual provides essential information for the safe and effective operation of your multi-meter.

Image 1: The DROK DC 8-120V 0.02-100A 6-in-1 Multi-meter, showing the display unit and the accompanying Hall sensor.

2. ఉత్పత్తి లక్షణాలు

• విస్తృత కొలత పరిధి: Supports DC voltage from 8V to 120V and current from 0.02A to 100A.
• బహుళ-ఫంక్షనల్ డిస్ప్లే: Simultaneously shows voltage, current, power, remaining capacity (AH and percentage), temperature, and run time.
• Clear LCD Interface: Features a 128x64 LCD for comprehensive and easy-to-read data.
• Broad Battery Compatibility: Suitable for various battery types including lead-acid, LiFePO4, and lithium-ion batteries.
• మన్నికైన నిర్మాణం: Made from high-quality industrial ABS material with a PVC flame-retardant casing for impact resistance and low-temperature tolerance.
• తక్కువ విద్యుత్ వినియోగం: Operates efficiently with 0.2W consumption with backlight on and 0.05W with backlight off.
• ఆటోమేటిక్ స్లీప్ ఫంక్షన్: Activates during low current conditions to conserve power.
• Non-contact Current Measurement: Utilizes a Hall sensor for safe and convenient current detection without direct wiring interruption.
• తక్కువ వాల్యూమ్tagఇ హెచ్చరిక: తక్కువ వాల్యూమ్ కోసం హెచ్చరికలను అందిస్తుందిtagఇ షరతులు.

Image 2: Visual representation of the multi-meter's key features, highlighting its low power consumption LCD, automatic sleep function, non-contact sensor measurement, 24-hour run time display, low voltage warning, and real-time capacity detection.

3. స్పెసిఫికేషన్లు

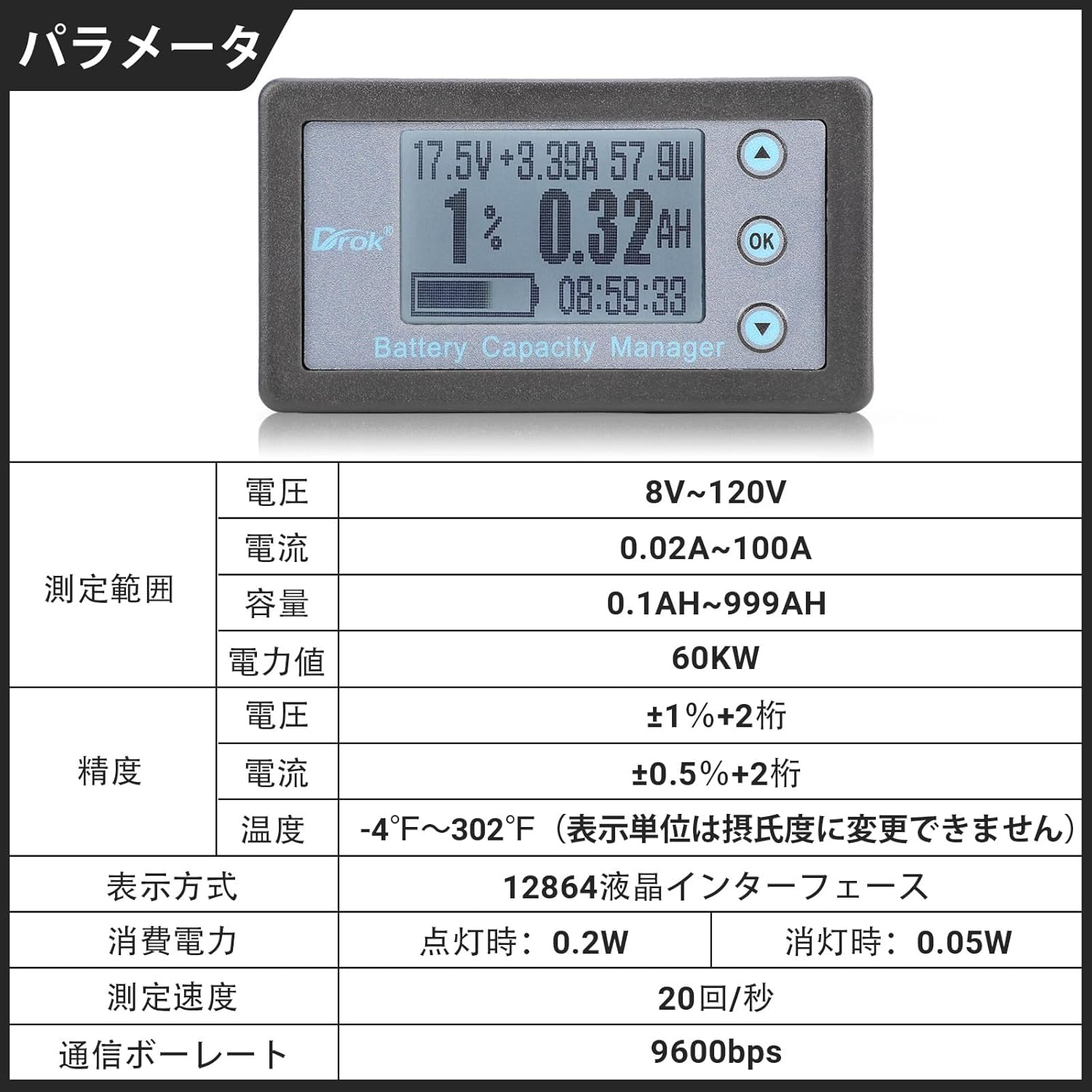

Image 3: Detailed technical specifications of the DROK multi-meter, including measurement ranges, accuracy, and display characteristics.

4. ప్యాకేజీ విషయాలు

ప్యాకేజీని తెరిచినప్పుడు, దయచేసి కింది అన్ని భాగాలు చేర్చబడ్డాయని నిర్ధారించుకోండి:

• 1x DROK DC 8-120V 0.02-100A Multi-meter Display Unit
• 1x Hall Sensor (100A)
• 1x 50cm Data Transfer Cable
• 1x 50cm H2.54 Red/Black Power Cable

Image 4: The multi-meter's main unit and Hall sensor dimensions, along with the included 50cm data transfer cable and 50cm red/black power cable.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is crucial for accurate measurements and safe operation. Follow the wiring diagram carefully.

1. Connect the Hall Sensor: Install the Hall sensor in series with the main DC power line between your battery and the load/charger. Ensure the arrow on the Hall sensor points in the direction of current flow from the battery to the load, or from the charger to the battery during charging.
2. Connect Sensor to Display: Use the provided 50cm data transfer cable to connect the Hall sensor to the display unit.
3. Power the Display Unit: Connect the 50cm H2.54 red/black power cable to the display unit. Connect the red wire to the positive (+) terminal of your battery (or a separate power source within the 8-120V range) and the black wire to the negative (-) terminal.
4. కనెక్షన్‌లను ధృవీకరించండి: Double-check all connections to ensure they are secure and correctly polarized before applying power.

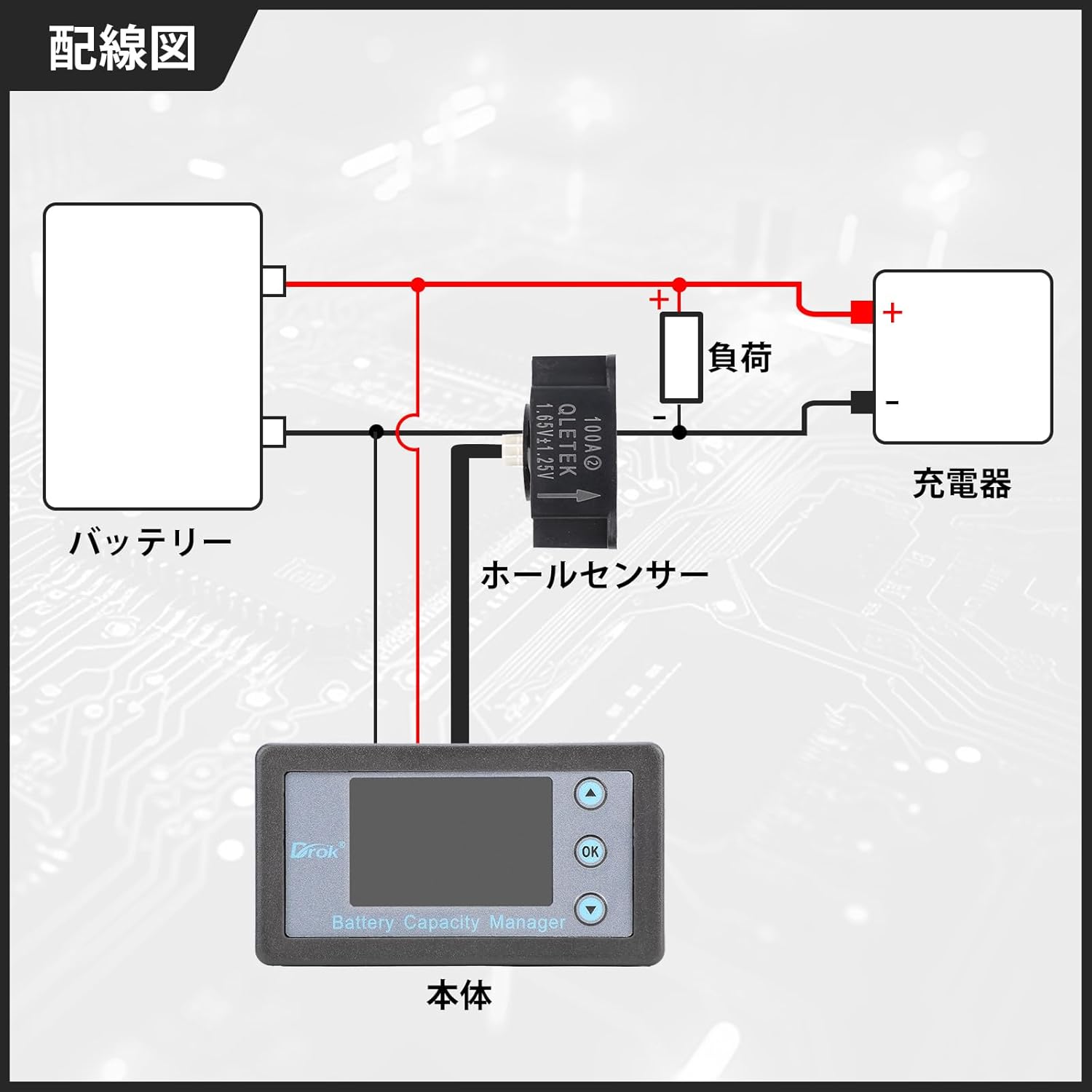

Image 5: Wiring diagram illustrating the connection of the multi-meter's display unit and Hall sensor to a battery, load, and charger. The Hall sensor is placed in the main current path, and the display unit is powered directly from the battery.

6. ఆపరేటింగ్ సూచనలు

Once properly installed and powered, the multi-meter will automatically display real-time measurements on its LCD screen.

6.1 డిస్ప్లే మోడ్‌లు

The multi-meter features a comprehensive display that shows multiple parameters simultaneously. The main screen typically includes:

• కొలిచిన వాల్యూమ్tagఇ (వి): ప్రస్తుత DC వాల్యూమ్‌ను ప్రదర్శిస్తుందిtage.
• Measured Current (A): Shows the current flowing through the Hall sensor.
• Real-time Power (W): Calculates and displays the instantaneous power consumption or generation.
• Remaining Capacity Percentagఇ (%): Indicates the estimated remaining battery capacity as a percentage.
• Remaining Capacity (AH): Shows the remaining battery capacity in Ampగంటల ముందు.
• రన్ టైమ్: Displays the accumulated operating time.
• ఉష్ణోగ్రత: Shows the ambient temperature (note: displayed in Fahrenheit only, not user-configurable to Celsius).
• Remaining Capacity Progress Bar: A visual indicator of battery charge level.

Image 6: The multi-meter's multi-function display, clearly labeling measured voltage, current, real-time power, remaining capacity percentage, remaining capacity in AH, run time, and a progress bar for battery level.

6.2 బటన్ విధులు

The display unit typically includes navigation buttons (Up, Down, OK) for potential settings adjustments or cycling through display modes. Refer to the on-screen prompts or a more detailed digital manual if available for specific button functionalities.

7. నిర్వహణ

To ensure the longevity and accurate performance of your DROK multi-meter, follow these general maintenance guidelines:

• శుభ్రపరచడం: డిస్‌ప్లేను శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి మరియు సిasing. రాపిడి క్లీనర్లు లేదా ద్రావకాలను నివారించండి.
• పర్యావరణ పరిస్థితులు: Operate and store the device within its specified temperature and humidity ranges. Avoid direct sunlight, extreme temperatures, and high moisture environments.
• కనెక్షన్లు: అన్ని వైరింగ్ కనెక్షన్లను బిగుతుగా మరియు అరిగిపోయిన లేదా తుప్పు పట్టిన సంకేతాల కోసం కాలానుగుణంగా తనిఖీ చేయండి.
• భౌతిక రక్షణ: Protect the device from physical shocks and impacts.

8. ట్రబుల్షూటింగ్

If you encounter issues with your multi-meter, consider the following troubleshooting steps:

• Display Flickering or Resetting: Ensure all power and data connections are secure. Verify that the input voltage is within the specified 8-120V range and stable. If the issue persists, it may indicate a device malfunction.
• సరికాని రీడింగ్‌లు: Check the Hall sensor installation, ensuring the arrow points in the correct current direction. Verify that the sensor is properly connected to the display unit.
• Temperature Display in Fahrenheit Only: This device displays temperature in Fahrenheit (℉) by default. There is no user-configurable option to change the unit to Celsius (℃).
• No Display/Backlight: Check the power cable connection to the display unit and ensure the power source is active and within the voltagఇ పరిధి.

ఈ దశల ద్వారా పరిష్కారం కాని నిరంతర సమస్యల కోసం, దయచేసి కస్టమర్ మద్దతును సంప్రదించండి.

9. అప్లికేషన్ దృశ్యాలు

The DROK 6-in-1 Multi-meter is suitable for a wide range of applications, including but not limited to:

• Monitoring battery status in electric bikes and scooters.
• Testing and monitoring solar panel power generation systems.
• Use in research and student experiments for electrical parameter analysis.
• Electronic maintenance and DIY electronics projects.

చిత్రం 7: ఉదాamples of diverse applications for the multi-meter, including electric bikes, solar panel monitoring, scientific research, and electronic maintenance.

10. వారంటీ మరియు మద్దతు

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, product inquiries, or assistance with troubleshooting, please reach out to DROK customer service or the seller from whom you purchased the product. Contact details can typically be found on the product packaging or the seller's official webసైట్.
