EENOUR గోల్ఫ్ రేంజ్‌ఫైండర్ మినీ యూజర్ మాన్యువల్

1. ఉత్పత్తి ముగిసిందిview

The EENOUR Golf Rangefinder Mini is a compact and advanced laser range finder designed for golf and hunting. It features a unique red and green self-illuminated OLED display for clear visibility in various lighting conditions, high accuracy measurements within 0.06 seconds, and intelligent slope compensation. Its durable aluminum alloy shell provides IP54 waterproof protection, and the device is powered by a long-lasting rechargeable battery.

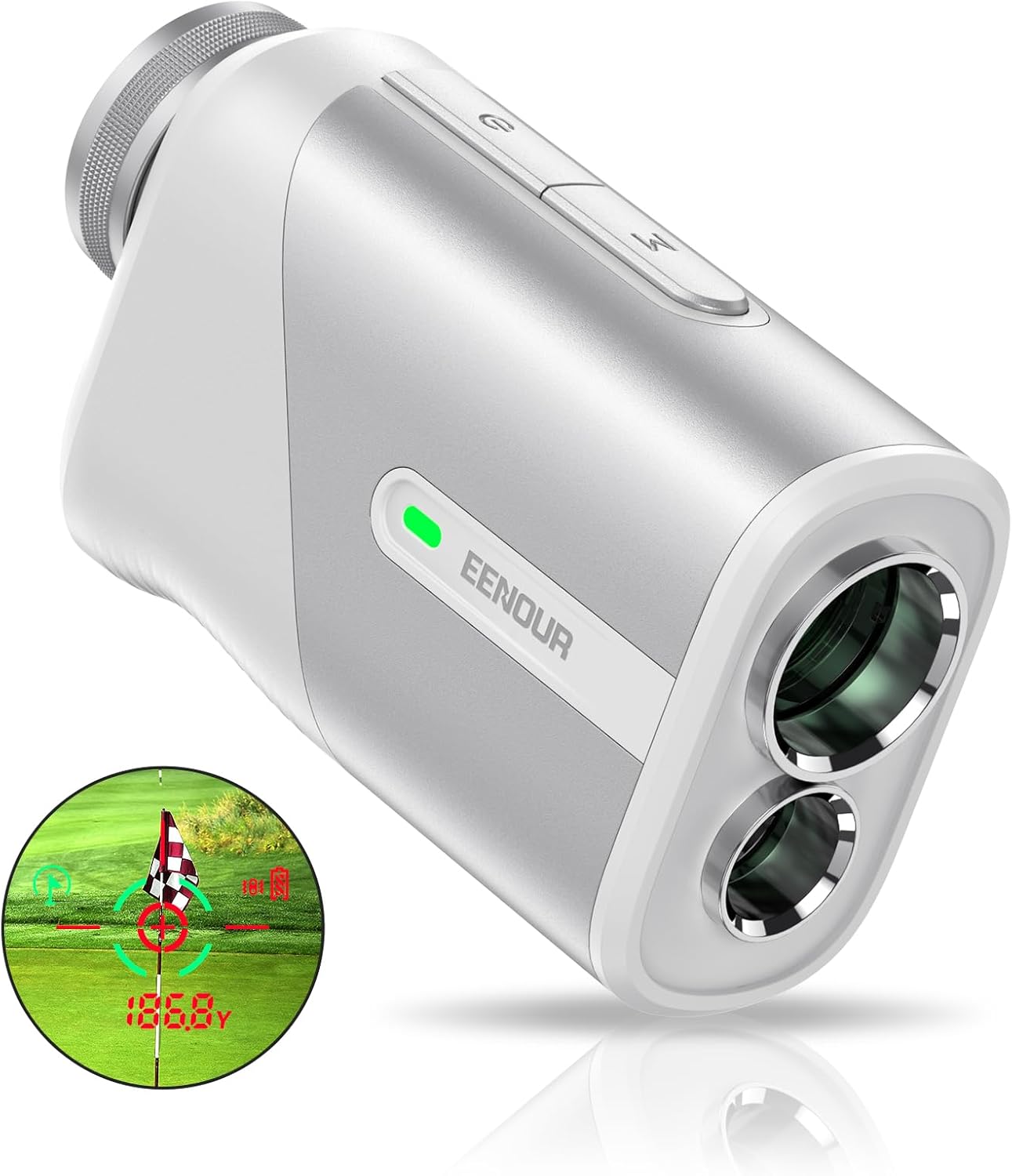

The EENOUR Golf Rangefinder Mini, showcasing its compact design and dual display capability.

ఒక ఓవర్view of the rangefinder's comprehensive features, including Flagpole Lock, Slope Compensation, Continuous Scan, Horizontal & Vertical Display, Speed Measurement, Vibration Confirmation, Ergonomic Design, and 6X Magnification.

2. ప్రారంభించడం: సెటప్

2.1 బ్యాటరీని ఛార్జ్ చేయడం

The EENOUR Golf Rangefinder Mini is equipped with a 650mAh rechargeable Lithium-Ion battery. Before first use, ensure the device is fully charged.

• పరికరంలో USB-C ఛార్జింగ్ పోర్ట్‌ను గుర్తించండి.
• Connect the provided Type-C cord to the rangefinder and a compatible USB power source (e.g., computer, wall adapter).
• The charging indicator light will show the charging status. A full charge supports approximately 20,000 measurements.

Details the long-lasting 650mAh rechargeable battery, supporting USB-C charging and providing up to 20,000 measurements on a full charge, with automatic turn-off for power saving.

2.2 పవర్ ఆన్/ఆఫ్

• To power on: Briefly press the power button (usually marked with a power symbol). The display will illuminate.
• To power off: The device will automatically turn off after a period of inactivity to conserve battery. You can also manually power off by holding the power button.

2.3 ప్రదర్శన సెట్టింగ్‌లు

The rangefinder features a unique red and green OLED display with adjustable brightness levels.

• Refer to the on-screen menu or specific button presses (usually the 'M' or Mode button) to cycle through brightness levels (1-4 levels).
• The red and green display ensures clear visibility in both bright sunlight and low-light conditions.

Illustrates the superior clarity and readability of the EENOUR rangefinder's red and green OLED display compared to traditional LCD screens, especially in varying light conditions.

3. ఆపరేటింగ్ సూచనలు

3.1 ప్రాథమిక కొలత (ఒకే కొలత)

• ఐపీస్ ద్వారా చూసి, మీకు కావలసిన లక్ష్యం వైపు క్రాస్‌హైర్‌లను గురిపెట్టండి.
• Press the power/measurement button briefly. The distance will be displayed almost instantly (within 0.06 seconds).

Demonstrates the rapid measurement capability of the rangefinder, achieving simple measurements in 0.06 seconds and flagpole locking in 0.46 seconds.

3.2 Continuous Scan Mode

This mode allows for continuous measurement as you pan across multiple targets.

• Activate scan mode (refer to your device's specific button for mode selection, usually the 'M' button).
• Press and hold the measurement button while sweeping the rangefinder across the landscape. The display will update distances in real-time.

Depicts the continuous scan mode, allowing users to quickly identify distances to various obstacles or targets across the golf course, ensuring accurate swings.

3.3 Intelligent Slope Compensation (Golf Mode)

This feature calculates the adjusted distance based on uphill or downhill terrain, providing a more accurate 'play as' distance for golf.

• Ensure slope mode is activated (check the display for an indicator, often a 'flag' or 'slope' icon).
• Measure your target as usual. The display will show both the actual distance and the slope-compensated distance.

Illustrates the Intelligent Slope Compensation (ID) Technology, which calculates and displays the slope-adjusted distance for uphill or downhill shots, in addition to the actual distance.

3.4 Flag Locking with Vibration

This mode helps to lock onto the flagpole, ignoring background objects, and provides a vibration confirmation.

• In golf mode, aim at the flagpole. The rangefinder will identify the closest object (the flag) using its First Target Priority algorithm.
• Once locked, the device will vibrate, confirming the measurement to the flag.

Explains the 'Lock on what you want' feature, utilizing a First Target Priority algorithm to accurately display the distance to the closest subject when multiple objects are in view.

3.5 Speed Measurement (Hunting Mode)

The rangefinder can also measure the speed of moving objects.

• Switch to speed measurement mode (consult your manual for specific mode selection).
• Aim at the moving object and press the measurement button. The speed will be displayed. For best accuracy, measure from the front of the moving object.

Highlights the versatility of the rangefinder beyond golf, demonstrating its utility for measuring distance and speed in hunting and archery scenarios.

3.6 యూనిట్ మార్పు

The rangefinder can display measurements in yards or meters.

• To switch units, typically press and hold the 'Mode' button or a dedicated unit button until the unit changes on the display.

4. నిర్వహణ

4.1 లెన్స్‌లను శుభ్రపరచడం

• Use the provided lens cloth or a soft, clean microfiber cloth to gently wipe the lenses.
• Avoid using abrasive materials or harsh chemicals, which can damage the lens coatings.
• మొండి మరకల కోసం, ఆప్టిక్స్ కోసం రూపొందించిన లెన్స్ క్లీనింగ్ సొల్యూషన్‌ను కొద్ది మొత్తంలో లెన్స్‌కు నేరుగా కాకుండా వస్త్రానికి పూయవచ్చు.

4.2 సాధారణ శుభ్రపరచడం

• రేంజ్‌ఫైండర్ బాడీని మృదువైన, d తో తుడవండి.amp గుడ్డ.
• Do not submerge the device in water. While it is IP54 waterproof, meaning it is protected against dust and splashing water, it is not designed for submersion.

Showcases the fine craftsmanship and durability of the rangefinder, including its IP54 waterproof rating, making it suitable for outdoor use in light rain or fog.

4.3 నిల్వ

• Store the rangefinder in its protective bag when not in use.
• ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా, చల్లని, పొడి ప్రదేశంలో ఉంచండి.

5. ట్రబుల్షూటింగ్

If you encounter issues with your EENOUR Golf Rangefinder Mini, please refer to the following common solutions:

• పరికరం ఆన్ చేయడం లేదు: Ensure the battery is fully charged. If the issue persists, try charging with a different USB-C cable and power source.
• సరికాని రీడింగ్‌లు: Ensure the lenses are clean and free from smudges. Make sure you are in the correct measurement mode for your target (e.g., golf mode for flag locking). Environmental factors like heavy fog or rain can affect accuracy.
• Display not clear: Adjust the brightness settings of the OLED display. Ensure the eyepiece is properly focused for your vision.
• వైబ్రేషన్ ఫీడ్‌బ్యాక్ లేదు: Check if the vibration feature is enabled in the settings (if applicable). Ensure the device is properly locked onto the target.

For further assistance, please contact EENOUR customer support.

6. స్పెసిఫికేషన్లు

7. వారంటీ మరియు మద్దతు

7.1 వారంటీ సమాచారం

The EENOUR Golf Rangefinder Mini comes with a 1 సంవత్సరాల వారంటీ కొనుగోలు చేసిన తేదీ నుండి. ఈ వారంటీ తయారీ లోపాలను కవర్ చేస్తుంది మరియు సాధారణ ఉపయోగంలో ఉత్పత్తి ఉద్దేశించిన విధంగా పనిచేస్తుందని నిర్ధారిస్తుంది. వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.

7.2 కస్టమర్ మద్దతు

For any questions, technical support, or warranty inquiries, please refer to the official EENOUR webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. మీరు సమగ్రమైన వాటిని కూడా చూడవచ్చు. వినియోగదారు గైడ్ (PDF) మరింత వివరణాత్మక సమాచారం కోసం.

8. ప్యాకేజీ విషయాలు

Upon opening your EENOUR Golf Rangefinder Mini package, you should find the following items:

• EENOUR Golf Rangefinder Mini (U1000PRO White)
• ప్రొటెక్టివ్ క్యారీయింగ్ బ్యాగ్
• టైప్-సి ఛార్జింగ్ కార్డ్
• లెన్స్ క్లీనింగ్ క్లాత్
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)

A display of the EENOUR rangefinder packaged with its accessories, including a bag, Type-C cord, lens cloth, and manual.
