STRICH Guitar Pedalboard Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

The STRICH MINI+15 Guitar Pedalboard is designed for musicians seeking a compact, lightweight, and durable solution for organizing their guitar effects pedals. Constructed from a robust, ultralight aluminum alloy, this pedalboard offers excellent portability and stability. Its unique angled design allows for convenient placement of various sized power supplies underneath, while the ergonomic tilt ensures comfortable pedal access during use. The MINI+15 accommodates up to 8 standard-sized effects pedals or more smaller ones, making it versatile for different setups. It comes with a simple storage bag for easy transportation.

Figure 1: The STRICH MINI+15 Guitar Pedalboard, including the pedalboard itself, a carry bag, hook-and-loop fasteners, and cable ties. Several effects pedals are shown mounted on the board for illustration.

2. సెటప్ మరియు అసెంబ్లీ

Setting up your STRICH MINI+15 pedalboard is straightforward. The board is designed for quick and secure attachment of your effects pedals, built with high-quality, durable materials.

Figure 2: The STRICH pedalboard features a solid and high-quality construction from thickened aluminum alloy, ensuring durability and stability for your effects pedals.

2.1 పెడల్స్ అటాచ్ చేయడం

1. Prepare the Pedalboard: Ensure the pedalboard surface is clean and free of debris.
2. Apply Hook-and-Loop Fasteners: The pedalboard is compatible with hook-and-loop straps. Apply the loop side of the fastener to the pedalboard's top surface. Apply the hook side to the bottom of your effects pedals. Ensure firm adhesion for both.
3. Position Pedals: Carefully place your effects pedals onto the pedalboard, pressing down firmly to engage the hook-and-loop fasteners. Arrange them according to your preferred signal chain and accessibility.

Figure 3: Effects pedals securely mounted on the STRICH pedalboard, demonstrating an organized layout for tone control.

2.2 Cable Management and Power Supply

The STRICH MINI+15 features a hollow design, allowing for efficient cable routing and power supply placement underneath the board. This helps maintain a neat and tidy setup.

• విద్యుత్ సరఫరా స్థానం: The elevated design provides space to mount various sizes of effects power supplies underneath the board. Secure your power supply using appropriate mounting solutions (not included).
• కేబుల్ రూటింగ్: Route your patch cables and power cables through the hollow sections of the pedalboard. Use the included cable ties to bundle and secure cables, preventing tangles and ensuring a clean appearance.

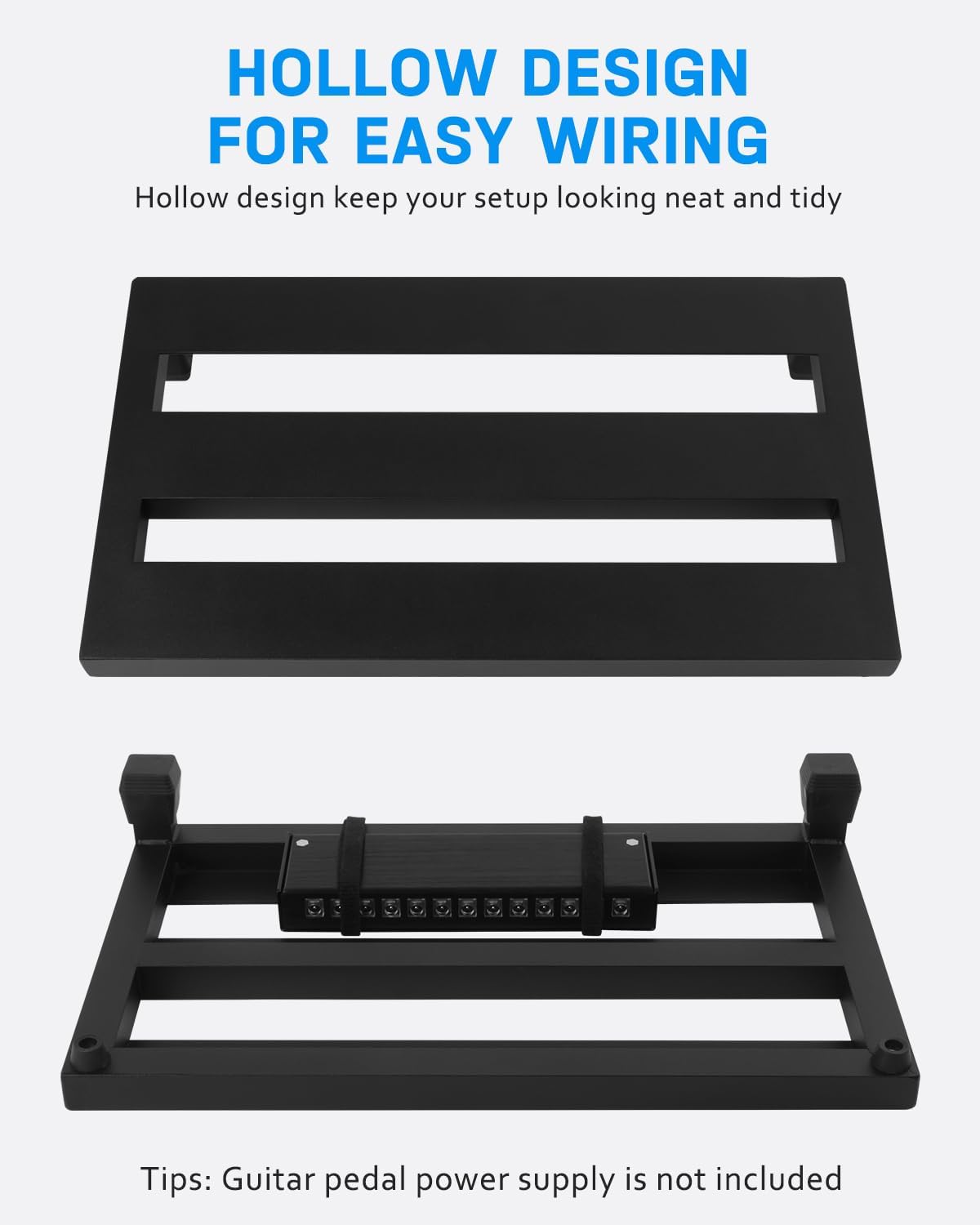

Figure 4: The hollow design of the STRICH pedalboard, illustrating how cables and power supplies can be neatly managed underneath for a clean setup. Note: Guitar pedal power supply is not included.

3. Operation and Portability

The STRICH MINI+15 pedalboard is designed for ease of use and transport, whether for practice, studio, or live performances.

• ఎర్గోనామిక్ డిజైన్: The pedalboard features an optimal tilt angle, making it comfortable to access and engage your effects pedals during performance.
• స్థిరత్వం: The sturdy aluminum alloy construction and non-slip feet ensure the pedalboard remains stable on various surfaces, preventing movement during use.
• రవాణా: Once your pedals are securely mounted and wired, the entire setup can be easily placed into the included carry bag. The bag is designed to protect your equipment during transport.

Figure 5: Details of the high-quality gig bag, designed to securely hold the pedalboard and attached pedals, ensuring protection and ease of transport.

4. నిర్వహణ

To ensure the longevity and optimal performance of your STRICH MINI+15 pedalboard, follow these simple maintenance guidelines:

• శుభ్రపరచడం: Wipe the pedalboard surface with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp గుడ్డను ఉపయోగించవచ్చు, ఆ తర్వాత వెంటనే ఆరబెట్టవచ్చు. రాపిడి క్లీనర్లు లేదా ద్రావకాలను నివారించండి.
• నిల్వ: When not in use, store the pedalboard in its carry bag to protect it from dust, moisture, and physical damage. Store in a cool, dry place.
• తనిఖీ: Periodically check the integrity of the hook-and-loop fasteners and the stability of the rubber feet. Ensure all components are secure.

5. ట్రబుల్షూటింగ్

The STRICH MINI+15 pedalboard is a passive accessory and typically does not require complex troubleshooting. Most issues are related to the effects pedals or power supply mounted on it.

• Pedals Not Functioning:
  • Verify that all patch cables are securely connected between pedals and to your instrument/ampజీవితకాలం.
  • Ensure your power supply is correctly connected to all pedals and receiving power.
  • Check the individual power requirements of each pedal and ensure your power supply meets them.
• Pedalboard Instability:
  • Ensure the rubber feet are properly attached and not worn.
  • Place the pedalboard on a flat, stable surface.
• Loose Pedals:
  • Re-apply or replace the hook-and-loop fasteners if they lose their adhesive strength.
  • Ensure the hook and loop sides are clean and free of debris for maximum grip.

If you encounter persistent issues not covered here, please refer to the Warranty and Support section for contact information.

6. స్పెసిఫికేషన్లు

Figure 6: Detailed dimensions and weight of the STRICH MINI+15 pedalboard, indicating its compact and lightweight design.

7. వారంటీ మరియు మద్దతు

STRICH is committed to providing high-quality products and excellent customer service. Your STRICH MINI+15 pedalboard comes with a warranty and dedicated support.

• వారంటీ వ్యవధి: STRICH provides support for up to 12 months from the date of purchase.
• కస్టమర్ కేర్: We value customer feedback and strive to offer superior products. For any inquiries, technical assistance, or warranty claims, please contact STRICH customer support.
• రిటర్న్ పాలసీ: A 30-day free return policy is available.

Figure 7: STRICH Customer Care Policy, highlighting quick response, 12-month warranty service, and a 30-day return policy.

For further assistance, please visit the official STRICH store on Amazon: STRICH Amazon Store
