Oneach AMZ-T523

Oneach 27-inch Modern Table Lamps (2 సెట్లు)

Model: AMZ-T523 - Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

Thank you for choosing the Oneach 27-inch Modern Table Lamps. This set of two elegant lamps features a brushed steel base, a fabric drum shade, and integrated USB A and USB C charging ports for convenience. Designed for versatility, these lamps are suitable for various rooms including living rooms, bedrooms, and offices.

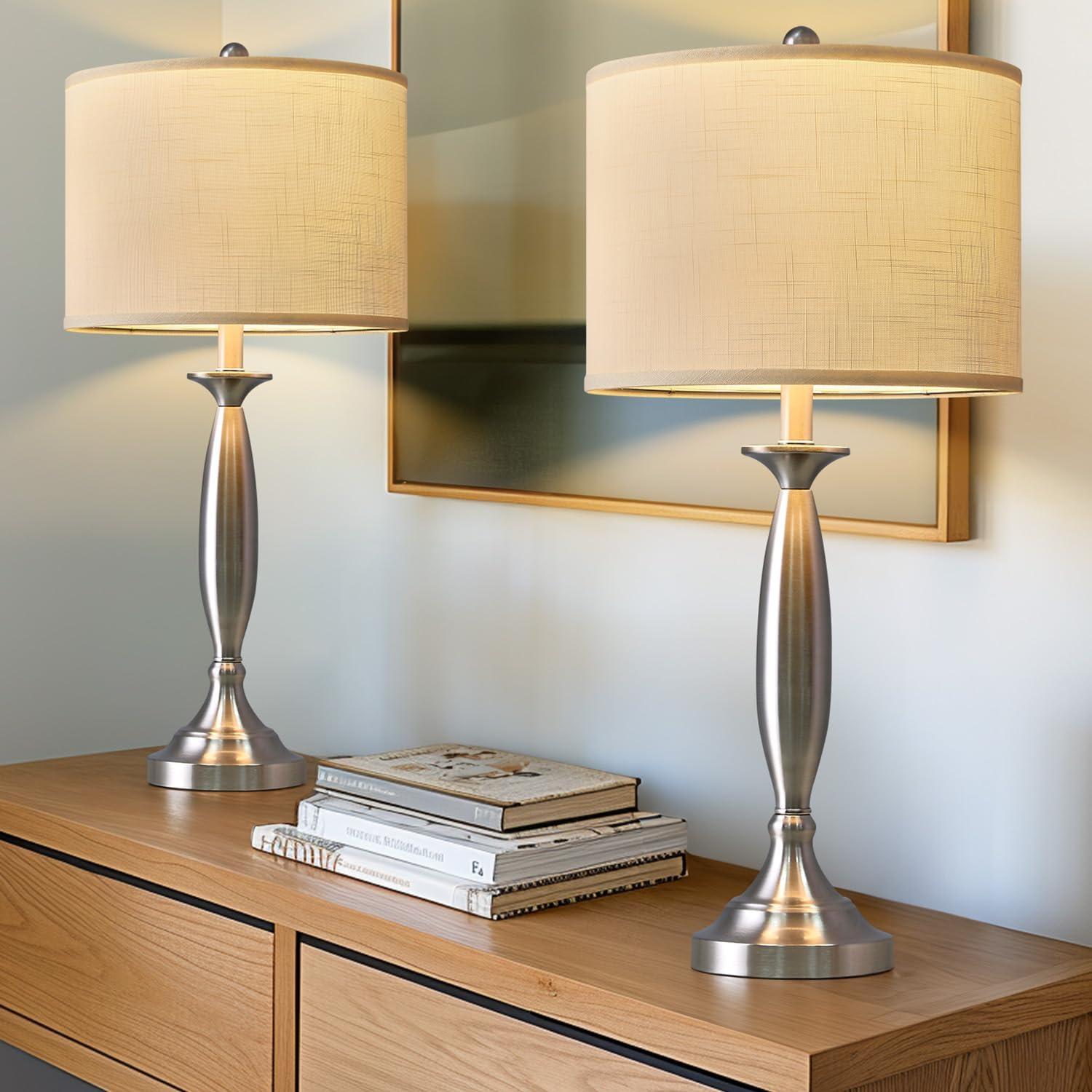

Two Oneach modern table lamps with brushed steel bases and fabric shades on a wooden console table.

Image 1: The Oneach 27-inch Modern Table Lamps (Set of 2) on a console table.

2. ప్యాకేజీ విషయాలు

గమనిక: Light bulbs are not included. These lamps require E26 base bulbs, up to 60W.

3. సెటప్ సూచనలు

  1. భాగాలను అన్‌ప్యాక్ చేయండి: ప్యాకేజింగ్ నుండి అన్ని భాగాలను జాగ్రత్తగా తొలగించండి. సెక్షన్ 2లో జాబితా చేయబడిన అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి.
  2. ఎల్‌ను సమీకరించండిamp నీడ: ఫాబ్రిక్ ఎల్amp shade comes unassembled. Connect the metal rings to the fabric shade using the clips provided. Ensure the shade is taut and evenly shaped.
  3. Attach the Harp: Secure the harp (the U-shaped wire frame) to the saddle on the lamp base. Squeeze the two ends of the harp together to fit them into the saddle.
  4. బల్బును అమర్చండి: Screw an E26 base light bulb (not included, max 60W) into the lamp సాకెట్.
  5. Place the Shade: Position the assembled lamp shade onto the harp. The top ring of the shade should rest on the harp.
  6. Secure with Finial: Screw the finial (decorative cap) onto the threaded rod at the top of the harp to secure the lamp స్థానంలో నీడ.
  7. శక్తికి కనెక్ట్ చేయండి: ఎల్ ఉంచండిamp on a stable, flat surface. Plug the power cord into a standard electrical outlet.
Close-up of the brushed steel base of the Oneach table lamp, showing the rotary switch and USB charging ports.

చిత్రం 2: l యొక్క క్లోజప్amp base with rotary switch and USB ports.

4. ఆపరేటింగ్ సూచనలు

4.1 Turning the Lamp ఆన్/ఆఫ్

ఎల్‌ని తిప్పడానికిamp ఆన్ లేదా ఆఫ్ చేయడానికి, l పై ఉన్న రోటరీ స్విచ్‌ని ఉపయోగించండి.amp base. Rotate the switch clockwise to turn the light on, and counter-clockwise to turn it off.

4.2 Using the USB Charging Ports

ప్రతి ఎల్amp base is equipped with one USB-A (5V/2A) and one USB-C (5V/2A) charging port. These ports allow you to charge your electronic devices, such as mobile phones, tablets, e-readers, and other USB-powered gadgets, even when the lamp కాంతి ఆఫ్ చేయబడింది.

Oneach table lamp with a smartphone connected to its USB charging port, placed on a bedside table.

చిత్రం 3: ఎల్amp in use, charging a mobile device via its USB port.

5. నిర్వహణ

5.1 శుభ్రపరచడం

5.2 బల్బ్ భర్తీ

6. ట్రబుల్షూటింగ్

సమస్యసాధ్యమైన కారణంపరిష్కారం
Lamp ఆన్ చేయదు.
  • Lamp ప్లగ్ ఇన్ చేయలేదు.
  • బల్బ్ వదులుగా ఉంది లేదా కాలిపోయింది.
  • పవర్ అవుట్‌లెట్ పనిచేయడం లేదు.
  • పవర్ కార్డ్ లైవ్ అవుట్‌లెట్‌లోకి సురక్షితంగా ప్లగ్ చేయబడిందని నిర్ధారించుకోండి.
  • లైట్ బల్బును బిగించండి లేదా భర్తీ చేయండి.
  • మరొక పరికరంతో అవుట్‌లెట్‌ని పరీక్షించండి లేదా వేరే అవుట్‌లెట్‌ని ప్రయత్నించండి.
USB charging ports are not working.
  • Lamp ప్లగ్ ఇన్ చేయలేదు.
  • Device charging cable is faulty.
  • Device is incompatible or requires more power.
  • l ని నిర్ధారించుకోండిamp is plugged into a live electrical outlet.
  • వేరే ఛార్జింగ్ కేబుల్‌ని ప్రయత్నించండి.
  • Verify device compatibility and power requirements.
Lamp shade appears crooked or unstable.
  • Harp not properly seated.
  • Finial is loose.
  • Shade not assembled correctly.
  • Re-seat the harp firmly into the saddle.
  • Tighten the finial securely.
  • Disassemble and reassemble the shade, ensuring all clips are engaged.

7. స్పెసిఫికేషన్లు

ఫీచర్వివరాలు
బ్రాండ్ఒనాచ్
మోడల్ సంఖ్యAMZ-T523 ద్వారా
ఉత్పత్తి కొలతలు13"డి x 13"వా x 27.75"హ
వస్తువు బరువు8.23 pounds (per lamp)
మెటీరియల్Metal (Base), Linen Fabric (Shade)
ముగింపు రకంబ్రష్డ్ స్టీల్
నీడ రంగులేత గోధుమరంగు
బల్బ్ బేస్E26
మాక్స్ వాట్tage60W (బల్బ్ చేర్చబడలేదు)
స్విచ్ రకంరోటరీ స్విచ్
USB పోర్ట్‌లు1 x USB-A (5V/2A), 1 x USB-C (5V/2A)
శక్తి మూలంకార్డెడ్ ఎలక్ట్రిక్
ఇండోర్/అవుట్‌డోర్ వినియోగంఇండోర్

8. వారంటీ మరియు మద్దతు

The Oneach 27-inch Modern Table Lamps come with a 1-year warranty from the date of purchase, covering manufacturing defects. For warranty claims, technical support, or any inquiries regarding your product, please contact Oneach customer service.

వారంటీ ధ్రువీకరణ కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
