1. పరిచయం
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your new AXLAHA Headlight Assembly. Please read this manual thoroughly before installation and use to ensure proper function and safety.
ఉత్పత్తి ముగిసిందిview
The AXLAHA Headlight Assembly is designed as a direct replacement for the original headlights on compatible Ford Ranger models. It features a black housing, amber reflector, and clear lens, providing enhanced visibility and a refreshed appearance for your vehicle.

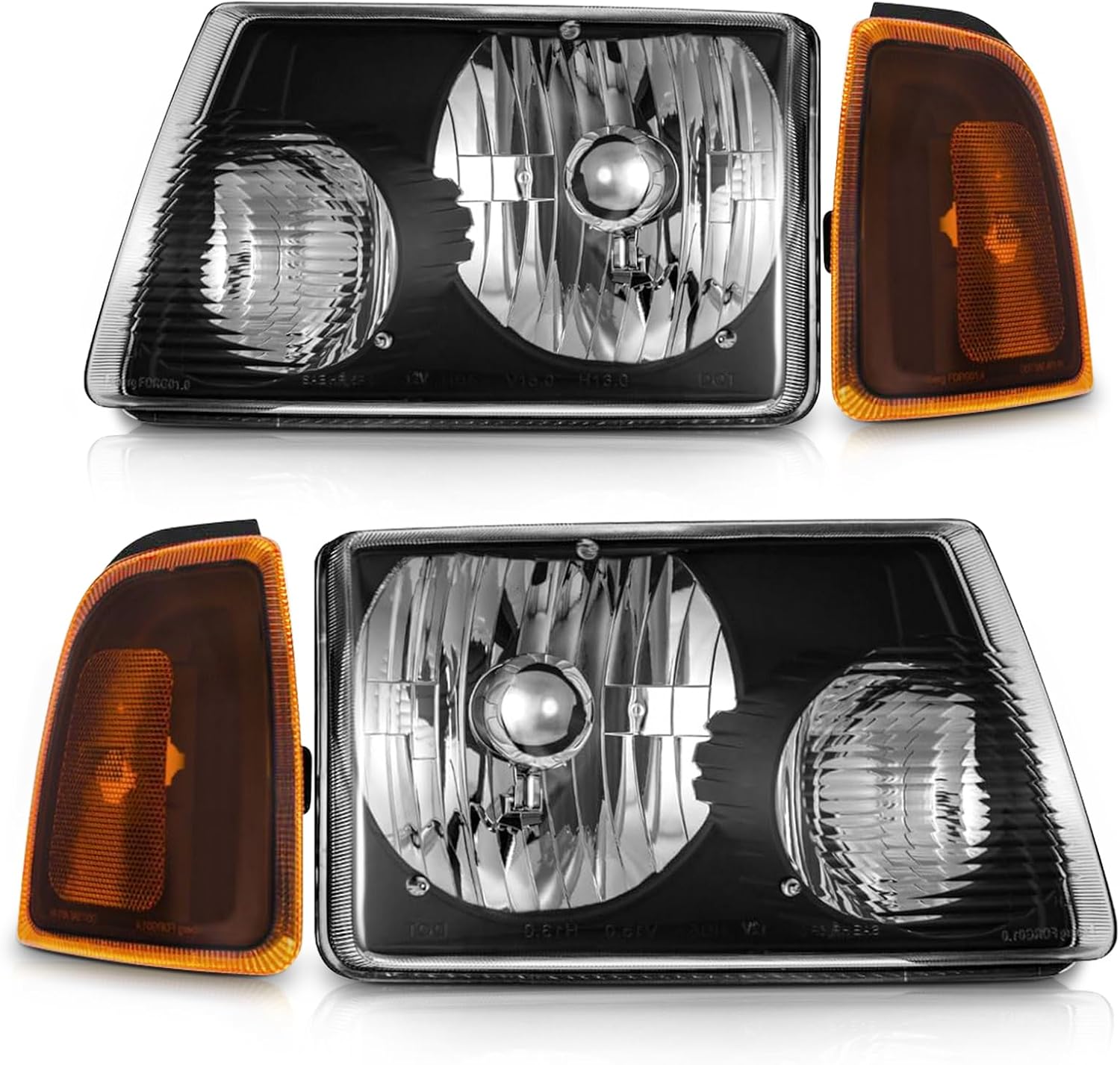

Image 1.1: AXLAHA Headlight Assembly (Driver and Passenger Side)
వాహన అనుకూలత
- Compatible with 2001-2011 Ford Ranger models.
- High/Low Beam Bulb Type: HB5 (Bulbs are not included).
- Turn Signal Beam Type: 3157A (Bulbs are not included).
2. సెటప్ మరియు ఇన్స్టాలేషన్
The AXLAHA Headlight Assembly features a plug-and-play design for straightforward installation. No complex techniques or drilling are typically required. It is recommended to have basic automotive repair knowledge or seek professional assistance for installation.
Verifying Vehicle Fitment
Before installation, ensure the headlights are compatible with your specific vehicle model and year. Refer to the following steps for verification:
Image 2.1: Guide for verifying vehicle compatibility.
సంస్థాపనా దశలు
- తయారీ: Ensure the vehicle is turned off and the battery is disconnected for safety. Gather necessary tools (e.g., screwdriver, wrench).
- పాత హెడ్లైట్లను తొలగించండి: Carefully unbolt and disconnect the wiring from the existing headlight assemblies.
- కొత్త హెడ్లైట్లను ఇన్స్టాల్ చేయండి: Position the new AXLAHA headlight assembly into the vehicle's housing. Secure it with the appropriate bolts.
- వైరింగ్ కనెక్ట్ చేయండి: Reconnect the electrical wiring harness to the new headlight assembly. Ensure all connections are secure.
- పరీక్ష కార్యాచరణ: Reconnect the battery and test the high beam, low beam, and turn signal functions before fully reassembling any removed body panels.
Image 2.2: Illustrative image of headlight installation.
3. ఆపరేటింగ్ సూచనలు
The AXLAHA Headlight Assembly provides reliable illumination for safe driving. The high-quality reflecting bowls and reflectors are designed to increase brightness, making your vehicle more visible to oncoming traffic.
Headlight Components
చిత్రం 3.1: ముందు view highlighting the Turn Signal Light, High/Low Beam, and Safety Reflector. Note: HB5 bulbs are not included.
Adjusting Headlight Beam
The headlight assembly includes an adjuster mechanism, allowing you to fine-tune the light beam direction as needed for optimal visibility and to avoid blinding other drivers. After installation, it is recommended to check and adjust the beam alignment.
Image 3.2: Detail of the headlight adjuster, indicating vertical adjustment capability.
Night Driving Visibility
Properly installed and adjusted headlights significantly improve visibility during night driving, enhancing safety for you and others on the road.
Image 3.3: Visual representation of improved road illumination with effective headlights.
4. నిర్వహణ
To ensure the longevity and optimal performance of your AXLAHA Headlight Assembly, follow these maintenance guidelines:
వాతావరణ నిరోధకత
The headlights are designed with an IP65 waterproof level and excellent sealing to prevent water accumulation and ensure reliable operation in various environmental conditions, including rain, snow, and dust.
Image 4.1: Headlight assembly demonstrating resistance to water, snow, and dust.
UV Coating Protection
Each AXLAHA headlight is covered with a UV coating. This coating is crucial for preventing aging, yellowing, and fogging of the lens over time, maintaining clear visibility and the aesthetic appeal of your vehicle.
Image 4.2: Visual explanation of the UV coating's protective layers.
క్లీనింగ్
Clean the headlight lenses regularly with a soft cloth and mild soap solution. Avoid abrasive cleaners or harsh chemicals that could damage the UV coating or lens material.
5. ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your headlight assembly.
సాధారణ సమస్యలు మరియు పరిష్కారాలు
- Issue: Weak or Scattered Beam Pattern
పరిష్కారం: This can often be resolved by adjusting the headlight beam. Use the integrated adjuster to fine-tune the light direction. Ensure bulbs are correctly seated and are of the recommended HB5 type. If the issue persists, consider consulting a professional for alignment or checking the bulb quality. - Issue: Headlights Not Turning On
పరిష్కారం: Check all electrical connections to ensure they are secure. Verify that the bulbs are correctly installed and not burnt out. Inspect the vehicle's fuses related to the headlights. - Issue: Moisture Inside the Headlight
పరిష్కారం: While the headlights are IP65 waterproof, minor condensation can sometimes occur due to temperature changes. This usually dissipates on its own. If significant water accumulation occurs, check for proper sealing and ensure the vent caps (if present) are not blocked.
తరచుగా అడిగే ప్రశ్నలు
Image 5.1: Common questions and answers about the product.
- Q1: Does it come as a pair?
A: Yes, the product typically includes both driver and passenger side headlight assemblies. - Q2: Does it come with bulbs?
A: No, bulbs are not included. You will need HB5 bulbs for high/low beam and 3157A bulbs for turn signals. - Q3: How to adjust the headlight?
A: After customers receive our product, we will send them a care email with a specific guide to adjust the headlights. Refer to Image 3.2 for the adjuster location.
6. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | AXLAHA |
| వాహన సేవా రకం | 2001-2011 ఫోర్డ్ రేంజర్ |
| ఆటో పార్ట్ స్థానం | ముందు భాగం వెలుపల |
| రంగు స్వరూపం | Black Housing, Amber Reflector, Clear Lens |
| High/Low Beam Bulb Type | HB5 (Bulbs Not Included) |
| Turn Signal Bulb Type | 3157A (Bulbs Not Included) |
| లెన్స్ మెటీరియల్ | పాలికార్బోనేట్ |
| ప్రత్యేక లక్షణాలు | Dustproof, Waterproof (IP65), UV Coating |
| వస్తువు బరువు | 5.59 పౌండ్లు |
| ప్యాకేజీ కొలతలు | 15 x 13.5 x 9.5 అంగుళాలు |
| తయారీదారు పార్ట్ నంబర్ | AX-FRG0001885 |
| OEM పార్ట్ నంబర్లు | 6L5Z 13008 AA, 6L5Z 13008 BA, 5L 6L5Z-15A201BA, 5L 6L5Z-15A201AA |
| UPC | 784529187663 |
Image 6.1: Visual summary of product description and specifications.
7. వారంటీ సమాచారం
AXLAHA stands behind the quality of its products. This headlight assembly comes with a 2 సంవత్సరాల వారంటీ from the date of purchase. This warranty covers manufacturing defects and ensures product performance and durability under normal use.
For any warranty claims or issues, please contact our customer service team with your purchase details.
8. కస్టమర్ మద్దతు
Our dedicated after-sales service team is available to assist you with any questions, concerns, or issues you may encounter with your AXLAHA Headlight Assembly. We aim to resolve issues promptly.
సంప్రదింపు సమాచారం
- కస్టమర్ సర్వీస్ ఇమెయిల్: info@axlaha.com / service@axlaha.com
ఉత్పత్తి వీడియో
Watch this video for a detailed look at the 2001-2011 Ford Ranger Headlight Assembly.
వీడియో 8.1: ముగిసిందిview of the 2001-2011 Ford Ranger Headlight Assembly by TopAutoGear.
