1. పరిచయం
Thank you for choosing the Amico 4 Inch 5CCT Ultra-Thin LED Recessed Ceiling Light. This product is designed for easy installation and offers versatile lighting options for various indoor spaces. Please read this manual thoroughly before installation and operation to ensure proper use and safety.
ముఖ్య లక్షణాలు:
- 5 Selectable Color Temperatures (5CCT): Choose between 2700K (Soft White), 3000K (Warm White), 3500K (Neutral White), 4000K (Cool White), and 5000K (Daylight) using a switch on the junction box.
- స్మూత్ డిమ్మింగ్: Compatible with most dimmers, allowing brightness adjustment from 5% to 100%.
- IC రేట్ చేయబడింది: Approved for direct contact with insulation, ensuring thermal protection and safety.
- శక్తి సామర్థ్యం: 10W LED consumes significantly less power than traditional 60W halogen lamps, providing 800 lumens of brightness.
- అల్ట్రా-సన్నని డిజైన్: Requires minimal ceiling space (as small as 2 inches).
- Damp-Rated: Suitable for installation in various indoor environments, including bathrooms and kitchens.
2. ముఖ్యమైన భద్రతా సమాచారం
హెచ్చరిక: Risk of fire or electric shock. Installation requires knowledge of luminaires electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
- ఇన్స్టాలేషన్ లేదా సర్వీసింగ్ చేసే ముందు సర్క్యూట్ బ్రేకర్ వద్ద విద్యుత్తును డిస్కనెక్ట్ చేయండి.
- Ensure all electrical connections are made in accordance with local codes and ordinances, as well as the National Electric Code (NEC).
- Do not alter or modify the wiring or electrical components of this product.
- This product is IC Rated, meaning it is safe for direct contact with insulation.
- The product is ETL and FCC certified, ensuring compliance with safety and quality standards.
- Do not use with smart dimmers.
3. ప్యాకేజీ విషయాలు
ప్రతి ప్యాకేజీ కింది అంశాలను కలిగి ఉంటుంది:
- Amico 4 Inch Ultra-Thin LED Recessed Light (24 units)
- Junction Box (24 units)
- ఇన్స్ట్రక్షన్ మాన్యువల్
Image: A complete set of 24 Amico 4-inch ultra-thin LED recessed lights, each with its own junction box, as included in the package.
4. ఉత్పత్తి లక్షణాలు
| బ్రాండ్ | అమికో |
| మోడల్ పేరు | HS-STCP509WH |
| పరిమాణం | 4 అంగుళాలు |
| రంగు ఉష్ణోగ్రత | 2700K/3000K/3500K/4000K/5000K Selectable (5CCT) |
| ప్రకాశం | 800 ల్యూమెన్స్ |
| వాట్tage | 10W (Equivalent to 60W Halogen) |
| మసకబారిన | అవును (5%-100%) |
| IC రేట్ చేయబడింది | అవును |
| Damp-రేట్ చేయబడింది | అవును |
| జీవితకాలం | 50,000 గంటలు |
| ఉత్పత్తి కొలతలు | 4.72"లీ x 4.72"వా x 0.59"హ |
| సూచించబడిన రంధ్రం కటౌట్ పరిమాణం | 4.33 అంగుళాలు |
| మెటీరియల్ | మెటల్, ప్లాస్టిక్ |
| సంస్థాపన రకం | సీలింగ్-మౌంటెడ్ |
| ధృవపత్రాలు | ETL, FCC |
Image: Detailed dimensions of the Amico 4-inch recessed light and its junction box, including the advised 4.33-inch hole cutout size.
Image: Display of ETL, FCC, and IC certifications, along with a 5-year warranty badge, indicating product reliability.
5. ఇన్స్టాలేషన్ గైడ్
This recessed light features a canless design, eliminating the need for a separate housing. It is suitable for various ceiling types, including soffit, single drywall, and double drywall.
- దశ 1: ఒక రంధ్రం కత్తిరించండి
Using a hole saw, cut a 4.33-inch diameter hole in the desired ceiling location. Ensure there is at least 2 inches of clearance above the ceiling for the junction box. - దశ 2: వైరింగ్ను కనెక్ట్ చేయండి
Open the junction box. Connect the household electrical wires (live, neutral, ground) to the corresponding wires inside the junction box using appropriate wire connectors. Ensure all connections are secure. - Step 3: Connect Light Panel
Connect the cable from the LED light panel to the junction box. Ensure the connection is firm. - దశ 4: మౌంట్ లైట్
Push the spring-loaded clips on the sides of the LED light panel upwards and insert the light into the ceiling hole. The clips will secure the light firmly against the ceiling.

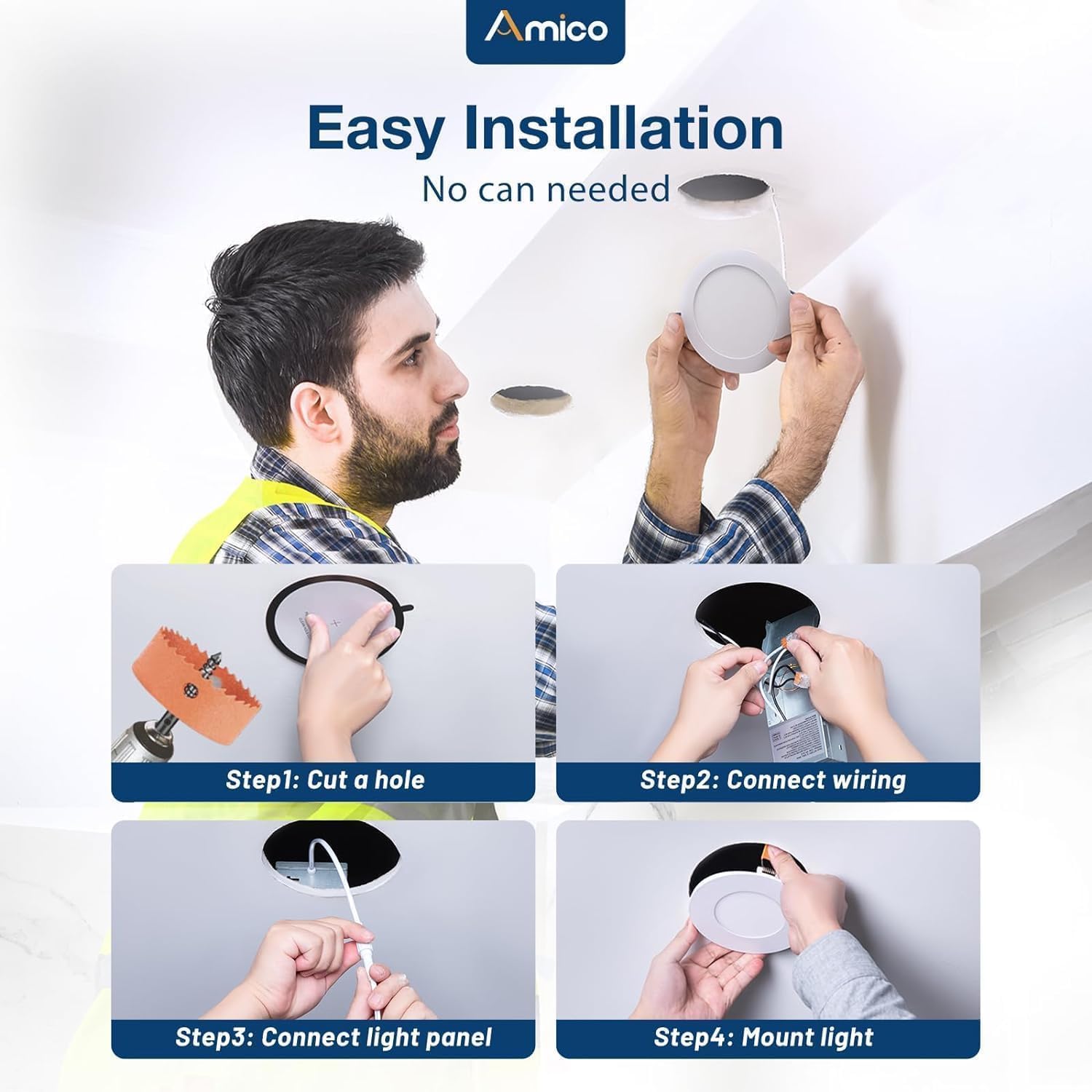

Image: A four-step visual guide demonstrating the easy installation process: cutting a hole, connecting wiring, connecting the light panel, and mounting the light.
Image: Illustration showing the adaptability of the recessed light for different ceiling thicknesses, including soffit (0.12"), single drywall (0.37"), and double drywall (0.75").
6. ఆపరేషన్
Color Temperature Selection (5CCT)
The Amico recessed light offers five color temperature options. To select your desired color temperature:
- Locate the slide switch on the side of the junction box.
- Slide the switch to choose between 2700K, 3000K, 3500K, 4000K, or 5000K.
- Make your selection before mounting the junction box in the ceiling for easier access.
Image: Visual representation of the 5CCT feature, showing how different color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) can create distinct ambiances in various room settings like bedrooms, bathrooms, living rooms, and kitchens.
Image: A living room illuminated with different color temperatures, demonstrating the 5CCT selectable feature from 2700K to 5000K.
డిమ్మింగ్ ఫంక్షన్
The light is dimmable from 5% to 100% with most standard dimmers. To adjust brightness:
- Ensure you are using a compatible dimmer switch (refer to the list below for common compatible models).
- కావలసిన ప్రకాశం స్థాయిని సాధించడానికి డిమ్మర్ స్విచ్ని సర్దుబాటు చేయండి.
- గమనిక: This light is not compatible with smart dimmers.
Image: Illustration showing the stepless dimming capability of the Amico recessed light, adjustable from 5% to 100% brightness, and a list of compatible dimmer models from Lutron and Leviton.
Image: A visual slider demonstrating the dimmable range of the Amico recessed light, from 5% to 100% brightness, in a living room setting.
Compatible Dimmers List:
The following is a list of commonly compatible dimmer models. This list is not exhaustive.
| బ్రాండ్ | మోడల్ |
|---|---|
| అమికో | DM150W |
| లుట్రాన్ | AYCL-153P |
| CLDVSL-153P-WH | |
| CT-600P | |
| CTCL-153P | |
| DVCL-153P | |
| MACL-153M | |
| లెవిటన్ | 1G44I1 |
| IPL06 | |
| 6672-1LW | |
| DSL06 | |
| DSM10-decora | |
| PD-6WCL |
7. నిర్వహణ
The Amico LED recessed light is designed for long-lasting performance with minimal maintenance.
- శుభ్రపరచడం: Ensure power is disconnected before cleaning. Wipe the light fixture with a soft, dry, or slightly damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించవద్దు.
- వేడి వెదజల్లడం: The light is constructed with metal components for efficient heat dissipation, contributing to its long lifespan.
- వినియోగదారుకు సేవ చేయదగిన భాగాలు లేవు: There are no user-serviceable parts inside the fixture. Do not attempt to open or repair the light.
Image: Diagram illustrating the safety and durability features, highlighting the metal construction for effective heat dissipation, which extends the product's lifespan.
8. ట్రబుల్షూటింగ్
If you encounter issues with your Amico recessed light, refer to the following common problems and solutions:
- లైట్ ఆన్ అవ్వదు:
• Check if the power supply is connected correctly at the circuit breaker.
• Verify all wire connections in the junction box are secure.
• Ensure the light panel is properly connected to the junction box. - Light flickers or buzzes:
• Ensure you are using a compatible dimmer switch. Incompatible dimmers can cause flickering or buzzing.
• This product is designed for 'No Flicker & No Noise' operation with compatible dimmers. - తప్పు రంగు ఉష్ణోగ్రత:
• Check the 5CCT slide switch on the side of the junction box and adjust it to your desired setting.
Image: A visual representation emphasizing the 'No Flicker & No Noise' feature of the Amico recessed light, ensuring a comfortable lighting experience.
9. వారంటీ మరియు మద్దతు
వారంటీ సమాచారం
This Amico LED Recessed Ceiling Light comes with a 5 సంవత్సరాల వారంటీ కొనుగోలు చేసిన తేదీ నుండి. ఈ వారంటీ సాధారణ ఉపయోగంలో మెటీరియల్స్ మరియు పనితనంలో లోపాలను కవర్ చేస్తుంది.
The warranty does not cover damage caused by improper installation, misuse, accidents, alterations, or unauthorized repairs.
కస్టమర్ మద్దతు
For technical assistance, warranty claims, or any questions regarding your Amico product, please contact the manufacturer's customer support. Refer to the product packaging or the official Amico webసంప్రదింపు వివరాల కోసం సైట్.
