ARRMA Big Rock 6S BLX 1/7 Monster Truck Instruction Manual

పరిచయం

This manual provides essential information for the safe and effective operation, maintenance, and setup of your ARRMA Big Rock 6S BLX 1/7 Monster Truck. Please read all instructions carefully before use to ensure proper function and longevity of your vehicle.

The ARRMA Big Rock 6S BLX 1/7 Monster Truck in white.

భద్రతా సమాచారం

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property, and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

పెట్టెలో ఏముంది

• BIG ROCK 6S 4WD BLX 1/7 Monster Truck RTR White

పూర్తి చేయడానికి అవసరం (చేర్చబడలేదు)

The ARRMA Big Rock 6S BLX is a Ready-to-Run (RTR) vehicle, but requires additional components to operate:

• LiPo Batteries: 1 Lithium Polymer battery is required. The battery tray maximum dimensions are L:158mm / 6.22 in, W:48mm / 1.89 in, H:70mm / 2.75 in.
• ఛార్జర్: A compatible charger for LiPo batteries is required.

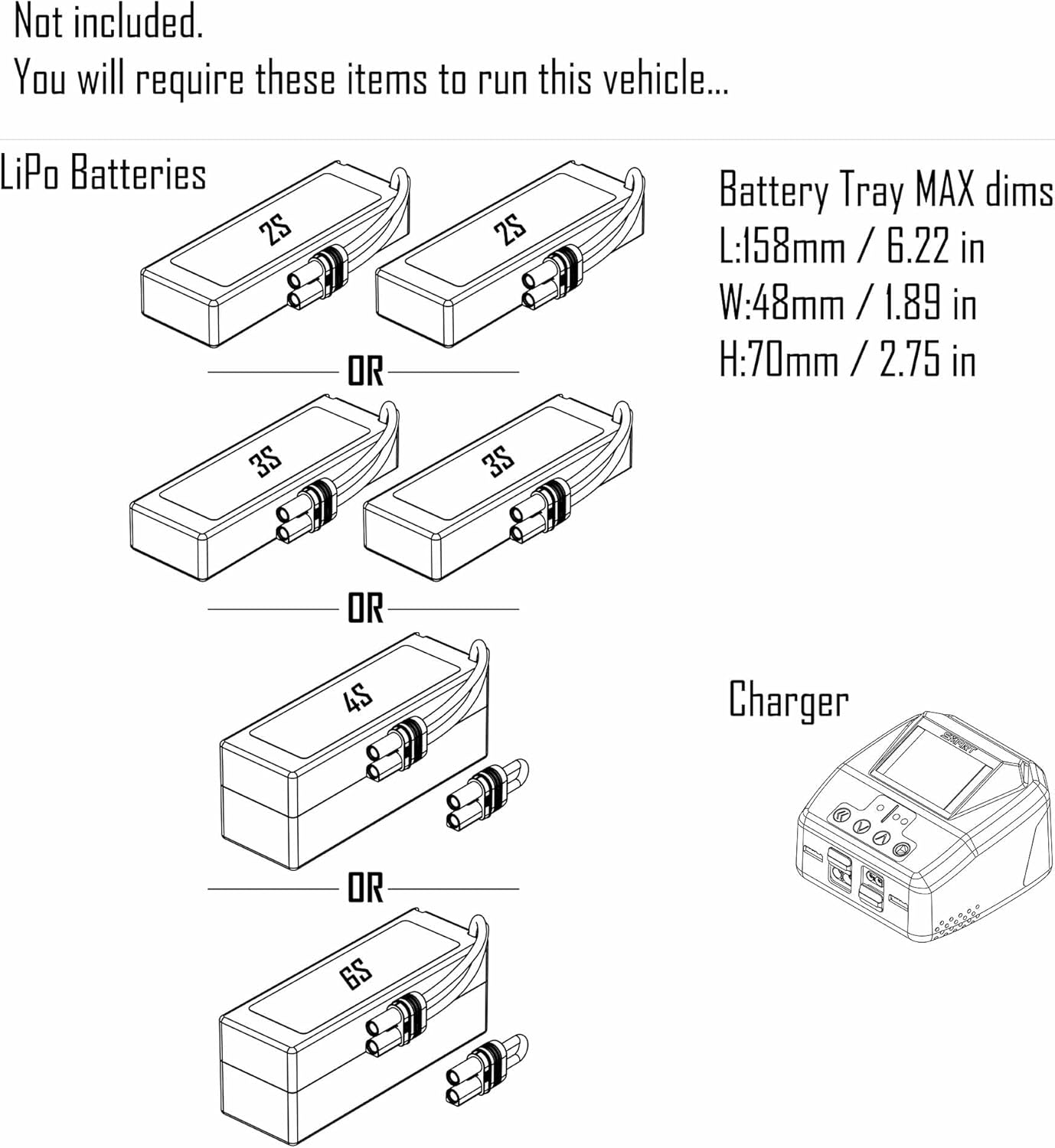

Illustration of required LiPo batteries and charger, with battery tray dimensions.

ఫీచర్లు

The ARRMA Big Rock 6S BLX is engineered for high-speed, all-terrain performance and durability. Key features include:

• Fully assembled and ready-to-run.
• Detailed scale looks with factory-finished body color choices.
• Updated 6S LiPo capable Spektrum™ brushless power system.
• Black chassis components and electronics for aggressive stealth style.
• Easy-to-use clipless front body mount system to preserve scale looks.
• Integrated roll hoop and bed for bash-ready ARRMA® toughness.
• Powerful Spektrum S665 steel gear waterproof steering servo.
• Updated Spektrum Firma™ 150A V2 Smart ESC.
• Spektrum SLT3™ 3-channel 2.4GHz radio with SR315 DSMR® receiver.
• Black anodized aluminum chassis and shock towers.
• Oil-filled black anodized adjustable shocks.
• Strong composite chassis side pods.
• Center body support and brace for maximum durability.
• Heavy-duty drivetrain with all-metal diff outdrives and gearbox internals.
• Durable steel driveshafts throughout.
• dBoots® RAGNAROK™ V2 vented tires with tough off-road tread pattern and five-spoke wheels.
• Super-durable wheel hubs.

సెటప్

Your ARRMA Big Rock 6S BLX is largely pre-assembled. Follow these general steps for initial setup:

1. బ్యాటరీ ఇన్‌స్టాలేషన్: Ensure your LiPo batteries are fully charged. Securely install them into the battery tray, observing the maximum dimensions (L:158mm / 6.22 in, W:48mm / 1.89 in, H:70mm / 2.75 in).
2. ట్రాన్స్మిటర్ సెటప్: Install 4 AA batteries into the Spektrum SLT3™ 3-channel 2.4GHz radio. Power on the transmitter, then the vehicle. Ensure proper binding between the transmitter and the SR315 DSMR® receiver.
3. ముందస్తు తనిఖీలు: Verify all screws are tight and components are secure. Check the steering and throttle response. Adjust steering trim if necessary to ensure the wheels are straight when the steering wheel is centered.

పై నుండి క్రిందికి view of the ARRMA Big Rock 6S BLX chassis.

ఆపరేటింగ్

The ARRMA Big Rock 6S BLX is designed for extreme bashing and high-speed action. It is capable of speeds exceeding 65 mph with appropriate LiPo batteries and the optional speed pinion.

• Driving Environment: This monster truck is suitable for various terrains including dirt, grass, and rocky trails.
• నియంత్రణ: The Spektrum SLT3™ radio system with SR315 DSMR® receiver provides precise control.
• శక్తి వ్యవస్థ: The updated 6S LiPo capable Spektrum™ brushless power system delivers immense power.

The Big Rock 6S BLX performing on various terrains.

నిర్వహణ

Regular maintenance ensures optimal performance and extends the lifespan of your ARRMA Big Rock 6S BLX.

• Chassis and Drivetrain: The black anodized aluminum chassis, all-metal diff outdrives, and durable steel driveshafts are built for toughness. Regularly inspect for wear and tear, especially after heavy bashing.
• షాక్‌లు: The oil-filled black anodized adjustable shocks require periodic inspection for leaks and proper dampఅవసరమైతే షాక్ ఆయిల్‌ను తిరిగి నింపండి లేదా భర్తీ చేయండి.
• టైర్లు: dBoots® RAGNAROK™ V2 vented tires provide excellent off-road grip. Check for punctures or excessive wear and replace when necessary.
• ఎలక్ట్రానిక్స్: Keep the Spektrum™ brushless power system and other electronics clean and free from debris.

Details of the shock absorber and tire for maintenance reference.

ట్రబుల్షూటింగ్

If you encounter issues with your ARRMA Big Rock 6S BLX, consider the following general troubleshooting steps:

• శక్తి లేదు: Check battery connections, ensure batteries are charged, and verify the power switch on the ESC is in the ON position.
• నియంత్రణ కోల్పోవడం: Re-bind the transmitter and receiver. Check for any interference or damaged antenna wires.
• తగ్గిన పనితీరు: Inspect the motor and ESC for overheating. Check for debris in the drivetrain or damaged gears. Ensure tires are properly inflated and not excessively worn.
• అసాధారణ శబ్దాలు: Immediately stop operation and inspect the drivetrain, gears, and motor for any foreign objects or damaged parts.

For more detailed troubleshooting, refer to the full product manual available on the ARRMA webసైట్ లేదా కస్టమర్ సపోర్ట్‌ని సంప్రదించండి.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

The ARRMA Big Rock 6S BLX comes with a 2-Year limited warranty. For full details, please refer to the warranty information on the official ARRMA website. For technical support, parts, or further assistance, please visit the ARRMA support page or contact Horizon Hobby, LLC directly.
