The DYNAVIN D9-DMI Ultra Flex is an advanced Android car radio navigator designed to upgrade your in-car entertainment and navigation experience. It features a 6.5-inch high-resolution anti-glare touchscreen, integrated GPS navigation, wireless CarPlay, and Android Auto compatibility. This unit seamlessly integrates with your vehicle's existing systems, including steering wheel controls, climate control, and parking sensors, for a cohesive user experience.

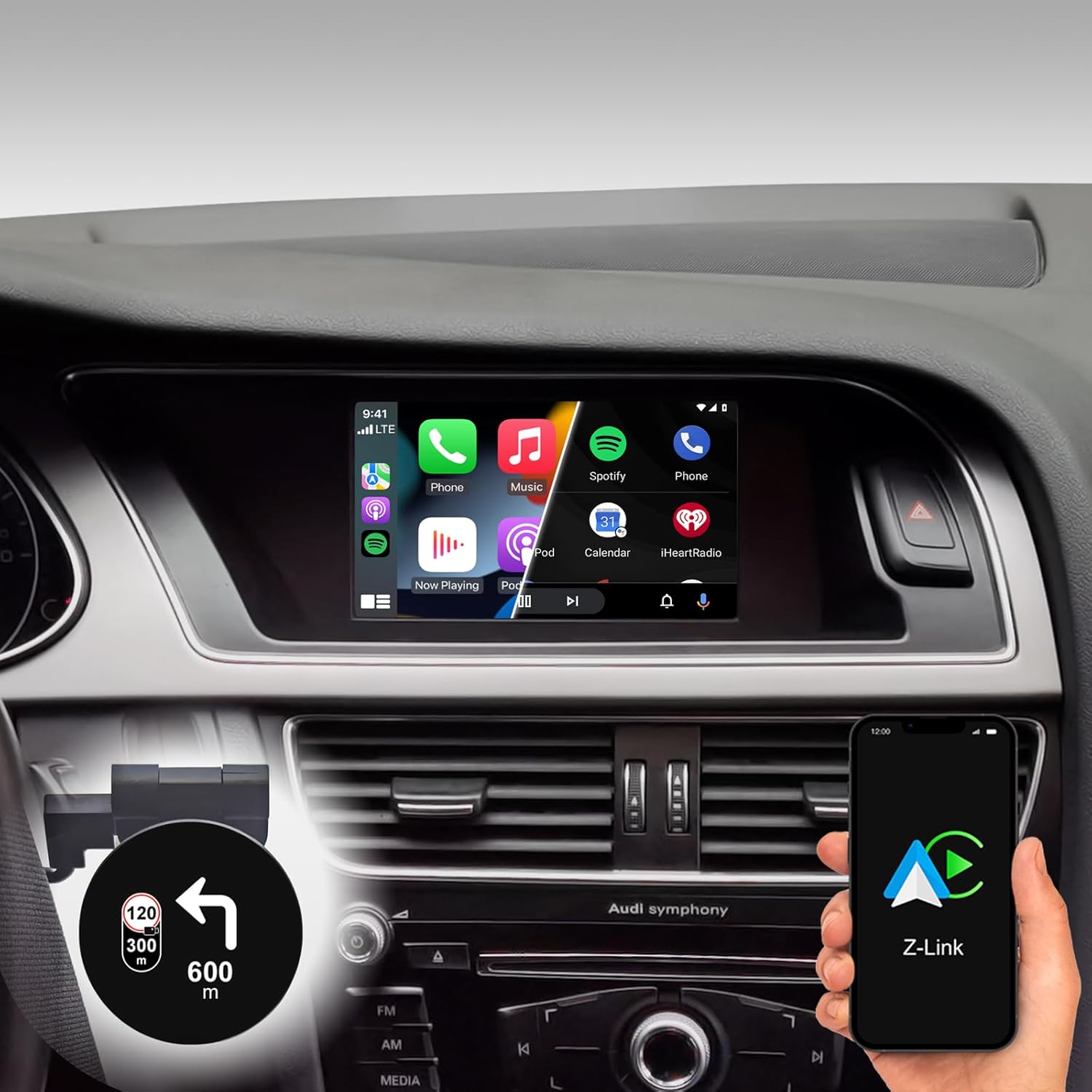

Figure 1: DYNAVIN D9-DMI Ultra Flex Car Radio Navigator installed in an Audi dashboard, showcasing its CarPlay interface and integration with navigation features.
అనుకూలత
This Android Navi Radio is specifically designed for Audi vehicles equipped with a Concert or Symphony radio. Please verify your vehicle's radio type before installation to ensure compatibility.
- ఆడి A4: 2007 – 2015
- ఆడి A5: 2007 – 2016
- Audi Q5: 2008 – 2017
- Audi S4: 2009 – 2016
- Audi S5: 2009 – 2016
The unit is compatible with the original AUDI sound system and can receive the AUDI vehicle menu.
Figure 2: Compatible Audi Concert and Symphony radio units.
Figure 3: How to check your car's system version for compatibility.
కీ ఫీచర్లు
- ప్రదర్శన: 6.5-inch high-resolution (1024 x 600 pixels) anti-glare touchscreen.
- ఆపరేటింగ్ సిస్టమ్: Android 11 OS with quad-core CPU and 4 GB RAM.
- కనెక్టివిటీ: Wireless CarPlay, Android Auto, and Smartphone Mirroring.
- నావిగేషన్: Integrated GPS navigation with Dynaway app (31-day trial, activation code required), including speed camera information.
- ఆడియో: Highly sensitive FM-RDS tuner with 15 presets for clear, noise-free playback. Supports audio streaming via smartphone/USB.
- మైక్రోఫోన్: Compact digital dual microphone with noise reduction for excellent call quality.
- ఇంటిగ్రేషన్: Integrated CANBUS solution for seamless control via steering wheel, air conditioning display, and parking sensor information.
- Head-up Display (HUD): Included HUD shows navigation directions, vehicle speed, and speed camera alerts.
- Dynapp Pack: Access to Google Playstore, third-party app installation, and display of speed limits (31-day trial, activation code required).
Figure 4: DYNAVIN's commitment to quality and experience.
Figure 5: The innovative Dynavin Digital Dual-Microphone.
Figure 6: Upgrade your Audi system with the DYNAVIN DMI Ultra Flex.
సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the DYNAVIN D9-DMI Ultra Flex requires careful attention to detail. It is recommended to have the installation performed by a qualified professional. The unit integrates with your vehicle's existing wiring and CAN-BUS system.
చేర్చబడిన భాగాలు:
Ensure all components listed below are present in your package before beginning installation.
Figure 7: Complete list of accessories included in the package.
- Dynavin Radio Unit
- కనెక్షన్ కేబుల్
- DAB యాంటెన్నా
- DAB / CAN Interface
- వెనుక కెమెరా కేబుల్
- GPS యాంటెన్నా
- USB ఎక్స్టెన్షన్ కేబుల్
- యాంటెన్నా అడాప్టర్
- మైక్రోఫోన్
- Climate Control Cable
- HUD 150 (Head-up Display)
- BT/Wi-Fi యాంటెన్నా
- వేరుచేయడం సాధనాలు
- త్వరిత గైడ్
ఇన్స్టాలేషన్ దశలు (సాధారణం):
Refer to the included Quick Guide for detailed, step-by-step installation instructions specific to your Audi model. Professional installation is highly recommended.
- తయారీ: Disconnect the vehicle's battery. Use the provided disassembly tools to carefully remove the original radio unit and trim.
- వైరింగ్: Connect the Dynavin radio unit using the supplied connection cables, ensuring all connections are secure. Integrate the DAB/CAN interface and connect the GPS antenna, DAB antenna, and BT/Wi-Fi antenna.
- మైక్రోఫోన్ ఇన్స్టాలేషన్: Install the compact digital dual microphone in a suitable location, typically near the rearview mirror or steering column, for optimal call quality.
- Head-up Display Installation: Mount the HUD 150 unit on your dashboard or windshield as per the instructions, ensuring it does not obstruct your view.
- CAN-BUS Integration: Ensure the CAN-BUS connections are correctly made to enable steering wheel control, climate display, and parking sensor integration.
- పరీక్ష: Reconnect the vehicle's battery. Power on the unit and perform initial function tests for radio, navigation, CarPlay/Android Auto, and vehicle system integration.
- తిరిగి కలపడం: Carefully reassemble the dashboard components.
ఆపరేటింగ్ సూచనలు
ప్రాథమిక ఆపరేషన్:
- పవర్ ఆన్/ఆఫ్: The unit typically powers on and off with the vehicle's ignition.
- టచ్స్క్రీన్ నియంత్రణ: Navigate menus and select functions using the responsive 6.5-inch touchscreen.
- స్టీరింగ్ వీల్ నియంత్రణలు: Utilize your vehicle's existing steering wheel controls for volume, track skipping, and call management, thanks to CAN-BUS integration.
నావిగేషన్ సిస్టమ్:
The integrated GPS navigation system uses the Dynaway app. A 31-day trial is included, after which an activation code must be purchased.
- గమ్యస్థాన ఇన్పుట్: Enter destinations via the touchscreen.
- వాయిస్ గైడెన్స్: Follow clear voice instructions for turn-by-turn navigation.
- మార్గ మార్గదర్శకత్వం: Select preferred route options (e.g., fastest, shortest).
- Speed Camera Alerts: The navigation software includes alerts for speed cameras.

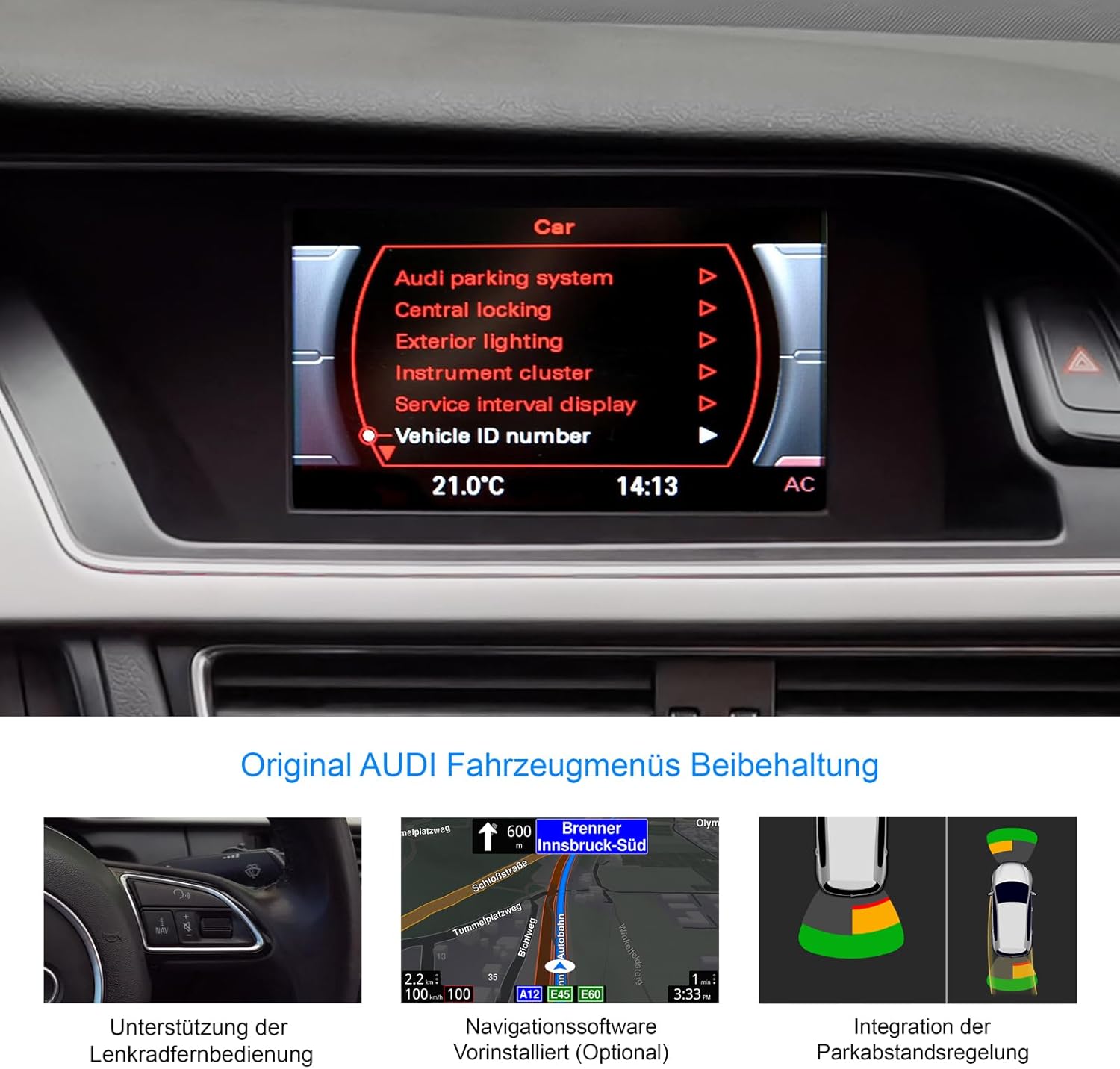

Figure 8: Retention of original Audi vehicle menus and integrated features.
CarPlay మరియు Android Auto:
Connect your smartphone wirelessly to access CarPlay (for iOS devices) or Android Auto (for Android devices). A 31-day trial is included, after which an activation code must be purchased.
- వైర్లెస్ కనెక్షన్: Pair your phone via Bluetooth and follow the on-screen prompts to establish a wireless CarPlay or Android Auto connection.
- యాప్ యాక్సెస్: Use compatible apps for navigation (Apple Maps, Google Maps), music streaming (Spotify, Apple Music), messaging, and calls directly from the unit's display.
Head-up Display (HUD):
The included HUD 150 projects key information onto your windshield, allowing you to keep your eyes on the road.
- Information Displayed: Navigation directions (from Dynaway, Apple Maps, Google Maps), vehicle speed, and Blitzer.de speed camera information.
- ప్లేస్మెంట్: Position the HUD unit to ensure clear visibility without obstructing your driving view.
Figure 9: Head-up Display in action, showing navigation and time.
నిర్వహణ
To ensure the longevity and optimal performance of your DYNAVIN D9-DMI Ultra Flex, follow these maintenance guidelines:
- స్క్రీన్ క్లీనింగ్: Use a soft, lint-free cloth specifically designed for electronic screens. Do not use abrasive cleaners or solvents. Gently wipe the screen to remove dust and fingerprints.
- సాఫ్ట్వేర్ అప్డేట్లు: Periodically check for software updates from DYNAVIN to ensure the system runs efficiently and has the latest features and bug fixes. Updates can typically be performed via Wi-Fi or USB.
- సాధారణ సంరక్షణ: యూనిట్ను తీవ్రమైన ఉష్ణోగ్రతలు, ఎక్కువసేపు ప్రత్యక్ష సూర్యకాంతి లేదా అధిక తేమకు గురిచేయకుండా ఉండండి.
- కేబుల్ కనెక్షన్లు: Ensure all cables remain securely connected. Avoid pulling on cables forcefully.
ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your DYNAVIN D9-DMI Ultra Flex. For more complex problems, contact customer support.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| యూనిట్ పవర్ ఆన్ చేయదు. | వదులుగా ఉన్న విద్యుత్ కనెక్షన్, ఫ్యూజ్ ఊడిపోవడం, వాహన బ్యాటరీ సమస్య. | Check all power cables and connections. Inspect vehicle fuses. Ensure vehicle battery is charged. |
| ఆడియో అవుట్పుట్ లేదు. | Volume too low, mute activated, incorrect audio source selected, wiring issue. | Increase volume. Check if mute is active. Select correct audio source. Verify speaker wiring connections. |
| CarPlay/Android Auto కనెక్ట్ కావడం లేదు. | Bluetooth not paired, Wi-Fi disabled, trial period expired, activation code not entered. | Ensure Bluetooth and Wi-Fi are enabled on both devices. Re-pair the phone. Check trial status and enter activation code if necessary. |
| GPS సిగ్నల్ పోయింది లేదా సరిగ్గా లేదు. | GPS antenna obstructed or disconnected, poor satellite reception. | GPS యాంటెన్నా సరిగ్గా ఇన్స్టాల్ చేయబడిందని మరియు స్పష్టమైన నియంత్రణ కలిగి ఉందని నిర్ధారించుకోండి view of the sky. Check antenna connection. Move to an open area. |
| స్టీరింగ్ వీల్ నియంత్రణలు పనిచేయడం లేదు. | CAN-BUS connection issue, incorrect vehicle configuration. | Verify CAN-BUS wiring. Check unit settings for correct vehicle model configuration. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | డైనావిన్ |
| మోడల్ | D9-DMI Ultra Flex |
| అనుకూల వాహనాలు | Audi A4 (2007-2015), A5 (2007-2016), Q5 (2008-2017), S4 (2009-2016), S5 (2009-2016) with Concert/Symphony radio |
| స్క్రీన్ పరిమాణం | 6.5 అంగుళాలు |
| ప్రదర్శన రకం | LCD, Anti-glare |
| రిజల్యూషన్ | 1024 x 600 పిక్సెల్లు |
| ఆపరేటింగ్ సిస్టమ్ | ఆండ్రాయిడ్ 11 |
| CPU | క్వాడ్-కోర్ |
| RAM | 4 GB |
| కనెక్టివిటీ | Wireless CarPlay, Android Auto, Bluetooth, USB |
| ఆడియో అవుట్పుట్ మోడ్ | Stereo (2.0 channel) |
| రేడియో ట్యూనర్ | FM-RDS with 15 presets |
| ప్రత్యేక లక్షణాలు | Integrated GPS Navigation, Head-up Display (HUD), CAN-BUS Integration (steering wheel, climate, parking sensors), Digital Dual Microphone |
| ప్యాకేజీ కొలతలు | 28 x 23 x 10 సెం.మీ |
| వస్తువు బరువు | 2 కిలోలు |
| ASIN | B0CS67GQKN |
వారంటీ మరియు మద్దతు
For warranty information, please refer to the documentation provided with your purchase or contact DYNAVIN customer service directly. DYNAVIN offers customer support for product inquiries, technical assistance, and troubleshooting.
For the Dynapp package, CarPlay, and Android Auto features, a 31-day trial phase is included. An activation code must be purchased online to continue using these features after the trial period.
Please visit the official DYNAVIN website or contact your retailer for the most up-to-date support information and contact details.
