1. పరిచయం
This manual provides detailed instructions for the assembly, setup, operation, and maintenance of your Team Associated RC8B4.1e Team Kit, model ASC80950. This 1/8 scale electric off-road buggy kit is designed for enthusiasts seeking high-performance and customizable racing experience. Please read this manual thoroughly before beginning assembly or operation to ensure proper function and longevity of your model.

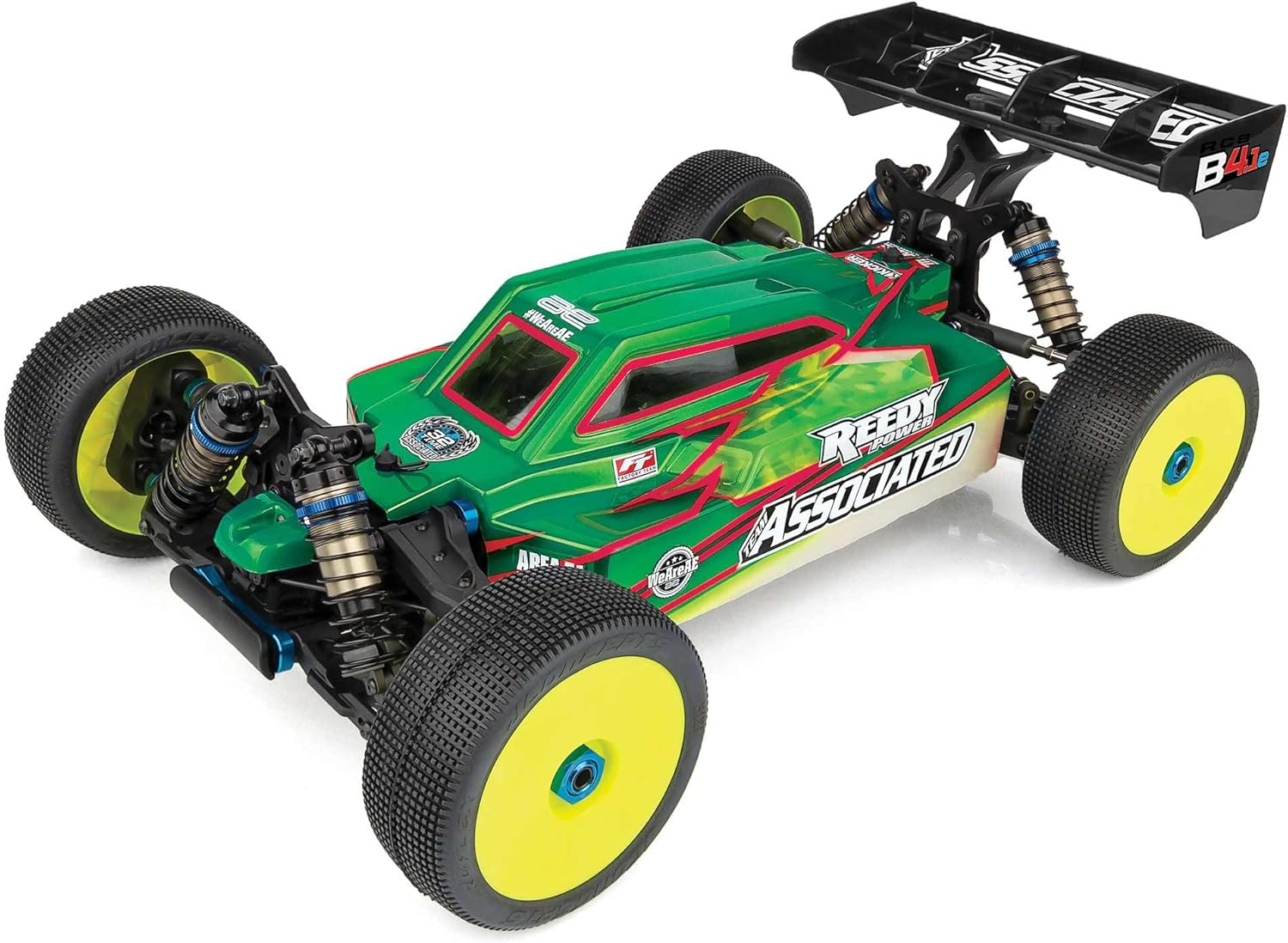

మూర్తి 1.1: The fully assembled Team Associated RC8B4.1e Team Kit. This image displays the complete 1/8 scale electric off-road buggy with its distinctive green and red body, yellow wheels, and rear wing.
2. సెటప్ మరియు అసెంబ్లీ
The RC8B4.1e is a kit that requires assembly. Follow the included detailed assembly guide for step-by-step instructions. Key features influencing setup and performance include:
- RWB/FWB Adjustable Weight Bias Chassis: This innovative system allows for tuning the weight distribution to optimize rear grip or steering response. The motor can be positioned either rearward for increased traction or forward for enhanced steering by adjusting the center differential and flipping the center dogbones.
- Low CG Shock Towers: New low center of gravity (CG) and lightweight aluminum front and rear shock towers contribute to improved handling and stability.
- Shock Configuration: Shorter 16mm front and rear shock bodies, along with 6-hole 1.4mm front and 1.5mm taper rear machined shock pistons, are included. These components, combined with emulsion shock cap seals, provide precise dampening characteristics.
- Rear Suspension Arms: The 3-hole rear suspension arms feature updated rear anti-roll bar geometry, allowing for fine-tuning on various track conditions, from smooth to bumpy.

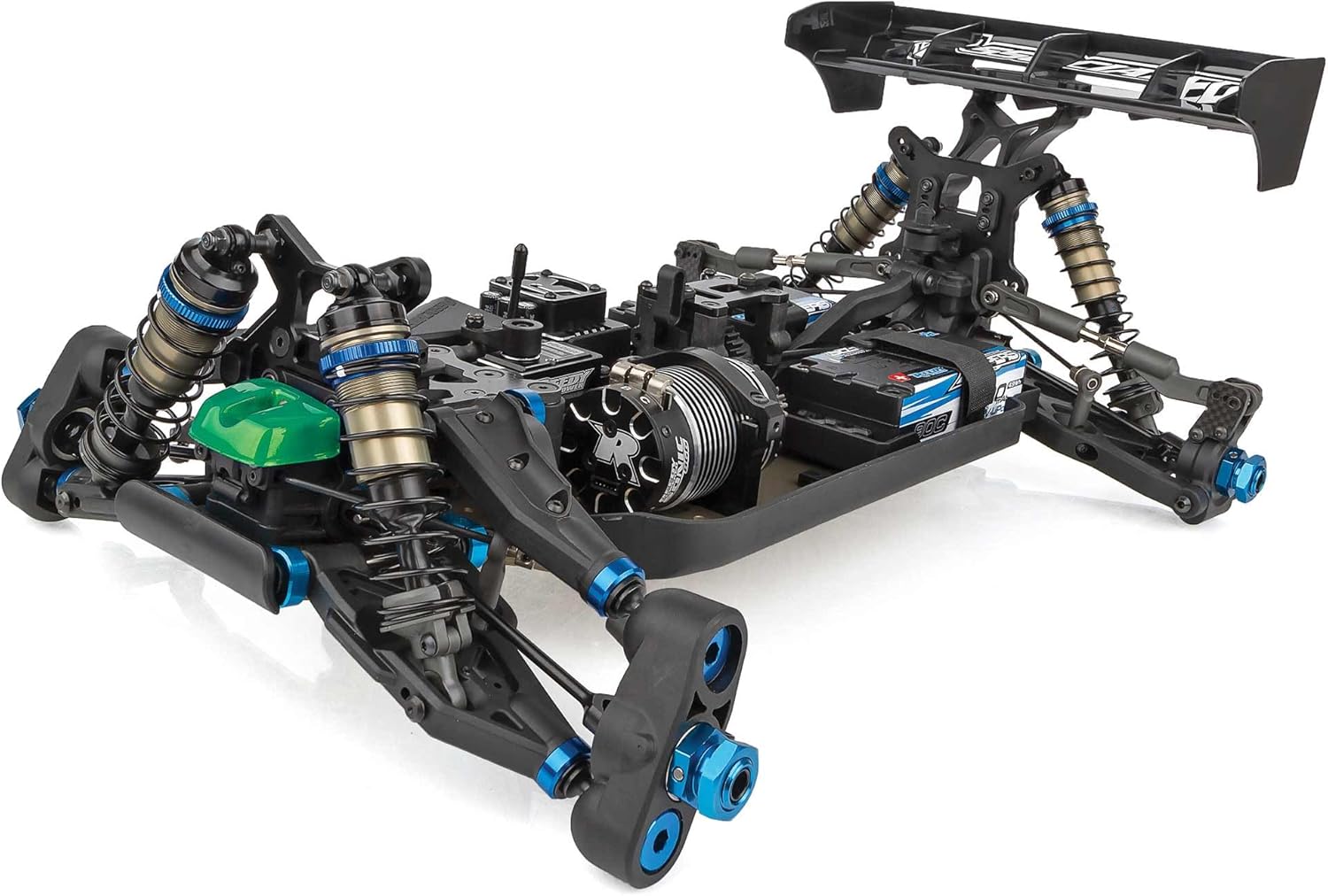

మూర్తి 2.1: Chassis layout of the RC8B4.1e with the body removed. This view highlights the internal components, including the motor, batteries, and central differential, demonstrating the kit's modular design for assembly and customization.
మూర్తి 2.2: ఓవర్ హెడ్ view of the RC8B4.1e chassis. This perspective clearly shows the placement of the battery compartments, motor mount, and central drivetrain components, essential for understanding weight distribution and component access.
3. ఆపరేటింగ్ సూచనలు
Once assembled and configured, the RC8B4.1e is ready for operation. Ensure all electronic components (motor, ESC, servo, receiver, battery) are correctly installed and calibrated according to their respective manuals. Always perform a range check of your radio system before operating the vehicle.
3.1. Pre-Run Checklist
- అన్ని స్క్రూలు మరియు ఫాస్టెనర్లు గట్టిగా ఉన్నాయని ధృవీకరించండి.
- Check battery charge levels for both the vehicle and transmitter.
- Ensure steering and throttle trims are centered.
- Inspect tires for damage and proper mounting.
- Confirm shock action is smooth and consistent.
3.2. డ్రైవింగ్ చిట్కాలు
The adjustable weight bias chassis allows for significant tuning. Experiment with motor forward/rearward configurations to find the optimal balance for your driving style and track conditions. Smooth throttle and steering inputs are crucial for maintaining control and maximizing performance on off-road tracks.
4. నిర్వహణ
Regular maintenance is essential to ensure the longevity and performance of your RC8B4.1e. After each run, inspect the vehicle for any damage or loose components.
4.1. Post-Run Inspection
- Clean dirt and debris from the chassis, suspension, and drivetrain.
- Check for bent or broken suspension components, including shock shafts and arms.
- తనిఖీ చేయండి 13-44 Ring And Pinion Bevel Gear Set దుస్తులు కోసం.
- పరిశీలించండి 92mm Universal Driveshafts With 17mm Outdrives for any signs of damage or excessive play.
- Ensure all wheel nuts are secure.
4.2 ఆవర్తన నిర్వహణ
- Disassemble and clean differentials, refilling with appropriate diff fluid.
- Inspect and rebuild shocks as needed, replacing O-rings and refilling with shock oil.
- Lubricate moving parts with appropriate RC-specific lubricants.
- Check for wear on bearings and replace if rough or noisy.
మూర్తి 4.1: వివరంగా view of the RC8B4.1e's suspension and chassis components. This image highlights the shock absorbers, suspension arms, and drive shafts, which require regular inspection and maintenance.
5. ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your RC8B4.1e.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Vehicle does not respond to transmitter | Low battery (vehicle or transmitter), receiver/transmitter not bound, loose wiring, ESC not armed. | Charge batteries, re-bind receiver, check all connections, ensure ESC is properly initialized. |
| పేలవమైన స్టీరింగ్ ప్రతిస్పందన | Servo issue, steering linkage binding, incorrect trim settings, worn tires. | Check servo function, inspect steering components for obstructions, adjust trim, replace worn tires. |
| Motor runs but wheels do not turn | Stripped pinion/spur gear, broken driveshaft, differential issue. | Inspect gears for damage and replace, check driveshafts, examine differentials. |
| Overheating motor/ESC | Incorrect gearing, excessive load, poor ventilation. | Adjust gearing, reduce load, ensure proper airflow to electronics. |
6. స్పెసిఫికేషన్లు
Key technical specifications for the Team Associated RC8B4.1e Team Kit (ASC80950):
- ఉత్పత్తి కొలతలు: 20.2 x 10 x 6.5 అంగుళాలు
- వస్తువు బరువు: 1 pounds (Note: This is likely the shipping weight, actual kit weight will vary with components)
- మోడల్ సంఖ్య: ASC80950
- తయారీదారు: టీమ్ అసోసియేటెడ్
- సిఫార్సు చేసిన వయస్సు: 14 years and up (Note: The provided data states 14 months - 9 years, but for a complex kit like this, 14+ years is more appropriate for assembly and operation.)
- చట్రం డిజైన్: RWB/FWB Adjustable Weight Bias
- Shock Towers: Low-CG, lightweight aluminum (front and rear)
- షాక్లు: Shorter 16mm bodies (front and rear), 6-hole 1.4mm front and 1.5mm taper rear machined pistons
- డ్రైవ్ ట్రైన్: 13-44 Ring and Pinion Bevel Gear Set, 92mm Universal Driveshafts with 17mm Outdrives
7. వారంటీ మరియు మద్దతు
For specific warranty information, please refer to the documentation included with your kit or contact Team Associated directly. Warranty terms typically cover manufacturing defects but not damage resulting from normal wear and tear, misuse, or improper assembly.
For technical support, replacement parts, or further assistance, please visit the official Team Associated website or contact your authorized retailer. You can also find general information and support resources on the Team Associated Amazon store page.
