Lumary Smart RGBAI String Downlights (Model L-POD30A1) User Manual

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your Lumary Smart RGBAI String Downlights, Model L-POD30A1. These indoor LED strip lights are designed to enhance your living space with dynamic and customizable lighting effects.

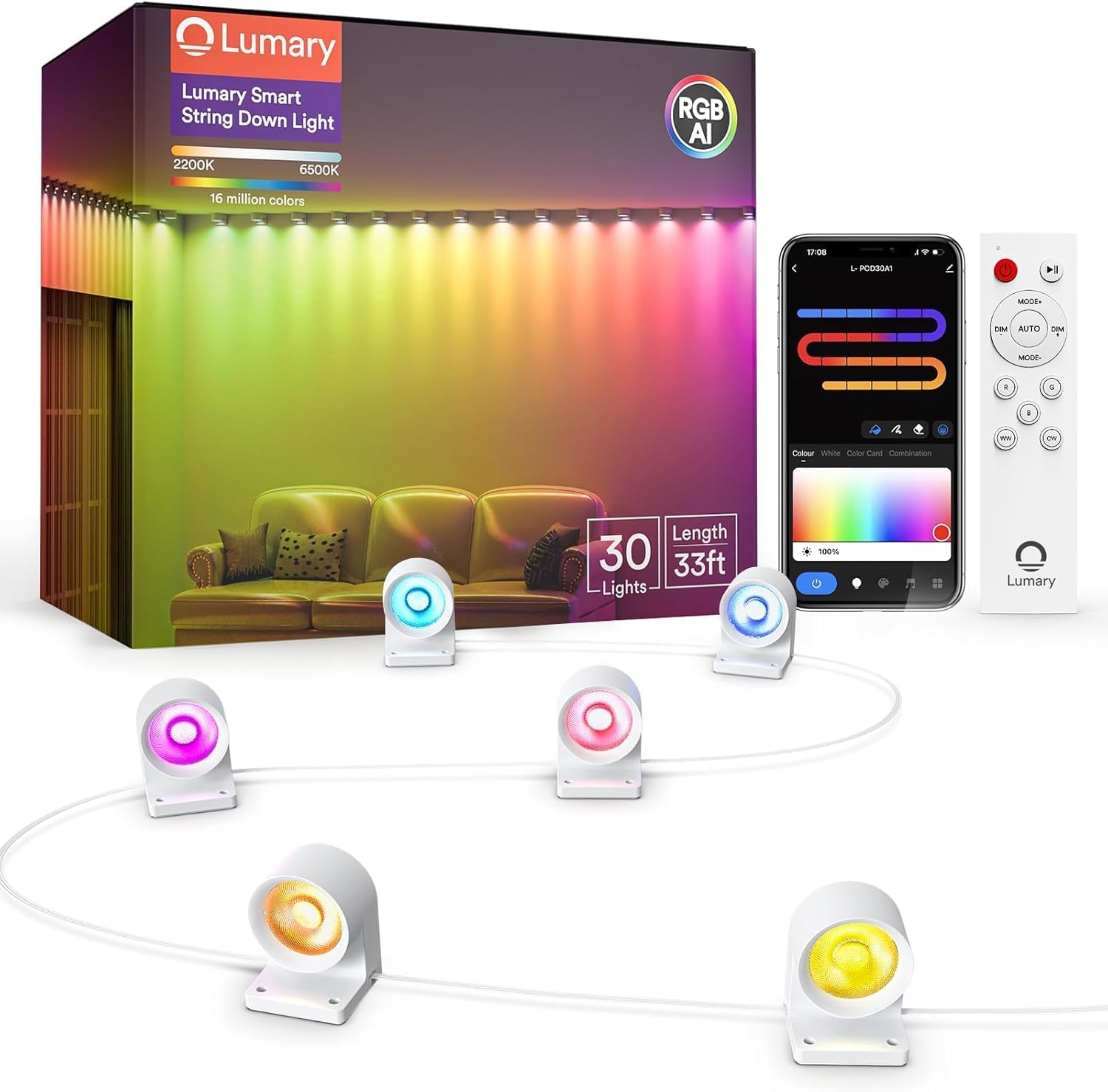

Image: The Lumary Smart RGBAI String Downlights product, showing the packaging, individual light units, remote control, and a smartphone displaying the control app.

2. పెట్టెలో ఏముంది

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• String Light x1 (30 lights per strand)
• అడాప్టర్ x1
• కంట్రోలర్ x1
• User Manual x1 (This document)
• Remote Control x1 (Batteries not included)
• అంటుకునే మెత్తలు x30
• మరలు x60
• కేబుల్ క్లిప్‌లు x1

3. స్పెసిఫికేషన్లు

Image: A comparison table highlighting key features of Lumary string downlights, such as flexible plug direction, installation methods, number of LEDs, LED bead type (RGBAI+WW+CW), color temperature range, and control options.

Image: A diagram illustrating the total length of the string lights (33ft), the illuminated section (20ft), and the dimensions of individual light fixtures.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

Follow these steps for proper installation of your Lumary Smart RGBAI String Downlights:

1. ఉపరితలాన్ని సిద్ధం చేయండి: Ensure the installation surface is clean, dry, and smooth. Wipe down the area with a clean cloth to remove dust or debris.
2. అంటుకునే పదార్థాన్ని వర్తించండి: Peel off the protective film from the double-sided adhesive tape located on the back of each light fixture.
3. స్థానం మరియు ప్రెస్: Carefully position the string downlight against the desired wall or surface. Press firmly to ensure good adhesion.
4. Secure with Screws (Optional but Recommended): For enhanced stability, use the provided screws to secure each light fixture. Locate the fixed screw hole positions and drill pilot holes if necessary before inserting the screws.
5. కనెక్ట్ వైర్లు: Connect the wires of the string lights properly, ensuring a secure connection between sections and to the controller.
6. వైరింగ్ నిర్వహించండి: Use the included cable clips to organize and secure any loose wiring, maintaining a neat appearance.

Image: A visual guide demonstrating the six steps for installing the string downlights, including cleaning the surface, applying adhesive, pressing firmly, securing with screws, connecting wires, and organizing cables.

4.1. Flexible Power Connection

The power connection can be adapted to either the left or right side of your installation, providing flexibility to integrate seamlessly into various home layouts without requiring professional electrical work.

Image: An illustration demonstrating how the power supply can be connected from either the left or right side of the string light installation.

4.2. Installation Mounting Options

You have several options for mounting the light fixtures:

• Top Mount Installation: Attach the lights to the top edge of a surface.
• Back Mount Installation: Attach the lights to the back surface, facing outwards.
• Stable with Screws: For maximum stability, always use the provided screws in conjunction with the adhesive.

Image: Three panels illustrating different installation methods: top mount using adhesive, back mount using adhesive, and a more stable installation using both adhesive and screws.

Note: Wire cutting and extension of the string lights are prohibited. The product is not designed to be extended or connected with other units.

5. ఆపరేటింగ్ సూచనలు

5.1. నియంత్రణ ఎంపికలు

The Lumary Smart RGBAI String Downlights offer multiple control methods:

• Lumary APP Control (2.4G Wi-Fi): Download the Lumary app to your smartphone. Connect the lights to your 2.4G Wi-Fi network to access full control over colors, brightness, modes, and scheduling.
• Voice Device Control: Compatible with Amazon Alexa and Google Assistant (requires additional purchase of a compatible voice assistant device). Use voice commands to control your lights.
• రిమోట్ కంట్రోలర్: Use the included remote control for basic functions such as power on/off, color changes, brightness adjustment, and mode selection. (Batteries not included for remote).
• Control Box Control: The physical control box on the string lights provides direct access to power on/off and cycling through basic modes.

చిత్రం: ఒక ఓవర్view of the available control methods: Lumary App, voice control via smart speakers, the physical remote control, and the inline control box.

Image: A smartphone screen showing the Lumary App interface, allowing users to select colors and adjust lighting settings.

Image: A hand holding the Lumary remote control, which provides buttons for various light adjustments.

చిత్రం: క్లోజప్ view of the physical control box, showing its buttons for direct light control.

Image: A person in a living room using voice commands with a smart speaker to control the Lumary string lights, which are displaying colorful lighting effects.

5.2. Lighting Modes and Customization

The RGBAI+WW+CW beads allow for extensive lighting customization:

• RGBAI Technology: Offers 16 million colors and 20 independently controlled sections for precise color and brightness adjustments.
• DIY మోడ్: Unleash creativity by crafting unique, rainbow-like dynamic effects.
• Adjustable Color Temperature (CCT): Adjust white light from warm (2200K) to cool (6500K) to suit different moods or tasks.
• మసకబారిన: ప్రకాశాన్ని 1% నుండి 100% వరకు సర్దుబాటు చేయండి.
• ప్రీసెట్ దృశ్యాలు: Choose from various preset modes for occasions like Christmas, Halloween, or general ambiance.

Image: An illustration of the dynamic wave illumination effect created by the 46° lens design and RGBAI+WW+CW beads, showing vibrant colors projected onto a wall.

Image: A room illuminated with colorful RGBAI lighting, with a smartphone displaying the Lumary app's DIY mode for creating custom lighting effects.

Image: A visual representation of how color temperature can be adjusted from 2200K (warm white) to 6500K (cool white), along with brightness adjustment from 1% to 100%.

చిత్రం: ఒక క్రాస్-సెక్షన్ view of a house demonstrating various lighting modes: warm nightlight mode in a bedroom, bright downlight mode in a kitchen, and colorful RGBAI mode in a living room.

5.3. మ్యూజిక్ మోడ్

The music mode allows the lights to synchronize with the beat of your favorite music, adding an immersive element to gatherings. This feature is available via Local Music Mode and App Music Mode.

Image: A living room scene where the Lumary string lights are actively changing colors and patterns in sync with music playing from a TV, controlled via a smartphone app.

6. నిర్వహణ

To ensure the longevity and optimal performance of your Lumary Smart RGBAI String Downlights, follow these maintenance guidelines:

• శుభ్రపరచడం: Gently wipe the light fixtures with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or excessive moisture, as these can damage the lights or their electronic components.
• నిర్వహణ: Handle the string lights with care. Avoid bending or twisting the wires excessively, which could lead to internal damage.
• పర్యావరణం: These lights are designed for indoor use only. Do not expose them to water, high humidity, or extreme temperatures.
• విద్యుత్ సరఫరా: Always use the provided power adapter. Using an incompatible power supply may damage the device and void the warranty.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Lumary Smart RGBAI String Downlights, refer to the following common problems and solutions:

• లైట్లు ఆన్ చేయడం లేదు:
  • పవర్ అడాప్టర్ పనిచేసే అవుట్‌లెట్‌లోకి సురక్షితంగా ప్లగ్ చేయబడిందో లేదో తనిఖీ చేయండి.
  • Ensure all wire connections between the light sections and the controller are firm.
  • Verify that the control box or remote control batteries (if applicable) are functional.
• Lights Not Connecting to App/Wi-Fi:
  • Ensure your Wi-Fi network is 2.4GHz. The lights are not compatible with 5GHz networks.
  • Check if your smartphone is connected to the same 2.4GHz Wi-Fi network during the pairing process.
  • Restart the lights by unplugging and replugging the power adapter.
  • Reset the lights according to the Lumary app instructions (usually involves a specific power cycle sequence).
  • Ensure your Wi-Fi signal strength is adequate where the lights are installed.
• రిమోట్ కంట్రోల్ పనిచేయదు:
  • రిమోట్ కంట్రోల్‌లో బ్యాటరీలను భర్తీ చేయండి.
  • రిమోట్ మరియు లైట్ రిసీవర్ మధ్య ఎటువంటి అడ్డంకులు లేవని నిర్ధారించుకోండి.
• Inconsistent Colors or Effects:
  • Check for any loose connections in the string lights.
  • Perform a factory reset via the app or control box if issues persist.

If these steps do not resolve the issue, please contact Lumary customer support for further assistance.

8. వారంటీ మరియు మద్దతు

Lumary provides a 1+ year service warranty for this product. For warranty claims, technical support, or any inquiries, please refer to the contact information provided on the Lumary official website or within the Lumary App.

దయచేసి వారంటీ ప్రయోజనాల కోసం మీ కొనుగోలు రుజువును ఉంచుకోండి.
