1. పరిచయం
This manual provides detailed instructions for the setup, operation, and maintenance of your GOYOJO 0310 Smart Wireless Weather Station. This advanced weather station features a 7-in-1 outdoor sensor and an indoor LCD display, offering comprehensive weather monitoring capabilities. Please read this manual thoroughly before using the device to ensure proper function and longevity.

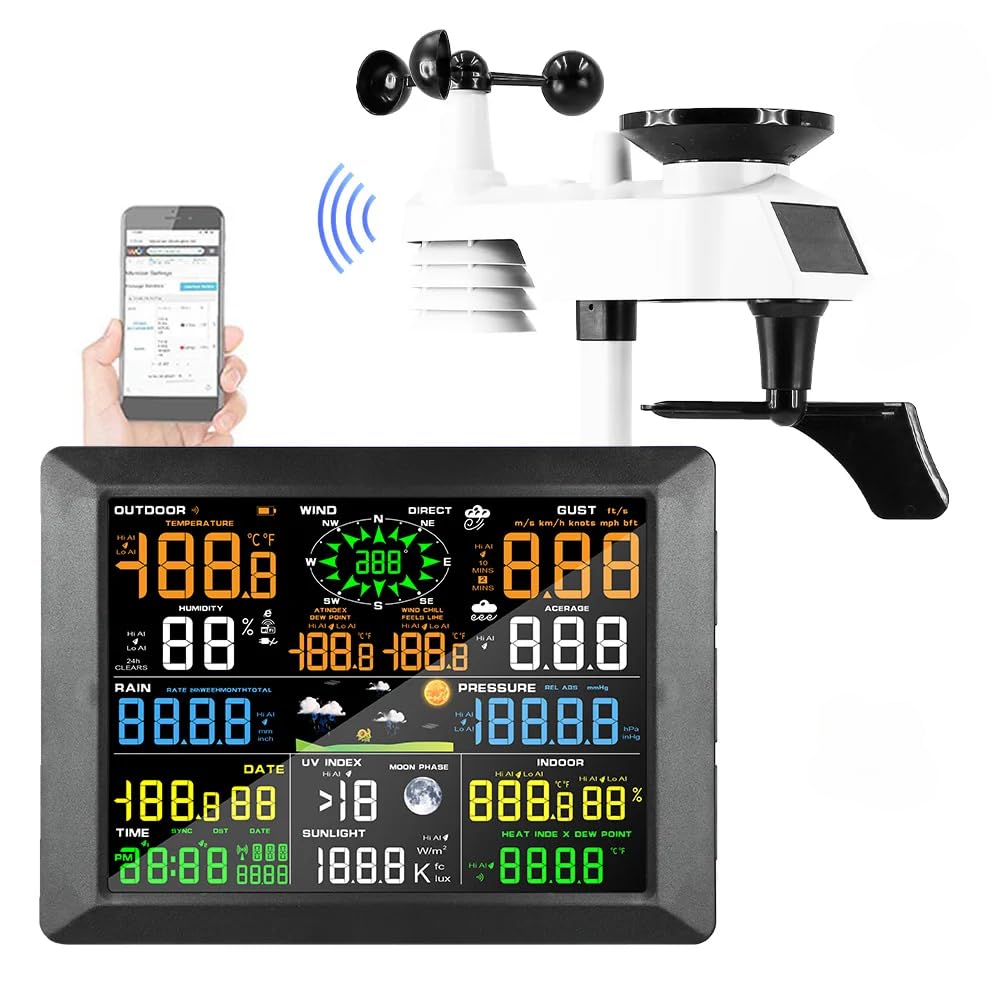

Image 1.1: GOYOJO 0310 Smart Wireless Weather Station components.
2. పెట్టెలో ఏముంది
అన్ని భాగాలను జాగ్రత్తగా అన్ప్యాక్ చేయండి మరియు మీరు ఈ క్రింది అంశాలను అందుకున్నారని ధృవీకరించండి:
- Seven-in-one Outdoor Sensor
- Indoor Receiver (Display Console)
- Indoor WIFI Module
- పవర్ అడాప్టర్
- Mounting Hardware (screws, base upper and lower cover, straight rod)
- సూచనల మాన్యువల్ (ఈ పత్రం)
Image 2.1: All included components and accessories.
3. సెటప్ గైడ్
3.1 అవుట్డోర్ సెన్సార్ ఇన్స్టాలేషన్
The 7-in-1 outdoor sensor measures temperature, humidity, wind speed, wind direction, rainfall, and UV index. It is solar-powered with battery backup.
- బ్యాటరీ ఇన్స్టాలేషన్: Open the battery compartment on the outdoor sensor. Insert 3 AA batteries (not included), observing polarity. Lithium AA batteries are recommended for optimal performance in varying temperatures.
- మౌంటు స్థానం: Choose an open location for the outdoor sensor, free from obstructions that could interfere with wind, rain, or sunlight. Ensure it is easily accessible for maintenance.
- మౌంటు ఎంపికలు:
- పోల్ మౌంట్: Attach the sensor to a pole using the provided mounting hardware (straight rod, base covers, screws).
- ఉపరితల మౌంట్: Secure the sensor to a flat surface using the base covers and screws.
- దిశ: Ensure the wind vane and anemometer are free to rotate. The solar panel should face south for maximum sunlight exposure.
Image 3.1: Outdoor sensor mounting options and details.
Image 3.2: Power supply for the indoor display and outdoor sensor.
3.2 Indoor Receiver (Display Console) Setup
- పవర్ కనెక్షన్: Connect the provided power adapter to the indoor receiver and plug it into a standard electrical outlet. The receiver can also be powered by 3 AAA alkaline batteries (not included) for backup.
- ప్లేస్మెంట్: Place the indoor receiver in a central location within your home, ensuring it is within range of the outdoor sensor for optimal wireless communication.
- ప్రారంభ సమకాలీకరణ: The indoor receiver will automatically attempt to connect with the outdoor sensor. This may take a few minutes. Once connected, weather data will appear on the display.
3.3 Wi-Fi Connection and Data Transfer
The weather station supports Wi-Fi connectivity for seamless data transfer to online weather services like Weathercloud. This allows for remote monitoring and historical data analysis.
- Download App/Access Web పోర్టల్: Refer to the specific instructions provided with your device for downloading the companion mobile application or accessing the dedicated web portal (e.g., Weathercloud).
- పరికరాన్ని నమోదు చేయండి: Follow the on-screen instructions in the app or web portal to register your weather station using its unique device ID.
- Wi-Fiకి కనెక్ట్ చేయండి: Use the app or web portal to configure the weather station's Wi-Fi settings, connecting it to your home network.
- డేటా సమకాలీకరణ: Once connected, the weather station will automatically upload data to the chosen online service, allowing you to view real-time and historical weather information from anywhere.
Image 3.3: Syncing with online weather servers for remote access.
Video 3.1: Demonstration of the GOYOJO 0310 Weather Station setup and Weathercloud data interface. This video illustrates the physical installation of the outdoor sensor, the connection of the indoor display, and how to access and interpret weather data through the Weathercloud online platform, including changing units and viewing historical trends.
4. ఆపరేటింగ్ సూచనలు
4.1 ఇండోర్ డిస్ప్లే కన్సోల్
The indoor display console provides real-time readings of various weather parameters. It features a large, true-color LCD screen for easy readability.
చిత్రం 4.1: వివరణాత్మకమైనది view of the indoor display console.
- ప్రధాన ప్రదర్శన: Shows outdoor temperature, humidity, wind speed, wind direction, rainfall, atmospheric pressure, UV index, and indoor temperature/humidity.
- సమయం మరియు తేదీ: Wi-Fi ద్వారా స్వయంచాలకంగా సమకాలీకరించబడింది.
- అలారం గడియారం: Features an integrated alarm clock function.
- వాతావరణ సూచన: Provides a 24/48-hour weather forecast based on barometric pressure changes.
4.2 Monitoring Weather Data Online
Through the connected online platform (e.g., Weathercloud), you can access a wealth of data and features:
- నిజ-సమయ డేటా: View current weather conditions from your station.
- చారిత్రక డేటా: Access daily, weekly, monthly, and yearly records of temperature, humidity, wind, rain, and more.
- Customizable Units: Change units for temperature (°C/°F), wind speed (m/s, km/h, mph, kn), atmospheric pressure (hPa, mbar, inHg), and rainfall (mm, in).
- Graphs and Reports: Visualize weather trends over time with interactive graphs and generate detailed reports.
Image 4.2: Remote monitoring of weather data via Wi-Fi.
5. నిర్వహణ
క్రమం తప్పకుండా నిర్వహణ మీ వాతావరణ కేంద్రం యొక్క ఖచ్చితత్వం మరియు దీర్ఘాయువును నిర్ధారిస్తుంది.
- అవుట్డోర్ సెన్సార్ క్లీనింగ్: Periodically clean the rain collector funnel, wind cups, and solar panel to remove dirt, leaves, or debris that could affect readings. Use a soft, damp గుడ్డ.
- బ్యాటరీ తనిఖీ: Check the batteries in the outdoor sensor and indoor receiver annually. Replace them if necessary, especially before winter for outdoor sensors to ensure continuous operation.
- సెన్సార్ క్రమాంకనం: While the sensors are factory-calibrated, if you suspect inaccuracies, refer to the online platform's settings for any available calibration options or contact support.
- ఫర్మ్వేర్ నవీకరణలు: తయారీదారుని తనిఖీ చేయండి website or app for any available firmware updates for your device to ensure optimal performance and new features.
6. ట్రబుల్షూటింగ్
If you encounter issues with your weather station, try the following troubleshooting steps:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| No data on indoor display | Outdoor sensor not transmitting, low batteries, or interference. | Check outdoor sensor batteries. Ensure sensor and display are within range. Press the RESET button on the outdoor sensor (refer to Image 3.1 for location). |
| తప్పు ఉష్ణోగ్రత/తేమ రీడింగ్లు | Sensor obstruction or placement issues. | Ensure outdoor sensor is not in direct sunlight (unless designed for it) or near heat sources. Verify proper ventilation around the sensor. |
| Wind speed/direction inaccurate | Obstruction of wind cups/vane. | Clear any debris from wind cups and vane. Ensure sensor is mounted in an open area. |
| వర్షపాతం నమోదు కావడం లేదు.. | Rain collector blocked. | Clean the rain collector funnel and tipping bucket mechanism. |
| Wi-Fi కనెక్టివిటీ సమస్యలు | Incorrect Wi-Fi settings, weak signal, or network problems. | Verify Wi-Fi password. Ensure the indoor receiver is within range of your Wi-Fi router. Restart your router and the weather station. |
7. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | GOYOJO |
| మోడల్ | 0310 |
| అవుట్డోర్ సెన్సార్ | 7-in-1 (Temperature, Humidity, Wind Speed, Wind Direction, Rainfall, UV Index, Solar Radiation) |
| పవర్ సోర్స్ (అవుట్డోర్ సెన్సార్) | Solar Powered with 3x AA battery backup (not included) |
| Power Source (Indoor Receiver) | Power Adapter (included) or 3x AAA batteries (not included) |
| కనెక్టివిటీ టెక్నాలజీ | Wi-Fi (2.4GHz) |
| ఉష్ణోగ్రత ఖచ్చితత్వం | ±1 °C |
| తేమ ఖచ్చితత్వం | ±5% |
| గాలి వేగం ఖచ్చితత్వం | Reliable data (specific value not provided) |
| ప్రదర్శన రకం | LCD (True Color) |
| ఇండోర్ రిసీవర్ కొలతలు | 8.46" x 0.87" x 6.22" (215మిమీ x 22మిమీ x 158మిమీ) |
| LCD Display Dimensions | 6.69" x 4.92" (170మిమీ x 125మిమీ) |
| UPC | 658361252622 |
| ASIN | B0CSW35CYF |
8. వారంటీ మరియు మద్దతు
The GOYOJO 0310 Smart Wireless Weather Station is designed for reliable performance. While specific warranty details are not provided in this manual, GOYOJO offers professional technical support.
- సాంకేతిక మద్దతు: A professional technical support team is available to provide timely assistance within 24 hours for any issues encountered during use. Please refer to the product packaging or the manufacturer's official webసంప్రదింపు సమాచారం కోసం సైట్.
- ఉత్పత్తి నమోదు: Registering your product may provide additional benefits or facilitate warranty claims. Check the manufacturer's webవివరాల కోసం సైట్.
