పరిచయం
Thank you for choosing the EMKE Bathroom Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new radiator. Please read these instructions carefully before installation and keep them for future reference.
The EMKE bathroom radiator is designed to provide comfortable warmth and efficiently dry towels and clothing. Constructed from high-quality steel with an environmentally friendly coating, it ensures durability and resistance to rust and leaks, making it ideal for humid bathroom environments.
సెటప్ మరియు ఇన్స్టాలేషన్
This section outlines the steps for installing your EMKE Bathroom Radiator. Ensure you have all components listed in the packing contents before beginning.
ప్యాకింగ్ కంటెంట్లు:
- EMKE Bathroom Radiator
- Mounting Kit (includes 4 wall brackets, 4 screws, 4 wall plugs, 2 sealing rings)
- ఇన్స్టాలేషన్ మాన్యువల్
Note: The valve is not included and must be purchased separately.
ఇన్స్టాలేషన్ దశలు:
- తయారీ: Choose a suitable location on a solid wall in your bathroom. Ensure there is enough space for the radiator and for hanging towels.
- Marking Drill Holes: Use the provided mounting kit and the radiator itself to accurately mark the positions for the drill holes on the wall. Ensure the marks are level and correctly spaced according to the radiator's dimensions.
- Drilling and Wall Plugs: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert the wall plugs into the drilled holes.
- Attaching Wall Brackets: Secure the wall brackets to the wall using the screws provided in the mounting kit. Ensure they are firmly attached.
- Mounting the Radiator: Carefully lift the radiator and place it onto the installed wall brackets. Ensure it is securely seated.
- Connecting to Water System: Connect the radiator to your hot water heating system. The radiator features G1/2" connection threads and a connection size of 78 mm. Use appropriate plumbing fittings and ensure all connections are sealed with the provided sealing rings to prevent leaks.
- Bleeding the Radiator: After installation and filling the heating system, bleed the radiator to remove any trapped air. This ensures efficient heating.
Image: Product dimensions (850mm height, 300mm width, 78mm connection size) and included accessories (wall brackets, screws, wall plugs, sealing rings). Output power is 340W, suitable for an area of 4.5 m².
ఆపరేటింగ్ సూచనలు
The EMKE Bathroom Radiator operates as a hot water heating unit. Once connected to your central heating system, its operation is controlled by your home's thermostat and the radiator valve (not included).
ప్రాథమిక ఆపరేషన్:
- తాపన క్రియాశీలత: Ensure your central heating system is active.
- ఉష్ణోగ్రత నియంత్రణ: Adjust the radiator valve to control the heat output. Turning the valve clockwise typically reduces heat, while counter-clockwise increases it.
- Towel Drying: Hang towels on the radiator bars. The innovative loop design and flat tubes ensure even and rapid heating, drying towels efficiently.
Image: Curved pipes of the radiator, illustrating efficient heat dissipation for quick drying and room warming.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your EMKE Bathroom Radiator.
శుభ్రపరచడం:
- The environmentally friendly coating is easy to clean. Use a soft, damp cloth to wipe down the radiator surface.
- రాపిడి క్లీనర్లు, కఠినమైన రసాయనాలు లేదా స్కౌరింగ్ ప్యాడ్లను నివారించండి, ఎందుకంటే ఇవి ముగింపును దెబ్బతీస్తాయి.
- For stubborn marks, a mild soap solution can be used, followed by wiping with a clean, damp గుడ్డ తుడిచి పూర్తిగా ఆరబెట్టండి.
సిస్టమ్ తనిఖీలు:
- Periodically check all connections for any signs of leaks. Tighten connections if necessary.
- Bleed the radiator annually, or if you notice cold spots, to remove trapped air and maintain heating efficiency.
Image: The radiator's waterproof design ensures reliable safety and prevents electrical issues, making it suitable for bathroom environments.
ట్రబుల్షూటింగ్
If you encounter issues with your EMKE Bathroom Radiator, refer to the following common problems and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Radiator is cold or only partially warm. | వ్యవస్థలో చిక్కుకున్న గాలి. | Bleed the radiator using a radiator key until water flows out steadily. |
| Radiator is not heating at all. | Central heating system is off or valve is closed. | Check if your central heating system is operational. Ensure the radiator valve is open. |
| కనెక్షన్ల నుండి నీటి లీకేజీ. | Loose connections or damaged sealing rings. | Tighten connections. If leakage persists, replace sealing rings. Consult a qualified plumber if unsure. |
| తక్కువ ఉష్ణ ఉత్పత్తి. | System pressure is too low. | Check the pressure gauge on your central heating boiler and repressurize the system if needed, following your boiler's instructions. |
If the problem persists after attempting these solutions, please contact EMKE customer support or a qualified heating engineer.
స్పెసిఫికేషన్లు
Detailed technical specifications for the EMKE Bathroom Radiator (Model SFTR3-DEVC):
- మోడల్ సంఖ్య: SFTR3-DEVC
- కొలతలు (ఎత్తు x వెడల్పు x లోతు): 850 x 300 x 114 మిమీ
- బరువు: 10.85 కిలోలు
- రంగు: అంత్రాసైట్
- పవర్ అవుట్పుట్: 340 W
- Energy Type: వేడి నీటి తాపన
- వర్తించే ప్రాంతం: దాదాపు 4.5 చదరపు మీటర్లు
- కనెక్షన్ థ్రెడ్: జి1/2"
- Connection Size (Center-to-Center): 78 మి.మీ
- మెటీరియల్: High-quality Steel
- పూత: Environmentally friendly, rust-resistant
- చేర్చబడిన భాగాలు: Radiator, Mounting Kit, Installation Manual
- ధృవపత్రాలు: EN442 ప్రమాణాలకు అనుగుణంగా ఉంటుంది
Image: Illustration of the radiator's construction, highlighting its 3 layers made from high-quality material for superior thermal conductivity.

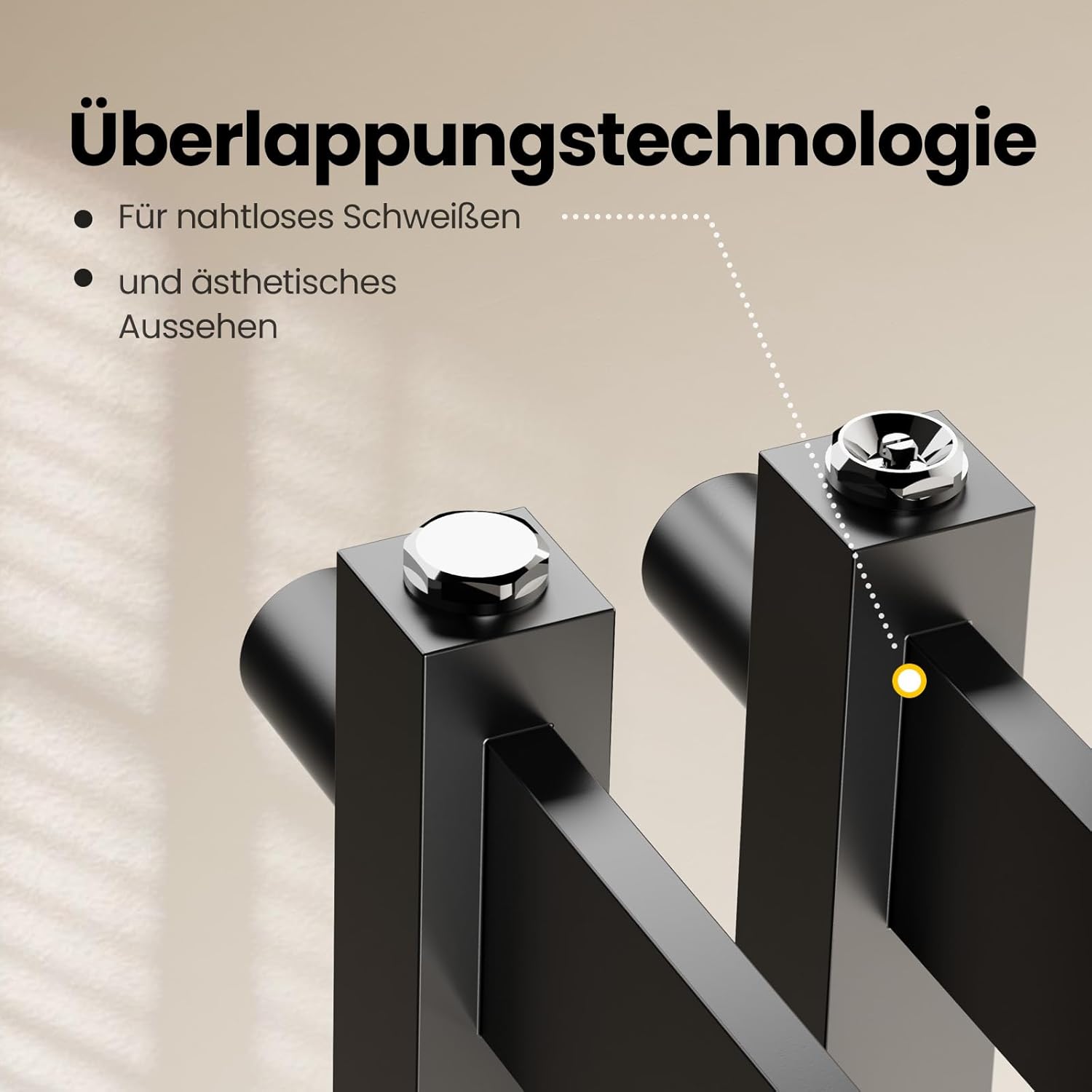

Image: Detail of the overlapping welding technology, ensuring seamless joints and an aesthetic appearance while enhancing durability.
వారంటీ మరియు రిటర్న్స్
EMKE offers comprehensive services to ensure a smooth customer experience:
- రిటర్న్ పాలసీ: 14-day return policy from the date of purchase.
- మరమ్మతు సేవ: 2-year repair service for manufacturing defects.
వారంటీ క్లెయిమ్ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
కస్టమర్ మద్దతు
For any questions, technical assistance, or warranty claims, please contact EMKE customer support through the retailer where you purchased the product or visit the official EMKE webసంప్రదింపు సమాచారం కోసం సైట్.
EMKE is committed to bringing warmth and comfort to every home with high-quality, uniquely designed products that meet EN442 standards.
