XP మెటల్ డిటెక్టర్లు XTREM హంటర్ మెటల్ డిటెక్టర్ యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your XP Metal Detectors XTREM Hunter deep-seeking metal detector. The XTREM Hunter is designed for detecting large, deeply buried targets and integrates seamlessly with the XP DEUS II wireless metal detector system, utilizing FMF Coils, a Deus II Remote Control, and WSAII-XL Wireless Headphones.

Figure 1.1: Fully assembled XP XTREM Hunter metal detector with remote control and headphones.

2. ఉత్పత్తి ముగిసిందిview

The XTREM Hunter system is a specialized deep-seeking metal detector designed for locating large targets at significant depths. Key features include:

• Deep Seeking Capability: Designed to uncover large relics and various underground objects, including tanks and metal pipes, reaching depths of up to 5 meters (16 feet).
• Fast Multi Frequency (FMF) Coils: Utilizes advanced FMF technology for enhanced detection performance across various ground conditions.
• Deus II Remote Control Integration: Fully compatible with the Deus II remote control for comprehensive settings adjustment and target identification.
• WSAII-XL Wireless Headphones: Includes comfortable, rainproof (IP68) wireless headphones suitable for noisy environments.
• Iron Discrimination: Offers the ability to discriminate against moderate-sized ferrous objects.
• వైర్‌లెస్ టెక్నాలజీ: Employs XP's patented radio protocol system, offering faster wireless communication compared to standard Bluetooth low latency technology.
• తేలికైన మరియు ఎర్గోనామిక్: Weighs approximately 6.4 lbs (2.9 kg) with an ergonomic, adjustable S-Telescopic stem for ease of use and transport.
• Included XP Case: Supplied with a dedicated case for protection and portability.

Figure 2.1: Key components of the XTREM Hunter system.

3. అసెంబ్లీ మరియు సెటప్

Follow these steps to assemble and prepare your XTREM Hunter for use:

1. భాగాలను అన్‌ప్యాక్ చేయండి: Carefully remove all components from the XP case. Verify that all parts are present: FMF Coils, S-Telescopic stem, Deus II Remote Control, WSAII-XL Wireless Headphones, and charging cables.
2. కాండం సమీకరించండి: Connect the sections of the S-Telescopic stem. Ensure all locking mechanisms are securely fastened.
3. Attach FMF Coils: Securely attach the FMF Coils to the lower section of the stem. Ensure the coil cable is routed neatly along the stem and connected to the control unit.
4. Mount Deus II Remote Control: Attach the Deus II Remote Control to the designated mount on the S-Telescopic stem. Ensure it is firmly seated and easily accessible for operation.
5. ఛార్జ్ బ్యాటరీలు: Fully charge the Deus II Remote Control and WSAII-XL Wireless Headphones before first use. Use the provided charging cables.
6. పరికరాలను జత చేయండి: Power on the Deus II Remote Control and the WSAII-XL Wireless Headphones. Follow the Deus II manual for pairing instructions to establish a wireless connection between all components.

Figure 3.1: The XTREM Hunter is designed for single-person use and transport.

4. ఆపరేటింగ్ సూచనలు

Effective operation of the XTREM Hunter requires adherence to specific techniques for deep-seeking detectors.

4.1 General Operating Principles

• Minimize Personal Metal: Before detecting, remove all metal objects from your person, including belt buckles, cell phones, and keys. Check footwear for any metallic components.
• Coil Alignment: The detection field is concentrated below the search coil. Keep the device as straight as possible relative to the ground for optimal depth and signal accuracy.
• Stationary Operation: The XTREM Hunter is designed for stationary detection. It should be held still and not swung like a conventional metal detector.

4.2 Using the Deus II Remote Control

The Deus II Remote Control serves as the primary interface for the XTREM Hunter. Refer to the Deus II user manual for detailed navigation and menu options. Key functions include:

• పవర్ ఆన్/ఆఫ్: యూనిట్‌ని ఆన్ లేదా ఆఫ్ చేయడానికి పవర్ బటన్‌ని నొక్కి పట్టుకోండి.
• ప్రోగ్రామ్ ఎంపిక: The XTREM Hunter offers dedicated programs optimized for deep target detection. Select the appropriate program based on your search environment.
• Iron Discrimination: Utilize the discrimination settings to filter out unwanted ferrous targets. The XTREM Hunter can discriminate some moderate-sized ferrous objects.
• గ్రౌండ్ బ్యాలెన్స్: Perform ground balance procedures as instructed in the Deus II manual to adapt the detector to varying ground mineralization.
• లక్ష్య గుర్తింపు: The remote provides accurate target ID information to assist in identifying detected objects.

Figure 4.1: The Deus II Remote Control for managing detector settings.

4.3 Fast Multi Frequency (FMF) Operation

The FMF coils operate across a range of frequencies (4-45 kHz) to provide optimal performance in diverse conditions. This technology minimizes ground noise while maximizing sensitivity to deep targets. No specific user adjustment for FMF is typically required beyond selecting the appropriate program on the Deus II remote.

Figure 4.2: Illustration of the XTREM Hunter's deep detection capabilities.

4.4 WSAII-XL Wireless Headphones

The WSAII-XL headphones provide clear audio signals from the detector. They are comfortable, rainproof, and designed for use in challenging environments.

• వాల్యూమ్ సర్దుబాటు: Use the controls on the headphones or the Deus II remote to adjust audio volume.
• ఆడియో ఎంపికలు: The Deus II remote offers various audio settings and a 4-band equalizer to customize the sound profile.

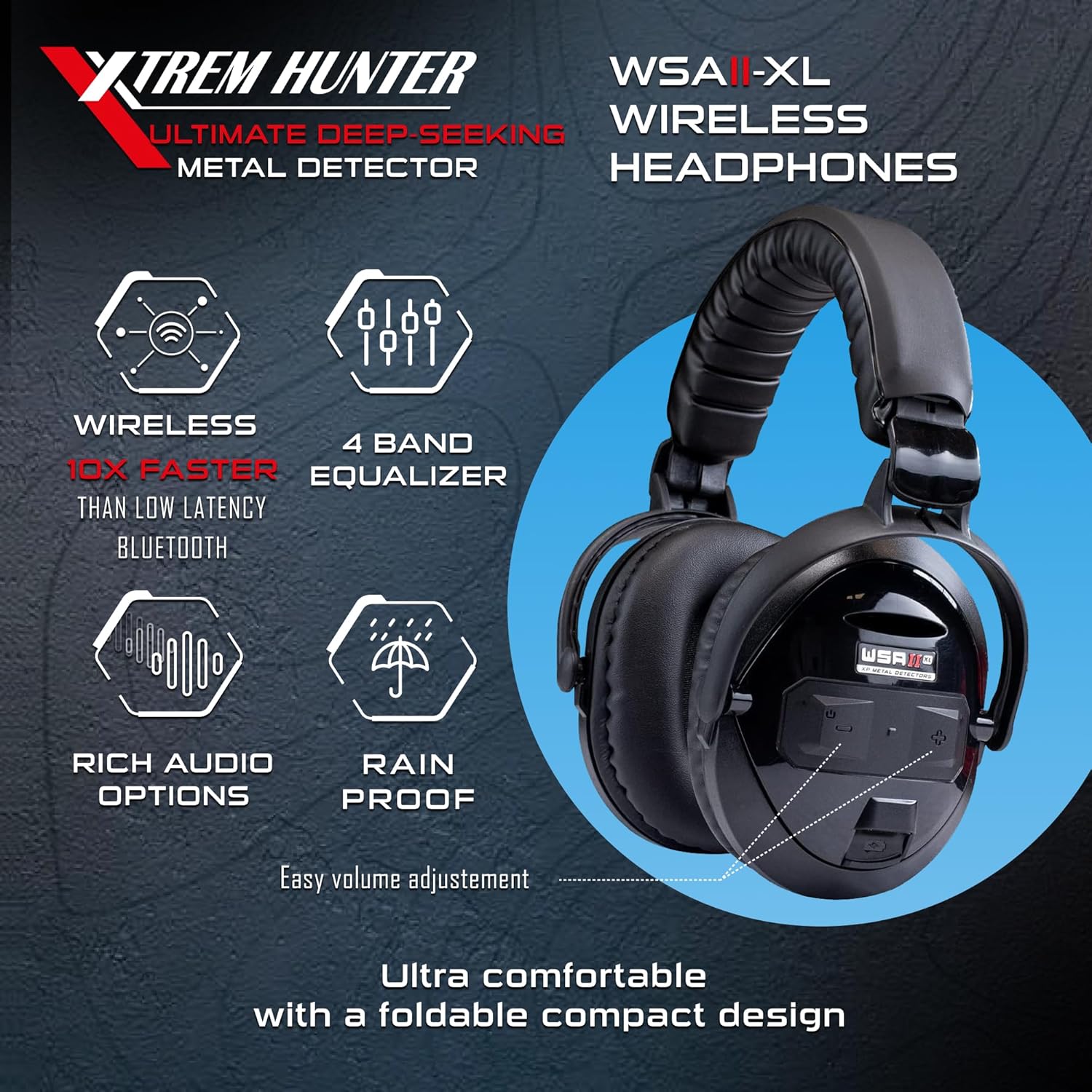

Figure 4.3: WSAII-XL Wireless Headphones for clear audio feedback.

5. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your XTREM Hunter.

• శుభ్రపరచడం: After each use, wipe down the coils, stem, and control unit with a damp cloth to remove dirt, dust, and moisture. Avoid using harsh chemicals or abrasive materials.
• కాయిల్ కేర్: Inspect the FMF Coils for any damage or cracks. Keep the coil free from excessive mud or debris.
• బ్యాటరీ సంరక్షణ: Recharge the Deus II Remote Control and WSAII-XL Wireless Headphones regularly. Avoid fully discharging the batteries for extended periods. Store the unit with a partial charge if not used for a long time.
• నిల్వ: Store the XTREM Hunter in its provided XP case in a cool, dry place, away from direct sunlight and extreme temperatures.

Figure 5.1: The included XP case provides protection during storage and transport.

6. ట్రబుల్షూటింగ్

If you encounter issues with your XTREM Hunter, consider the following common solutions:

• శక్తి లేదు: Ensure all batteries (Deus II remote, headphones) are fully charged. Check all connections.
• No Signal/Erratic Signals: Verify that the Deus II remote and headphones are properly paired. Perform a ground balance. Ensure no personal metal items are interfering. Check for strong electromagnetic interference from power lines or other electronics.
• Poor Depth: Confirm the coil is aligned correctly with the ground. Ensure the correct program for deep seeking is selected on the Deus II remote. Re-check ground balance.
• ఆడియో సమస్యలు: Check headphone battery level and pairing. Adjust volume settings on both headphones and the Deus II remote.

For persistent issues, consult the detailed Deus II user manual or contact XP Metal Detectors support.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

The XP Metal Detectors XTREM Hunter comes with a 5 సంవత్సరాల వారంటీ, reflecting the manufacturer's commitment to quality and durability.

For technical support, warranty claims, or additional information, please contact XP Metal Detectors directly or visit their official website. You can also find more resources and accessories at the XP Metal Detectors Store.
