1. పరిచయం
This manual provides detailed instructions for the safe and efficient operation of your ATOMSTACK A12 Pro Laser Engraving Machine. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance. Keep this manual for future reference.
భద్రతా హెచ్చరికలు:
- Always wear UV-filtering eye protection when operating the laser engraver.
- Ensure proper ventilation to dissipate fumes and smoke generated during engraving/cutting.
- ఆపరేషన్ సమయంలో యంత్రాన్ని గమనించకుండా ఉంచవద్దు.
- మండే పదార్థాలను పని ప్రదేశం నుండి దూరంగా ఉంచండి.
- Familiarize yourself with the emergency stop button location.
2. ప్యాకేజీ విషయాలు
క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని ధృవీకరించండి:

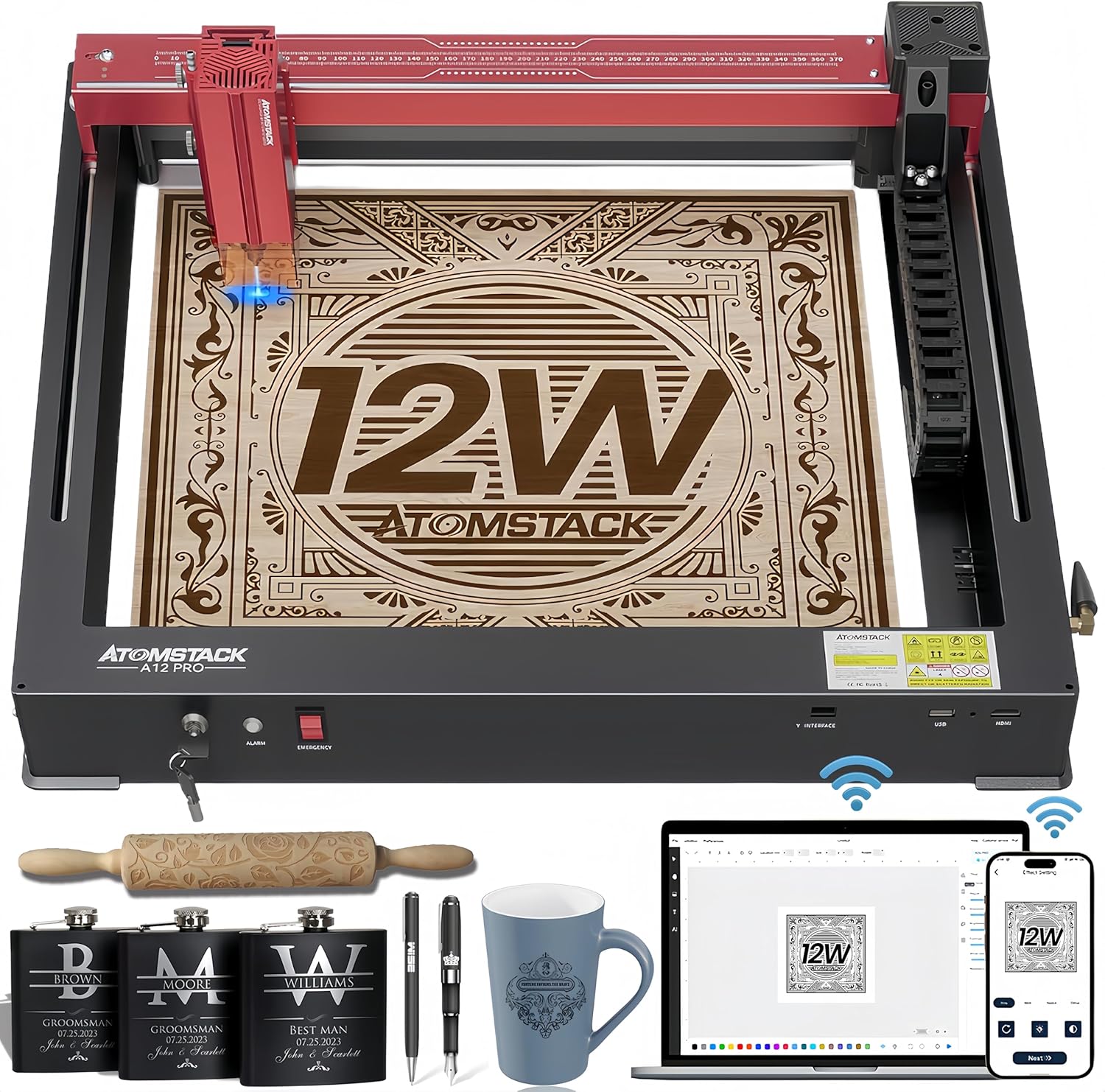

Figure 2.1: ATOMSTACK A12 Pro Laser Engraving Machine and included accessories.
- ATOMSTACK A12 Pro Laser Engraving Machine (Unibody Frame)
- లేజర్ హెడ్
- పవర్ అడాప్టర్ (24V, 5A)
- పవర్ కేబుల్
- USB కేబుల్ (టైప్-C)
- Goggles (UV-filtering eye protection)
- Fixed Focus Lens
- వినియోగదారు మాన్యువల్
- Tools (H3 hexagon L-shaped wrench, M4 thumb screws)
- ఫ్లాష్ డ్రైవ్
- వైఫై యాంటెన్నా
- Silicone Hose (air hose)
- Wire Anchor
- కేబుల్ Clamp
- 100*30 lint free cloth
- స్లయిడర్
- స్విచ్ కీ
3. సెటప్ గైడ్
The ATOMSTACK A12 Pro features an unibody design for minimal assembly. Follow these steps to get started:
- అన్బాక్సింగ్: Carefully remove the machine and all accessories from the packaging. The machine is pre-calibrated and shipped as a single unit.
Figure 3.1: The ATOMSTACK A12 Pro is ready to use right out of the box with its unibody design.
- Install the Slider: Attach the slider component to the designated rail on the machine. Secure it with the provided screws.
- Install the Laser Head: Mount the laser head onto the slider. Ensure it is firmly attached.
- Install the WiFi Antenna: Screw the WiFi antenna into its port on the machine's side.
- Install Tubing and X-axis Link Lines: Connect the tubing and X-axis link lines as shown in the diagram to ensure proper cable management and operation.
- పవర్ మరియు USB కనెక్ట్ చేయండి: Plug the power adapter into the machine and a power outlet. Connect the USB cable from the machine to your computer.
- పవర్ ఆన్: Insert the switch key and turn it to the ON position. The machine is now ready for software setup.
Video 3.1: A detailed guide on how to install and set up the ATOMSTACK laser engraver.
4. ఆపరేటింగ్ సూచనలు
4.1 సాఫ్ట్వేర్ నియంత్రణ
The ATOMSTACK A12 Pro supports multiple control methods:
- ATOMSTACK PC Software: Exclusive software for simplified operation, ideal for beginners.
- LightBurn & LaserGRBL: Traditional PC software for advanced users.
- ATOMSTACK Mobile APP: Available on Android and Apple App Stores for WiFi control via smartphone.
చిత్రం 4.1: పైగాview of the various software and app control options for the laser engraver.
4.2 Engraving Process
- మెటీరియల్ ప్లేస్మెంట్: Place your material flat on the engraving bed.
- ఫోకస్ సర్దుబాటు: Use the fixed-focus design for rapid and precise focusing in approximately 10 seconds.
- Cross Positioning: Utilize the newly added cross laser positioning feature for clear visibility of the laser's location, ensuring perfect alignment for engraving and easy horizontal adjustment.
- సాఫ్ట్వేర్ సెట్టింగ్లు: Adjust engraving parameters (speed, power, passes) in your chosen software based on the material.
- చెక్కడం ప్రారంభించండి: Initiate the engraving process from the software.
Figure 4.2: The cross positioning system helps align objects and lock to edges for precise horizontal carving.
5. Features & Capabilities
- యూనిబాడీ డిజైన్: Sturdy all-aluminum unibody design, installation-free and pre-calibrated.
- High Speed & Precision: New dual-axis linear guide rail structure and high-speed motherboard allow engraving speeds up to 600mm/s, 3-6 times faster than traditional frame machines. Accuracy within 0.004 inches.
- శక్తివంతమైన లేజర్: 12000mW diode laser (Laser Class 4) with 50W machine power and a 0.05*0.06mm ultra-fine laser spot focus.
- Thicker Cuts: Can cut through 8mm wood, 5mm black acrylic, and 0.02mm stainless steel in a single pass.
- Diverse Material Compatibility: Engraves and cuts a wide range of materials including wood, acrylic, metal, glass, ceramics, leather, paper, cardboard, and more.
- Automatic Power Failure Recovery: Memorizes engraving position and swiftly resumes from the paused point, ensuring uninterrupted production and material saving.
- మెరుగైన భద్రత: Equipped with 4-way limit switches, UV-filtering eye protection, a tilt detector with a 15-degree alarm, and an emergency stop button.

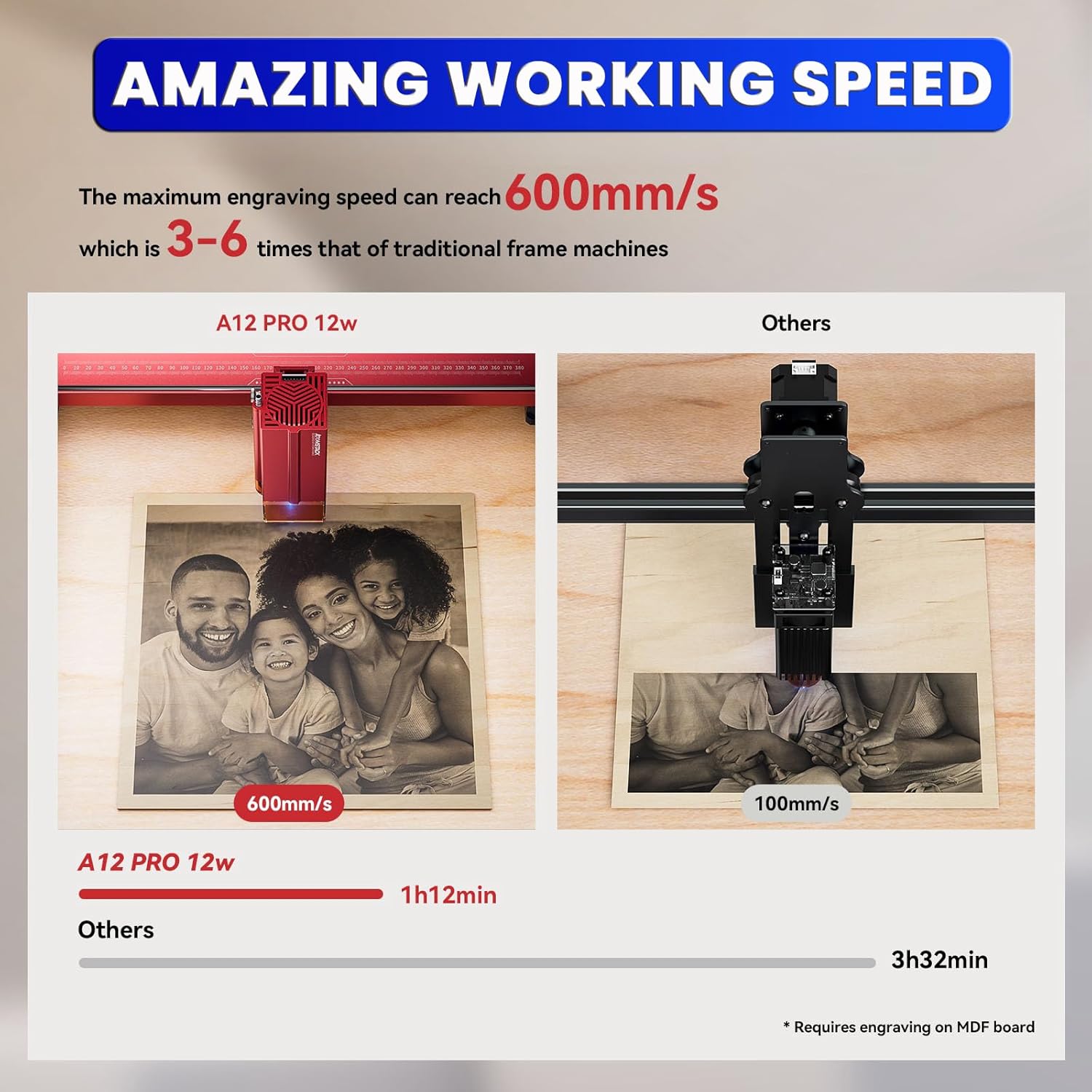

Figure 5.1: Comparison showing the significantly faster engraving speed of the A12 Pro.
Figure 5.2: Demonstrates the maximum cutting thickness for various materials with the A12 Pro.
చిత్రం 5.3: ఉదాamples of various materials that can be engraved or cut by the machine.
6. నిర్వహణ
- లెన్స్ క్లీనింగ్: Regularly clean the laser lens with the provided lint-free cloth to maintain optimal performance and prevent residue buildup.
- రైలు లూబ్రికేషన్: Periodically apply a small amount of lubricant to the guide rails to ensure smooth movement of the laser head.
- శిథిలాల తొలగింపు: Keep the engraving bed and surrounding area free of debris and dust. Use an air compressor or brush to clear away small particles.
- ఫర్మ్వేర్ నవీకరణలు: అధికారిక ATOMSTACK ని తనిఖీ చేయండి website periodically for firmware updates to ensure your machine has the latest features and bug fixes.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| యంత్రం ఆన్ చేయడం లేదు | Power cable loose; Emergency stop engaged; Key not turned. | Check power connections; Disengage emergency stop; Turn key to ON. |
| Laser not firing/weak output | Lens dirty; Incorrect focus; Low power setting in software. | Clean laser lens; Adjust focus; Increase power setting. |
| Engraving is distorted/inaccurate | Loose belts/rails; Material shifting; Incorrect software settings. | Check and tighten belts/rails; Secure material; Verify software settings. |
| Software not connecting to machine | USB cable issue; Driver not installed; Incorrect COM port. | Try different USB port/cable; Install drivers; Select correct COM port in software. |
8. స్పెసిఫికేషన్లు
- ఉత్పత్తి కొలతలు: 23.22 x 23.22 x 7.08 అంగుళాలు
- వస్తువు బరువు: 18.74 పౌండ్లు
- లేజర్ అవుట్పుట్ పవర్: 12000 మెగావాట్లు (12 వాట్లు)
- యంత్ర శక్తి: 50W
- Laser Spot Size: 0.05*0.06మి.మీ
- చెక్కే వేగం: 600mm/s వరకు
- ఖచ్చితత్వం: Within 0.004 inches
- కనెక్టివిటీ: USB, WiFi (via Mobile APP)
- మద్దతు ఉన్న సాఫ్ట్వేర్: ATOMSTACK PC Software, LightBurn, LaserGRBL
- తయారీదారు: షెన్జెన్ ఆటమ్స్టాక్ టెక్నాలజీస్ కో., లిమిటెడ్.
- మూలం దేశం: చైనా
9. వారంటీ మరియు మద్దతు
Your ATOMSTACK A12 Pro Laser Engraving Machine comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included in your package or visit the official ATOMSTACK webసైట్.
Our professional technical and support teams are available 24/7 to answer any questions or concerns you may have.
