Trueque B0CTCB5BMC

Trueque Wireless Keyboard and Mouse Combo User Manual

Model: B0CTCB5BMC

1. పరిచయం

Thank you for choosing the Trueque Wireless Keyboard and Mouse Combo. This product is designed to provide a comfortable, efficient, and quiet computing experience with its 2.4GHz wireless technology, full-size layout, and ergonomic design. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new device.

2. సెటప్

2.1 అన్ప్యాకింగ్ మరియు కంటెంట్‌లు

Carefully remove all components from the packaging. Ensure you have the wireless keyboard, wireless mouse, and the USB receiver. The USB receiver is typically stored within the mouse's battery compartment for safe keeping.

2.2 బ్యాటరీ ఇన్‌స్టాలేషన్

The keyboard requires one (1) AAA battery and the mouse requires one (1) AA battery (batteries are not included). Follow the steps below to install the batteries:

  1. కీబోర్డ్ మరియు మౌస్ దిగువన బ్యాటరీ కంపార్ట్‌మెంట్‌ను గుర్తించండి.
  2. బ్యాటరీ కంపార్ట్మెంట్ కవర్ తెరవండి.
  3. సరైన ధ్రువణతను (+/-) నిర్ధారించడానికి బ్యాటరీలను చొప్పించండి.
  4. బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను సురక్షితంగా మూసివేయండి.

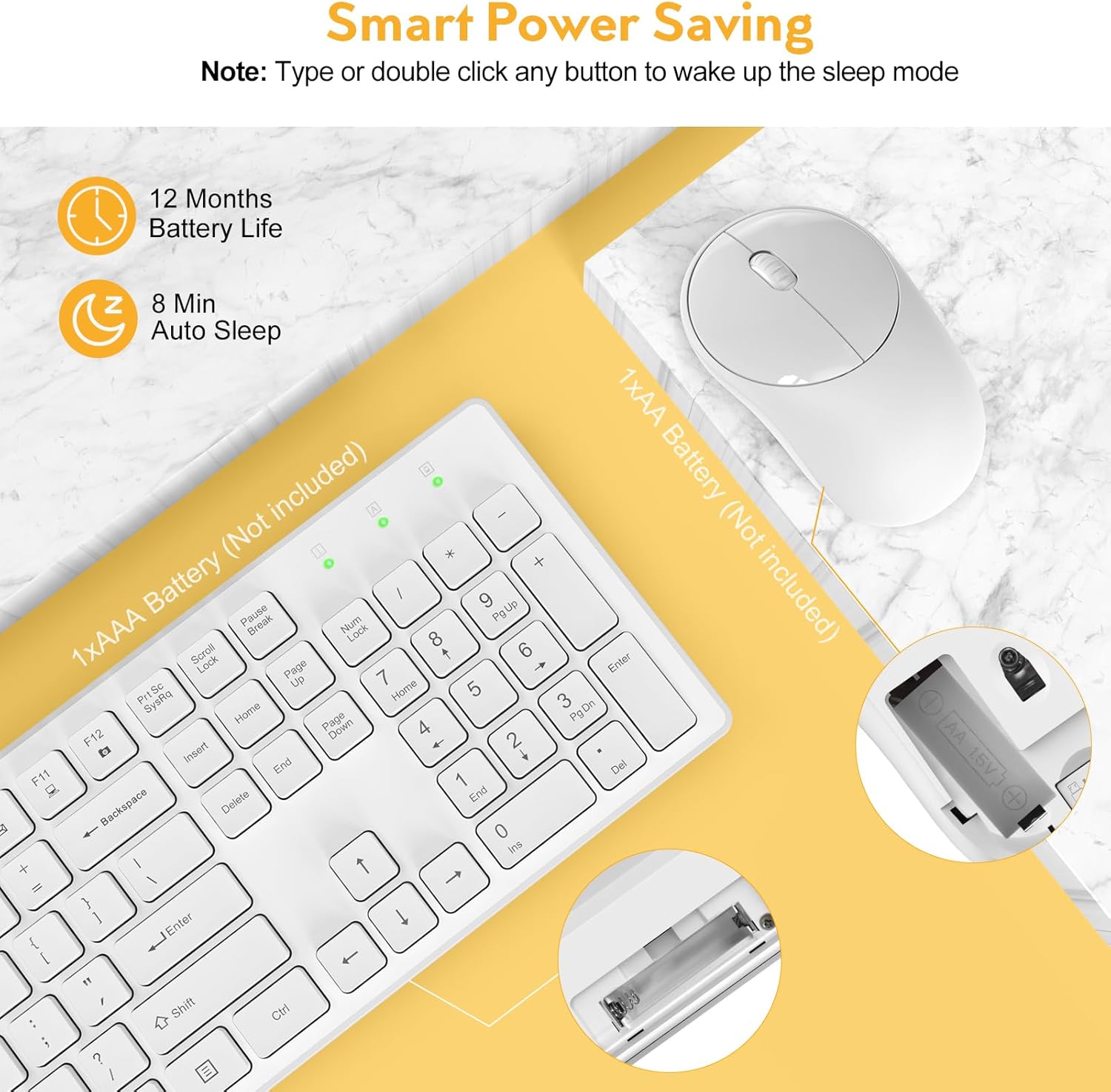

Image showing the battery compartments of the Trueque wireless keyboard and mouse, with batteries being inserted.
Figure 2.2.1: Battery installation for the keyboard and mouse. Note the USB receiver stored inside the mouse.

2.3 మీ పరికరానికి కనెక్ట్ అవుతోంది

The Trueque Wireless Keyboard and Mouse Combo uses 2.4GHz wireless technology for a stable and lag-free connection. Both devices connect via a single USB receiver.

  1. Retrieve the USB receiver from the mouse's battery compartment.
  2. మీ కంప్యూటర్, ల్యాప్‌టాప్ లేదా అనుకూల పరికరంలో అందుబాటులో ఉన్న USB పోర్ట్‌లోకి USB రిసీవర్‌ను ప్లగ్ చేయండి.
  3. The keyboard and mouse should automatically connect within a few seconds. No additional drivers are typically required.
Image of the Trueque wireless keyboard and mouse combo in white, with the small USB receiver visible.
Figure 2.3.1: The Trueque wireless keyboard and mouse with its USB receiver.
Diagram illustrating the 33ft connection range of the 2.4GHz wireless technology, showing people using the keyboard and mouse with a distant monitor.
Figure 2.3.2: The 2.4GHz wireless connection provides a stable signal up to 33 feet (10 meters).
Image highlighting that only one USB receiver is needed for both the keyboard and mouse, compatible with Windows, Mac, Linux, and Chrome OS.
Figure 2.3.3: One USB receiver connects both the keyboard and mouse, simplifying setup.

3. ఆపరేటింగ్ సూచనలు

3.1 ప్రాథమిక ఉపయోగం

Once connected, the keyboard and mouse function like standard peripherals. The keyboard features a full 104-key U.S. QWERTY layout for familiar typing. The mouse provides precise cursor control.

3.2 మల్టీమీడియా హాట్‌కీలు

The keyboard includes 12 multimedia hotkeys for quick access to common functions. These keys are activated by pressing the Fn key in combination with the corresponding F-key (F1-F12). Please note that multimedia keys may not be fully supported on Mac OS.

  • Fn+F1: మీడియా ప్లేయర్
  • Fn+F2: వాల్యూమ్ డౌన్
  • Fn+F3: వాల్యూమ్ అప్
  • Fn+F4: మ్యూట్ చేయండి
  • Fn+F5: మునుపటి ట్రాక్
  • Fn+F6: తదుపరి ట్రాక్
  • Fn+F7: ప్లే/పాజ్ చేయండి
  • Fn+F8: ఆపు
  • Fn+F9: హోమ్‌పేజీ
  • Fn+F10: ఇమెయిల్
  • Fn+F11: నా కంప్యూటర్
  • Fn+F12: ఇష్టమైనవి
Image illustrating the 12 multimedia hotkeys on the keyboard and their functions.
చిత్రం 3.2.1: పైగాview of multimedia hotkeys.

3.3 Ergonomics and Typing Experience

The keyboard features an ergonomic tilt angle to promote a more natural typing position, reducing wrist strain. The keys have a shorter keystroke distance, providing a responsive, smooth, and soft typing feel.

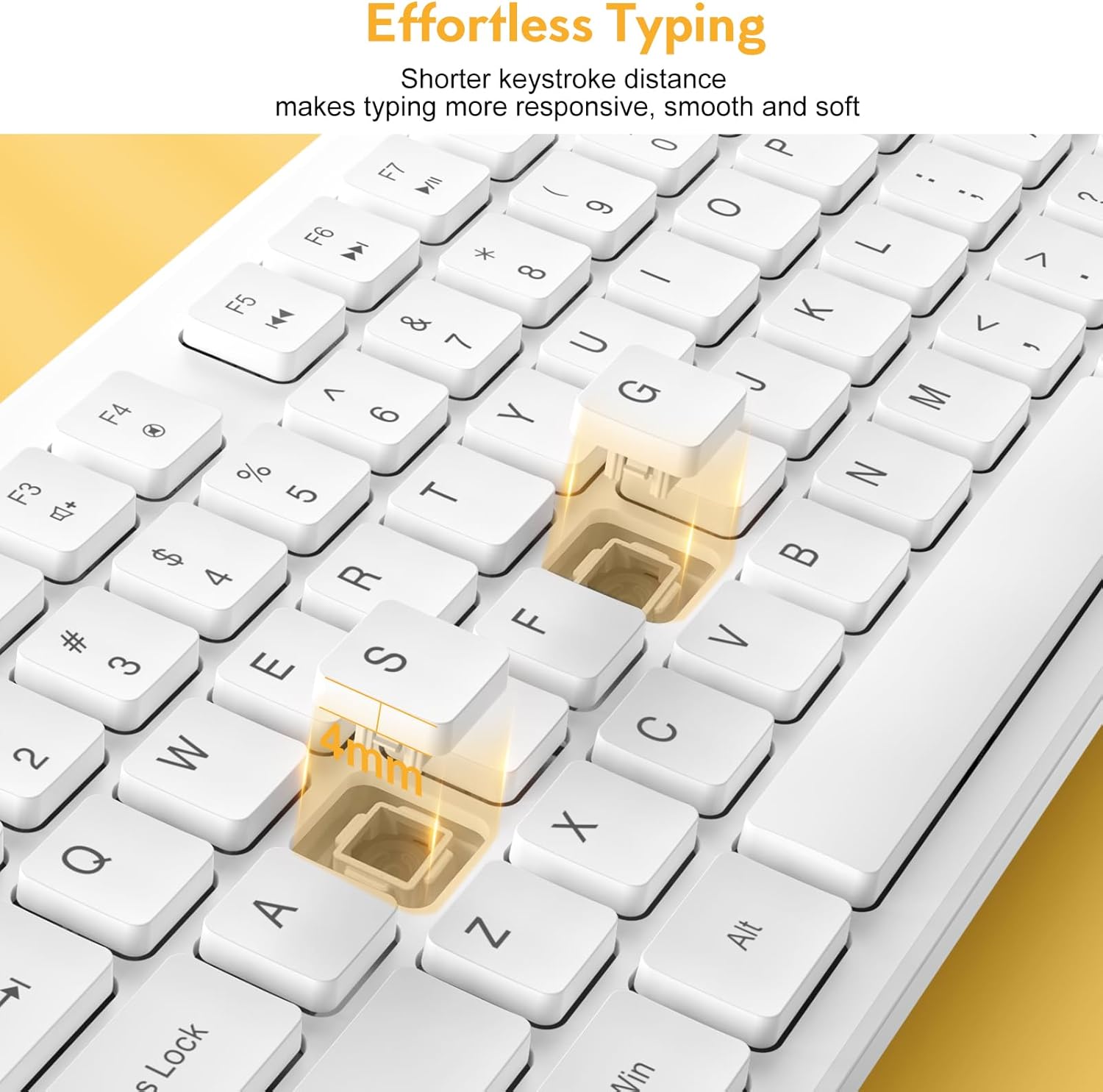

Close-up image of keyboard keys highlighting the shorter keystroke distance for effortless typing.
Figure 3.3.1: Shorter keystroke distance for responsive typing.
Image showing a hand comfortably resting on the mouse and the keyboard at an ergonomic angle, reducing muscle strain.
Figure 3.3.2: Ergonomic design for reduced muscle strain and comfort.

The mouse operates with 100% quiet clicks, ensuring no disruptive sounds. The keyboard is designed to be over 90% quieter than similar keyboards, allowing for a more peaceful working environment.

Image showing a quiet keyboard and mouse, emphasizing 90% noise reduction and ultra-quiet clicks.
Figure 3.3.3: Quiet operation for minimal disturbance.

3.4 సూచిక లైట్లు

The keyboard features indicator lights for Num Lock, Caps Lock, and Power status, located above the numeric keypad.

Close-up image of the keyboard's indicator lights for Num Lock, Caps Lock, and Power.
Figure 3.4.1: Keyboard indicator lights.

4. నిర్వహణ

4.1 శుభ్రపరచడం

To maintain the appearance and functionality of your keyboard and mouse, regularly wipe them with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, ensuring no liquid enters the device. Avoid harsh chemicals or abrasive cleaners.

4.2 విద్యుత్ ఆదా లక్షణాలు

The combo is designed with smart power-saving features to extend battery life:

  • 8 నిమిషాల నిష్క్రియ తర్వాత కీబోర్డ్ స్లీప్ మోడ్‌లోకి ప్రవేశిస్తుంది.
  • The mouse will enter sleep mode after 1 minute of inactivity.

To wake the devices, simply press any key on the keyboard or click/move the mouse. The standby time for both devices can be up to 365 days.

Image demonstrating how to wake the keyboard by pressing any key and the mouse by double-clicking any button.
Figure 4.2.1: Auto power-saving and wake-up methods.

4.3 స్పిల్-రెసిస్టెంట్ డిజైన్

The keyboard features a spill-resistant design, which helps protect against accidental liquid spills. The keycap letters are also designed to be non-fading, ensuring long-term legibility.

Image showing water droplets on the keyboard, indicating its spill-resistant feature and non-fading keycap letters.
Figure 4.3.1: Spill-resistant keyboard design.

5. ట్రబుల్షూటింగ్

If you encounter issues with your Trueque Wireless Keyboard and Mouse Combo, please refer to the following common troubleshooting steps:

  • కనెక్షన్ లేదు లేదా లాగ్ లేదు:
    • బ్యాటరీలు సరిగ్గా ఇన్‌స్టాల్ చేయబడ్డాయని మరియు తగినంత ఛార్జ్ కలిగి ఉన్నాయని నిర్ధారించుకోండి. అవసరమైతే మార్చండి.
    • Re-plug the USB receiver into a different USB port on your device.
    • Try the combo with another computer or laptop to determine if the issue is with the peripherals or the host device.
    • Ensure the USB receiver is not too far from the keyboard and mouse (within 33ft/10m).
  • మౌస్ స్పందించడం లేదు:
    • Check if the mouse is in sleep mode. Click any button or move the mouse to wake it up.
    • Verify battery status.
  • కీబోర్డ్ స్పందించడం లేదు:
    • Check if the keyboard is in sleep mode. Press any key to wake it up.
    • Verify battery status.
  • USB రిసీవర్ స్థానం:
    • The single USB receiver for both devices is stored inside the mouse's battery compartment. Open the mouse's battery cover to find it.

If issues persist after following these steps, please contact Trueque customer support for further assistance.

6. స్పెసిఫికేషన్లు

ఉత్పత్తి కొలతలు16.9 x 4.89 x 2.6 అంగుళాలు
వస్తువు బరువు1.5 పౌండ్లు
కనెక్టివిటీ టెక్నాలజీ2.4GHz వైర్‌లెస్ (USB రిసీవర్)
అనుకూల పరికరాలుLaptop, Gaming Console, Personal Computer (Windows, Linux, Chrome OS, Mac OS)
ప్రత్యేక లక్షణాలుQuiet Clicks, Independent Hotkeys, Smart Power-Saving, 104-Keys Full Size, Low Profile and Compact Design
Image showing the dimensions of the full-size keyboard and ergonomic mouse.
Figure 6.1: Product dimensions and ergonomic design.

7. వారంటీ మరియు మద్దతు

Trueque is committed to providing excellent customer service and product support. Your Wireless Keyboard and Mouse Combo comes with comprehensive support:

  • అమ్మకాల తర్వాత మద్దతు: 2 సంవత్సరాలు
  • ఉత్పత్తి జీవితకాలం: 18 నెలలు
  • కస్టమర్ సేవ: వారానికి 7 రోజులు, రోజుకు 24 గంటలు

For any product-related issues, questions, or warranty claims, it is recommended to contact Trueque customer support directly. This ensures faster resolution and dedicated assistance.

Image of three customer support representatives with headsets, indicating available support.
Figure 7.1: Dedicated customer support team.
Diagram illustrating the recommended process for support: contact seller first for faster problem resolution.
Figure 7.2: Recommended support process for efficient problem solving.
