హాస్వింగ్ ఎలక్ట్రిక్ ట్రోలింగ్ మోటార్ యూజర్ మాన్యువల్

పరిచయం

This manual provides essential information for the safe operation, installation, and maintenance of your HASWING Electric Trolling Motor. The Cayman 24V 80lb Trolling Motor system is designed for both saltwater and freshwater use, offering precise control and efficient performance for serious anglers. Please read this manual thoroughly before using the product to ensure proper function and longevity.

భద్రతా సమాచారం

Always prioritize safety when operating any marine equipment.

• Ensure all electrical connections are secure and properly insulated to prevent short circuits and electric shock.
• Always disconnect power to the motor before performing any maintenance, propeller changes, or inspections.
• Keep hands, feet, and clothing clear of the propeller when the motor is in operation or connected to power.
• Do not operate the motor if the propeller is damaged or obstructed.
• Use only recommended battery types (24V deep cycle battery) and ensure proper voltage.
• Be aware of your surroundings and other vessels when operating the trolling motor.
• Do not attempt to modify the motor or its components, as this may void the warranty and create safety hazards.

భాగాలు ముగిశాయిview

The HASWING Electric Trolling Motor system includes several key components for optimal performance and control.

Figure 1: Key Components of the HASWING Cayman Trolling Motor. This diagram illustrates the main parts of the trolling motor, including the wireless remote controller, depth collar, deploy/stow pedal, optional wired foot controller, sacrificial anode, DD brush motor, and individual fin.

• వైర్‌లెస్ రిమోట్ కంట్రోలర్: For wireless control of speed and steering.
• Depth Collar: Allows adjustment of the motor's depth in the water.
• Deploy/Stow Pedal: Enables easy deployment and stowing of the motor.
• Wired Foot Controller (Optional): Provides an alternative wired control method.
• త్యాగ ఆనోడ్: Protects the motor from corrosion in saltwater environments.
• DD Brush Motor: The main propulsion unit.
• Individual Fin: Protects the propeller and motor from underwater impacts.
• LED Battery Power Reader: Displays the current battery charge level.

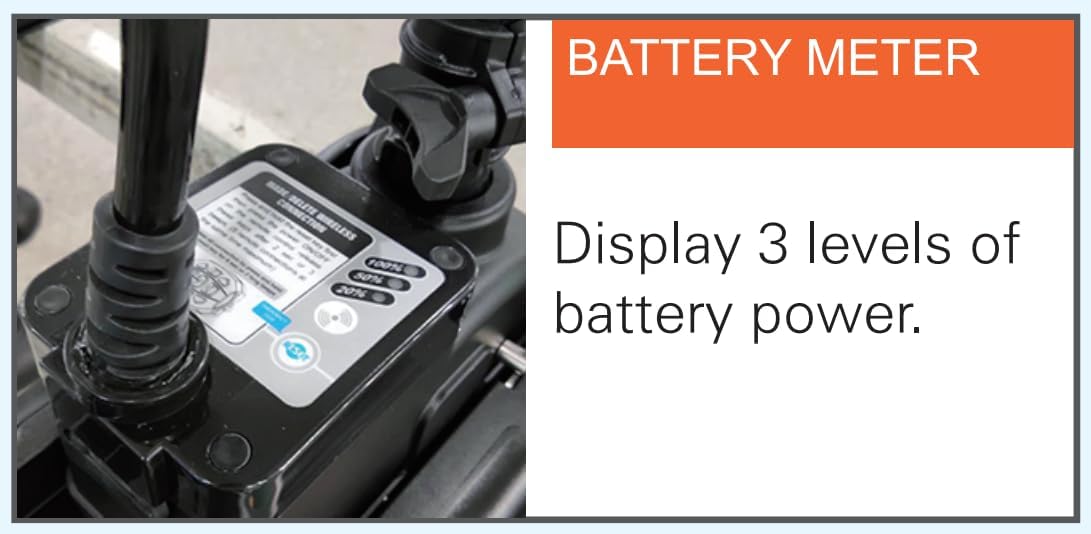

Figure 2: Battery Meter. This display shows three levels of battery power, allowing you to monitor your charge.

Figure 3: Deploy/Stow Pedal. Press this pedal to easily deploy or stow the motor.

Figure 4: Individual Fin. The individual fin is designed to protect the motor and propeller from impacts underwater.

సెటప్ మరియు ఇన్‌స్టాలేషన్

మోటార్ మౌంట్

The HASWING Cayman trolling motor is designed for bow mounting.

1. Position the motor mount securely on the bow of your boat, ensuring it is centered and stable.
2. Use appropriate marine-grade fasteners to attach the mount to the boat's deck. Ensure the mounting surface is strong enough to support the motor's weight and thrust.
3. Once the mount is secure, attach the trolling motor to the mount according to the specific instructions provided with your mounting bracket (if purchased separately).

ఎలక్ట్రికల్ కనెక్షన్

This motor operates on a 24V system. It requires two 12V deep cycle batteries connected in series, or a single 24V deep cycle battery.

1. Ensure the batteries are fully charged before initial use.
2. Connect the positive (+) terminal of the motor's power cable to the positive (+) terminal of your 24V battery system.
3. Connect the negative (-) terminal of the motor's power cable to the negative (-) terminal of your 24V battery system.
4. Verify all connections are tight and corrosion-free. It is recommended to use marine-grade connectors and heat shrink tubing for protection.
5. Install an appropriate circuit breaker or fuse (not included) in the positive line, close to the battery, to protect the system from overcurrent.

లోతు సర్దుబాటు

Adjust the motor's depth using the depth collar on the shaft. Loosen the collar, slide the motor to the desired depth, and then tighten the collar securely. The propeller should be submerged sufficiently to avoid cavitation but not so deep as to hit obstacles.

ఆపరేటింగ్ సూచనలు

Deploying and Stowing the Motor

To deploy the motor, press the deploy/stow pedal and gently lower the motor into the water. To stow, press the pedal and lift the motor out of the water, securing it in its stowed position.

Figure 5: Trolling Motor in Stowed Position. The motor can be easily lifted and secured when not in use.

రిమోట్ కంట్రోల్ ఉపయోగించడం

The wireless remote control allows for convenient operation from anywhere on the boat.

• పవర్ ఆన్/ఆఫ్: Use the designated buttons to turn the motor on or off.
• వేగ నియంత్రణ: Adjust the motor speed using the variable speed controls. This allows for precise adjustments from slow trolling to faster propulsion.
• స్టీరింగ్: The remote provides 360-degree electric steering control. Use the directional buttons to steer the boat.
• క్రూయిజ్ కంట్రోల్: Engage cruise control to maintain a constant speed, freeing you to focus on fishing. Refer to the remote's specific instructions for activating this feature.

మానిటరింగ్ బ్యాటరీ లైఫ్

The LED battery power reader on the motor provides a quick visual indication of your battery's charge status. Monitor this regularly to avoid unexpected power loss.

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ ట్రోలింగ్ మోటార్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• ప్రతి ఉపయోగం తర్వాత: Rinse the motor, especially the lower unit and propeller, with fresh water to remove salt, dirt, and debris.
• ప్రొపెల్లర్ తనిఖీ: Regularly check the propeller for fishing line, weeds, or damage. Remove any obstructions and replace damaged propellers promptly.
• త్యాగ ఆనోడ్: Inspect the sacrificial anode periodically. If it is significantly corroded (more than 50% consumed), replace it to ensure continued protection against electrolysis, especially in saltwater.
• విద్యుత్ కనెక్షన్లు: Periodically check all electrical connections for corrosion, tightness, and wear. Clean and re-tighten as necessary.
• నిల్వ: When storing the motor for extended periods, ensure it is clean, dry, and stored in a cool, dry place. Disconnect batteries.

ట్రబుల్షూటింగ్

If you encounter issues with your trolling motor, refer to the following common problems and solutions.

స్పెసిఫికేషన్లు

Detailed specifications for the HASWING Cayman 24V 80lb Trolling Motor (Model: CAYMAN-50718D-149B-R).

Figure 6: Model 50718D-149 Specifications. ఈ చిత్రం సమగ్రమైన అవలోకనాన్ని అందిస్తుందిview of the motor's technical data.

వారంటీ మరియు మద్దతు

For warranty information and technical support, please contact the manufacturer, Haswing, or the seller, MTLAKEMOTOR, directly. Retain your proof of purchase for warranty claims.

తయారీదారు: హాస్వింగ్
బ్రాండ్: MTLAKEMOTOR
