పరిచయం
This manual provides essential instructions for the assembly, operation, and maintenance of your Team Associated RC10B74.2 CE Team Kit. The B74 platform is a high-performance competition buggy designed for advanced users. This Champions Edition kit incorporates Factory Team components and updated setups to enhance performance. Proper assembly and adherence to these instructions are crucial for optimal performance and longevity of the vehicle.
The RC10B74.2 CE Team Kit is a high-performance remote-controlled vehicle designed for competitive racing. It features advanced components and engineering to deliver precise handling and durability. This kit requires assembly and additional components (motor, ESC, radio system, battery, charger, tires) to be fully operational.
కీ ఫీచర్లు
- Factory Team +2 Steering Block Arms Included
- Includes 2.5mm Thick Shock Pistons
- Lightweight Molded Gearboxes
- 13mm Big-Bore Threaded Aluminum Shocks
- LTC Differential Gear Sets Are Included
- Factory Team decoupled slipper clutch and related parts included
- Updated kit setup includes purple front springs
- Two fixed height front gearboxes allowing 0 and +2mm diff height options.
- One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options.
- Machined shock pistons for improved bump and jump handling
- Gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability
- LTC differential gear sets reduce binding under power, giving more predictable power delivery.
- Battery hold-down system uses inserts to adjust weight bias.
- O-ring style battery strap with pull tabs
భద్రతా సమాచారం
As described, this product is intended for hobby use and requires careful handling. Always operate the vehicle in a safe environment, away from people, pets, and obstacles. Read and understand all instructions before assembly and operation. Failure to do so may result in injury or damage to the product or property. Keep small parts out of reach of children. This product is recommended for ages 14 years and older.
ప్రతిపాదన 65 హెచ్చరిక: ఈ ఉత్పత్తిలో క్యాన్సర్ మరియు పుట్టుకతో వచ్చే లోపాలు లేదా ఇతర పునరుత్పత్తి హాని కలిగించే రసాయనాలు కాలిఫోర్నియా రాష్ట్రానికి తెలిసిన ఉండవచ్చు. మరిన్ని వివరాల కోసం, సందర్శించండి www.P65Warnings.ca.gov.
సెటప్ మరియు అసెంబ్లీ
The RC10B74.2 CE Team Kit requires complete assembly. It is recommended to follow the detailed assembly manual provided with the physical kit for step-by-step instructions. This section provides a general overview of key assembly areas.
1. Chassis and Suspension Assembly
Begin by assembling the main chassis components. This includes attaching the front and rear bulkheads, suspension arms, and shock towers. Ensure all screws are tightened to the recommended specifications to prevent loosening during operation.

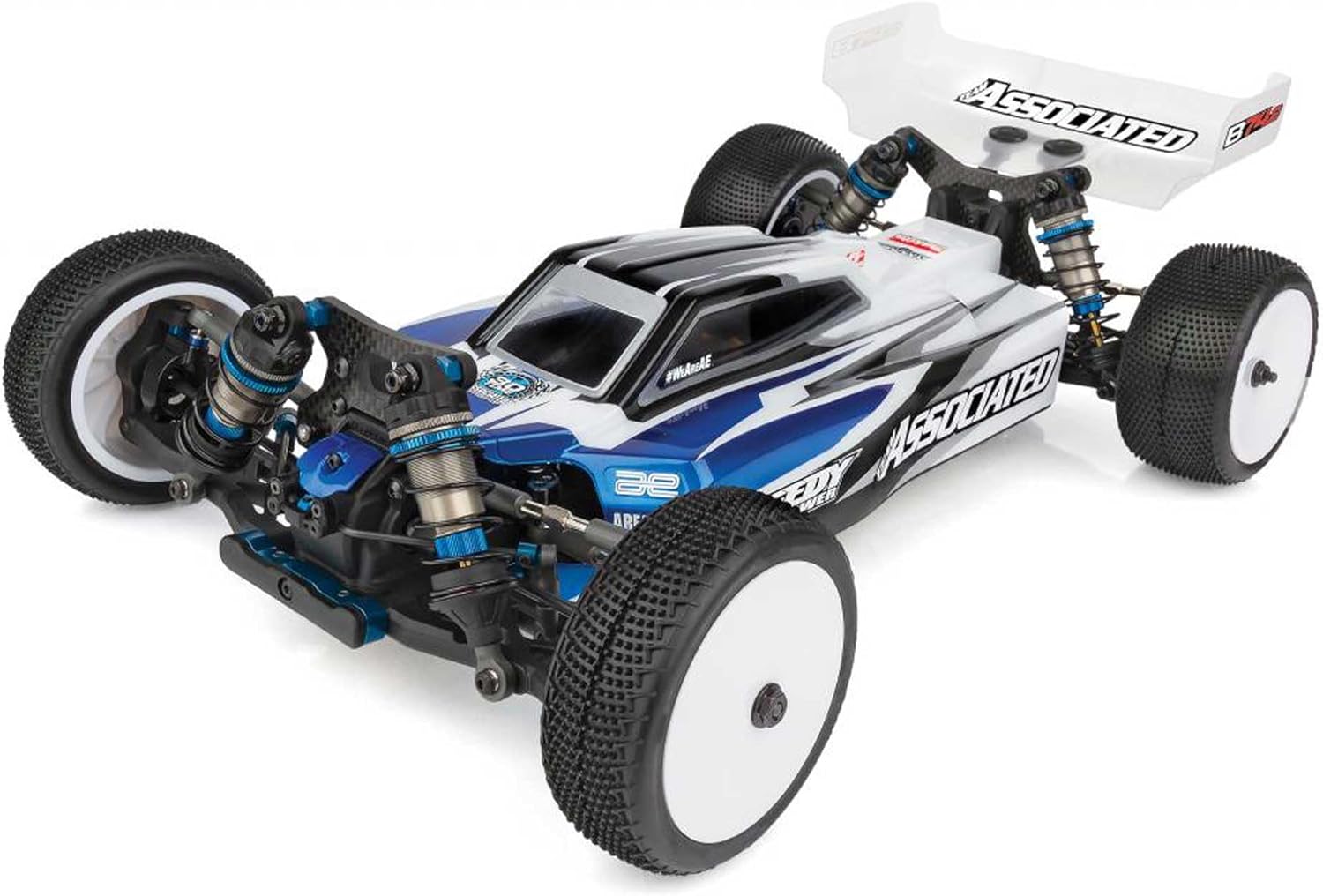

Image: Assembled Team Associated RC10B74.2 CE Team Kit, showcasing the overall design and front-left suspension.
చిత్రం: ముందు-కుడి view of the assembled RC10B74.2 CE Team Kit, highlighting the front suspension and steering components.
2. Differential and Gearbox Installation
Assemble the front and rear differentials, ensuring proper lubrication. Install them into the lightweight molded gearboxes. Pay attention to the diff height options (0, +1, +2, +3mm for rear; 0, +2mm for front) to adjust the vehicle's handling characteristics.
Image: Rear-right view of the assembled RC10B74.2 CE Team Kit, showing the rear gearbox and wing.
3. Shock Absorber Assembly
Assemble the 13mm big-bore threaded aluminum shocks. Fill them with the appropriate shock oil and install the 2.5mm thick machined shock pistons. Ensure smooth operation and proper rebound. Install the purple front springs as per the updated kit setup.
Image: Four assembled 13mm big-bore threaded aluminum shocks with springs, ready for installation.
4. Steering and Electronics Installation
Install the steering servo, receiver, electronic speed controller (ESC), and motor. Connect all electronics according to their respective manuals. The Factory Team +2 steering block arms are included for enhanced steering geometry.
చిత్రం: క్లోజప్ view of the steering assembly, showing the servo linkage and front suspension components.
చిత్రం: వివరణాత్మకం view of the motor and cooling fan installation area within the chassis.
5. బ్యాటరీ ఇన్స్టాలేషన్
Utilize the battery hold-down system with inserts to adjust weight bias. Secure the battery using the O-ring style battery strap with pull tabs.
Image: The battery compartment showing a battery installed and the associated O-ring style hold-down straps.
ఆపరేటింగ్ సూచనలు
Before operating your RC10B74.2 CE Team Kit, ensure all components are correctly installed and secured. Charge your battery fully and ensure your radio transmitter has fresh batteries.
1. Pre-Run Checks
- Verify all screws are tight.
- Check shock action and suspension travel.
- Ensure steering operates smoothly and correctly.
- బ్యాటరీ పూర్తిగా ఛార్జ్ చేయబడిందని మరియు సురక్షితంగా ఇన్స్టాల్ చేయబడిందని నిర్ధారించుకోండి.
- Check tire mounting and condition.
2. పవర్ చేయడం
- Turn on your radio transmitter first.
- బ్యాటరీని ESCకి కనెక్ట్ చేయండి.
- Turn on the ESC switch.
- Perform a quick function check: steering left/right, throttle forward/reverse.
3. డ్రైవింగ్ చిట్కాలు
- Start with gentle throttle inputs to get accustomed to the vehicle's response.
- Practice steering and braking in an open area.
- Avoid operating in wet conditions or extreme temperatures.
- Always maintain a clear line of sight to the vehicle.
నిర్వహణ
Regular maintenance is essential to keep your RC10B74.2 CE Team Kit in top condition and ensure its longevity.
1. After Each Run
- Clean the vehicle: Remove dirt, dust, and debris using a soft brush or compressed air.
- Inspect for damage: Check suspension components, chassis, and body for any cracks or loose parts.
- Check screw tightness: Ensure all critical screws are still secure.
- Disconnect and charge batteries: Allow batteries to cool before charging.
2. Periodic Maintenance (Every 5-10 Runs)
- Differential service: Disassemble, clean, and re-lubricate the differentials. Check for wear on gears.
- Shock service: Inspect shock shafts for bends, replace O-rings if leaking, and refill with fresh shock oil.
- Bearing inspection: Check all bearings for smooth operation. Replace any rough or seized bearings.
- Drivetrain inspection: Check drive shafts, outdrives, and dog bones for wear.
- Steering assembly: Inspect servo saver, linkages, and steering blocks for wear or damage.
ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your RC10B74.2 CE Team Kit.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Vehicle does not power on. |
|
|
| No steering response. |
|
|
| Motor runs but vehicle does not move. |
|
|
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | ASC90044 |
| ఉత్పత్తి కొలతలు | 14.9 x 9 x 5.1 అంగుళాలు |
| వస్తువు బరువు | 1 పౌండ్లు |
| తయారీదారు | టీమ్ అసోసియేటెడ్ |
| సిఫార్సు చేసిన వయస్సు | 14 నెలలు - 9 సంవత్సరాలు (Note: This age range appears to be a general Amazon categorization. The product is a competition-grade RC kit, typically recommended for ages 14+ due to complexity and required skills.) |
| ASIN | B0CZWT3XMZ |
వారంటీ మరియు మద్దతు
Team Associated products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your physical kit or visit the official Team Associated website. Warranty terms typically cover manufacturing defects but not damage due to misuse, accidents, or normal wear and tear.
For technical support, spare parts, or further assistance, please visit the official Team Associated webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.
