HELVEX Valvex V లార్జ్ రైట్ 1/4 టర్న్ రీప్లేస్‌మెంట్ కార్ట్రిడ్జ్ SH-1012 ఇన్‌స్ట్రక్షన్ మాన్యువల్

1. పరిచయం

This manual provides comprehensive instructions for the installation, operation, and maintenance of your HELVEX Valvex V Large Right 1/4 Turn Replacement Cartridge, Model SH-1012. This ceramic disc cartridge is designed to ensure a complete shut-off of water flow, preventing drips and ensuring reliable performance in compatible HELVEX faucet models.

2. ఉత్పత్తి ముగిసిందిview

The HELVEX Valvex V Large Right 1/4 Turn Replacement Cartridge (SH-1012) is a high-quality component crafted from bronze, featuring a ceramic disc mechanism for smooth and precise water control. Its 1/4 turn design allows for quick and efficient operation.

మూర్తి 2.1: ముందు view of the HELVEX Valvex V Large Right 1/4 Turn Replacement Cartridge (SH-1012). This image displays the main body of the cartridge, highlighting its brass construction and the internal mechanism.

మూర్తి 2.2: వైపు view of the HELVEX Valvex V Large Right 1/4 Turn Replacement Cartridge (SH-1012). This perspective shows the threaded base and the stem, which connects to the faucet handle, indicating its right-turn closure mechanism.

3. అనుకూలత

The SH-1012 cartridge is specifically designed for use with various HELVEX faucet models and assemblies. Ensure your existing faucet or assembly is listed below or visually matches the compatible models shown in the diagram.

3.1. Compatible Faucet Models (Keys)

• MEP-2006 (Nuva)
• MEP-2115 (Premier)
• M-1004 (Konos)
• M-1005 (Clásica)
• H-13341G (De hospital)
• M-1006 (Nautilia)
• ME-303 (Premier)
• ME-304 (Premier)

3.2. Compatible Assemblies

• E-40-ll, E-40-AQ
• E-50-ll, E-50-AQ
• E-60-ll, E-60-AQ
• E-61-ll, E-61-S, E-61-AQ

3.3. Compatible Discontinued Products

• E-301, E-302, E-303, E-2007, E-2111-II, E-2113, E-2117, E-9, E6-II, M-03, E-2001, E-2004-II, E-2009-II, E-2114, E-2116, E-2118, E-2119, E-2120, MEV6-V, E-2121, E-2122, E-3000, E-3004, E-2115, M-05, E-2118-DX, ME-2122-1.9

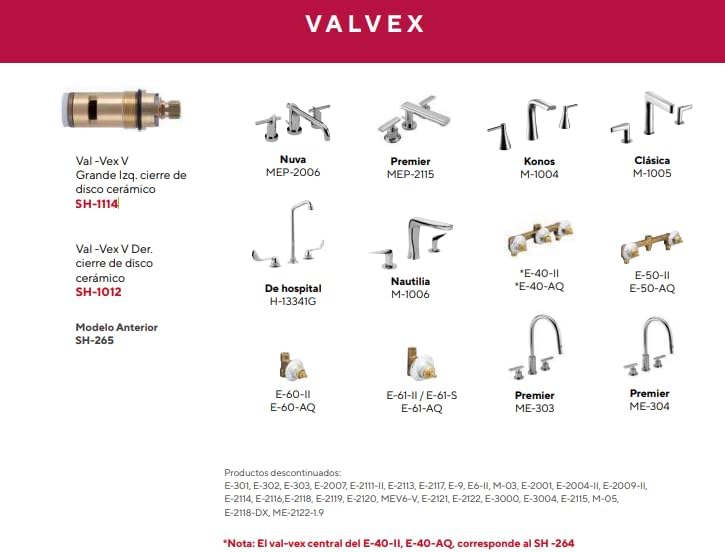

మూర్తి 3.1: HELVEX Valvex V compatibility diagram. This diagram illustrates the SH-1012 (Right Turn) and SH-1114 (Left Turn) cartridges alongside various compatible HELVEX faucet models and assemblies, aiding in visual identification for correct replacement.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

Replacing a faucet cartridge requires careful attention to detail. If you are unsure about any step, it is recommended to consult a qualified plumber.

4.1. అవసరమైన సాధనాలు

• సర్దుబాటు చేయగల రెంచ్ లేదా శ్రావణం
• Screwdriver (Phillips or flathead, depending on faucet model)
• Rag or towel
• Penetrating oil (optional, for stubborn parts)

4.2. సంస్థాపనా దశలు

1. నీటి సరఫరాను ఆపివేయండి: Locate the main water shut-off valve for your home or the specific shut-off valves for the faucet you are working on (typically under the sink). Turn them off completely.
2. డ్రెయిన్ కుళాయి: Open the faucet handles to drain any remaining water from the lines.
3. కుళాయి హ్యాండిల్‌ను తీసివేయండి: Carefully remove the decorative cap (if present) on the faucet handle to expose the screw. Unscrew the handle and lift it off.
4. కార్ట్రిడ్జ్‌ని యాక్సెస్ చేయండి: Depending on your faucet model, you may need to remove a retaining nut, collar, or clip that holds the old cartridge in place. Use an adjustable wrench or pliers if necessary.
5. పాత కార్ట్రిడ్జ్ తొలగించండి: Gently pull or twist the old cartridge out of its housing. If it's stuck, a cartridge puller tool might be needed, or apply penetrating oil and allow it to sit. Note the orientation of the old cartridge for correct installation of the new one.
6. కొత్త కార్ట్రిడ్జ్‌ని ఇన్‌స్టాల్ చేయండి: Insert the new HELVEX Valvex V SH-1012 cartridge into the faucet body, ensuring it is correctly aligned. The right-turn mechanism means it will close when turned clockwise.
7. సెక్యూర్ కార్ట్రిడ్జ్: Reinstall any retaining nuts, collars, or clips that were removed. Tighten securely but do not overtighten.
8. హ్యాండిల్‌ను తిరిగి అటాచ్ చేయండి: Place the faucet handle back onto the cartridge stem and secure it with the screw. Replace the decorative cap.
9. నీటి సరఫరాను పునరుద్ధరించండి: Slowly turn the water supply valves back on.
10. లీక్‌ల కోసం తనిఖీ చేయండి: Open the faucet and check for any leaks around the handle or base. Test the hot and cold water flow.

5. ఆపరేషన్

The HELVEX Valvex V SH-1012 cartridge provides a smooth 1/4 turn operation for water flow control. To open the water flow, turn the faucet handle counter-clockwise. To close the water flow completely and prevent drips, turn the handle clockwise until it stops.

6. నిర్వహణ

Regular maintenance helps prolong the life of your faucet and cartridge.

• శుభ్రపరచడం: Clean the exterior of your faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
• లీక్ తనిఖీలు: Periodically check for any signs of leaks around the faucet base or handle. Address minor leaks promptly to prevent further damage.
• నీటి నాణ్యత: In areas with hard water, mineral deposits can accumulate over time. If you notice reduced flow or stiffness in the handle, it may indicate a need for professional inspection or cartridge replacement.

7. ట్రబుల్షూటింగ్

ఇక్కడ కొన్ని సాధారణ సమస్యలు మరియు వాటి సంభావ్య పరిష్కారాలు ఉన్నాయి:

• Dripping Faucet: If the faucet continues to drip after closing, ensure the handle is fully turned to the closed (clockwise) position. If dripping persists, the cartridge may need to be re-seated or replaced if it's worn.
• తగ్గిన నీటి ప్రవాహం: Check if the aerator at the faucet spout is clogged with debris or mineral deposits. Clean or replace the aerator. If the issue persists, there might be a problem with the water supply or internal faucet components.
• Stiff Handle: A stiff handle can indicate mineral buildup around the cartridge or within the faucet body. Disassembly and cleaning may be required, or the cartridge might need replacement.
• Water Leaking from Handle Base: This often indicates a worn O-ring or an improperly seated cartridge. Re-check the installation steps, ensuring all components are correctly positioned and tightened.

For persistent issues, it is advisable to contact a professional plumber or HELVEX customer support.

8. స్పెసిఫికేషన్లు

9. మద్దతు

For further assistance, technical support, or warranty inquiries, please contact HELVEX customer service or visit their official website. Always refer to your original faucet's documentation for specific model information.
