EUKI Compressed Air Duster F31 Instruction Manual

1. పరిచయం

Thank you for choosing the EUKI Compressed Air Duster F31. This electric air duster is designed to provide a powerful and efficient cleaning solution for various applications, from delicate electronics to larger outdoor tasks. Its rechargeable design offers an environmentally responsible alternative to traditional canned air. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. భద్రతా సమాచారం

• పరికరాన్ని నీరు మరియు తేమ నుండి దూరంగా ఉంచండి.
• పరికరం పాడైతే దాన్ని ఆపరేట్ చేయవద్దు.
• ఆపరేషన్ ముందు నాజిల్ సురక్షితంగా జతచేయబడిందని నిర్ధారించుకోండి.
• Avoid directing airflow directly at eyes or sensitive body parts.
• పిల్లలకు దూరంగా ఉంచండి.
• ఆపరేషన్ సమయంలో గాలి తీసుకోవడం లేదా అవుట్‌లెట్‌ను నిరోధించవద్దు.
• The device features 150° overheat protection. If it overheats, allow it to cool down before further use.

3. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

• EUKI Compressed Air Duster F31 Unit
• Various Nozzles/Attachments (for different cleaning needs)
• USB-C ఛార్జింగ్ కేబుల్
• Cleaning Brushes (assorted sizes and types)
• నిల్వ బ్యాగ్
• వినియోగదారు మాన్యువల్

4. ఉత్పత్తి ముగిసిందిview మరియు ఫీచర్లు

The EUKI Compressed Air Duster F31 is a powerful, portable, and rechargeable device designed for efficient cleaning. Key features include:

• హై-స్పీడ్ మోటార్: Capable of up to 130,000 RPM, delivering a strong airflow of 45 m/s.
• 3 సర్దుబాటు వేగం: Allows for tailored cleaning intensity for various tasks.
• శక్తివంతమైన బ్యాటరీ: Rechargeable via Type-C (5V 1.5A), fully charging in 3-4 hours. Provides up to 4 hours of continuous use on the 1st speed setting.
• మేధో రక్షణ: Features a heat sink and 150° overheat protection. Automatically shuts off after 3 minutes of standby. The 3rd speed requires continuous pressing for safety.
• Environmentally Responsible: Reusable and rechargeable, eliminating the need for disposable canned air.
• పోర్టబుల్ మరియు తేలికపాటి: Weighs only 0.48 lbs, making it easy to handle and transport.

Figure 1: EUKI Compressed Air Duster F31 showcasing its 3-gear speed adjustable design for deep cleaning.

Figure 2: The electric air duster offers an eco-friendly and energy-efficient alternative to traditional compressed canned air.

Figure 3: High-efficiency motor providing powerful dust removal and stable wind speeds.

5. సెటప్

5.1 పరికరాన్ని ఛార్జ్ చేస్తోంది

1. అందించిన USB-C ఛార్జింగ్ కేబుల్‌ను పరికరంలోని ఛార్జింగ్ పోర్ట్‌కు కనెక్ట్ చేయండి.
2. Plug the other end of the cable into a compatible 5V 1.5A USB power adapter (not included).
3. The indicator lights will illuminate to show the charging status. All lights will be solid when fully charged.
4. పూర్తి ఛార్జ్ సాధారణంగా 3-4 గంటలు పడుతుంది.

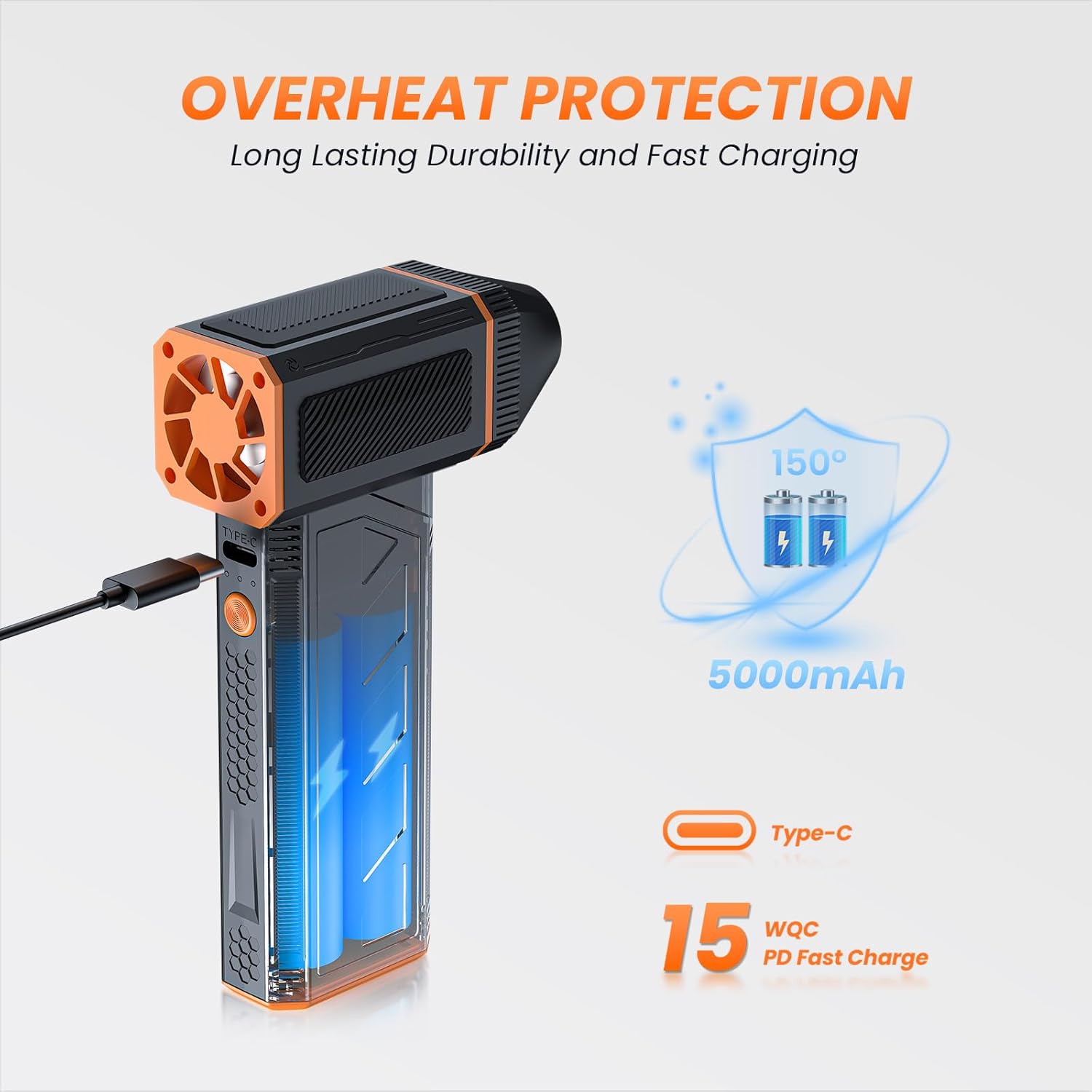

Figure 4: The device features a Type-C charging port and 150° overheat protection for safe and efficient use.

5.2 నాజిల్‌లను అటాచ్ చేయడం

The EUKI Compressed Air Duster F31 features a strong magnetic design for easy nozzle attachment and removal.

1. మీ శుభ్రపరిచే పని కోసం తగిన నాజిల్‌ని ఎంచుకోండి.
2. Align the nozzle with the air outlet on the device.
3. Gently push and twist the nozzle until it magnetically locks into place.
4. To remove, twist the nozzle in the opposite direction and pull it off.

Figure 5: The strong magnetic design allows for easy disassembly and cleaning of nozzles.

6. ఆపరేటింగ్ సూచనలు

6.1 పవర్ ఆన్/ఆఫ్

• To power on the device, long-press the power button located on the back of the unit for a few seconds. The indicator lights will illuminate.
• To power off, long-press the power button again.

6.2 వేగ సెట్టింగ్‌లను సర్దుబాటు చేయడం

The device has 3 adjustable speed settings:

• After powering on, short-press the power button to cycle through the speeds.
• 1st Speed (Low): One indicator light illuminated. Ideal for delicate surfaces.
• 2nd Speed (Medium): Two indicator lights illuminated. Suitable for general cleaning.
• 3rd Speed (High): Three indicator lights illuminated. Provides maximum airflow for stubborn debris. This speed requires continuous pressing of the trigger button.

6.3 Activating Airflow

• Once the desired speed is selected, press the trigger button on the front of the handle to activate the airflow.
• For 1st and 2nd speeds, a single press will turn on continuous airflow. Press again to stop.
• For 3rd speed, you must continuously press and hold the trigger button for airflow. Releasing the button will stop the airflow.

6.4 వాడుక ఉదాampలెస్

The EUKI Compressed Air Duster F31 is versatile for various cleaning tasks:

• ఎలక్ట్రానిక్స్: Clean keyboards, PC mainframes, camera lenses, and other sensitive devices.
• ఆటోమోటివ్: Dust car interiors, air conditioning vents, and remove leaves from car windows.
• గృహ: Clear sofa crumbs, clean window tracks, and blow dust from hard-to-reach areas.
• అవుట్డోర్: Assist with barbecue fueling, inflate air mattresses or pool floaties, and clear light snow or leaves.
• పెంపుడు జంతువుల సంరక్షణ: Gently blow-dry pet hair on lower settings.

Figure 6: The air duster is suitable for a wide range of applications including cleaning keyboards, PCs, cars, and household items.

7. నిర్వహణ

• యూనిట్ శుభ్రపరచడం: Wipe the exterior of the device with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• నాజిల్ క్లీనింగ్: Detach nozzles and clean them with a soft brush or cloth. Ensure they are dry before reattaching.
• నిల్వ: Store the device and its accessories in the provided storage bag in a cool, dry place when not in use.
• బ్యాటరీ సంరక్షణ: For optimal battery life, charge the device regularly and avoid completely draining the battery frequently.

8. ట్రబుల్షూటింగ్

• పరికరం ఆన్ చేయడం లేదు: Ensure the device is fully charged. Long-press the power button for a few seconds to activate.
• బలహీనమైన గాలి ప్రవాహం: Check battery level and recharge if necessary. Ensure the nozzle is correctly attached and not obstructed.
• పరికరం అనుకోకుండా ఆగిపోతుంది: The overheat protection may have activated. Allow the device to cool down for a few minutes before resuming use. For 3rd speed, ensure the trigger button is continuously pressed.

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

The EUKI Compressed Air Duster F31 comes with a 30-day full refund or replacement policy, a 12-month warranty, and lifetime after-sales service support. For any inquiries or assistance, please contact EUKI customer service through your purchase platform.
