1. ఉత్పత్తి ముగిసిందిview
This manual provides instructions for the VEVOR 1000N DC 12V Linear Actuator, model OK648-1000N. It covers installation, operation, maintenance, and safety guidelines for this IP54-rated electric linear motor with a 150mm stroke length and 14mm/s speed. Designed for automation in various applications, including lifting mechanisms and electric door systems.
Figure 1: VEVOR 1000N DC 12V Linear Actuator. A silver-colored VEVOR linear actuator with a black cable, shown in its retracted position.
The VEVOR linear actuator is engineered for precision and durability, offering reliable performance for both domestic and industrial applications. Its robust design ensures stable operation and a long service life.
2. భద్రతా సూచనలు
Read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in injury or damage to the product.
- విద్యుత్ సరఫరా: విద్యుత్ సరఫరా రేట్ చేయబడిన వాల్యూమ్తో సరిపోలుతుందని నిర్ధారించుకోండిtage (12V DC) of the actuator.
- వైరింగ్: All wiring should be performed by a qualified professional to prevent electrical hazards.
- ఓవర్లోడ్ రక్షణ: Do not exceed the maximum load/actuation force of 1000N (220 lbs). Overloading can damage the motor.
- పర్యావరణ పరిస్థితులు: The actuator has an IP54 protection rating, making it resistant to dust and light splashes. However, do not allow water to enter the motor, as this can cause motor burnout.
- కదిలే భాగాలు: Keep hands and clothing clear of moving parts during operation to prevent injury.
- మౌంటు: Securely mount the actuator using the provided brackets and hardware to ensure stable operation.
- పిల్లలు మరియు పెంపుడు జంతువులు: పిల్లలు మరియు పెంపుడు జంతువులను ఆపరేటింగ్ ప్రాంతం నుండి దూరంగా ఉంచండి.
Figure 2: IP54 Protection. An image of the linear actuator covered in water droplets, emphasizing its IP54 protection class, which makes it splash-proof and dust-proof for outdoor use. A warning notes that water should not enter the motor.
3. ఉత్పత్తి భాగాలు
The VEVOR linear actuator is constructed with high-quality materials for reliable performance.
Figure 3: Internal Components. A detailed view of the linear actuator's construction, highlighting key components such as the durable aluminum alloy tube, electroplated iron head, and the high torque motor, indicating precision craftsmanship for durability.
ప్యాకేజీ విషయాలు:
- 1 x Linear Actuator (Model: OK648-1000N)
- 2 x మౌంటు బ్రాకెట్లు
- 2 x Screw Rods
- 2 x R-Type Pins
4. సెటప్ మరియు ఇన్స్టాలేషన్
Follow these steps for proper installation of your VEVOR linear actuator.
- మౌంటు: Attach the linear actuator securely to your application using the provided mounting brackets, screw rods, and R-type pins. Ensure the mounting points are stable and can support the actuator's force.
- విద్యుత్ సరఫరా మరియు కంట్రోలర్: The linear actuator requires an external 12V DC power supply and a controller for operation. These components are చేర్చబడలేదు in the package and must be purchased separately. A 12V, 8A power supply is recommended.
- వైరింగ్: Connect the actuator to your 12V DC power source and controller according to the wiring diagram below. Pay close attention to polarity.
Figure 4: Easy Wiring Connection. A simplified wiring diagram illustrating how to connect the linear actuator to a DC 12V battery. It indicates that a 12V, 8A power supply and controller part need to be purchased separately. Note: Only the pushrod is included.
ముఖ్యమైన గమనిక: When controlling two motors simultaneously, their operating speeds may differ and cannot be perfectly synchronized without specialized control systems.
5. ఆపరేటింగ్ సూచనలు
Once properly installed and wired, the VEVOR linear actuator can be operated via its external controller.
- పొడిగింపు/ఉపసంహరణ: Use the control buttons on your external controller to extend or retract the actuator rod. The actuator will move at a speed of approximately 14 mm/s.
- ఆపడం: Release the control button to stop the actuator at any desired position.
- లోడ్ సామర్థ్యం: Ensure the load applied does not exceed the maximum actuation force of 1000N (220 lbs).
- డ్యూటీ సైకిల్: The actuator has a duty cycle of 25%. This means it should operate for no more than 25% of the time in any given period (e.g., 15 minutes of operation followed by 45 minutes of rest). Exceeding the duty cycle can lead to overheating and damage.
- శబ్దం స్థాయి: The operating noise level is ≤ 50 dB, ensuring relatively quiet operation.
Figure 5: Application Example. A linear actuator integrated into a wooden cabinet, demonstrating its use in an automatic lifting or opening mechanism.
6. నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your linear actuator.
- శుభ్రపరచడం: Periodically clean the exterior of the actuator with a dry or slightly damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను ఉపయోగించడం మానుకోండి.
- తనిఖీ: Regularly inspect the mounting points, wiring, and the actuator rod for any signs of wear, damage, or loose connections.
- సరళత: The internal components are pre-lubricated and generally do not require additional lubrication. If the actuator rod appears dry or sticky, consult VEVOR support for guidance.
- పర్యావరణ పరిరక్షణ: While IP54 rated, avoid prolonged exposure to heavy rain or direct water jets. Ensure the motor housing remains dry.
7. ట్రబుల్షూటింగ్
If you encounter issues with your linear actuator, refer to the following common problems and solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| యాక్యుయేటర్ కదలదు. | No power, incorrect wiring, faulty controller, motor overload. | Check power supply connection and voltage. Verify wiring polarity. Test controller. Reduce load if overloaded. |
| యాక్యుయేటర్ నెమ్మదిగా లేదా అడపాదడపా కదులుతుంది. | తక్కువ వాల్యూమ్tage, excessive load, internal friction. | Ensure stable 12V DC power. Reduce load. Inspect for obstructions. |
| ఆపరేషన్ సమయంలో అసాధారణ శబ్దం. | Misalignment, worn components, foreign objects. | Check mounting alignment. Inspect for foreign objects. If noise persists, contact support. |
| Actuator overheats. | Exceeding duty cycle, excessive load. | Adhere to the 25% duty cycle. Reduce load. Allow actuator to cool down. |
ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి VEVOR కస్టమర్ సపోర్ట్ను సంప్రదించండి.

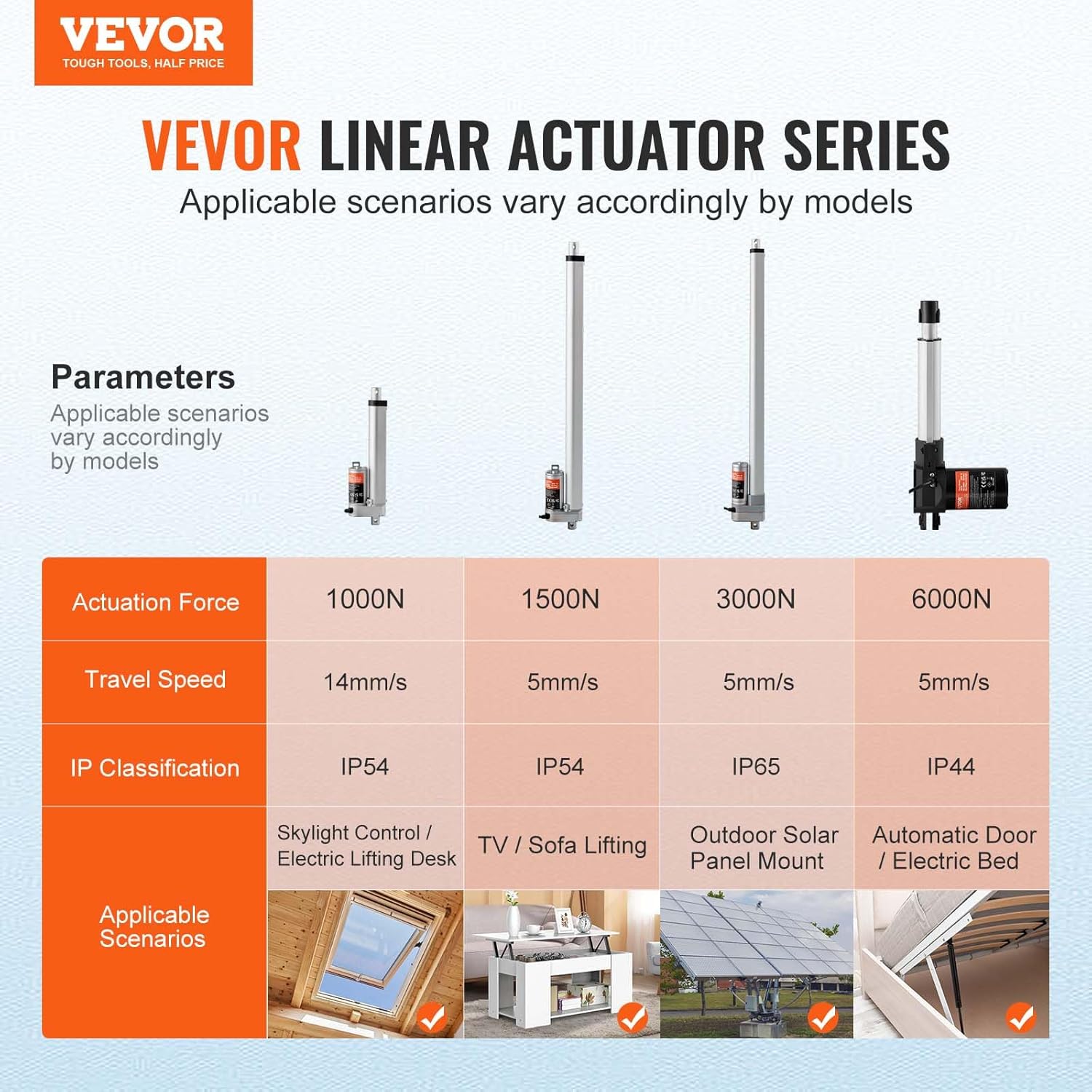

8. స్పెసిఫికేషన్లు
Detailed technical specifications for the VEVOR 1000N DC 12V Linear Actuator (Model: OK648-1000N).
Figure 6: Product Specifications. A comprehensive table listing the specifications for the VEVOR OK648-1000N linear actuator, including rated voltage, maximum load, travel speed, stroke length, protection class, noise level, rated current, main material, net weight, product dimensions, and included accessories.
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | OK648-1000N |
| వాల్యూమ్ రేట్ చేయబడిందిtage | 12V DC |
| Maximum Load / Actuation Force | 1000 N (220 పౌండ్లు) |
| ప్రయాణ వేగం | > 0.55 inches/s (14 mm/s) |
| స్ట్రోక్ పొడవు | 150 మిమీ (6 అంగుళాలు) |
| రక్షణ తరగతి | IP54 |
| శబ్దం స్థాయి | ≤ 50 డిబి |
| రేటింగ్ కరెంట్ | < 5 ఎ |
| ప్రధాన పదార్థం | అల్యూమినియం మిశ్రమం |
| నికర బరువు | 1.04 కిలోలు (2.29 పౌండ్లు) |
| ఉత్పత్తి కొలతలు (L x W x H) | 275 x 75 x 40 మిమీ (10.82 x 2.95 x 1.57 అంగుళాలు) |
| డ్యూటీ సైకిల్ | 25% |
9. వారంటీ మరియు మద్దతు
Information regarding product warranty and availability of spare parts is not explicitly provided in the product data. For specific warranty details, technical support, or spare parts inquiries, please contact VEVOR customer service directly through their official webఉత్పత్తిని కొనుగోలు చేసిన సైట్ లేదా రిటైలర్.
VEVOR అధికారిక Webసైట్: www.vevor.com
