PICO Neo 3 Pro (VR) హెడ్‌సెట్ యూజర్ మాన్యువల్

పరిచయం

The PICO Neo 3 Pro is an advanced virtual reality headset designed for business development, training, enterprise solutions, and collaboration. It features a new generation of self-developed 6DoF optical precision positioning technology, offering millimeter-level accuracy and ultra-low tracking lag for an immersive experience. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Neo 3 Pro headset.

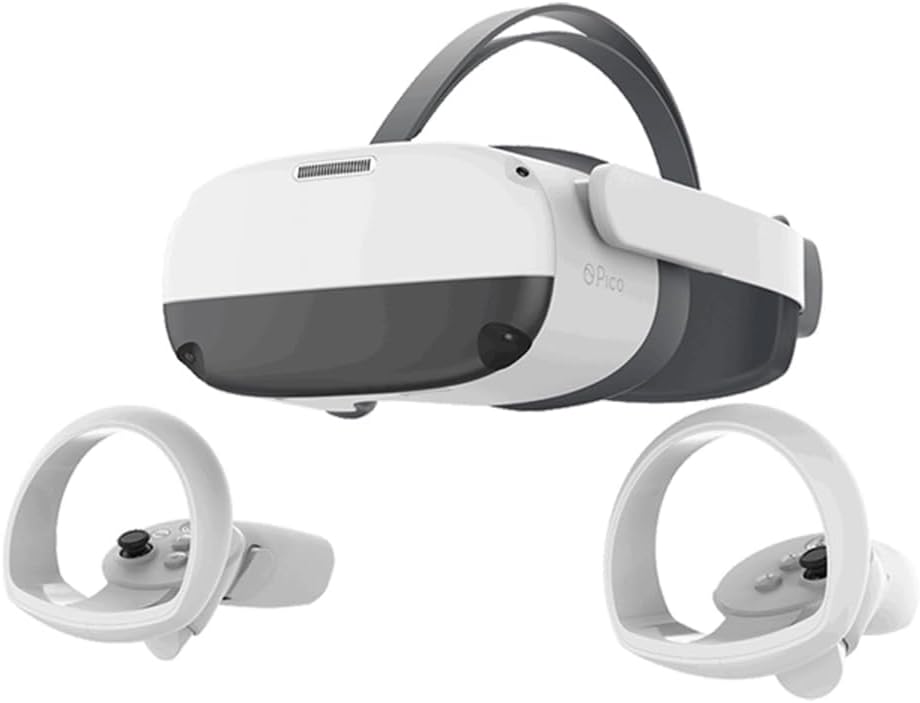

Image: The PICO Neo 3 Pro VR Headset, white and dark grey, with two white motion controllers positioned below it. The headset features a front-facing camera array and an adjustable head strap.

ప్యాకేజీ విషయాలు

ప్యాకేజీలో అన్ని వస్తువులు ఉన్నాయని నిర్ధారించుకోండి:

• PICO Neo 3 Pro Headset
• 2x 6DoF Controllers (Right and Left hand)
• AC అడాప్టర్
• USB టైప్-సి కేబుల్
• Head Strap (Elite straps)

సెటప్

Initial Setup and Power On

1. హెడ్‌సెట్‌ను ఛార్జ్ చేయండి: Connect the AC adapter to the USB Type-C port on the headset and plug it into a power outlet. The LED indicator will show charging status.
2. హెడ్‌సెట్‌ను సర్దుబాటు చేయండి: Place the headset on your head. Use the knob on the back of the Elite Straps to adjust for a secure and comfortable fit. The side-straps can be rotated upwards for quick wear.
3. Adjust IPD: The PICO Neo 3 Pro features physical IPD adjustment (58/63.5/69mm). Adjust the lenses until the image appears clear and comfortable.
4. పవర్ ఆన్: LED సూచిక వెలిగే వరకు హెడ్‌సెట్‌లోని పవర్ బటన్‌ను నొక్కి పట్టుకోండి.
5. కంట్రోలర్ జత చేయడం: The 6DoF controllers should automatically pair with the headset upon first use. If not, follow the on-screen instructions or refer to the troubleshooting section.

Setting Up Your Play Space

The 6DoF optical precision positioning technology requires a clear play space. Ensure you have sufficient room to move safely without obstructions.

• Clear the area of any furniture, obstacles, or tripping hazards.
• Ensure adequate lighting for optimal tracking performance.
• Follow the on-screen prompts within the headset to define your play boundary.

ఆపరేటింగ్ సూచనలు

ప్రాథమిక నావిగేషన్

• కంట్రోలర్లు: Use the 6DoF controllers for interaction within the VR environment. They feature buttons for Power, App (Back), Trigger, Home, Volume Up, and Volume Down.
• హోమ్ బటన్: Press the Home button on either controller to return to the main menu or dashboard.
• ట్రిగ్గర్ బటన్: Used for selection and interaction with virtual objects.
• వాల్యూమ్ బటన్లు: Adjust the audio output from the built-in dual stereo speakers.

PC VR Mode

The PICO Neo 3 Pro can be used as an all-in-one VR headset or connected to a PC for a more powerful experience.

• To switch to PC VR mode, connect the headset to your PC using a 5m PICO DP cable (purchased separately).
• This connection allows for lossless 4K visual experience with zero lagging, enabling access to platforms like SteamVR in original quality.

వ్యాపార అనువర్తనాలు

The Neo 3 Pro is optimized for business development, training, and enterprise collaboration. PICO offers one-stop VR solutions and app development for businesses.

• Utilize the precise 6DoF tracking for accurate spatial positioning in training simulations.
• Engage in immersive collaboration sessions with reduced motion sickness.
• Leverage the Android 10 operating system for custom application deployment.

నిర్వహణ

హెడ్‌సెట్‌ను శుభ్రపరచడం

• లెన్స్‌లు: Use a dry microfiber cloth specifically designed for optical lenses. Wipe gently from the center outwards in a circular motion. Do not use liquid cleaners or abrasive materials.
• బాహ్య: Wipe the exterior surfaces of the headset and controllers with a soft, damp cloth. Avoid getting moisture into ports or openings.
• PU Foam: The PU foam interface is durable and easy to clean. Wipe with a damp అవసరమైతే గుడ్డ మరియు తేలికపాటి సబ్బు, తరువాత పూర్తిగా ఆరబెట్టండి.

నిల్వ

Store the headset in a cool, dry place away from direct sunlight. Protect the lenses from scratches and dust by using a lens cover or storing it in its original packaging.

ట్రబుల్షూటింగ్

సాధారణ సమస్యలు మరియు పరిష్కారాలు

• హెడ్‌సెట్ ఆన్ కావడం లేదు:
  • Ensure the headset is fully charged. Connect the AC adapter and check the LED indicator.
  • పవర్ బటన్‌ను కనీసం 3 సెకన్ల పాటు నొక్కి పట్టుకోండి.
• Controllers not tracking or pairing:
  • Ensure the controllers have sufficient battery.
  • హెడ్‌సెట్‌ను రీస్టార్ట్ చేయండి.
  • If issues persist, refer to the headset's system settings for controller pairing options.
• Blurry image or eye strain:
  • Adjust the IPD (Inter-Pupillary Distance) using the physical adjustment mechanism (58/63.5/69mm).
  • Ensure the headset is positioned correctly on your head and the straps are snug.
  • Clean the lenses carefully with a microfiber cloth.
• PC VR mode not connecting:
  • Ensure you are using a compatible 5m PICO DP cable (purchased separately).
  • Verify that your PC meets the minimum system requirements for PC VR.
  • Check for updated drivers for your graphics card and the PICO software.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official PICO website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact PICO customer support directly.

PICO also provides one-stop VR solutions for enterprises, including app development and technical support for business endeavors.
