UNI-T UPO1102 100MHz 2-Channel Digital Oscilloscope Instruction Manual

1. పరిచయం

This instruction manual provides essential information for the safe and effective use of the UNI-T UPO1102 100MHz 2-Channel Digital Oscilloscope. The UPO1102 is a versatile instrument designed for electronic and electrical measurements, featuring a 100MHz bandwidth, 1 GSa/s real-time sample rate, 56 Mpts memory depth, and a 7-inch display. It incorporates Ultra Phosphor technology for enhanced waveform display and analysis capabilities.

సరైన కార్యాచరణను నిర్ధారించడానికి మరియు నష్టాన్ని నివారించడానికి పరికరాన్ని ఆపరేట్ చేసే ముందు దయచేసి ఈ మాన్యువల్‌ను పూర్తిగా చదవండి.

2. భద్రతా సమాచారం

Always observe the following safety precautions to avoid personal injury and prevent damage to the instrument or other connected devices.

• సరిగ్గా గ్రౌన్దేడ్ అవుట్‌లెట్‌కు పవర్ కార్డ్‌ని కనెక్ట్ చేయండి.
• తడి లేదా d ఉష్ణోగ్రత వద్ద ఓసిల్లోస్కోప్‌ను ఆపరేట్ చేయవద్దు.amp పరిస్థితులు.
• వేడెక్కడం నివారించడానికి సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.
• పరికరాన్ని తెరవవద్దు casing; అర్హత కలిగిన సిబ్బందికి సర్వీసింగ్‌ను సూచించండి.
• Use only specified probes and accessories.
• Observe all terminal ratings to prevent fire or shock hazard.

3. ఉత్పత్తి ముగిసిందిview

3.1 ఫ్రంట్ ప్యానెల్

Figure 3.1: Front Panel of UPO1102 Oscilloscope

The front panel features the main display, various control knobs and buttons for waveform adjustment, trigger settings, and menu navigation. Input channels CH1 and CH2 are located at the bottom right.

3.2 వెనుక ప్యానెల్

Figure 3.2: Rear Panel of UPO1102 Oscilloscope

The rear panel includes the AC power input, USB ports for data transfer and printing, and ventilation grilles to ensure proper cooling during operation.

3.3 కొలతలు

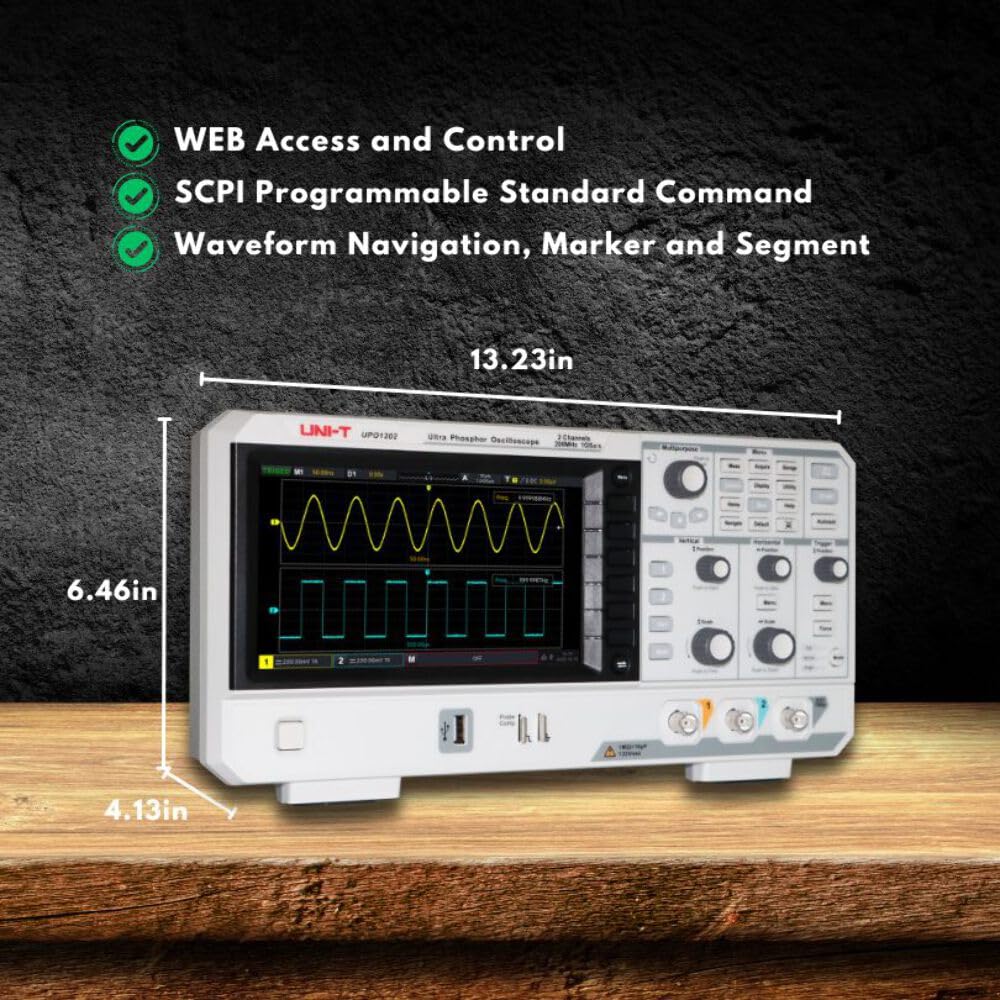

Figure 3.3: UPO1102 Oscilloscope Dimensions

The physical dimensions of the UPO1102 are approximately 13.23 inches (width) x 6.46 inches (height) x 4.13 inches (depth).

4. సెటప్

4.1 అన్‌ప్యాకింగ్ మరియు తనిఖీ

Upon receiving your UPO1102 oscilloscope, carefully unpack all components and inspect them for any signs of damage. Retain the packaging for future transport or storage.

ప్రామాణిక ఉపకరణాలు:

• Oscilloscope Probe (UT-P04) x 2
• పవర్ కార్డ్
• USB2.0 Printing Cable
• English Download Guide
• Multi-language Safety Manual
• Calibration Report (COC)

4.2 పవర్ కనెక్షన్

1. Ensure the oscilloscope is placed on a stable, level surface with adequate ventilation.
2. Connect the provided power cord to the AC power input on the rear panel of the oscilloscope.
3. పవర్ కార్డ్ యొక్క మరొక చివరను గ్రౌండెడ్ AC పవర్ అవుట్‌లెట్‌లోకి ప్లగ్ చేయండి.
4. ఓసిల్లోస్కోప్‌ను ఆన్ చేయడానికి ముందు ప్యానెల్‌లోని పవర్ బటన్‌ను నొక్కండి.

4.3 Probe Connection and Compensation

Before taking measurements, it is crucial to compensate the probes to ensure accurate readings.

1. Connect a probe to one of the input channels (CH1 or CH2) on the front panel.
2. Connect the probe tip to the "Probe Comp" terminal and the ground clip to the ground terminal next to it.
3. నొక్కండి ఆటో button. The oscilloscope will automatically adjust the settings to display the compensation signal.
4. Observe the square wave displayed on the screen. If the waveform is not a perfect square (over-compensated or under-compensated), adjust the trimmer on the probe body using a non-metallic tool until a flat-top square wave is achieved.
5. Repeat for the second probe if using both channels.

Figure 4.1: Probe Compensation Waveform

A correctly compensated probe displays a clean square wave. Adjust the probe's trimmer if the waveform shows overshoot or undershoot.

5. ఆపరేటింగ్ సూచనలు

5.1 ప్రాథమిక నియంత్రణలు

• పవర్ బటన్: Located on the front panel, used to turn the device on or off.
• Multipurpose Knob: Used for menu navigation and parameter adjustment. Press to confirm selections.
• Vertical Controls (CH1, CH2): Adjust vertical position and scale (volts/division) for each channel. "Push to Zero" resets position, "Push to Fine" enables fine adjustment.
• క్షితిజ సమాంతర నియంత్రణలు: Adjust horizontal position and time base (seconds/division). "Push to Zero" resets position, "Push to Zoom" enables horizontal zoom.
• Trigger Controls: Set the trigger level, mode (Auto, Normal, Single), and force a trigger event.
• ఆటో బటన్: Automatically adjusts vertical, horizontal, and trigger settings to display a stable waveform.
• Run/Stop Button: Starts or stops waveform acquisition.

5.2 Waveform Acquisition and Display

The UPO1102 features a 7-inch display and Ultra Phosphor technology for clear waveform visualization, even with complex signals.

Figure 5.1: Ultra Phosphor Display

Ultra Phosphor technology provides a gradient display, where brighter areas indicate more frequent occurrences of the waveform, helping to visualize signal anomalies and variations.

Figure 5.2: Multi-Channel Waveform Display

The UPO1102 can display and analyze two channels simultaneously, allowing for comparison of different signals.

5.3 కొలత విధులు

• కర్సర్ కొలత: Activate the "Cursor" function to measure time and voltage parameters within a specified area on CH1, CH2, MATH, or REF waveforms.
• FFT Analysis: The UPO1102 features 1Mpts FFT sampling points, enabling frequency domain analysis. Access the FFT function to set frequency range, detection mode, and spectrum marking.


Figure 5.3: FFT Spectrum Analysis

The FFT function transforms time-domain signals into the frequency domain, useful for analyzing harmonic content and noise.

• Navigation Functions: Utilize time navigation, marker navigation, and segment navigation for detailed waveform inspection.

5.4 Digital Decoding

The innovative hardware decoding feature allows for real-time decoding of serial bus protocols. With a deep storage of 56 Mpts, decoding speed is maintained at millisecond levels, preventing delays when viewing decoded data. This function does not affect the waveform refresh rate, maintaining the digital fluorescence display effect.

Figure 5.4: Digital Decoding Example

The decoding feature displays protocol information directly on the screen, simplifying debugging of serial communications.

5.5 Data Storage and Connectivity

• మెమరీ డెప్త్: The UPO1102 offers a 56 Mpts memory depth, allowing for capture of long signal durations at high sampలీ రేట్లు.


Figure 5.5: Memory Depth Indication

A large memory depth is crucial for capturing transient events or long sequences of data without losing detail.

• USB కనెక్టివిటీ: Use the provided USB2.0 printing cable to connect the oscilloscope to a computer for data transfer or direct printing.
• Web Access and Control: పరికరం మద్దతు ఇస్తుంది WEB access and control, along with SCPI (Standard Commands for Programmable Instruments) for remote operation and automation.

6. నిర్వహణ

6.1 సాధారణ సంరక్షణ

• Keep the instrument clean and dry. Avoid operating in dusty or humid environments.
• Protect the display from scratches and impacts.
• Do not block the ventilation openings on the rear panel.

6.2 శుభ్రపరచడం

To clean the exterior of the oscilloscope:

1. Disconnect the power cord and all probes/cables.
2. మెత్తటి గుడ్డ ఉపయోగించండి డిampened with mild detergent and water. Do not use abrasive cleaners or solvents.
3. For the display, use a soft, lint-free cloth specifically designed for electronic screens.
4. Ensure the instrument is completely dry before reconnecting power.

7. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with the UPO1102 oscilloscope. For problems not listed here, contact UNI-T customer support.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or service inquiries regarding your UNI-T UPO1102 oscilloscope, please refer to the official UNI-T webసైట్ లేదా వారి కస్టమర్ సేవా విభాగాన్ని సంప్రదించండి.

UNI-T Official Store: Visit the UNI-T Store on Amazon

Please have your product model (UPO1102) and ASIN (B0D7F2D9MS) available when contacting support.
