1. పరిచయం
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Loom Solar Fusion 3kW, 1Phase On-Grid Solar Inverter. Please read this manual thoroughly before installation and operation, and keep it for future reference.

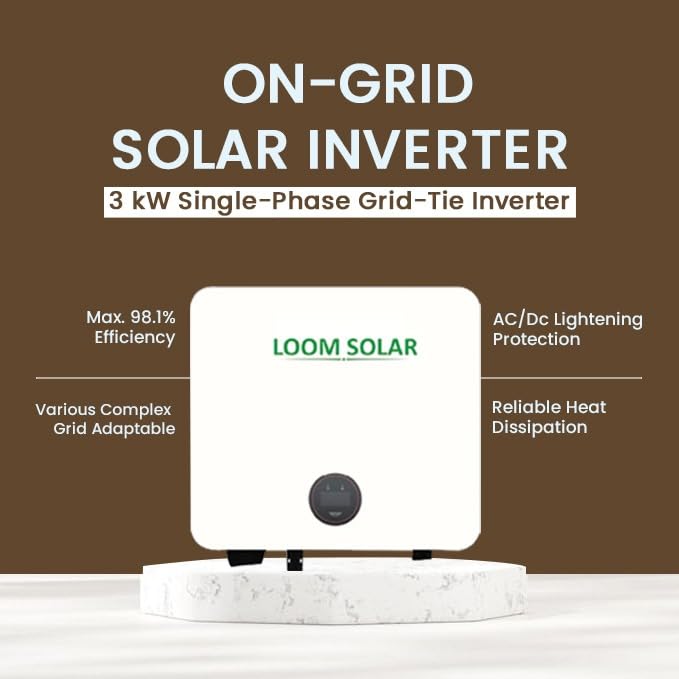

Figure 1: Loom Solar Fusion 3kW On-Grid Solar Inverter, front view.
2. భద్రతా సమాచారం
Safety is paramount when dealing with electrical equipment. Adhere to all local and national electrical codes. Only qualified personnel should perform installation and maintenance.
- Intelligent AFCI (Arc-fault Circuit Interrupter) Protection: The inverter is equipped with AFCI protection that cuts off DC arcs within 0.5 seconds to prevent potential fire hazards.
- AC/DC సర్జ్ రక్షణ: Integrated lightning protection safeguards the inverter and connected systems from electrical surges.
- IP65 రక్షణ: The inverter's robust design ensures it is dustproof, waterproof, and anti-salt fog, providing durability in various environmental conditions.
- Always disconnect all power sources (DC and AC) before performing any service or maintenance.
- Do not attempt to open or repair the inverter yourself. Refer to qualified service personnel.
సుపీరియర్ భద్రత
ఉప్పెన రక్షణ
3. ఉత్పత్తి లక్షణాలు
The Loom Solar Fusion 3kW On-Grid Solar Inverter is designed with advanced technology to provide reliable and efficient solar power conversion for residential applications.
- అధిక సామర్థ్యం: Achieves an industry-leading conversion efficiency of 98% through advanced power electronics technologies.
- రిమోట్ మానిటరింగ్: Supports remote monitoring via GPRS/Wifi Kit, WLAN, and Ethernet, allowing you to track performance from anywhere.
- Wide MPPT Voltagఇ పరిధి: Features an extra-wide Maximum Power Point Tracking (MPPT) voltage range for optimized energy harvesting.
- బలమైన డిజైన్: Built to withstand extreme weather conditions including high temperatures, snow, sandstorms, and rain.
- స్మార్ట్ డిజైన్: Easy to install with an intuitive LED display for local monitoring.
Figure 2: Key features of the Loom Solar On-Grid Solar Inverter.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the Loom Solar Fusion inverter should only be performed by certified and qualified solar professionals. Improper installation can lead to equipment damage, personal injury, or voiding of warranty.
- సైట్ ఎంపిక: Choose a well-ventilated area, protected from direct sunlight and excessive moisture. Ensure adequate clearance around the inverter for heat dissipation.
- మౌంటు: Securely mount the inverter to a sturdy wall or frame using appropriate hardware.
- విద్యుత్ కనెక్షన్లు: Connect the DC input from the solar panels and the AC output to the grid according to the wiring diagram provided in the full installation guide (not included in this manual). Ensure all connections are tight and correctly polarized.
- గ్రౌండింగ్: Properly ground the inverter as per local electrical codes.
5. ఆపరేటింగ్ సూచనలు
Once installed and connected, the Loom Solar Fusion inverter operates largely automatically. It will convert DC power from your solar panels into AC power for your home and the grid.
- ప్రారంభ ప్రారంభం: After all connections are verified, switch on the DC isolator and then the AC breaker. The inverter will perform self-tests and begin operation.
- LED డిస్ప్లే: The front panel features an LED display that provides real-time operational status, power output, and error codes. Refer to the full manual for a detailed explanation of display messages.
- రిమోట్ మానిటరింగ్: For detailed performance tracking, connect the inverter to your network using the GPRS/Wifi Kit, WLAN, or Ethernet. Download the Loom Solar mobile application to monitor your system remotely.
Figure 3: Remote monitoring via the Loom Solar mobile application.
6. నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your solar inverter.
- శుభ్రపరచడం: Periodically clean the inverter's exterior with a soft, dry cloth. Ensure ventilation openings are free from dust and debris. Do not use liquid cleaners.
- దృశ్య తనిఖీ: Regularly check for any visible damage to the casing, cables, or connections.
- పనితీరు పర్యవేక్షణ: Utilize the remote monitoring system to track the inverter's performance and identify any anomalies early.
- వృత్తిపరమైన తనిఖీ: It is recommended to have a qualified technician perform a comprehensive inspection and maintenance check annually.
7. ట్రబుల్షూటింగ్
This section provides general guidance for common issues. For complex problems, contact Loom Solar customer support.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Inverter not producing power | No sunlight, DC isolator off, AC breaker off, grid outage, error code displayed. | Check sunlight conditions. Ensure DC isolator and AC breaker are ON. Verify grid status. Check inverter display for error codes and consult the full manual. |
| తక్కువ పవర్ అవుట్పుట్ | Partial shading on panels, dirty panels, suboptimal weather, system fault. | Clear any shading. Clean solar panels. Monitor weather conditions. If issue persists, contact support. |
| ప్రదర్శనలో లోపం సందేశం | Internal fault, grid issue, connection problem. | Note down the error code. Refer to the detailed error code section in the comprehensive manual or contact Loom Solar support. |
8. స్పెసిఫికేషన్లు
Detailed technical specifications for the Loom Solar Fusion 3kW On-Grid Solar Inverter.
Figure 4: Detailed technical specifications for Fusion 31 inverter.
| గుణం | విలువ |
|---|---|
| తయారీదారు | లూమ్ సోలార్ PVT. LTD. |
| అంశం మోడల్ సంఖ్య | ఫ్యూజన్ |
| ఉత్పత్తి కొలతలు (L x W x H) | 28 x 18.5 x 31 సెం.మీ |
| వస్తువు బరువు | 6 కిలోలు |
| నికర పరిమాణం | 1 కౌంట్ |
| సాధారణ పేరు | ఇన్వర్టర్ |
| బ్రాండ్ | Loom Solar |
| ఉత్పత్తి కోసం సిఫార్సు చేయబడిన ఉపయోగాలు | హోమ్ |
| శక్తి మూలం | సోలార్ పవర్డ్ |
| వాట్tage | 3000 వాట్స్ |
| మోడల్ పేరు | ఫ్యూజన్ 31 |
| గరిష్టంగా ఇన్పుట్ పవర్ | 3000W + 10% |
| Max. DC I/P (Vdc) | 550V |
| Max. MPPT Voltagఇ పరిధి | 70-550V |
| గరిష్టంగా ఇన్పుట్ కరెంట్ | 20A |
| రేట్ చేయబడిన AC పవర్ | 3000W |
| రేట్ చేయబడిన గ్రిడ్ ఫ్రీక్వెన్సీ | 50Hz (±5%) |
| రేట్ చేయబడిన గ్రిడ్ వాల్యూమ్tage | 230V |
| రేట్ చేయబడిన అవుట్పుట్ కరెంట్ | 14.3 Amp |
| పవర్ ఫ్యాక్టర్ | 0.8 |
| ప్రవేశ రక్షణ | IP65 |
| ఆపరేటింగ్ పరిసర ఉష్ణోగ్రత | -25°C ~ +65°C |
9. వారంటీ
The Loom Solar Fusion 3kW On-Grid Solar Inverter comes with a 5 సంవత్సరాల వారంటీ, మనశ్శాంతి మరియు నమ్మకమైన పనితీరును నిర్ధారిస్తుంది.
To log a complaint or register your warranty, please visit the official Loom Solar warranty registration portal:
10. మద్దతు
For any technical assistance, queries, or support regarding your Loom Solar Fusion inverter, please contact us:
- కస్టమర్ సపోర్ట్ సంప్రదించండి: 8447921124
- ఇమెయిల్: sales@loomsolar.com
- Webసైట్: www.loomsolar.com
- తయారీదారు చిరునామా: LOOM SOLAR PVT. LTD., Plot no. 14/8, Mathura Road, Sector - 27B, Faridabad - 121003
