WELLFOR Single-Handle 2-Spray High-Pressure Shower Faucet

ఉత్పత్తి ముగిసిందిview

This manual provides detailed instructions for the installation, operation, and maintenance of your WELLFOR Single-Handle 2-Spray High-Pressure Shower Faucet with Dual Shower Heads. Designed for optimal performance and durability, this system features advanced pressure-balanced technology for stable water flow and a versatile dual showerhead system.

Image: The WELLFOR Single-Handle 2-Spray High-Pressure Shower Faucet in Brushed Gold, showcasing the main faucet body and the dual shower heads.

Key features include a high-quality ABS shower head, a solid brass valve body for reliability, and an easy-to-use 3-way water diverter. The adjustable ball joint allows for personalized comfort by enabling 360° rotation of the showerheads.

సెటప్ మరియు ఇన్‌స్టాలేషన్

Before beginning installation, ensure all components are present and that you have the necessary tools. It is recommended to consult a professional plumber if you are unsure about any steps.

చేర్చబడిన భాగాలు:

• Single-Handle Faucet Body
• Fixed Shower Head
• హ్యాండ్‌హెల్డ్ షవర్ హెడ్
• షవర్ గొట్టం
• మౌంటు హార్డ్‌వేర్
• వినియోగదారు మాన్యువల్ (ఈ పత్రం)

డైమెన్షనల్ డ్రాయింగ్:

Image: A dimensional drawing illustrating the key measurements of the WELLFOR shower faucet system, including the fixed shower head, handheld shower head, and the main valve body. All measurements are in inches.

Valve Body Details:

The solid brass valve body is designed for durability and features a cUPC Pressure Balance Cartridge to ensure stable water temperature and flow. It includes clearly marked hot and cold water connectors (1/2" NPT) and a water flow adjustable screw.

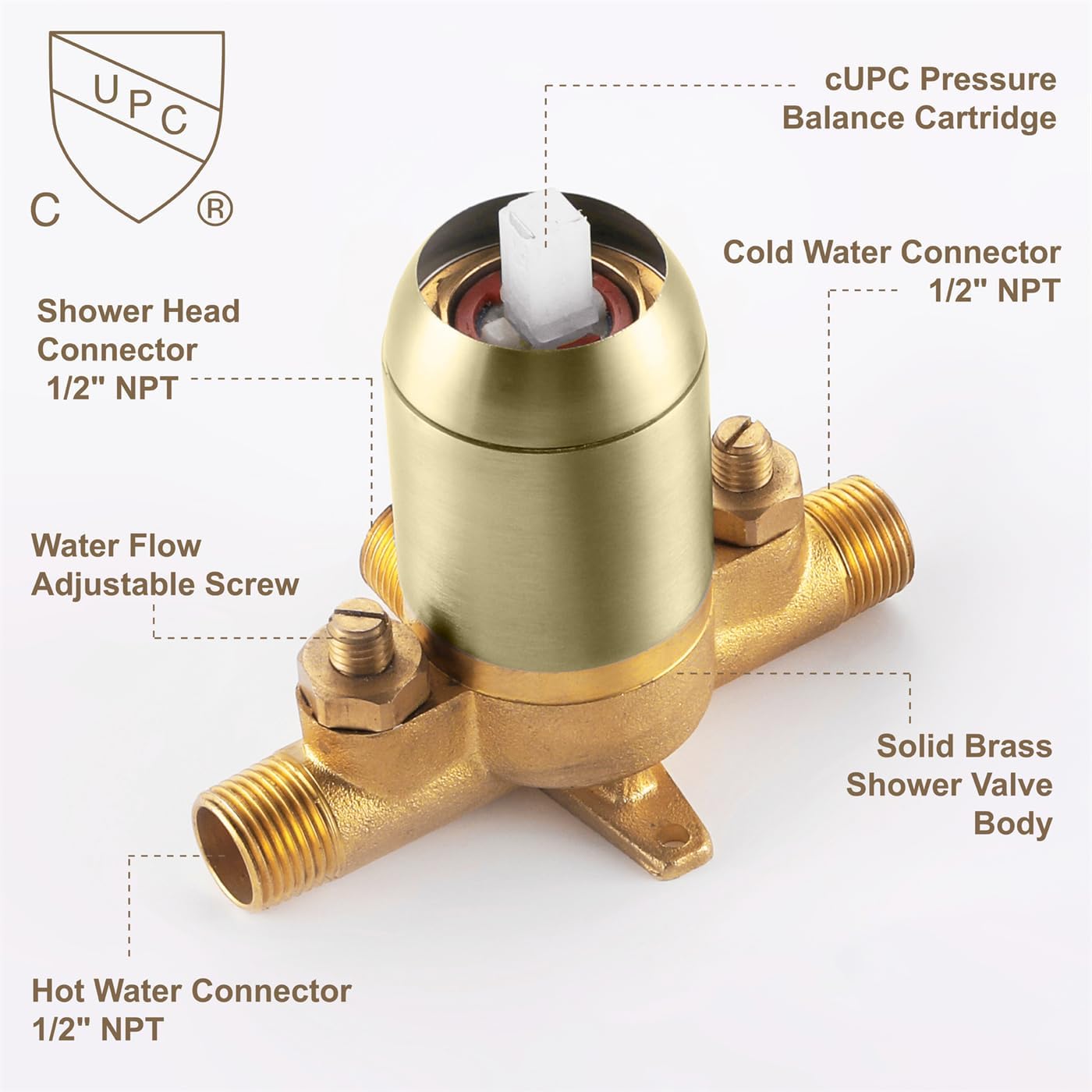

చిత్రం: వివరణాత్మక view of the premium brass rough-in valve, highlighting the cUPC Pressure Balance Cartridge, hot and cold water connectors (1/2" NPT), shower head connector (1/2" NPT), and the water flow adjustable screw.

సంస్థాపనా దశలు (సాధారణ మార్గదర్శకత్వం):

1. మీ ఇంటికి ప్రధాన నీటి సరఫరాను ఆపివేయండి.
2. Prepare the wall opening for the valve body according to the dimensional drawing.
3. Connect the hot and cold water lines to the corresponding inlets on the valve body.
4. Install the valve body securely within the wall.
5. Connect the shower head and handheld shower hose to the appropriate outlets.
6. Install the decorative trim plate and handle.
7. Test for leaks and ensure proper function before sealing the wall.

ఆపరేటింగ్ సూచనలు

Your WELLFOR shower faucet is designed for ease of use, offering multiple functions and spray patterns.

సింగిల్ హ్యాండిల్ ఆపరేషన్:

Image: Illustration of the single handle operation. Rotate the handle left for hot water, right for cold water, and lift to open the water flow.

The single handle controls both water temperature and flow. Rotate the handle to the left for hotter water and to the right for colder water. Lift the handle to turn on the water flow and push down to turn it off.

3-Way Water Diverter:

The integrated 3-way diverter allows you to easily switch between the fixed shower head, the handheld shower head, or use both simultaneously.

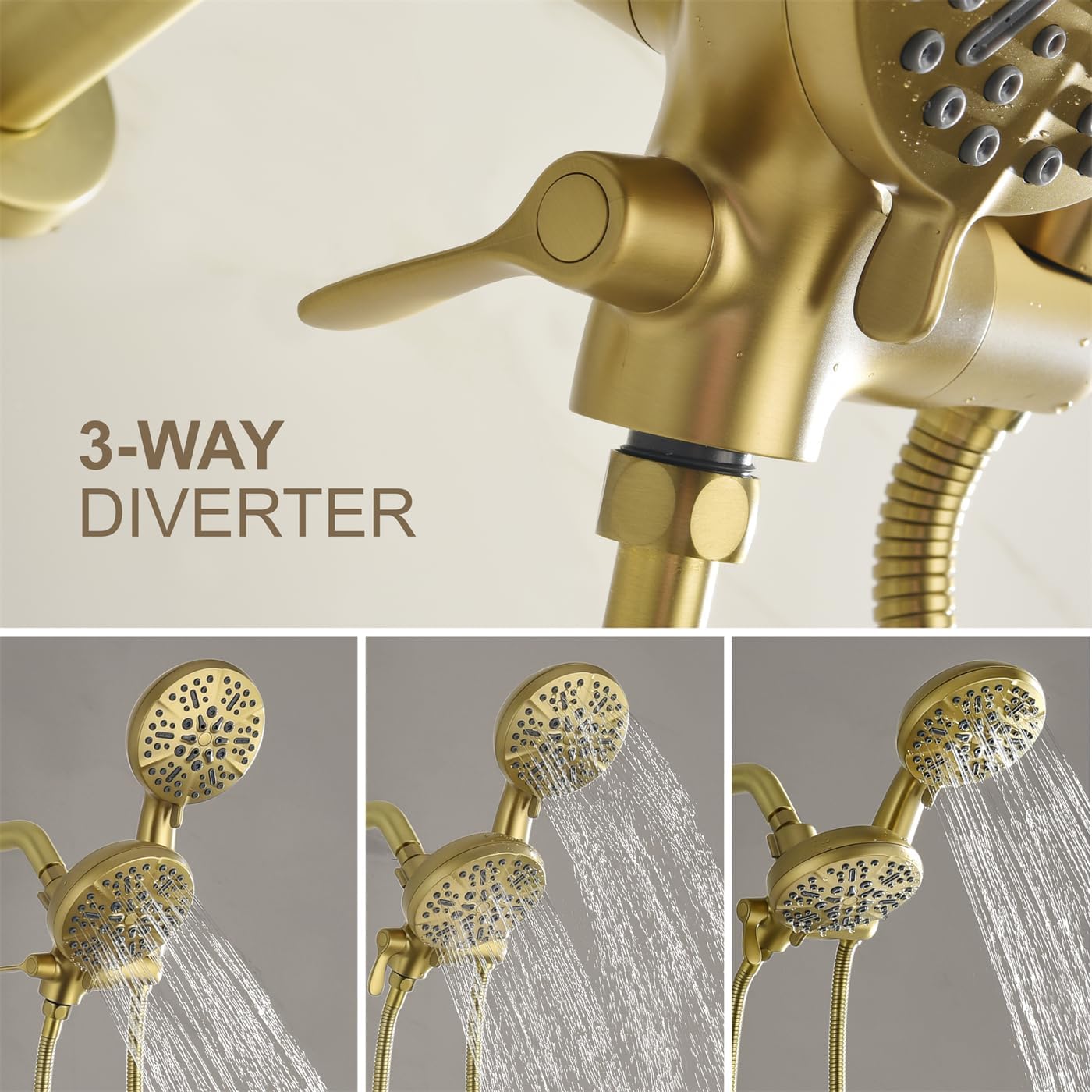

Image: Visual representation of the 3-way diverter, showing how to switch between the fixed shower head, handheld shower head, or both operating at the same time.

7 స్ప్రే నమూనాలు:

Both the fixed and handheld shower heads offer 7 distinct spray patterns for a customized showering experience. Rotate the spray face on each shower head to select your desired pattern.

Image: A collage demonstrating the 7 different spray patterns available on both the fixed and handheld shower heads, illustrating the variety of water flows.

Adjustable Ball Joint:

The fixed shower head features an adjustable ball joint, allowing you to rotate it 360° to direct the water spray precisely where you need it for optimal comfort.

నిర్వహణ మరియు సంరక్షణ

Proper maintenance will ensure the longevity and continued performance of your WELLFOR shower faucet.

• శుభ్రపరచడం: Clean the faucet and shower heads regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the brushed gold finish.
• ఖనిజ నిక్షేపాలు: For areas with hard water, mineral deposits may accumulate on the shower head nozzles. Gently rub the rubber nozzles to dislodge any buildup. For stubborn deposits, a solution of white vinegar and water can be used, but ensure to rinse thoroughly afterwards.
• సంరక్షణ ముగించు: The brushed gold finish is durable but can be scratched by sharp objects or abrasive materials. Always use soft cloths for cleaning and drying.
• వాల్వ్ బాడీ: The solid brass valve body and ceramic disc cartridge are designed for long-term reliability and typically require no user maintenance. If you experience consistent issues with water flow or temperature, consult a qualified plumber.

ట్రబుల్షూటింగ్

If you encounter any issues with your WELLFOR shower faucet, refer to the following common troubleshooting tips:

If the problem persists after attempting these solutions, please contact WELLFOR customer support for further assistance.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information or technical support regarding your WELLFOR shower faucet, please contact the manufacturer or the seller directly. Keep your purchase receipt as proof of purchase.

విక్రేత సమాచారం: WELLFOR-USA

For the most up-to-date contact details, please refer to the product listing on Amazon or the official WELLFOR webసైట్.
