సిల్వా 38494

సిల్వా డిస్కవర్ 500 ల్యూమన్ హెడ్ టార్చ్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides detailed instructions for the proper use, setup, and maintenance of your Silva Discover 500 Lumen Head Torch. Please read this manual thoroughly before operating the device to ensure optimal performance and safety. The Silva Discover headlamp is designed for outdoor activities, offering reliable illumination with multiple light modes and robust construction.

ఉత్పత్తి ముగిసిందిview మరియు ఫీచర్లు

The Silva Discover 500 Lumen Head Torch is a versatile and durable lighting solution for various outdoor activities. Key features include:

ఉత్పత్తి భాగాలు

The Silva Discover Head Torch package includes:

విజువల్ ఓవర్view

Silva Discover 500 Lumen Head Torch
Image: The Silva Discover 500 Lumen Head Torch, showcasing its compact design and adjustable headband.
Silva Discover Head Torch with IP65 rating and large button
Image: Close-up of the head torch showing the large on/off button, IP65 rating, and battery indicator lights.

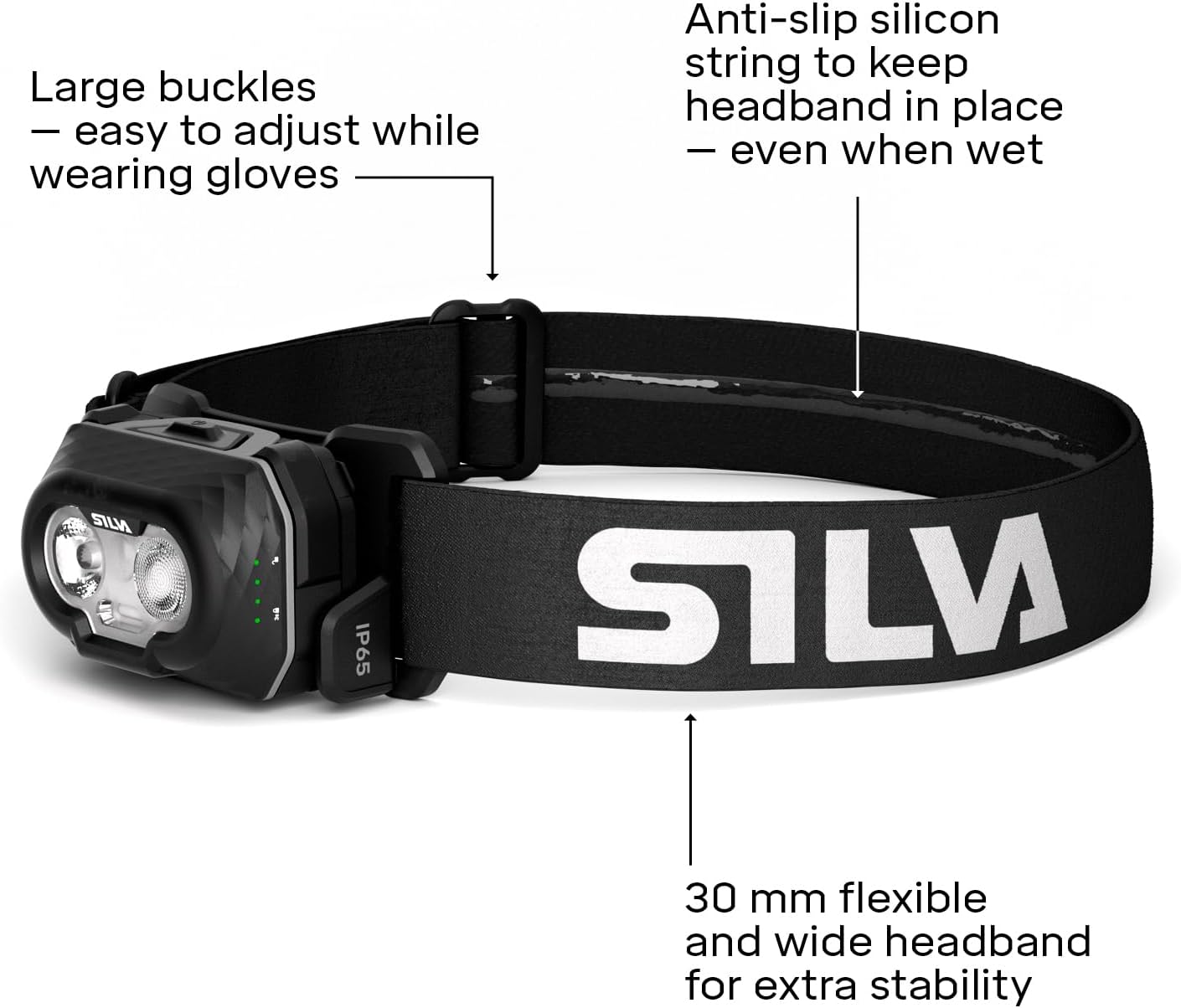

Silva Discover Head Torch headband features
Image: The flexible and wide headband with anti-slip silicone string and large buckles for easy adjustment.
Silva Intelligent Light beam pattern
Image: Diagram illustrating Silva Intelligent Light, which combines a long-reach spotlight and a close-range floodlight for optimized vision.

సెటప్

బ్యాటరీ సంస్థాపన

The Silva Discover head torch operates on either 3x AAA batteries or a rechargeable Silva Hybrid Battery. Batteries are not included with this model.

  1. Locate the battery compartment on the rear of the lamp యూనిట్.
  2. బ్యాటరీ కంపార్ట్మెంట్ కవర్ తెరవండి.
  3. Insert 3x AAA batteries, ensuring correct polarity (+/-) as indicated inside the compartment. Alternatively, insert a compatible Silva Hybrid Battery.
  4. Close the battery compartment cover securely to maintain the IP65 water and dust resistance.

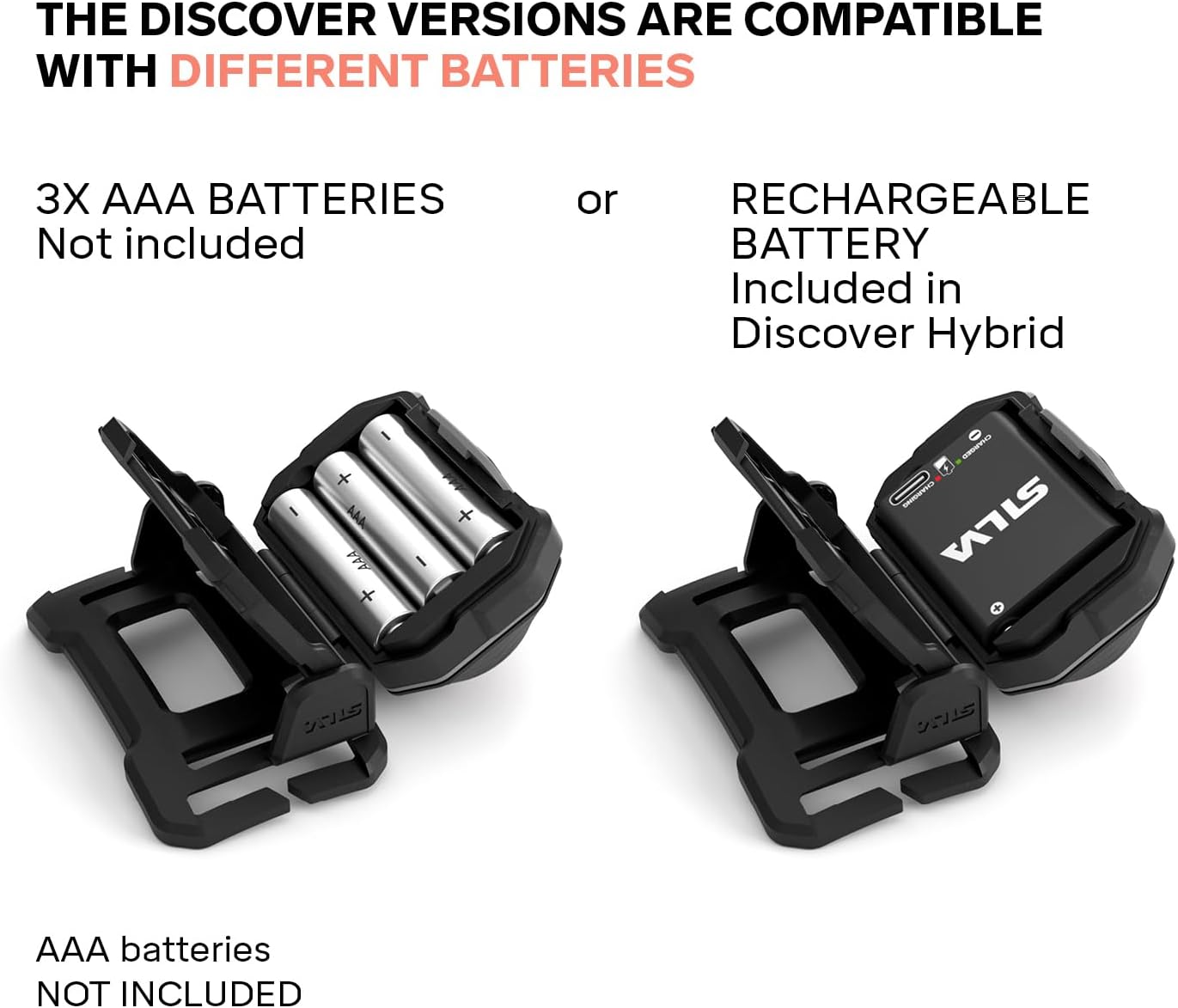

Battery installation for Silva Discover Head Torch
Image: Illustration showing the battery compartment open, ready for insertion of 3x AAA batteries or a Silva Hybrid Battery.

హెడ్‌బ్యాండ్ సర్దుబాటు

Adjust the headband for a comfortable and secure fit on your head.

  1. Place the head torch on your head.
  2. Use the large buckles on the headband to tighten or loosen it until it fits snugly without being too tight. The anti-slip silicone string helps keep the headband in place.

ఆపరేటింగ్ సూచనలు

Power On/Off and Brightness Levels

The head torch is operated using a single large button, designed for easy use even with gloves.

  1. ఆన్ చేయడానికి: Press the power button once. The head torch will activate in the last used white light mode.
  2. ప్రకాశాన్ని సైకిల్ చేయడానికి: While the white light is on, press the power button repeatedly to cycle through the brightness levels: MAX (500 lm)MED (100 lm)MIN (15 lm).
  3. ఆపివేయడానికి: Hold the power button for approximately 1 second.

LED Color Modes

The Silva Discover features three distinct LED colors for various applications.

Silva Discover Head Torch 3 LED colors
Image: Visual representation of the three LED colors: Orange for map reading, White for regular use, and Red for preserving night vision.

లాక్ ఫంక్షన్

To prevent accidental activation and conserve battery during transport or storage, use the built-in lock function.

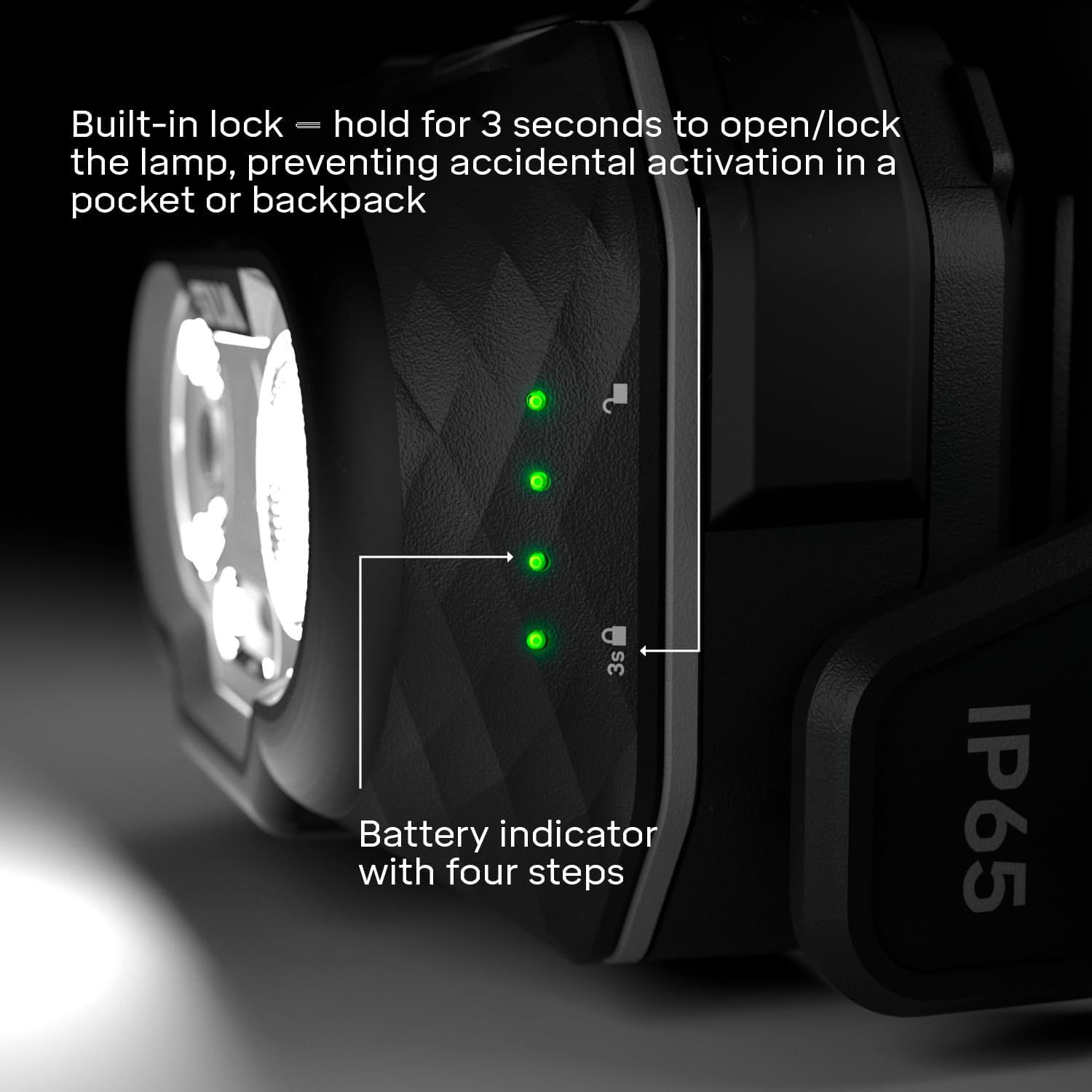

Silva Discover Head Torch lock function and battery indicator
Image: Close-up showing the battery indicator lights and the lock function icon, activated by holding the button for 3 seconds.

L ని వంచడంamp యూనిట్

ది ఎల్amp unit can be tilted up to 90 degrees to adjust the beam direction, optimizing visibility for different terrains or tasks.

Silva Discover Head Torch tilting mechanism
Image: The head torch lamp unit shown tilting upwards, illustrating its 90-degree adjustability.

బ్యాటరీ సమాచారం

బ్యాటరీ రకాలు

The Silva Discover head torch is compatible with two battery types:

బ్యాటరీ సూచిక

The head torch features a 4-step battery indicator to show the remaining power level. The green LEDs on the side of the lamp unit will illuminate to indicate the battery status.

Burn Times and Light Distances

Approximate burn times and light distances for different brightness levels:

మోడ్ల్యూమన్బర్న్ సమయంకాంతి దూరం
గరిష్టంగా500 lm2 గం80 మీ
MED100 lm5 గం20 మీ
MIN15 lm40 గం7 మీ
Silva Discover Head Torch performance table
Image: Table illustrating the lumen output, burn time, and light distance for MAX, MED, and MIN brightness modes.

నిర్వహణ

క్లీనింగ్

నిల్వ

నీరు మరియు ధూళి నిరోధకత

The Silva Discover head torch is rated IP65, meaning it is completely dust-tight and protected against water jets from any direction. This makes it suitable for use in heavy rain and dusty conditions. However, it is not designed for submersion in water.

ట్రబుల్షూటింగ్

సమస్యసాధ్యమైన కారణంపరిష్కారం
లైట్ ఆన్ చేయదు.డెడ్ లేదా తప్పుగా ఇన్‌స్టాల్ చేయబడిన బ్యాటరీలు.
Head torch is in lock mode.
బ్యాటరీ ధ్రువణతను తనిఖీ చేయండి మరియు అవసరమైతే భర్తీ చేయండి.
Unlock the head torch by holding the power button for 3 seconds.
కాంతి మసకగా లేదా మిణుకుమిణుకుమంటుంది.తక్కువ బ్యాటరీ శక్తి.Replace AAA batteries or recharge the Silva Hybrid Battery.
Headband slips during activity.Headband is too loose.Adjust the headband using the buckles for a tighter fit. Ensure the anti-slip silicone is positioned correctly.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For detailed warranty information, please refer to the official Silva website or the warranty card included with your product. For technical support, spare parts, or further inquiries, please visit the official Silva support page:

www.silva.se/support
