Y&H HFP-6.3KW-48V-M120A-SA Solar Hybrid Inverter

1. పరిచయం

This manual provides essential information for the safe and efficient operation of your Y&H HFP-6.3KW-48V-M120A-SA 6.3KW 48V On/Off-Grid Solar Hybrid Inverter. This multi-function inverter/charger integrates an inverter, solar charger, and battery charger to provide uninterruptible power support. It features a comprehensive LCD display for user-configurable settings such as battery charging current, AC/solar charger priority, and acceptable input voltage.

The inverter delivers a pure sine wave output, making it suitable for various household and office loads including refrigerators, lamps, televisions, fans, and air conditioning units.

మూర్తి 1: ముందు view of the Y&H HFP-6.3KW-48V-M120A-SA Solar Hybrid Inverter, showing the LCD screen and control panel.

2. Important Safety Instructions and Warnings

Please read and understand all instructions and warnings before installing, operating, or servicing this inverter. Failure to follow these instructions may result in electric shock, fire, severe injury, or death.

• Utility Bypass Mode: In utility bypass mode, the device cannot be connected to two-phase 220V AC (L1-L2 cannot be connected to L-N).
• ఇన్వర్టర్ మోడ్: When the device is connected to two-phase 220V in inverter mode, do not select utility priority for the output priority to prevent safety hazards.
• Autotransformer Connection: Do not connect the AC output of the device to an autotransformer, as this may affect the normal service life of the device.
• అవుట్పుట్ వాల్యూమ్tage: This inverter provides a single-phase 230V AC output. It cannot output 110V AC directly. A separate converter (not included) is required for 110V applications.
• సమాంతర ఆపరేషన్: This Y&H off-grid solar inverter does not support parallel operation.
• Phase Separation: This inverter does not support phase separation.
• అన్ని విద్యుత్ కనెక్షన్లకు సరైన గ్రౌండింగ్ ఉండేలా చూసుకోండి.
• Installation and wiring must be performed by qualified personnel in accordance with local electrical codes.
• ఇన్వర్టర్‌ను విడదీయవద్దు. లోపల వినియోగదారునికి సేవ చేయగల భాగాలు లేవు.
• Keep the inverter away from flammable materials and ensure adequate ventilation.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is critical for the safe and efficient operation of your solar hybrid inverter. Refer to the wiring diagram below for connection details.

మూర్తి 2: Wiring and technical specifications overview, illustrating connections for PV input, battery, AC input (generator/mains), and AC output.

3.1 PV Input Connection

• గరిష్ట PV అర్రే పవర్: 7000W
• గరిష్ట PV ఓపెన్ సర్క్యూట్ వాల్యూమ్tagఇ: 500Vdc
• MPPT ట్రాకింగ్ వాల్యూమ్tage Range: 80VDC - 450VDC
• ప్రారంభ సంtage (initial charging): >90V
• Max PV Input Current: 22A
• Suggested PV Cable Size: 12AWG
• It is recommended to connect solar panels in series to achieve the optimal MPPT voltagఇ పరిధి.

3.2 బ్యాటరీ కనెక్షన్

• బ్యాటరీ వాల్యూమ్tagఇ: 48 వి
• Compatible Battery Types: Lead-acid (Seal, AGM, Gel, Flooded) and Lithium Battery.
• Suggested Battery Cable Size: 2AWG (Cable: 25mm²)
• Max Charging Current: 120A (combined PV and AC charging)
• Max PV Charging Current: 120A
• Max AC Charging Current: 80A
• For Lithium Batteries, the inverter supports communication with PACE BMS for monitoring and management.

మూర్తి 3: Battery compatibility and communication. The inverter supports various battery types, with specific communication for PACE BMS lithium batteries.

3.3 AC Input and Output Connection

• మెయిన్స్ ఇన్పుట్ వాల్యూమ్tage Range: 187VAC~264VAC
• Rated Input Frequency: 50Hz/60Hz (auto-sensing)
• గరిష్ట AC ఇన్‌పుట్ వాల్యూమ్tagఇ: 300Vac
• Suggested AC Input Cable: 10AWG
• Recommended AC Input Breaker: 50A
• Rated Output Power (AC): 6300W
• AC అవుట్‌పుట్ వాల్యూమ్tage: 230Vac (Pure Sine Wave)
• Suggested AC Output Cable: 10AWG
• Recommended AC Output Breaker: 50A

4. ఆపరేటింగ్ మోడ్‌లు మరియు సెట్టింగ్‌లు

The inverter offers flexible operating modes and user-configurable settings via its LCD display.

4.1 వర్కింగ్ మోడ్‌లు

The Y&H HFP-6.3KW-48V-M120A-SA supports three primary working modes:

1. ఆఫ్-గ్రిడ్ మోడ్: Operates as an energy storage device, providing power from solar and/or battery without connection to the utility grid.
2. On-Grid Mode: Allows for reduction of household electricity bills by feeding excess solar power back to the grid (if supported by local regulations and grid connection).
3. హైబ్రిడ్ మోడ్: Combines aspects of both on-grid and off-grid operation, optimizing power flow between solar, battery, utility grid, and loads.

4.2 ఛార్జింగ్ మోడ్‌లు

Three charging modes are available to prioritize power sources for battery charging:

• Utility First: Prioritizes charging from the utility grid.
• సోలార్ ఫస్ట్: Prioritizes charging from solar panels.
• Solar & Utility: Charges from both solar and utility sources simultaneously.

4.3 LCD Display and Control

The LCD display provides real-time system data and allows for user configuration of various parameters, including:

• బ్యాటరీ ఛార్జింగ్ కరెంట్
• AC/solar charger priority
• ఆమోదయోగ్యమైన ఇన్‌పుట్ వాల్యూమ్tagఇ పరిధి
• Output source priority (e.g., Solar, Utility, Battery)

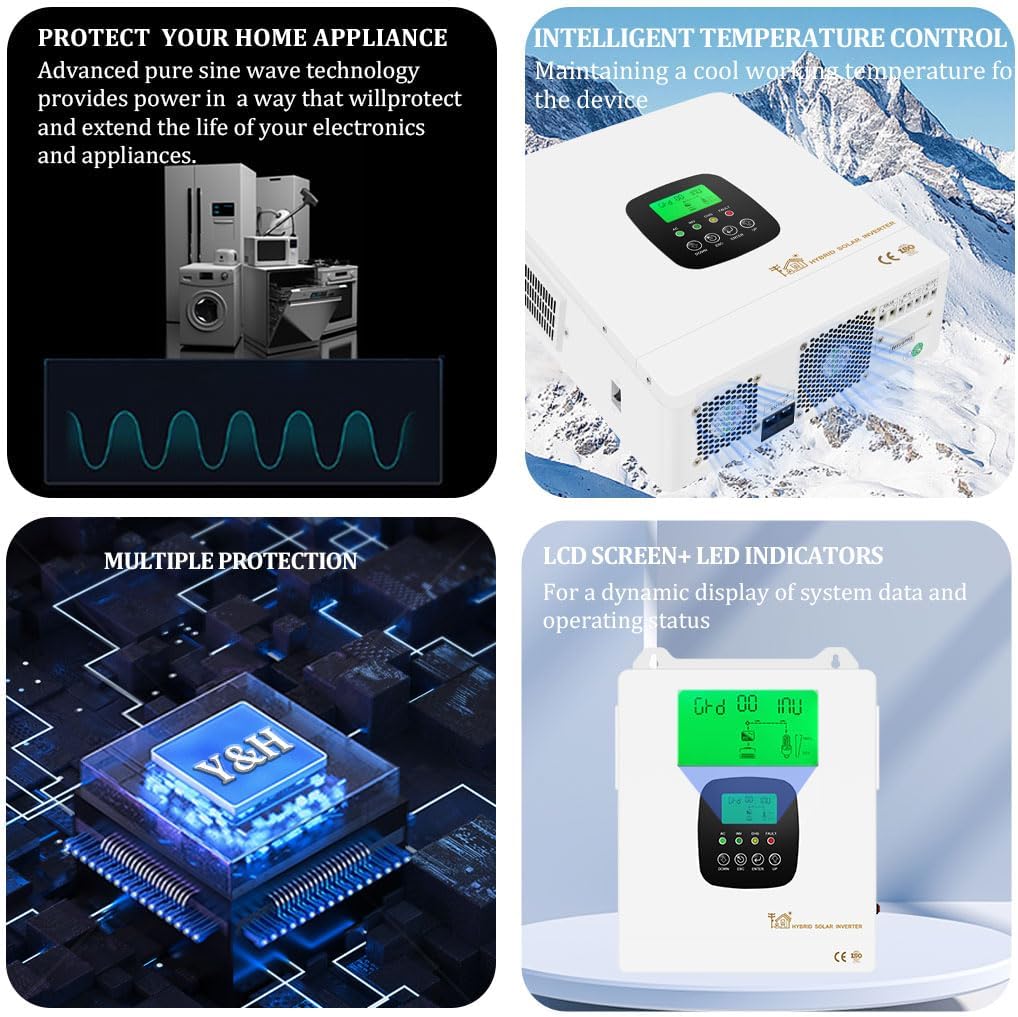

మూర్తి 4: Key features including pure sine wave output, intelligent temperature control, multiple protection mechanisms, and the dynamic LCD screen with LED indicators.

5. కమ్యూనికేషన్ ఫీచర్లు

The inverter is equipped with dual communication ports for enhanced monitoring and battery management.

• RS485 పోర్ట్: Supports communication with Lithium Battery Packs equipped with PACE BMS for real-time battery status monitoring and management.
• WIFI Communication: Allows monitoring of the inverter's working status anytime, anywhere via a mobile application.

మూర్తి 5: Dual communication ports for remote monitoring via WIFI and battery management with PACE BMS.

6. రక్షణ లక్షణాలు

The Y&H HFP-6.3KW-48V-M120A-SA inverter incorporates comprehensive 360° protection mechanisms to ensure safe and reliable operation of your system and connected appliances.

• షార్ట్ సర్క్యూట్ రక్షణ
• ఓవర్ లోడ్ రక్షణ
• ఓవర్ ఛార్జ్ రక్షణ
• ఓవర్ కరెంట్ ప్రొటెక్షన్
• బ్యాక్‌ఫిల్ రక్షణ
• పైగా వాల్యూమ్tagఇ రక్షణ
• వాల్యూమ్ కిందtagఇ రక్షణ
• అధిక-ఉష్ణోగ్రత రక్షణ

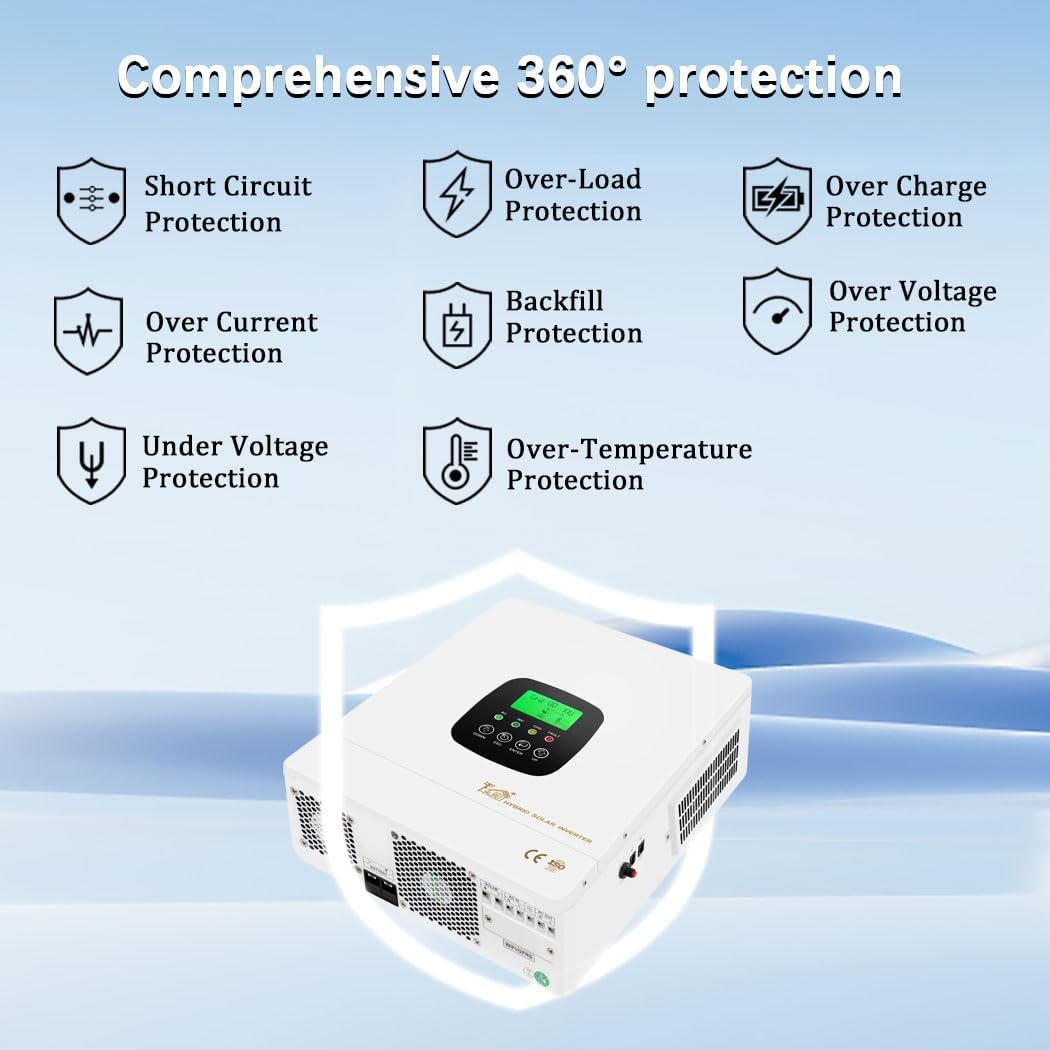

మూర్తి 6: Comprehensive protection features integrated into the inverter for system safety.

7. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your Y&H Solar Hybrid Inverter.

• శుభ్రపరచడం: Keep the inverter's ventilation openings clear of dust and debris. Use a dry, soft cloth for cleaning the exterior. Do not use liquid cleaners.
• కనెక్షన్లు: Periodically check all electrical connections (PV, battery, AC input/output) for tightness and signs of corrosion. Tighten any loose connections.
• పర్యావరణం: Ensure the installation environment remains within the specified temperature and humidity ranges. Avoid direct sunlight and excessive moisture.
• బ్యాటరీ ఆరోగ్యం: మానిటర్ బ్యాటరీ వాల్యూమ్tage and health, especially for lead-acid batteries, to ensure they are operating within recommended parameters.
• ఫర్మ్‌వేర్ నవీకరణలు: తయారీదారుని తనిఖీ చేయండి webపనితీరును మెరుగుపరచగల లేదా ఫీచర్‌లను జోడించగల ఏవైనా అందుబాటులో ఉన్న ఫర్మ్‌వేర్ నవీకరణల కోసం సైట్.

8. ట్రబుల్షూటింగ్

This section provides guidance for common issues. For problems not listed here, please contact customer support.

9. స్పెసిఫికేషన్లు

Detailed technical specifications for the Y&H HFP-6.3KW-48V-M120A-SA Solar Hybrid Inverter.

మూర్తి 7: The inverter's capacity to power a range of household appliances.

10. వారంటీ మరియు మద్దతు

Y&H products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or the official Y&H webనిర్దిష్ట వారంటీ నిబంధనలు మరియు షరతుల కోసం సైట్.

For technical support, troubleshooting assistance, or warranty claims, please contact Y&H customer service through the retailer where the product was purchased or visit the official Y&H support portal.

సంప్రదింపు సమాచారం: (Please refer to your product packaging or the manufacturer's official web(అత్యంత తాజా సంప్రదింపు వివరాల కోసం సైట్.)
