రోటరీ రోలర్ యూజర్ మాన్యువల్‌తో SCULPFUN S9 లేజర్ ఎన్‌గ్రేవర్

1. పరిచయం

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your SCULPFUN S9 Laser Engraver with Rotary Roller. Designed for precision engraving and cutting, this machine offers advanced features for various materials. Please read this manual thoroughly before use to ensure safe and optimal performance.

2. ఉత్పత్తి ముగిసిందిview

కీ ఫీచర్లు

• 5.5W Diode Laser with 90W CO2 Laser Effect: Ultra-fine 0.08mm laser focus for deep cutting.
• కట్టింగ్ సామర్థ్యం: Up to 15mm wood and 10mm acrylic.
• చెక్కే పదార్థాలు: Ceramics, stainless steel, dark stone, wood, acrylic.
• Rotary Roller Included: For engraving cylindrical objects with a diameter range of 6-150mm.
• త్వరిత దృష్టి: Fixed focus lens and sliding rail design for rapid setup.
• అధిక ఖచ్చితత్వం: Ultra-fine 0.1mm engraving line.
• భద్రతా డిజైన్: Laser filter blocks 98% of UV light, emergency stop switch, A4 steel pad for table protection.
• విస్తృత అనుకూలత: Supports LiteFire, GrblController, Benboc, LightBurn, Laser GRBL.
• File ఫార్మాట్‌లు: KPG, BMP, NC, G-code, SVG, DXF, PNG.
• ఆపరేటింగ్ సిస్టమ్స్: Compatible with Windows and Mac.
• ప్లగ్ మరియు ప్లే: 100% pre-installed for easy setup.

ఉత్పత్తి చిత్రాలు

Figure 2.1: SCULPFUN S9 Laser Engraver with included rotary roller and examples of engraved items.

Figure 2.2: The SCULPFUN S9 in operation, demonstrating cylindrical engraving using the rotary roller.

మూర్తి 2.3: వివరంగా view of the S9 laser head, highlighting its 90W CO2 laser effect and beam shaping technology.

చిత్రం 2.4: ఉదాamples of the S9's cutting depth on 15mm wood, 10mm plywood, and 10mm acrylic.

ఏమి చేర్చబడింది

Figure 2.5: All components included in the SCULPFUN S9 Laser Engraver package.

• 1 x X-axis component
• 2 x X-profiles
• 2 x Y-profiles
• 1 x Control box component
• 3 x మద్దతు కాలు
• 1 x Laser component
• 1 x 12V 5A power adapter
• 1 x పవర్ కేబుల్
• 1 x USB కేబుల్
• 10 x టైలు
• 1 x బ్రష్
• 1 x Anti-laser goggles
• 1 x 10x10 cm 3mm thick wood chip
• 1 x 10x10 cm wood piece
• 1 x A4 size protective steel pad
• 1 x Mounting kit with screws for steps 1 to 5
• 2 x Belt
• 1 x M5 T-type hexagonal wrench
• 1 x M4 L-type hexagonal wrench
• 1 x M3 L-type hexagonal wrench
• 1 x 8 to 10 mm wrench

3. సెటప్

The SCULPFUN S9 Laser Engraver is designed for quick and easy setup, with many components pre-installed. The rotary roller is also 100% pre-assembled for plug-and-play functionality.

ప్రారంభ అసెంబ్లీ

1. Follow the detailed instructions provided in the included manual for assembling the main frame components (X-axis, Y-profiles, support legs).
2. Utilize the separated screw kits and included wrenches for a smooth assembly process.

లేజర్ మాడ్యూల్ ఇన్‌స్టాలేషన్

1. Carefully attach the laser component to the X-axis.
2. అన్ని కనెక్షన్లు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోండి.

Rotary Roller Connection

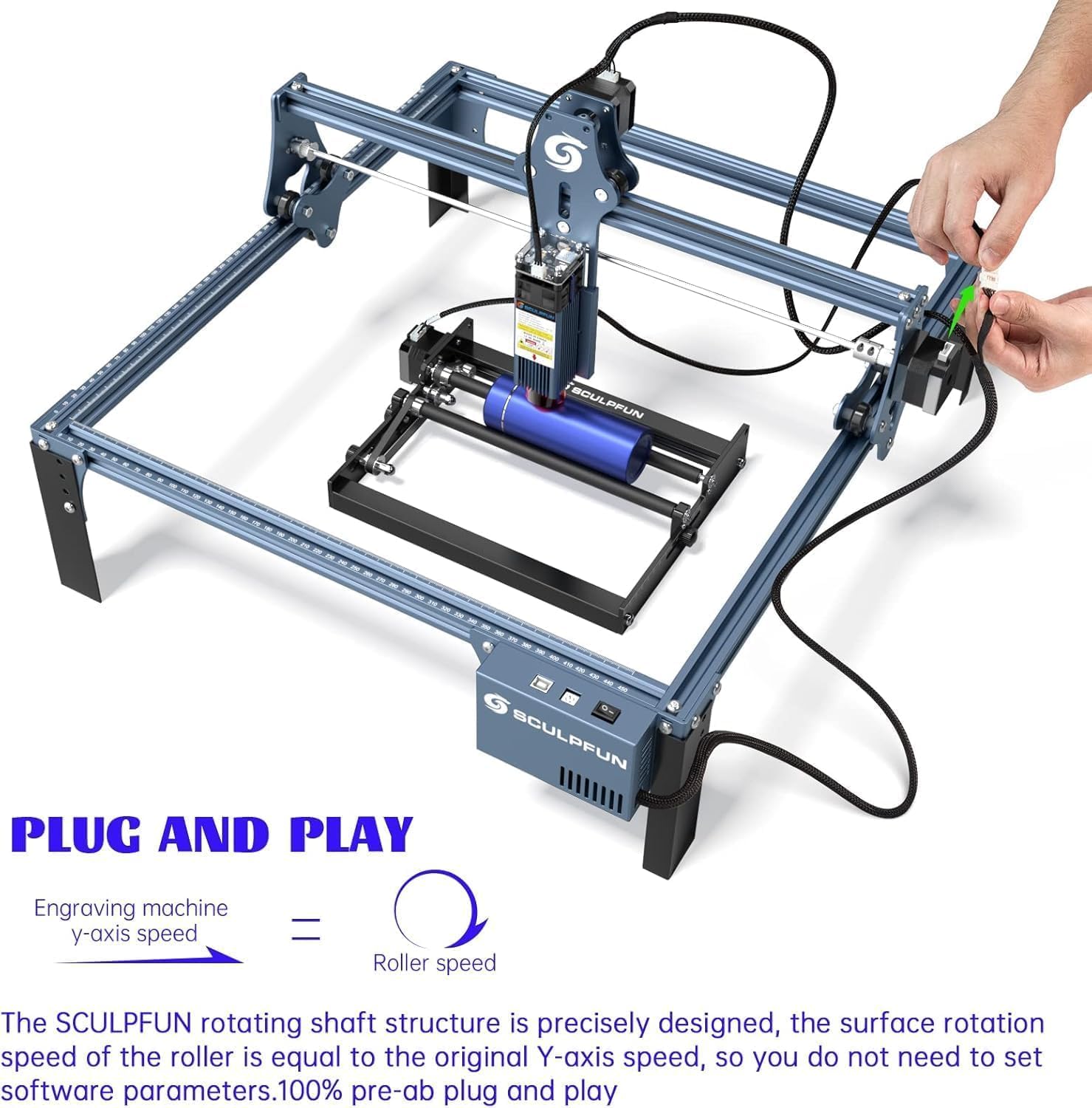

Figure 3.1: Steps for connecting the SCULPFUN Rotary Roller, highlighting its pre-installed nature.

Figure 3.2: The S9 and rotary roller are designed for plug-and-play functionality, simplifying setup.

Connect the rotary roller's adapter cable to the X-axis or Y-axis stepper motor wiring of the laser engraving machine. No additional software settings are required for the rotary roller as its surface rotation speed is precisely designed to match the original Y-axis speed.

Power and USB Connection

Connect the power adapter and USB cable to the machine and your computer.

సాఫ్ట్‌వేర్ ఇన్‌స్టాలేషన్

Install your preferred engraving software (e.g., LightBurn, Laser GRBL) on your Windows or Mac computer.

4. ఆపరేటింగ్ సూచనలు

మెటీరియల్ తయారీ

Figure 4.1: The rotary roller provides a larger engraving space for various cylindrical objects.

Figure 4.2: The rotary roller features a sliding adjustment for quick and easy distance setting.

చిత్రం 4.3: కీ అడ్వాన్స్tages of the SCULPFUN Rotary Roller for cylindrical engraving.

Place the material to be engraved or cut on the working surface. For flat materials, use the protective steel pad to prevent damage to your table. For cylindrical objects, position them securely on the rotary roller.

దృష్టి సర్దుబాటు

Figure 4.4: Adjusting the laser focus by sliding the module up or down.

The S9 features a fixed-focus lens. To adjust focus, slide the laser module along its rail and tighten the screws until the laser beam is optimally focused on the material surface. This ensures a precise 0.08mm ultra-fine laser spot.

సాఫ్ట్‌వేర్ ఆపరేషన్

Figure 4.5: The S9 is compatible with popular laser engraving software like Laser GRBL and LightBurn.

Figure 4.6: The S9's engraving area can be expanded for larger projects.

Figure 4.7: A wide range of materials and objects can be engraved, including pens, cups, flowerpots, and rings.

Open your chosen engraving software (e.g., LightBurn, Laser GRBL). Import your design file (KPG, BMP, NC, G-code, SVG, DXF, PNG formats are supported). Adjust engraving parameters such as power, speed, and passes according to the material type and desired effect. For rotary engraving, ensure the software settings are configured for cylindrical objects, though the S9 rotary roller is designed for plug-and-play speed matching.

భద్రతా జాగ్రత్తలు

Figure 4.8: The circular protective cover allows for observation while providing eye protection.

• Always wear the provided anti-laser goggles when the machine is operating.
• The laser filter on the S9 can block 98% of UV rays, allowing for observation without goggles, but wearing them is highly recommended for maximum safety.
• Ensure the emergency stop switch is easily accessible during operation.
• Keep pets and children away from the operating machine.
• Operate in a well-ventilated area to dissipate fumes from engraving.

5. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your SCULPFUN S9 Laser Engraver.

• శుభ్రపరచడం: Regularly clean the laser lens and the machine's rails to ensure optimal performance and prevent dust buildup. Use a soft, lint-free cloth.
• సరళత: Periodically lubricate the moving parts of the X and Y axes to ensure smooth operation.
• బెల్ట్ టెన్షన్: Check the tension of the belts and adjust if necessary to maintain engraving accuracy.
• Laser Module Inspection: Inspect the laser module for any signs of damage or wear. If the laser output appears weak or inconsistent, consult the manufacturer's support.

6. ట్రబుల్షూటింగ్

ఈ విభాగం మీరు ఎదుర్కొనే సాధారణ సమస్యలకు పరిష్కారాలను అందిస్తుంది.

• మెషిన్ ఆన్ చేయడం లేదు:
  • Check power cable connections to the machine and the outlet.
  • పవర్ అడాప్టర్ సరిగ్గా పని చేస్తుందని నిర్ధారించుకోండి.
• Laser Not Firing/Weak Output:
  • Verify laser module connection.
  • Check focus adjustment.
  • Ensure laser power settings in software are correct.
  • లేజర్ లెన్స్ శుభ్రం చేయండి.
• Engraving Inaccuracy/Skipped Steps:
  • Check belt tension on X and Y axes.
  • Ensure all screws and connections are tight.
  • Verify material is securely placed and not moving during operation.
  • Check software settings for speed and acceleration.
• సాఫ్ట్‌వేర్ కనెక్షన్ సమస్యలు:
  • USB కేబుల్ సురక్షితంగా కనెక్ట్ చేయబడిందని నిర్ధారించుకోండి.
  • సాఫ్ట్‌వేర్ మరియు యంత్రాన్ని పునఃప్రారంభించండి.
  • Check device manager for proper driver installation.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

వారంటీ సమాచారం

The product may be eligible for extended warranty plans (e.g., 12-month or 24-month extended warranty against failures and defects) available at the time of purchase. Please refer to your purchase documentation for specific warranty terms and conditions.

కస్టమర్ మద్దతు

For technical assistance, troubleshooting, or inquiries, please visit the official SCULPFUN store on Amazon or contact SCULPFUN customer support directly. You can find more information and contact details at: SCULPFUN Amazon Store.
