పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of your OONO DIN Rail Mount 16 LEDs Indicator Light Module. This module is designed for industrial and electrical applications, offering clear visual indication with 16 independent LED channels. Please read this manual thoroughly before use to ensure proper and safe operation.
భద్రతా సమాచారం
- Always disconnect power before installing, wiring, or performing maintenance on the module.
- అన్ని వైరింగ్లు స్థానిక మరియు జాతీయ విద్యుత్ కోడ్లకు అనుగుణంగా ఉన్నాయని నిర్ధారించుకోండి.
- This module operates with DC voltage. Verify correct polarity before applying power.
- Do not exceed the specified operating voltagఇ పరిధి 5VDC నుండి 50VDC.
- Avoid exposing the module to excessive moisture, dust, or extreme temperatures.
- అర్హత కలిగిన సిబ్బంది మాత్రమే సంస్థాపన మరియు వైరింగ్ చేయాలి.
ఉత్పత్తి ముగిసిందిview
The OONO D-1003T Series is a 16-channel LED indicator light module featuring 5mm blue LEDs. It supports both Common Positive and Common Negative control modes, making it versatile for various circuit designs. The module is equipped with 5.0mm pitch screw terminal blocks for secure wire connections and comes with a high-quality fireproof nylon DIN rail mount carrier.
ముఖ్య లక్షణాలు:
- 16 independent LED indicator channels.
- విస్తృత ఆపరేటింగ్ వాల్యూమ్tage range: 5VDC to 50VDC.
- Supports Common Positive and Common Negative control.
- Robust 5.0mm pitch screw terminal blocks.
- DIN rail mountable (35mm, 32mm, 15mm compatible) with detachable carrier for panel mounting.
- FR-4 fiber glass PCB for durability.
భాగాలు:
- 16 x 5mm Blue LEDs
- Input Terminal Blocks (Channels 1-8, 9-16, COM)
- DIN Rail Mount Carrier
- FR-4 PCB
చిత్రం 1: పై నుండి క్రిందికి view of the 16-LED indicator module, showing the LED array and terminal blocks.
Figure 2: Angled perspective of the module, highlighting its compact design and integrated DIN rail mounting mechanism.
స్పెసిఫికేషన్లు
| పరామితి | విలువ |
|---|---|
| మోడల్ సంఖ్య | D-1003T Series |
| ఛానెల్ల సంఖ్య | 16 |
| LED రంగు | నీలం |
| LED Diameter | 5మి.మీ |
| ఆపరేటింగ్ వాల్యూమ్tage | 5VDC ~ 50VDC |
| Drive Current (per LED) | 0.3mA (at 5VDC), 1.0mA (at 12VDC), 2.2mA (at 24VDC), 4.6mA (at 48VDC) |
| Terminal Block Pitch | 5.0మి.మీ / 0.197" |
| వైర్ రేంజ్ | 26 to 12AWG / 2.5mm² |
| స్ట్రిప్ పొడవు | 7మి.మీ / 0.28" |
| మౌంటు రకం | DIN Rail Mount (35mm/32mm/15mm), Panel Mount (carrier detachable) |
| మెటీరియల్ | Fireproof Nylon (carrier), FR-4 (PCB) |
| ఉత్పత్తి కొలతలు | 3.42 x 2.44 x 1.58 అంగుళాలు (87 x 62 x 40.2 మిమీ) |
| వస్తువు బరువు | 4.3 ఔన్సులు (122 గ్రాములు) |

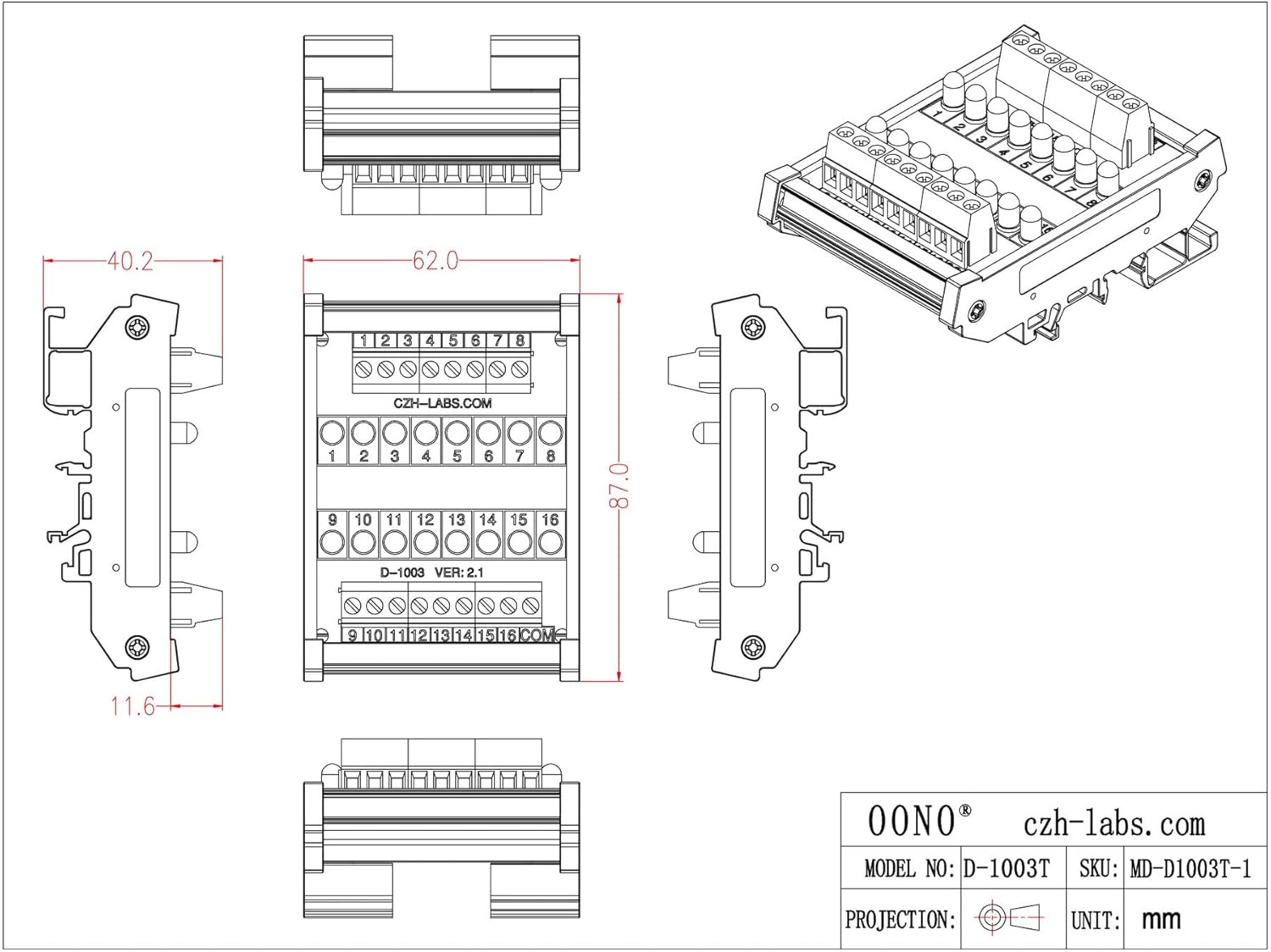

Figure 3: Detailed dimensional drawing of the module, showing key measurements in millimeters.
సెటప్ మరియు ఇన్స్టాలేషన్
పెట్టెలో ఏముంది:
- 1 x DIN rail mount indicator light module
Mounting the Module:
The module is designed for easy installation on standard DIN rails (35mm, 32mm, or 15mm). The carrier can also be detached for panel mounting applications.
- DIN రైలు మౌంటు: Align the module's clips with the DIN rail. Press down firmly until the module snaps securely onto the rail. Ensure it is seated properly and does not wobble.
- ప్యానెల్ మౌంటు: The DIN rail carrier can be disassembled from the main PCB. Once detached, the PCB can be mounted directly to a panel using appropriate standoffs or screws (not included).
Figure 4: The indicator module securely mounted on a standard DIN rail, ready for wiring.
వైరింగ్ సూచనలు:
The module features 5.0mm pitch screw terminal blocks for connecting input signals. Each LED channel (1-16) has a dedicated input terminal, and there is a common (COM) terminal.
- వైర్లను సిద్ధం చేయండి: Strip approximately 7mm (0.28 inches) of insulation from the ends of your wires (26 to 12AWG / 2.5mm²).
- ఇన్పుట్లను కనెక్ట్ చేయండి: Loosen the screws on the desired terminal blocks. Insert the stripped wire ends fully into the terminal openings. Tighten the screws to secure the wires. Gently tug on the wires to ensure a firm connection.
- Common Connection: Connect the common return path of your control circuit to the "COM" terminal.
మూర్తి 5: క్లోజ్-అప్ view of the screw terminal blocks, indicating channel numbers and the common terminal.
ఆపరేటింగ్ మోడ్లు
The OONO D-1003T Series supports both Common Positive and Common Negative control configurations. This flexibility allows integration into various existing control systems.
Common Positive Control:
In this mode, the "COM" terminal is connected to the positive supply voltage. Each individual channel terminal (1-16) is then connected to the negative side of the control signal. When a channel's input is pulled low (connected to ground or negative supply), the corresponding LED will illuminate.
- Connect the positive supply (e.g., +5VDC to +50VDC) to the COM టెర్మినల్.
- Connect the negative side of your control signal for each channel (1-16) to its respective input terminal.
- LED illuminates when the input terminal is connected to the negative potential.
Common Negative Control:
In this mode, the "COM" terminal is connected to the negative supply voltage (ground). Each individual channel terminal (1-16) is then connected to the positive side of the control signal. When a channel's input is pulled high (connected to positive supply), the corresponding LED will illuminate.
- Connect the negative supply (e.g., Ground) to the COM టెర్మినల్.
- Connect the positive side of your control signal for each channel (1-16) to its respective input terminal.
- LED illuminates when the input terminal is connected to the positive potential.
Figure 6: Internal circuit diagram illustrating the connection of LEDs and resistors to the input and common terminals.
నిర్వహణ
The OONO DIN Rail Mount 16 LEDs Indicator Light Module is designed for long-term, maintenance-free operation. However, periodic checks can help ensure optimal performance.
- శుభ్రపరచడం: If necessary, gently wipe the module with a dry, soft cloth to remove dust. Do not use liquid cleaners or solvents.
- కనెక్షన్ తనిఖీ: Periodically inspect terminal block screw connections to ensure they remain tight and secure. Loose connections can lead to intermittent operation or damage.
- పర్యావరణ పరిస్థితులు: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature component degradation.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| No LEDs illuminate. | No power supply to the common terminal, incorrect common connection, or no input signal. | విద్యుత్ సరఫరా వాల్యూమ్ని ధృవీకరించండిtage is within 5-50VDC. Check common terminal wiring (COM). Ensure input signals are correctly applied to individual channels. |
| Specific LED(s) do not illuminate. | Faulty input signal to that channel, incorrect wiring for that channel, or damaged LED. | Check the input signal for the specific channel. Verify wiring for that channel is secure and correct. If all else fails, the LED may be damaged and require module replacement. |
| LED లు మసకగా లేదా మినుకుమినుకుమనేవి. | తగినంత సరఫరా లేదుtage, loose connections, or excessive current draw from other components on the same supply. | సరఫరా వాల్యూమ్ నిర్ధారించుకోండిtage is stable and within range. Check all terminal connections for tightness. Isolate the module to confirm power supply stability. |
| Module does not mount securely on DIN rail. | Incorrect DIN rail size or improper mounting technique. | Ensure you are using a 35mm, 32mm, or 15mm DIN rail. Press firmly until the clips engage. |
వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the official OONO website or contact your authorized distributor. Keep your purchase receipt as proof of purchase for any warranty claims.
తయారీదారు: CZH-LABS
బ్రాండ్: ఊనో
మరిన్ని సహాయం కోసం, మీరు సందర్శించవచ్చు OONO Store on Amazon.
