OMMO లేజర్ స్థాయి 4D 16 లైన్ల వినియోగదారు మాన్యువల్

1. పరిచయం

Thank you for choosing the OMMO Laser Level 4D 16 Lines. This advanced self-leveling laser level is designed to provide precise and efficient alignment for various construction, renovation, and DIY projects. Featuring a smart touch panel, long-lasting rechargeable battery, and remote control, it offers unparalleled convenience and accuracy for both indoor and outdoor applications.

పైగాview of the OMMO 4x360 Laser Level and its main features.

2. భద్రతా సమాచారం

Please read and understand all safety information before operating this product. Failure to follow these instructions may result in laser radiation exposure, electric shock, fire, or serious injury.

• లేజర్ రేడియేషన్: This product is a Class II laser product. Do not stare directly into the laser beam. Avoid direct eye exposure.
• శక్తి మూలం: Use only the specified rechargeable battery and charging cable. Do not attempt to open or modify the battery.
• పర్యావరణం: మండే ద్రవాలు, వాయువులు లేదా ధూళి వంటి పేలుడు వాతావరణాలలో పరికరాన్ని ఆపరేట్ చేయవద్దు.
• నిర్వహణ: Refer all servicing to qualified service personnel. Do not attempt to repair the device yourself.
• పిల్లలు: పరికరాన్ని పిల్లలకు అందుబాటులో లేకుండా ఉంచండి.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని ధృవీకరించండి:

• 1 x OMMO Laser Level (OM-LL16)
• 1 x క్యారీయింగ్ బ్యాగ్
• 1 x L-ఆకారపు అయస్కాంత బ్రాకెట్
• 1 x 3600mAh లిథియం బ్యాటరీ
• 1 x రిమోట్ కంట్రోలర్
• 1 x టైప్-సి ఛార్జింగ్ కేబుల్
• 1 x 1/4"-20 Mount Thread Adapter

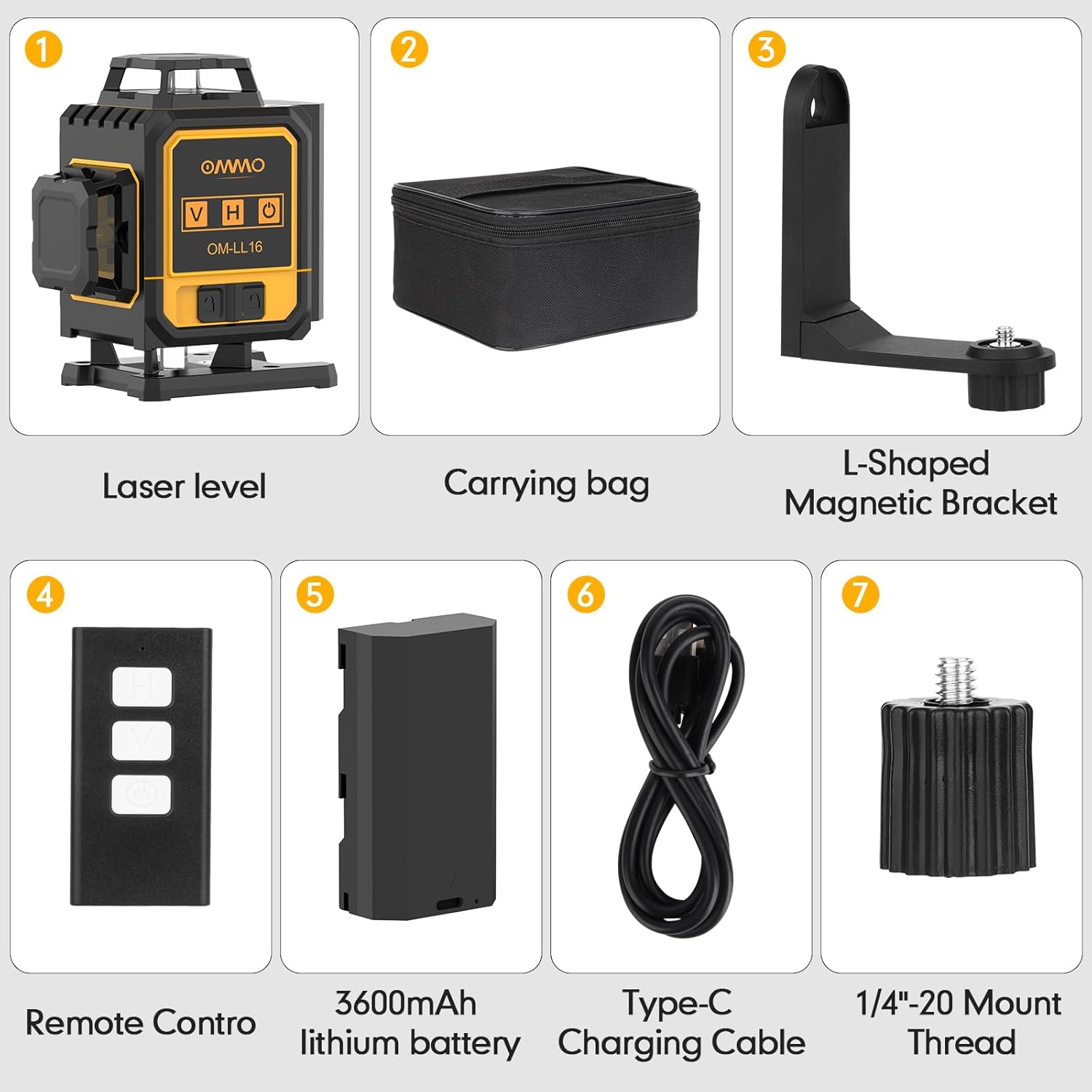

All components included in the OMMO Laser Level package.

4. ఉత్పత్తి ముగిసిందిview

Familiarize yourself with the main components and controls of your OMMO Laser Level.

The OMMO Laser Level and its accessories.

Smart Touch Panel for easy operation.

Laser Line Configuration

The OMMO Laser Level projects 4 x 360° laser lines, providing comprehensive coverage for various leveling tasks.

Illustration of 4D 16-line laser projection capabilities.

5. స్పెసిఫికేషన్లు

Battery specifications and charging details.

IP54 Dustproof and Waterproof rating.

6. సెటప్

బ్యాటరీ సంస్థాపన మరియు ఛార్జింగ్

1. Locate the battery compartment on the laser level.
2. Insert the 3600mAh lithium battery, ensuring correct polarity.
3. బ్యాటరీ కంపార్ట్‌మెంట్‌ను సురక్షితంగా మూసివేయండి.
4. To charge, connect the Type-C charging cable to the laser level's charging port and a suitable USB power adapter (not included). The charging indicator will show charging status.

మౌంటు ఐచ్ఛికాలు

The OMMO Laser Level offers versatile mounting options:

• త్రిపాద మౌంటు: Use the 1/4"-20 mount thread at the bottom of the unit to attach it to a standard tripod.
• అయస్కాంత బ్రాకెట్: Attach the L-shaped magnetic bracket to the laser level using the screw hole, then secure it to metal surfaces.

Mounting options using the magnetic bracket and tripod thread.

7. ఆపరేటింగ్ మోడ్‌లు

స్వీయ-లెవలింగ్ మోడ్

This mode automatically levels the laser lines within a ±3° range.

1. Push the side switch to the unlocked position (unlocked icon).
2. The laser level will automatically self-level. If the tilt exceeds 3°, an audible alarm will sound, and the laser lines will flash.
3. Place the laser level on a flat, stable surface until the alarm stops and the lines become steady.

Manual Mode (Tilt Mode)

This mode allows you to project laser lines at any desired angle.

1. Ensure the side switch is in the locked position (locked icon).
2. Touch the power on/off icon on the touch panel to activate manual mode.
3. The laser lines will project without self-leveling, allowing for angled projections without an alarm.

Visual comparison of Self-leveling and Manual modes.

ప్రకాశం సర్దుబాటు

The laser level features three adjustable brightness levels for optimal visibility in different lighting conditions. Use the power/brightness adjustment icon on the touch panel to cycle through the brightness settings.

8. రిమోట్ కంట్రోల్ ఆపరేషన్

The included remote control allows for convenient operation from a distance, minimizing accidental movement of the laser level once positioned.

• Vertical Line (V): Press the 'V' button to toggle vertical laser lines.
• Horizontal Line (H): Press the 'H' button to toggle horizontal laser lines.
• Power/Brightness Adjustment: Press the power icon to turn the unit on/off or adjust brightness levels.

Remote control functions for the laser level.

Remote control effective range up to 160 feet.

9 అప్లికేషన్లు

The OMMO Laser Level is suitable for a wide range of applications, including but not limited to:

• Tile installation (floor and wall)
• Cabinet and shelf alignment
• Picture hanging and decor alignment
• ప్లాస్టార్ బోర్డ్ సంస్థాపన
• Electrical conduit and outlet installation
• Staircase layout
• Outdoor grading and landscaping (with appropriate laser detector, not included)

Examples of the laser level in use for various home improvement tasks.

10. నిర్వహణ

సరైన నిర్వహణ మీ లేజర్ స్థాయి యొక్క దీర్ఘాయువు మరియు ఖచ్చితత్వాన్ని నిర్ధారిస్తుంది.

• శుభ్రపరచడం: పరికరాన్ని మృదువైన, డితో తుడవండిamp cloth. Do not use abrasive cleaners or solvents. Keep the laser windows clean for optimal performance.
• నిల్వ: Store the laser level in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
• క్రమాంకనం: While the device is factory calibrated, regular checks for accuracy are recommended, especially after impacts or prolonged use. Refer to professional calibration services if significant deviations are observed.

11. ట్రబుల్షూటింగ్

12. వారంటీ & సపోర్ట్

OMMO provides a standard warranty for this product. For detailed warranty terms, technical support, or service inquiries, please refer to the contact information provided on the OMMO official website or your purchase documentation. Please have your model number (OM-LL16) and purchase date ready when contacting support.

మరింత సహాయం కోసం, సందర్శించండి OMMO Store on Amazon.
