Mabe MA0C80400CI0 80 cm 6-Burner Built-in Stove User Manual

1. పరిచయం

Thank you for choosing the Mabe MA0C80400CI0 80 cm 6-Burner Built-in Stove. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before using the stove and retain them for future reference. Proper use and care will ensure optimal performance and longevity of your appliance.

2. భద్రతా సూచనలు

Your safety and the safety of others are paramount. Please observe all safety warnings and instructions provided in this manual. Failure to do so may result in serious injury or property damage.

• వృత్తిపరమైన సంస్థాపన: This appliance must be installed by a qualified technician in accordance with all local codes and regulations. Improper installation can lead to gas leaks, electric shock, or fire.
• గ్యాస్ భద్రత: Ensure proper ventilation when using gas burners. If you smell gas, immediately turn off the gas supply, open windows, and do not operate any electrical switches or appliances. Contact a qualified technician.
• బర్న్ ప్రమాదం: Surfaces of the stove and oven become hot during use. Use oven mitts or pot holders when handling hot items. Keep children and pets away from the appliance during operation.
• విద్యుత్ భద్రత: Ensure the appliance is properly grounded. Do not use extension cords. Disconnect power before servicing.
• మండే పదార్థాలు: Keep flammable materials such as aerosols, cleaning products, and plastics away from the stove.
• శుభ్రపరచడం: Always allow the appliance to cool before cleaning. Do not use abrasive cleaners or sharp objects that could damage surfaces.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Mabe MA0C80400CI0 is a built-in stove designed for integration into kitchen cabinetry. Accurate measurements and professional installation are crucial for safe and proper operation.

3.1 కొలతలు మరియు క్లియరెన్స్

Refer to the diagram below for precise dimensions and required clearances for installation. Ensure adequate space for ventilation and access for maintenance.

చిత్ర వివరణ: A technical diagram illustrating the front view of the Mabe MA0C80400CI0 built-in stove with key dimensions labeled. The width is approximately 79.20 cm, the height from the base to the cooktop is 64.17 cm, and the total height including the back panel is 74.96 cm. This diagram is essential for proper cabinet cutout and installation planning.

• ఉత్పత్తి కొలతలు: 64.17 cm (Height) x 79.2 cm (Width) x 74.96 cm (Depth).
• బరువు: దాదాపు 40 కిలోలు.
• Cabinetry: Ensure your cabinetry is constructed from heat-resistant materials and can support the weight of the appliance.

3.2 గ్యాస్ మరియు విద్యుత్ కనెక్షన్లు

All gas and electrical connections must be performed by a certified professional. Refer to the installation guide provided with the appliance for detailed instructions on gas line sizing, pressure regulation, and electrical requirements.

4. ఆపరేటింగ్ సూచనలు

Familiarize yourself with the controls and features of your Mabe stove before first use.

4.1 గ్యాస్ బర్నర్స్

Your stove is equipped with 6 gas burners and durable cast iron grates, designed for efficient cooking with various pot sizes.

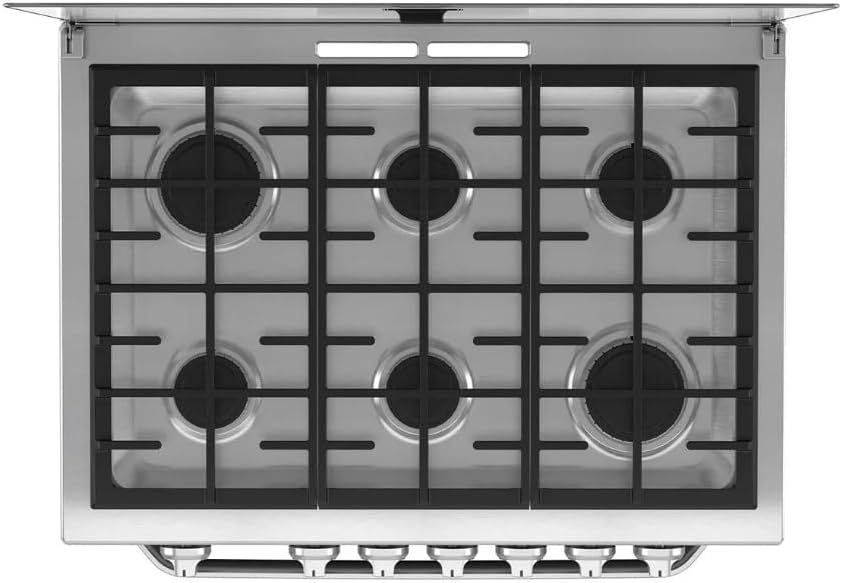

చిత్ర వివరణ: ఒక టాప్-డౌన్ view of the Mabe MA0C80400CI0 stove's cooktop. It clearly shows six gas burners arranged in two rows of three, each covered by robust cast iron grates. The burner caps are black, contrasting with the stainless steel surface. This image highlights the layout and components of the cooking surface.

4.1.1 Manual Ignition

1. Place your cookware on the cast iron grate over the desired burner.
2. Push in and turn the corresponding burner knob counter-clockwise to the 'HIGH' position.
3. Immediately apply a flame from a match or lighter to the burner.
4. Once the burner ignites, continue to hold the knob in for a few seconds to allow the thermocouple to heat up.
5. Release the knob and adjust the flame to your desired cooking level (LOW to HIGH).
6. ఆఫ్ చేయడానికి, నాబ్‌ను సవ్యదిశలో 'ఆఫ్' స్థానానికి తిప్పండి.

గమనిక: If the burner does not light within a few seconds, turn the knob to 'OFF', wait for gas to dissipate, and try again.

4.2 ఓవెన్ ఆపరేషన్

The oven features a panoramic door with mirror glass and 'Perfect Cook' technology for even heat distribution.

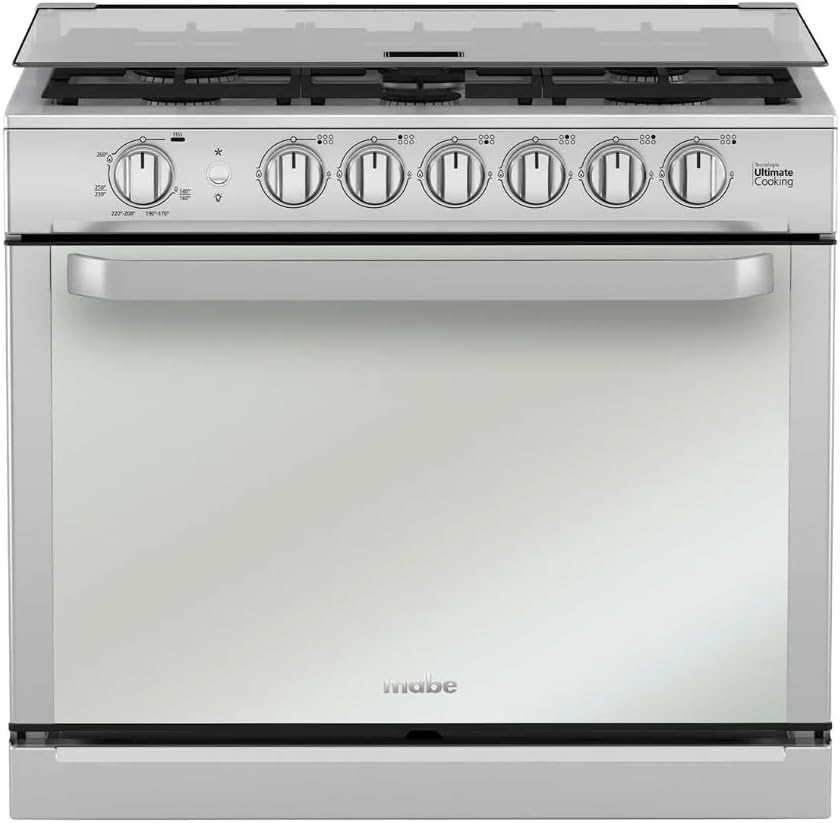

చిత్ర వివరణ: ఒక ప్రత్యక్ష ముందు భాగం view of the Mabe MA0C80400CI0 built-in stove. The control panel with six knobs is visible at the top, above the large oven door which features a panoramic mirror glass finish. The Mabe logo is centered on the lower part of the oven door. This image provides a clear view of the appliance's overall design and primary user interface.

4.2.1 Preheating and Baking

1. Ensure the oven racks are in the desired position.
2. లోపలికి నెట్టండి మరియు ఓవెన్ కంట్రోల్ నాబ్‌ను కావలసిన ఉష్ణోగ్రత సెట్టింగ్‌కి మార్చండి.
3. The oven will begin to preheat. Allow sufficient time for the oven to reach the set temperature (typically 10-15 minutes).
4. ఆహారాన్ని ఓవెన్ లోపల ఉంచండి.
5. Monitor cooking through the panoramic mirror glass door to minimize heat loss.
6. ఆపివేయడానికి, ఓవెన్ నాబ్‌ను 'ఆఫ్' స్థానానికి తిప్పండి.

5. నిర్వహణ మరియు శుభ్రపరచడం

Regular cleaning and maintenance will keep your Mabe stove in excellent condition and ensure its efficient operation.

5.1 కుక్‌టాప్ శుభ్రపరచడం

• కుక్‌టాప్ మరియు గ్రేట్‌లను శుభ్రం చేయడానికి ముందు పూర్తిగా చల్లబరచడానికి అనుమతించండి.
• Remove cast iron grates and burner caps. Wash them with warm, soapy water. Dry thoroughly before replacing.
• Wipe the stainless steel cooktop surface with a soft cloth and a mild detergent or a specialized stainless steel cleaner. Avoid abrasive pads or cleaners that can scratch the surface.

5.2 ఓవెన్ శుభ్రపరచడం

The oven cavity features an 'Easy Clean Pro' coating, making cleaning simpler.

• పొయ్యి చల్లగా ఉందని నిర్ధారించుకోండి.
• ప్రకటనతో లోపలి భాగాన్ని తుడవండిamp cloth and mild soap. For stubborn stains, use a non-abrasive oven cleaner suitable for coated surfaces.
• Clean the panoramic mirror glass door with a glass cleaner and a soft cloth.

6. ట్రబుల్షూటింగ్

సేవను సంప్రదించే ముందు, తిరిగిview కింది సాధారణ సమస్యలు మరియు పరిష్కారాలు.

ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి అర్హత కలిగిన సర్వీస్ టెక్నీషియన్‌ను సంప్రదించండి.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

For warranty information, please refer to the warranty card included with your appliance or visit the official Mabe webసైట్. ఏవైనా వారంటీ క్లెయిమ్‌లకు కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.

For technical support or service, please contact Mabe customer service or an authorized service center. Contact details can typically be found on the manufacturer's webసైట్ లేదా మీ ఉత్పత్తి డాక్యుమెంటేషన్‌లో.
