Miboxer MLR2 Mini Single Color LED Controller
ఇన్స్ట్రక్షన్ మాన్యువల్
పరిచయం
The Miboxer MLR2 Mini Single Color LED Controller is designed for precise and efficient control of single-color LED lighting systems. This compact device utilizes 2.4GHz wireless technology, enabling seamless communication with compatible remotes and gateways for dimming control from 0.1% to 100%. It features a wide voltage range and easy connectivity, making it suitable for various residential and commercial applications.
భద్రతా సమాచారం
- సంస్థాపన లేదా నిర్వహణకు ముందు విద్యుత్ సరఫరా డిస్కనెక్ట్ చేయబడిందని నిర్ధారించుకోండి.
- ఇన్పుట్ వాల్యూమ్ అని ధృవీకరించండిtage matches the controller's specifications (DC12V-24V).
- పరికరాన్ని తేమ లేదా తీవ్రమైన ఉష్ణోగ్రతలకు బహిర్గతం చేయవద్దు.
- Avoid overloading the controller; ensure the total current of connected LED lights does not exceed 6A.
- Consult a qualified electrician if you are unsure about any installation steps.
ప్యాకేజీ విషయాలు
- Miboxer MLR2 Mini Single Color LED Controller
- సూచనల కరపత్రం

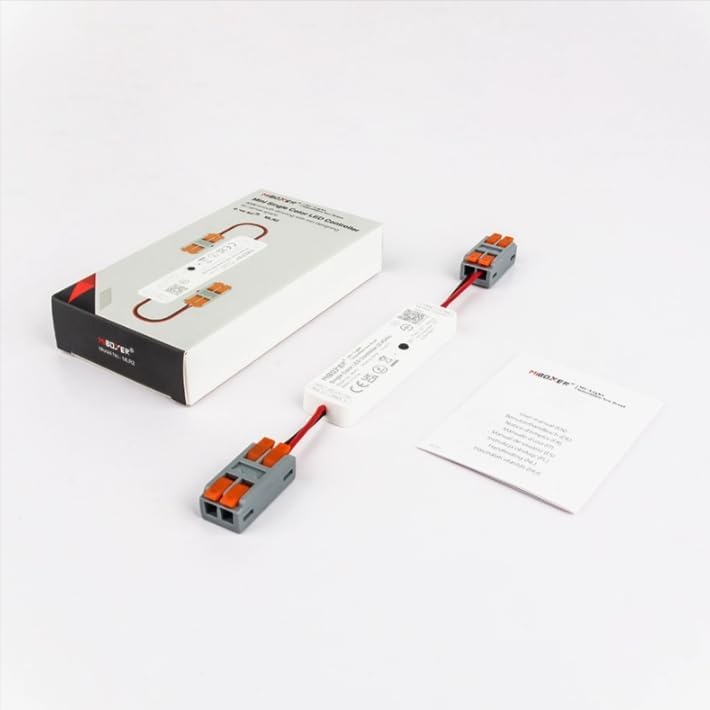

Image: Miboxer MLR2 controller shown with its packaging and included instruction leaflet.
ఉత్పత్తి ముగిసిందిview
The MLR2 controller features integrated DC male and female connectors for simplified wiring. It includes a 'SET' button for pairing with remotes and gateways, and clearly labeled input/output terminals.
చిత్రం: వివరణాత్మకం view of the MLR2 controller, highlighting the input (DC12V-24V), output (MAX 6A), and the 'SET' button for configuration.
Image: Technical drawing illustrating the dimensions of the MLR2 controller and its connectors.
స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| మోడల్ సంఖ్య | MLR2 |
| ఇన్పుట్ వాల్యూమ్tage | DC12V-24V |
| అవుట్పుట్ కరెంట్ | గరిష్టంగా 6A |
| మసకబారిన పరిధి | 0.1%-100% |
| వైర్లెస్ ఫ్రీక్వెన్సీ | 2.4GHz |
| నియంత్రణ దూరం | Up to 30m (with compatible remote) |
| ఆపరేటింగ్ ఉష్ణోగ్రత | -10°C నుండి 40°C |
| కొలతలు | 76mm (L) x 19.2mm (W) x 8.6mm (H) (controller body) |
| వస్తువు బరువు | 2.89 ఔన్సులు |
సెటప్ మరియు ఇన్స్టాలేషన్
వైరింగ్ రేఖాచిత్రం
Image: An application diagram illustrating the connection flow from power input to the LED strip, including optional gateway and remote control integration.
వైరింగ్ సూచనలు
- Ensure the power supply is turned off before making any connections.
- Connect the DC power adapter (DC12V-24V) to the input side of the MLR2 controller. The input is labeled 'INPUT: DC12V-24V Red: V+ Black: V-'.
- Connect your single-color LED strip to the output side of the MLR2 controller. The output is labeled 'OUTPUT: MAX 6A Red: V+ Black: V-'.
- Double-check all connections for polarity (V+ to V+, V- to V-).
- Once all connections are secure, you may turn on the power supply.
Pairing with Remote or Gateway
The MLR2 controller can be paired with up to 12 compatible Miboxer 2.4GHz remotes or gateways.
- To Link: Power on the controller. Within 3 seconds, press the 'SET' button on the controller briefly. Then, on your compatible Miboxer remote, press the 'ON' button for the desired zone or the 'ON' button for the entire system. The LED lights should flash to confirm successful pairing.
- To Unlink: Power on the controller. Within 3 seconds, press and hold the 'SET' button on the controller for approximately 3 seconds. The LED lights should flash to confirm unlinking.
ఆపరేటింగ్ సూచనలు
Basic Dimming Control
Once paired with a compatible Miboxer 2.4GHz remote, you can control the brightness of your single-color LED lights. The controller supports a smooth dimming range from 0.1% to 100%, allowing for precise adjustment of light intensity.
Smart App Control (Requires 2.4GHz Gateway)
For advanced control via a smartphone app, the MLR2 controller can be integrated with a Miboxer 2.4GHz gateway (sold separately). The gateway connects to your home Wi-Fi network, enabling control through applications like Tuya Smart.
Image: A smartphone screen showing the Tuya Smart app controlling LED lighting, alongside a Miboxer 2.4GHz gateway, illustrating smart app integration.
Voice Control (Requires 2.4GHz Gateway)
When connected through a Miboxer 2.4GHz gateway, the MLR2 controller can be controlled using third-party voice assistants such as Amazon Alexa and Google Assistant. This allows for hands-free operation of your LED lighting.
Image: Various smart home devices, including Amazon Alexa and Google Assistant, demonstrating compatibility for voice control when used with a 2.4GHz gateway.
నిర్వహణ
- Keep the controller clean and free from dust. Use a soft, dry cloth for cleaning.
- కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించవద్దు.
- కంట్రోలర్ వేడెక్కకుండా నిరోధించడానికి చుట్టూ తగినంత వెంటిలేషన్ ఉండేలా చూసుకోండి.
- Regularly check all wiring connections to ensure they remain secure.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| LED లు వెలిగించవు. | No power, incorrect wiring, or faulty LED strip. | Check power supply, verify wiring polarity, test LED strip separately. |
| Cannot control LEDs with remote. | Controller not paired, remote battery low, or out of range. | Re-pair the controller with the remote, replace remote battery, ensure remote is within 30m range. |
| Dimming is not smooth or flickers. | Overloaded controller or incompatible LED strip. | Ensure total current does not exceed 6A. Use compatible single-color LED strips. |
| App/Voice control not working. | Gateway not connected/paired, Wi-Fi issue, or incorrect app configuration. | Ensure gateway is properly set up and paired with the controller. Check Wi-Fi connection and app settings. |
వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the official MiBOXER webమీ రిటైలర్ను సైట్లో సంప్రదించండి లేదా సంప్రదించండి. వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.
