Retekess TD157 Vibrating Pager System Instruction Manual

1. పరిచయం

Thank you for choosing the Retekess TD157 Vibrating Pager System. This wireless paging system is designed to enhance customer service and operational efficiency in various settings such as restaurants, food trucks, cafes, and bars. It provides a reliable method for notifying customers when their order is ready or when they are needed.

2. భద్రతా సమాచారం

• పరికరాన్ని నీరు మరియు అధిక తేమ ఉన్న వాతావరణాలకు దూరంగా ఉంచండి.
• పరికరాన్ని మీరే విడదీయవద్దు లేదా మరమ్మతు చేయడానికి ప్రయత్నించవద్దు. అర్హత కలిగిన సేవా సిబ్బందిని సంప్రదించండి.
• నష్టాన్ని నివారించడానికి అందించిన పవర్ అడాప్టర్‌ను మాత్రమే ఉపయోగించండి.
• పరికరాన్ని తీవ్రమైన ఉష్ణోగ్రతలు లేదా ప్రత్యక్ష సూర్యకాంతికి బహిర్గతం చేయకుండా ఉండండి.
• పిల్లలకు దూరంగా ఉంచండి.

3. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

• Transmitter Keyboard x 1
• Pagers x 10
• పవర్ అడాప్టర్ x 1
• ఇన్‌స్ట్రక్షన్ మాన్యువల్ x 1

4. ఉత్పత్తి ముగిసిందిview

The Retekess TD157 system consists of a main transmitter unit and multiple guest pagers. The transmitter is used to call individual pagers, which then alert the customer through vibration, flashing lights, or a beep.

4.1 ముఖ్య లక్షణాలు

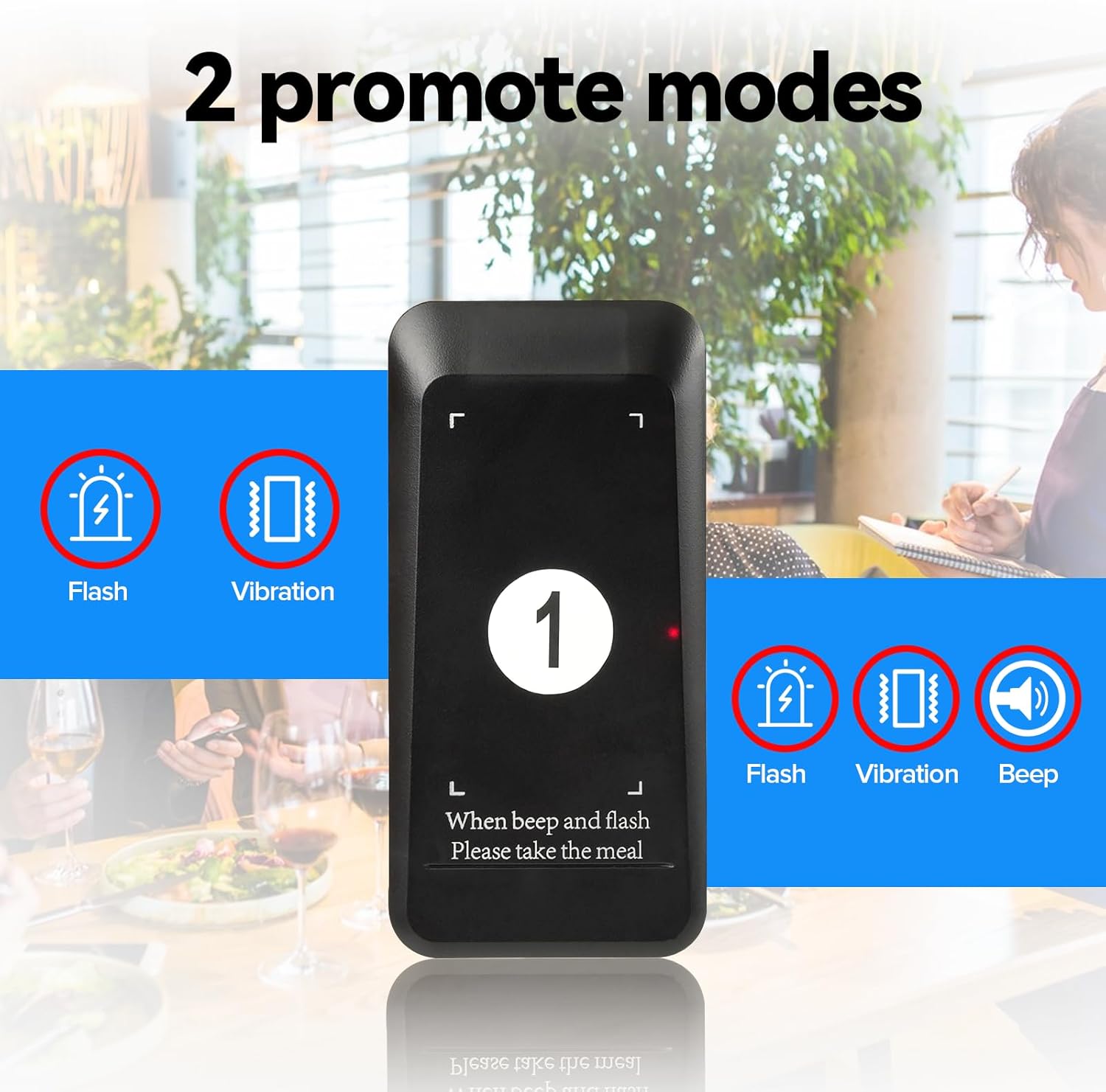

• Enhanced Alert Modes: Choose between Flash + Vibration, Flash + Vibration + Buzzer, or other combinations to suit your environment.
• Long Operating Range: Up to 400m (984ft) in open, line-of-sight conditions, with stable signal penetration through walls.
• అధిక కెపాసిటీ బ్యాటరీ: 200mAh Li-Ion battery in each pager provides over 15 hours of standby time. Pagers automatically charge when placed in the main unit.
• Customizable Advertising Area: Pagers feature an area for promotional stickers.
• సర్దుబాటు చేయగల రిమైండర్ వ్యవధి: Set the alert duration from 1 to 99 seconds.
• విస్తరించదగిన వ్యవస్థ: Supports up to 997 pagers.

5. సెటప్

5.1 ప్రారంభ ఛార్జింగ్

Before first use, place all pagers into the charging slots on the transmitter keyboard. Ensure the power adapter is connected to the transmitter and a power outlet. The pagers will begin charging automatically. A full charge takes approximately 7 hours.

5.2 Pager Pairing

Pagers are typically pre-paired. If you need to pair new pagers or re-pair existing ones:

1. Remove the shell plate from the pager to access the internal buttons.
2. Press the upper corner button and the front button simultaneously until the pager enters pairing mode (lights will flash).
3. On the transmitter keyboard, enter the desired pager number (e.g., "01") and press the "CALL" button.
4. The pager will beep, flash, and vibrate to confirm successful pairing.
5. Replace the shell plate.

5.3 Setting Alert Modes (F2 Pager's Prompt modes)

The system offers various alert modes for pagers. To change the mode:

1. Long press the "Set" button (gear icon) on the transmitter until "F1" appears.
2. Use the UP/DOWN arrows to navigate to "F2".
3. Press "CALL".
4. Enter the corresponding code for the desired mode:
   • 004: Beep
   • 005: Vibrate
   • 006: ఫ్లాష్
   • 007: Beep + Vibrate
   • 008: Vibrate + Flash
   • 009: Beep + Flash
   • 010: Beep + Flash + Vibrate
5. Place the pager you wish to configure into a charging slot. The pager will update to the selected mode.

5.4 Setting Call Time (F3 Prompt Time)

To adjust how long the pager alerts:

1. Long press the "Set" button (gear icon) on the transmitter until "F1" appears.
2. Use the UP/DOWN arrows to navigate to "F3".
3. Press "CALL".
4. Enter the desired duration in seconds (1-999) and press "CALL" to save.

5.5 How to Mute the Pagers (Turn off Beep)

If you wish to disable the beep function on a pager, allowing only vibration or flash:

1. Remove the shell plate from the pager.
2. Continuously press the middle button on the pager until all five indicator lights turn off.
3. Then, press the side button on the pager. The pager will now be muted (no beep).
4. To re-enable the beep, repeat the process: continuously press the middle button until the side lights are on, then press the side button.

6. ఆపరేటింగ్ సూచనలు

6.1 Giving a Pager to a Customer

When a customer places an order or is waiting, give them a charged pager from the transmitter unit. Note the pager number for future reference.

6.2 పేజర్‌కు కాల్ చేయడం

When an order is ready or a customer is needed:

1. On the transmitter keyboard, enter the pager number (e.g., "01").
2. Press the "CALL" button. The corresponding pager will activate its set alert mode (vibrate, flash, or beep).

6.3 Returning a Pager

Once the customer returns the pager, place it back into any available charging slot on the transmitter unit. This will stop the alert and begin recharging the pager.

6.4 One-Click Group Call

To call all active pagers simultaneously, press the "0" button followed by the "CALL" button on the transmitter. All pagers will activate their alert modes.

6.5 One-Click Shutdown

To turn off all active pagers simultaneously, press the "DEL" button followed by the "CALL" button on the transmitter. All pagers will cease their alert modes and power down.

7. నిర్వహణ

• శుభ్రపరచడం: Use a soft, dry cloth to clean the transmitter and pagers. Avoid abrasive cleaners or solvents.
• బ్యాటరీ సంరక్షణ: Ensure pagers are regularly charged to maintain battery health. Avoid leaving them fully discharged for extended periods.
• నిల్వ: When not in use for a long time, store the system in a cool, dry place.

8. ట్రబుల్షూటింగ్

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

For warranty information and technical support, please refer to the contact details provided in your product packaging or visit the official Retekess webసైట్. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదుని ఉంచండి.
