పరిచయం
The Feit Electric LANRFL1000 LED Lantern is a versatile, rechargeable lighting solution designed for various applications including worksites, campsites, and emergency situations. This manual provides essential information for the safe and effective use of your lantern, covering setup, operation, maintenance, and troubleshooting.
ఉత్పత్తి ముగిసిందిview మరియు ముఖ్య లక్షణాలు
The LANRFL1000 LED Lantern offers multiple lighting options and a robust design for portability and durability.
చిత్ర వివరణ: An exploded diagram of the Feit Electric LANRFL1000 LED Lantern, highlighting its main components. Labels point to the Power Button, Hanging Hook, 2 Detachable Floodlights, Powerful Magnetic Base, SB-C Charging Port (Cable Included), Lantern COB Light, Floodlight COB Light, and Power Button on the detachable units.
- Versatile 3-Light Modes: Offers an 800-lumen COB light for large areas, 200-lumen detachable side lights for directional lighting, and 120-lumen detachable floodlights for focused tasks.
- పునర్వినియోగపరచదగిన సౌలభ్యం: Features a built-in rechargeable battery with USB-C compatibility for efficient charging.
- Detachable Side Lights: Two side lights can be detached and used as standalone flashlights, each with its own power button.
- Compact, Portable & Durable: Lightweight design with a built-in metal hanging hook for easy transport and hands-free use. Constructed for rugged durability.
- Long-Lasting Lifetime: Integrated LEDs are rated for up to 25,000 hours of operation.
సెటప్
- ప్రారంభ ఛార్జింగ్: Before first use, fully charge the lantern's internal battery. Connect the provided USB-C charging cable to the SB-C Charging Port on the lantern and to a compatible USB power adapter (not included). The charging indicator will show charging status.
- Attaching/Detaching Side Lights: The two side lights are magnetically attached to the main lantern body. To detach, gently pull them away. To reattach, align them with the magnetic contacts on the main unit until they snap into place.
ఆపరేటింగ్ సూచనలు
Main Lantern Operation
- పవర్ ఆన్/ఆఫ్: Press the main power button located on the top of the lantern to turn the unit on or off.
- సైకిల్ లైట్ మోడ్లు: With the lantern on, press the main power button repeatedly to cycle through the available lighting modes: Main COB Light (800 lumens), Detachable Side Lights (200 lumens each), and Detachable Floodlights (120 lumens each).
చిత్ర వివరణ: Three images of the Feit Electric LANRFL1000 LED Lantern demonstrating its three light modes: 1000 Lumens (main lantern with side lights attached), 800 Lumens (main lantern only), and 200 Lumens (one detachable side light operating independently).
Detachable Side Light Operation
- స్వతంత్ర ఉపయోగం: Once detached from the main lantern, each side light can be operated independently.
- Power On/Off (Side Light): Press the power button on the individual side light to turn its COB light or flashlight on or off.
- ఫ్లాష్లైట్ ఫంక్షన్: Each detachable side light includes a flashlight on its end. Press the side light's power button to activate the flashlight mode.

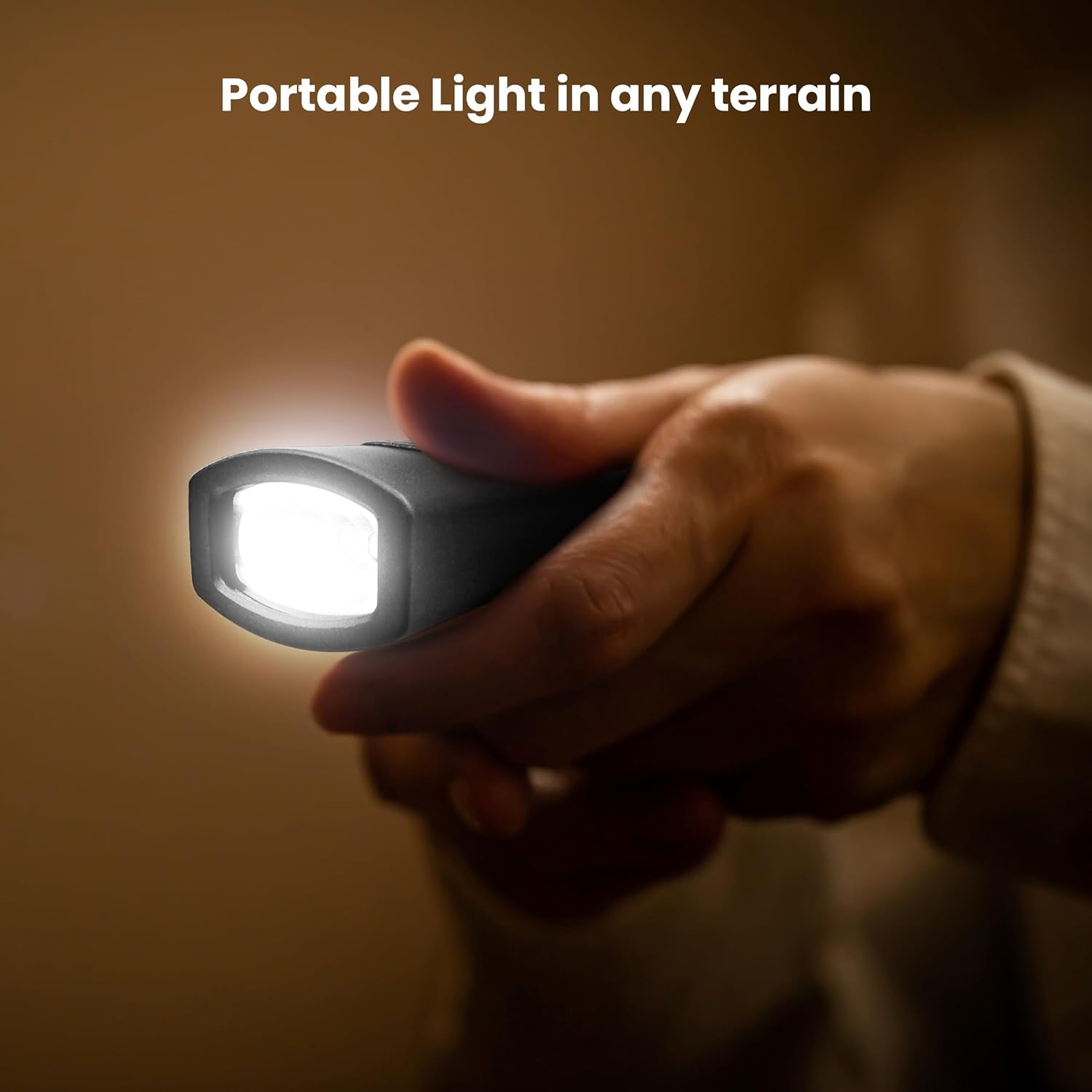

చిత్ర వివరణ: A hand holding one of the detachable side lights, demonstrating its use as a portable flashlight in a dimly lit environment.
Placement and Portability
- హాంగింగ్ హుక్: Use the integrated metal hanging hook to suspend the lantern from tents, branches, or other suitable fixtures for overhead lighting.
- మాగ్నెటిక్ బేస్: The main lantern features a powerful magnetic base, allowing it to be securely attached to metallic surfaces.
- పోర్టబిలిటీ: The compact design and detachable lights make the LANRFL1000 easy to carry or pack for various activities.

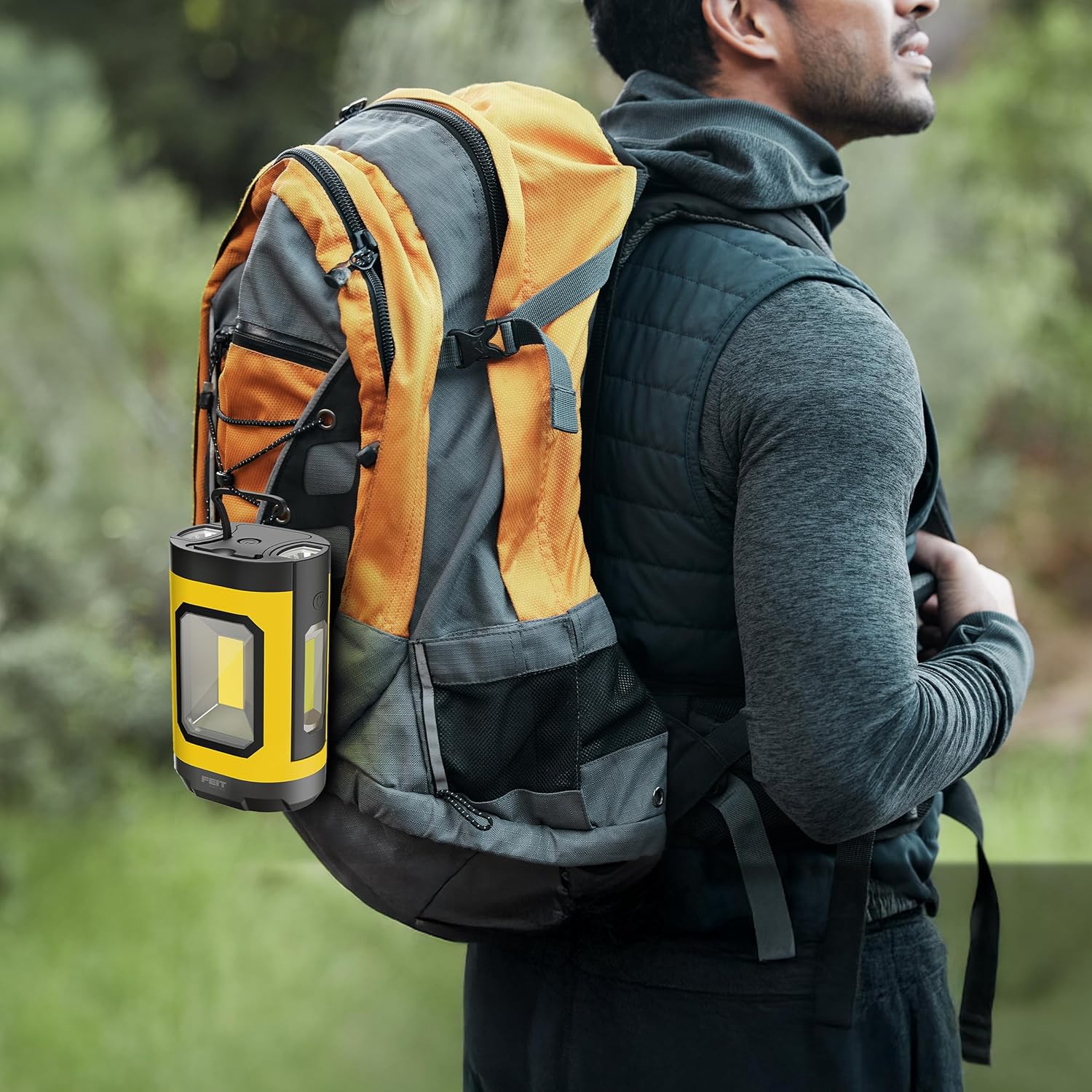

చిత్ర వివరణ: The Feit Electric LANRFL1000 LED Lantern attached to the side of a backpack, demonstrating its portability for outdoor activities.

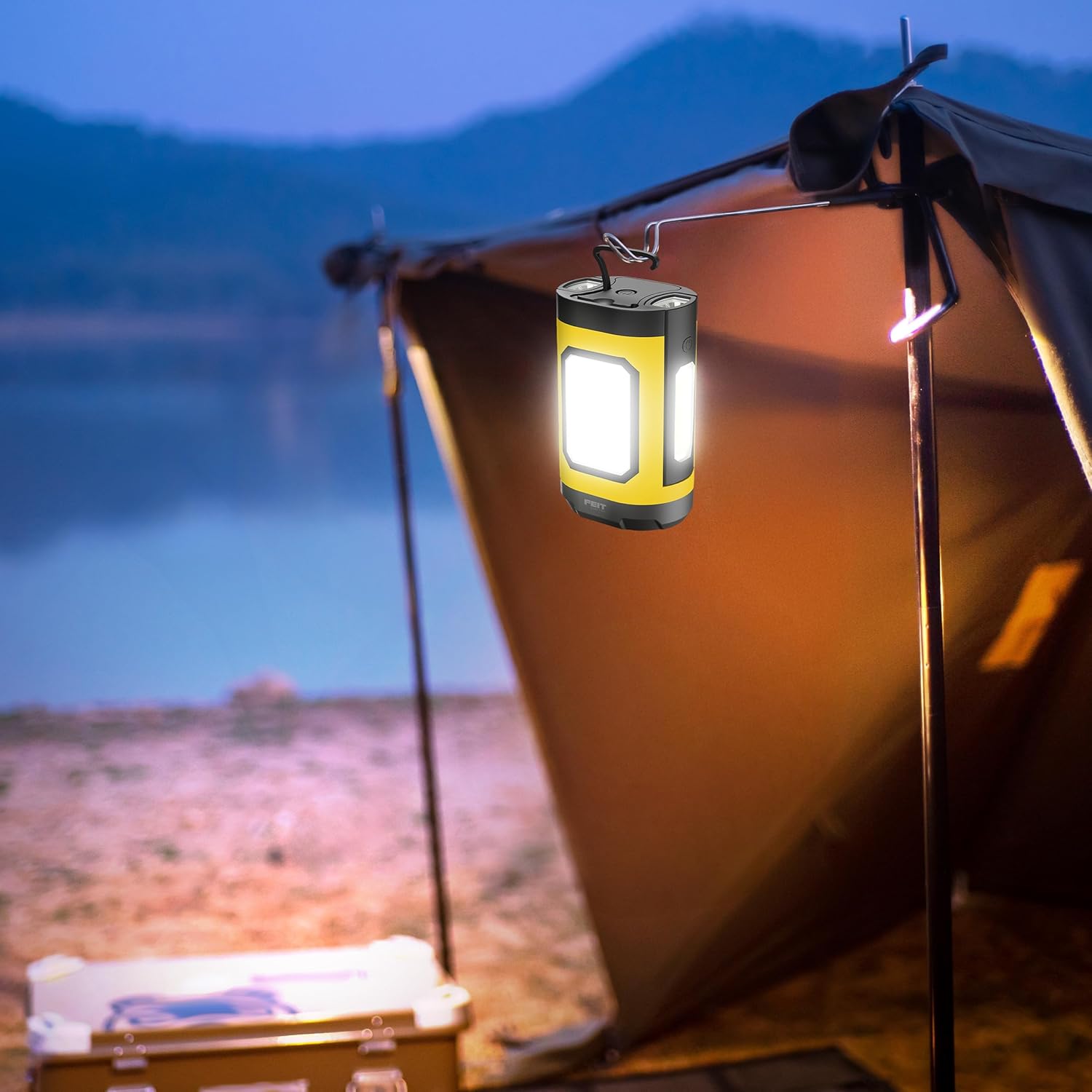

చిత్ర వివరణ: The Feit Electric LANRFL1000 LED Lantern hanging from a hook inside a tent, providing illumination for a campసైట్.
నిర్వహణ
- శుభ్రపరచడం: To clean the lantern, wipe its surfaces with a soft, slightly damp వస్త్రం. కఠినమైన రసాయనాలు, రాపిడి క్లీనర్లు లేదా ద్రావకాలను ఉపయోగించవద్దు, ఎందుకంటే ఇవి ముగింపు లేదా అంతర్గత భాగాలను దెబ్బతీస్తాయి.
- నిల్వ: When storing the lantern for extended periods, ensure it is partially charged (approximately 50%) to preserve battery health. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- బ్యాటరీ సంరక్షణ: Avoid fully discharging the battery frequently. Recharge the lantern when the light output becomes noticeably dim.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| లాంతరు ఆన్ చేయదు. | బ్యాటరీ డిస్చార్జ్ చేయబడింది. | Charge the lantern using the USB-C cable. |
| Side lights do not illuminate. | Side lights are not properly attached or their individual batteries are low. | Ensure side lights are securely attached to the main unit or charge the main unit to power them. If detached, press their individual power buttons. |
| కాంతి ఉత్పత్తి తక్కువగా ఉంది. | తక్కువ బ్యాటరీ ఛార్జ్. | Recharge the lantern's battery. |
| Lantern not charging. | USB-C కేబుల్ లేదా పవర్ అడాప్టర్ తప్పుగా ఉంది. | Try a different USB-C cable and power adapter. Ensure the cable is fully inserted into the charging port. |
స్పెసిఫికేషన్లు
చిత్ర వివరణ: A technical drawing showing the dimensions of the Feit Electric LANRFL1000 LED Lantern. The main lantern measures 4.4 inches (L) x 3.2 inches (W) x 6.9 inches (H). Each detachable side light measures 1.67 inches (L) x 1.2 inches (W) x 5.46 inches (H).
| మోడల్ సంఖ్య | LANRFL1000 ద్వారా మరిన్ని |
| Light Output (Maximum) | 1000 ల్యూమెన్స్ |
| రంగు ఉష్ణోగ్రత | 6500 కెల్విన్ (పగలు) |
| శక్తి మూలం | రీఛార్జబుల్ బ్యాటరీ (USB-C) |
| వాల్యూమ్tage | 5 వోల్ట్లు |
| ఉత్పత్తి కొలతలు (ప్రధాన యూనిట్) | 4.4 "L x 3.2" W x 6.9" H |
| వస్తువు బరువు | 1.5 పౌండ్లు |
| మెటీరియల్ | పాలికార్బోనేట్ (PC) |
| Estimated LED Lifetime | 25,000 గంటలు |
వారంటీ సమాచారం
The Feit Electric LANRFL1000 LED Lantern is covered by a 1-సంవత్సరం తయారీదారు వారంటీ from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please contact Feit Electric customer support.
కస్టమర్ మద్దతు
For further assistance, technical support, or to inquire about warranty services, please visit the Feit Electric help center:
చిత్ర వివరణ: A woman smiling while looking at a tablet, with a graphic overlay indicating "24/7 HELP" and a QR code linking to feit.com/help for customer support.
