Airiton AI-300 4G POC Walkie Talkie User Manual

పరిచయం

The Airiton AI-300 is a state-of-the-art 4G Push-to-Talk Over Cellular (POC) two-way radio designed for seamless and extensive communication. This device leverages 4G networks to provide an unlimited communication range, officially supporting coverage up to 5000 miles, making it suitable for various environments from urban areas to remote locations.

Equipped with advanced noise-cancelling microphones, the AI-300 ensures crystal clear audio quality, facilitating effective communication even in noisy environments. Its durable and sturdy design, made from high-quality materials, provides shockproof and drop-resistant performance, capable of withstanding daily wear and tear and harsh conditions.

The AI-300 comes with an annual SIM card, offering unlimited high-speed data services for one year without platform fees, ensuring continuous connectivity. It supports various call functions including single, group, and mass calls, enhancing its versatility for individual and team communications.

ప్యాకేజీ విషయాలు

Upon opening your Airiton AI-300 package, please verify that all the following items are included:

• 2 x Airiton AI-300 Radio Body
• 2 x Battery (12V, pre-installed)
• 2 x Type-C USB Charger
• 2 x హెడ్‌సెట్
• 2 x బెల్ట్ క్లిప్
• 2 x Hand Strap (Lanyard)
• 1 x వినియోగదారు మాన్యువల్

Image: All components included in the Airiton AI-300 package.

ఉత్పత్తి లక్షణాలు

• Unlimited Communication Range: Utilizes 4G POC technology for nationwide coverage up to 5000 miles, supporting 2G/3G/4G networks. FCC Certified (FCC ID: 2BM2J-BQ-300).


  Image: Visual representation of the AI-300's unlimited communication distance via 4G networks.

• Annual SIM Card Included: Enjoy one year of unlimited high-speed data service. The SIM card is pre-installed for immediate use. Renewal options are available after the first year.

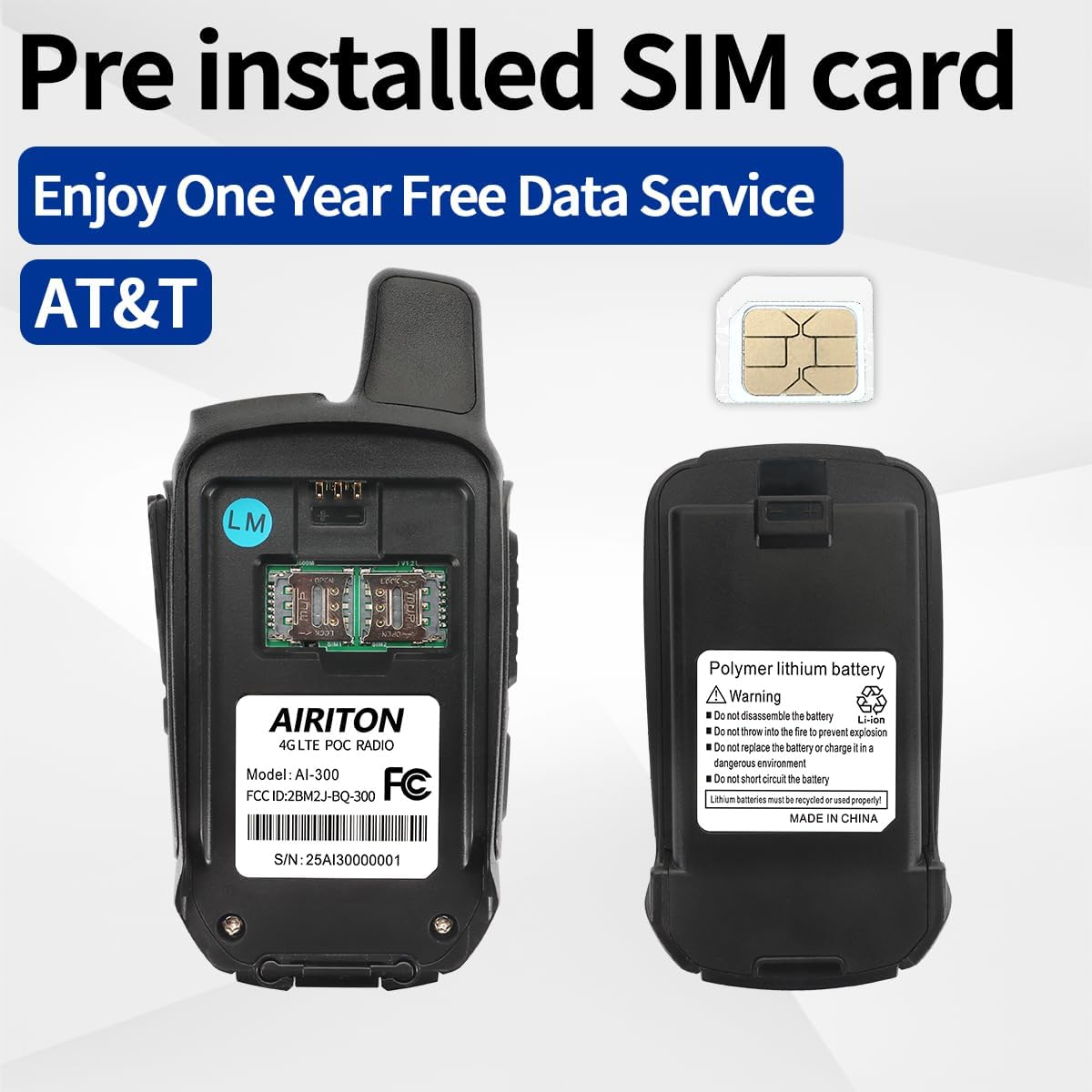

  Image: The pre-installed SIM card and battery compartment of the AI-300.

• Durable and Sturdy Design: Constructed with high-quality, shockproof, and drop-resistant materials to withstand harsh environments and daily use.
• Clear Audio with Noise Cancellation: Equipped with advanced noise-cancelling microphones for crystal clear sound quality in any environment.
• Versatile Call Functions: Supports single calls (one-on-one), group calls (free group communication), and mass calls (call all members).

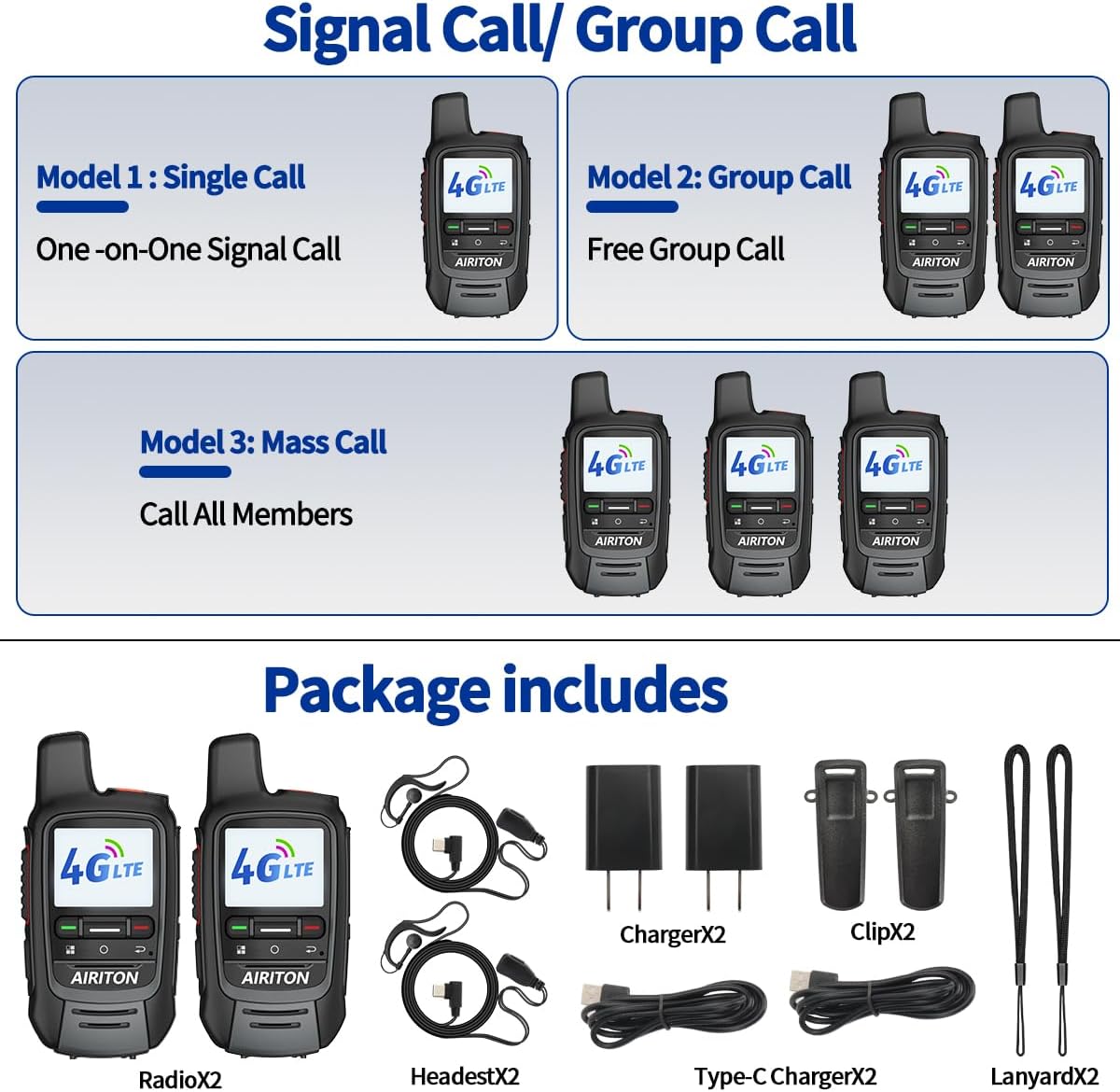

  Image: Explanation of single, group, and mass call modes.
• టైప్-సి ఛార్జింగ్: Convenient and fast charging via a Type-C USB port.


  Image: The AI-300's LCD display and Type-C charging capabilities.

• Compact and Comfortable Size: Designed for easy handheld grip and simple operation.

సెటప్ గైడ్

1. Initial Battery and SIM Card Check

The Airiton AI-300 radios come with batteries and SIM cards pre-installed. Before first use, ensure the battery is securely seated in its compartment. The SIM card is already active for one year of service upon receipt.

2. పరికరాన్ని ఛార్జ్ చేస్తోంది

Connect the provided Type-C USB charger to the charging port on the side of the radio. Plug the charger into a standard wall outlet or a compatible USB power source. The charging indicator light will show the charging status. A full charge is recommended before initial use.

3. పవర్ చేయడం ఆన్/ఆఫ్

To power on the radio, press and hold the Power button (usually located on the top or side) until the screen illuminates. To power off, press and hold the Power button again until the device shuts down.

4. Initial Pairing (for multiple units)

For purchases of two radios, they are typically pre-set with default settings and should pair automatically upon power-on. If you purchase more than two radios and require them to be paired for group communication, please contact Airiton customer service with the serial numbers of your devices. They will provide technical guidance for pairing.

ఆపరేటింగ్ సూచనలు

Image: Key operational buttons and ports on the Airiton AI-300.

1. పుష్-టు-టాక్ (PTT) బటన్

The large button on the side of the radio is the Push-to-Talk (PTT) button. Press and hold this button to transmit your voice. Release the button to listen for incoming transmissions.

2. వాల్యూమ్ సర్దుబాటు

Use the "Volume Up" and "Volume Down" buttons (located below the PTT button) to adjust the listening volume. The current volume level may be displayed on the LCD screen.

3 మెను నావిగేషన్

The "Menu" button allows access to various settings and options on the radio. Use the navigation buttons (if present, or volume buttons) to scroll through menu options and the "OK" or "Select" button to confirm selections.

4. కాల్స్ చేయడం

• సింగిల్ కాల్: For one-on-one communication, select the desired contact from your contact list (if available) or initiate a direct call.
• గ్రూప్ కాల్: To communicate with a pre-defined group, select the group from your group list. All members within that group will receive your transmission.
• Mass Call: This function allows you to broadcast a message to all connected radios within your network.

Refer to the on-screen interface for specific instructions on selecting call types and contacts.

నిర్వహణ

1. శుభ్రపరచడం

రేడియోను శుభ్రం చేయడానికి, మృదువైన, డిamp cloth. Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the device's surface or internal components. Ensure the charging port and other openings are free of dust and debris.

2. బ్యాటరీ సంరక్షణ

To prolong battery life, avoid fully discharging the battery frequently. Charge the battery regularly, even if the radio is not in constant use. Store the radio and battery in a cool, dry place away from direct sunlight and extreme temperatures.

3. నిల్వ

When storing the radio for extended periods, ensure it is powered off and the battery is partially charged (around 50%). Store it in a protective case to prevent physical damage.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

వారంటీ సమాచారం

Please note that this product does not come with a manufacturer's warranty as per the provided specifications. For any issues or concerns, please refer to the return policy of your retailer.

కస్టమర్ మద్దతు

Airiton provides dedicated customer service to assist with any inquiries or technical guidance you may need. For assistance with pairing multiple devices, troubleshooting, or any other product-related questions, please contact Airiton customer service. They offer all-day customer service replies to ensure your satisfaction.

For specific contact details, please refer to the information provided at the point of purchase or on the official Airiton webసైట్.
