Parkside PIFDS 120 A1 Inverter Welder Instruction Manual

1. పరిచయం

Thank you for choosing the Parkside PIFDS 120 A1 Inverter Welder. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new welding machine. Please read these instructions carefully before first use and keep them for future reference.

The Parkside PIFDS 120 A1 is a compact and powerful inverter welder designed for mobile use. It operates without the need for shielding gas, making it suitable for both experienced users and beginners. The synergistic rotary knob allows for easy adjustment to material thickness, ensuring optimal welding results.

2. భద్రతా సూచనలు

Always prioritize safety when operating welding equipment. Failure to follow these safety guidelines can result in serious injury or damage to property.

• తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి: This includes a welding helmet with suitable shade, welding gloves, protective clothing, and safety shoes. The included protective shield should be used.
• సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి: Welding fumes can be hazardous. Work in a well-ventilated area or use fume extraction.
• విద్యుత్ షాక్‌ను నివారించండి: వెల్డర్ సరిగ్గా గ్రౌండింగ్ చేయబడిందని నిర్ధారించుకోండి. తడి పరిస్థితులలో పనిచేయవద్దు. ప్రతి ఉపయోగం ముందు నష్టం కోసం కేబుల్‌లను తనిఖీ చేయండి.
• అగ్ని నిరోధకం: Remove flammable materials from the welding area. Have a fire extinguisher readily available.
• కంటి మరియు చర్మ రక్షణ: Welding arc rays can cause severe burns to eyes and skin. Never look at the arc without proper eye protection.
• Children and bystanders: వెల్డింగ్ ప్రాంతం నుండి పిల్లలను మరియు అనధికార వ్యక్తులను దూరంగా ఉంచండి.

3. ప్యాకేజీ విషయాలు

Carefully unpack the device and check for completeness. If any parts are missing or damaged, contact your retailer.

• Parkside PIFDS 120 A1 Inverter Welder
• Welding Protective Shield
• 0.45 kg Welding Wire (0.9 mm)
• 1 Burner Nozzle (pre-mounted)
• 4 Welding Nozzles (1 pre-mounted, for Ø 0.6 / 0.8 / 0.9 / 1.0 mm)
• 1 Slag Hammer with Wire Brush
• 1 Carrying Strap
• ఇన్స్ట్రక్షన్ మాన్యువల్

మూర్తి 1: The product packaging for the Parkside PIFDS 120 A1 Inverter Welder, showing the welder and included accessories.

4. సెటప్

Before operating the welder, ensure it is set up correctly.

1. ప్లేస్‌మెంట్: Place the welder on a stable, level surface. Ensure adequate space for ventilation around the unit.
2. Install Welding Wire: Open the wire compartment and carefully install the 0.9 mm welding wire spool. Thread the wire through the feed mechanism and into the welding cable.
3. Attach Ground Cable: Connect the ground cable with its powerful clamp to the workpiece. Ensure a clean, secure connection for optimal electrical contact.
4. Select Welding Nozzle: Choose the appropriate welding nozzle for your wire diameter (0.9 mm is pre-mounted for the included wire).
5. పవర్ కనెక్ట్ చేయండి: Plug the 4-meter power cable into a suitable 230 V~, 50/60 Hz power outlet.
6. Attach Carrying Strap: If mobile use is intended, attach the carrying strap to the designated points on the welder housing.

మూర్తి 2: ఒక వివరణాత్మక view of the welder's front panel, showing the synergistic knob, welding cable connection, and ground cable connection point.

5. ఆపరేటింగ్ సూచనలు

The Parkside PIFDS 120 A1 is designed for gasless flux-cored wire welding.

1. పవర్ ఆన్: Switch on the welder using the main power switch. The indicator light will illuminate.
2. సెట్టింగ్‌లను సర్దుబాటు చేయండి: Use the synergistic rotary knob to select the material thickness (0.8 to 3 mm). The welder will automatically adjust the welding current and wire feed speed for optimal results.
3. పనిముట్టును సిద్ధం చేయండి: Ensure the workpiece is clean and free of rust, paint, or grease.
4. వెల్డింగ్ ప్రారంభించండి: Position the welding torch close to the workpiece. Press the trigger on the torch to initiate the arc. Maintain a consistent travel speed and arc length.
5. Monitor Overload Protection: The thermal controller with an indicator light provides overload protection. If the light illuminates, the welder has overheated. Allow it to cool down before resuming operation.
6. Finish Welding: Release the trigger to stop the arc. Allow the weld to cool before handling.

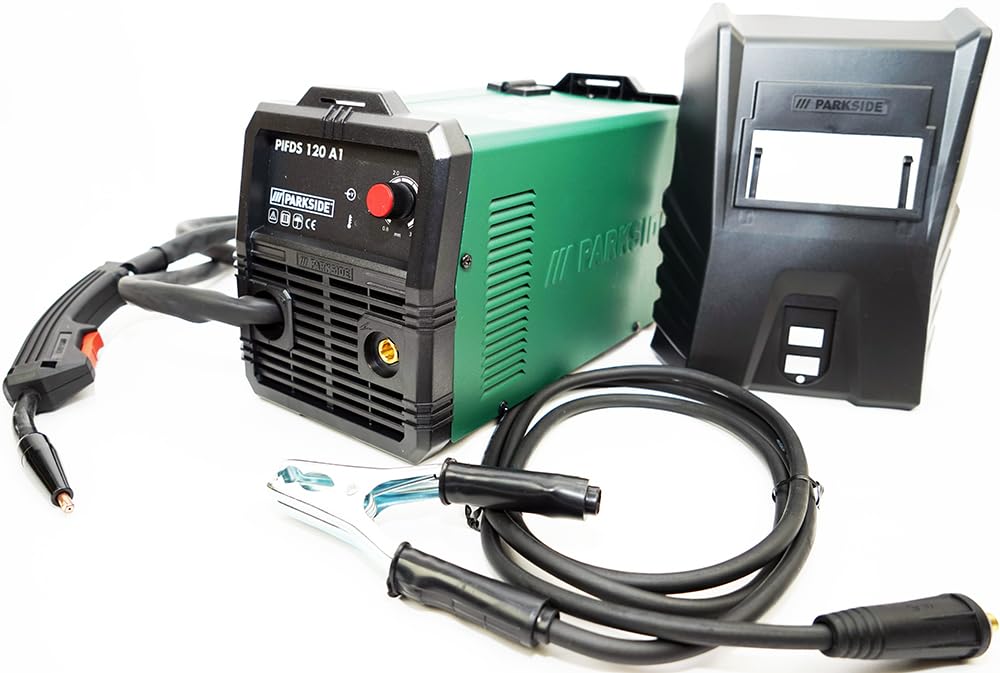

మూర్తి 3: The Parkside PIFDS 120 A1 Inverter Welder shown with its welding torch, ground clamp, and the included protective welding shield.

6. నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ వెల్డర్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• శుభ్రపరచడం: Regularly clean the welder's exterior with a dry cloth. Use compressed air to clear dust from ventilation slots.
• కేబుల్‌లను తనిఖీ చేయండి: Inspect all welding and power cables for cuts, abrasions, or loose connections before each use. Replace damaged cables immediately.
• Nozzle and Contact Tip: Periodically check and clean the welding nozzle and contact tip. Replace them if they are worn or clogged to ensure consistent wire feed and arc stability.
• వైర్ ఫీడ్ మెకానిజం: Keep the wire feed mechanism clean and free of debris. Ensure the wire spool rotates smoothly.
• నిల్వ: Store the welder in a dry, dust-free environment when not in use.

7. ట్రబుల్షూటింగ్

If you encounter issues with your welder, refer to the following common problems and solutions:

ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి కస్టమర్ మద్దతును సంప్రదించండి.

8. స్పెసిఫికేషన్లు

Technical data for the Parkside PIFDS 120 A1 Inverter Welder:

మూర్తి 4: A visual representation of the technical specifications for the welder.

9. వారంటీ మరియు మద్దతు

This Parkside product comes with a 3-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, spare parts, or warranty inquiries, please contact your retailer or the official Parkside customer service in your region. Information regarding spare parts availability may vary by region.
