DOYO 180° PC Racing Wheel (Model R180C-PC) User Manual

1. ముఖ్యమైన భద్రతా సమాచారం

Please read all instructions carefully before using the DOYO 180° PC Racing Wheel. Retain this manual for future reference.

పరికరాన్ని తీవ్రమైన ఉష్ణోగ్రతలు, తేమ లేదా ప్రత్యక్ష సూర్యకాంతికి బహిర్గతం చేయవద్దు.
పరికరాన్ని వదలడం లేదా బలమైన ప్రభావాలకు గురి చేయడం మానుకోండి.
పరికరాన్ని విడదీయడానికి లేదా సవరించడానికి ప్రయత్నించవద్దు. ఇది వారంటీని రద్దు చేస్తుంది.
పరికరాన్ని నీరు మరియు ఇతర ద్రవాలకు దూరంగా ఉంచండి.
అందించిన కేబుల్స్ మరియు ఉపకరణాలను మాత్రమే ఉపయోగించండి.
వేడెక్కడం నివారించడానికి ఉపయోగం సమయంలో సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.

2. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

DOYO 180° PC Racing Wheel Unit
పెడల్ యూనిట్ (యాక్సిలరేటర్ మరియు బ్రేక్)
USB కనెక్షన్ కేబుల్
వినియోగదారు మాన్యువల్

3. ఉత్పత్తి ముగిసిందిview

3.1 భాగాలు

The DOYO 180° PC Racing Wheel system consists of the main steering wheel unit and a separate pedal unit.

DOYO 180 Degree PC Racing Wheel and Pedals

చిత్రం 3.1: పైగాview of the DOYO 180° PC Racing Wheel and Pedal Unit.

3.2 ముఖ్య లక్షణాలు

విస్తృత అనుకూలత: Supports PC, PlayStation 4 (PS4), PlayStation 3 (PS3), and Nintendo Switch.
180° భ్రమణం: The steering wheel offers 180 degrees of rotation for realistic driving simulation.
ద్వంద్వ మోటార్ వైబ్రేషన్: Built-in dual motors provide realistic vibration feedback based on in-game events.
Adjustable Height & Tilt: The steering wheel's height and tilt can be adjusted to suit various user preferences and seating positions.
ప్యాడిల్ షిఫ్టర్లు: Integrated paddle shifters allow for quick and responsive gear changes.
Linear Pedal Design: The pedal unit features a linear design for precise control over acceleration and braking.
Strong Fixation: Equipped with four large suction cups on the base for stable mounting on flat surfaces.
Multi-level Sensitivity Adjustment: Allows users to fine-tune steering sensitivity for different games and driving styles.

Close-up of DOYO Racing Wheel buttons, paddle shifters, suction cups, and dual motor vibration

మూర్తి 3.2: వివరంగా view of the racing wheel's controls and features.

4. సెటప్ సూచనలు

4.1 Connecting the Steering Wheel

The DOYO Racing Wheel is designed for plug-and-play functionality across supported platforms.

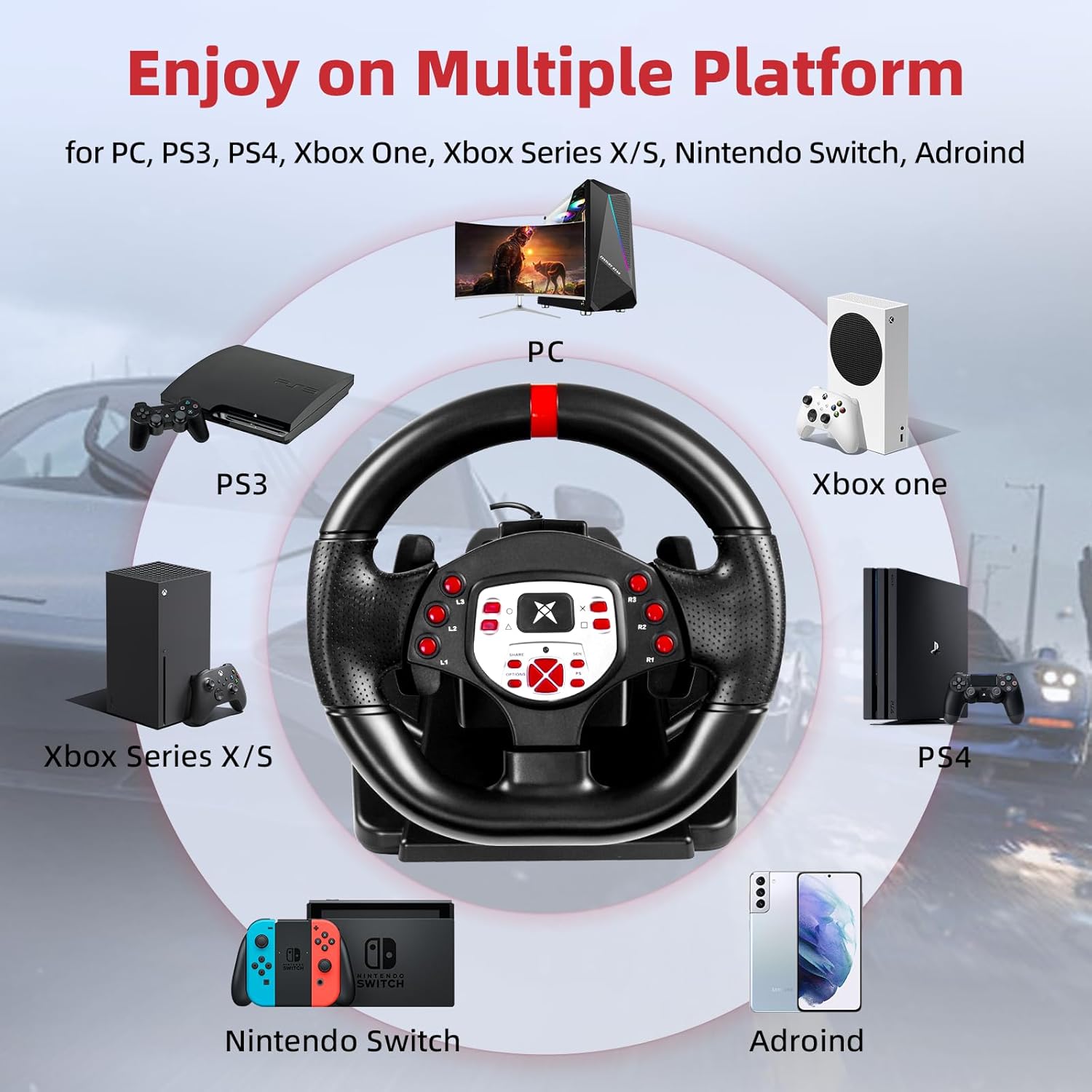

DOYO Racing Wheel compatible with PC, PS3, PS4, Xbox One, Xbox Series X/S, Nintendo Switch, Android

Figure 4.1: Multi-platform compatibility of the racing wheel.

4.1.1 PC కనెక్షన్

Connect the USB cable from the steering wheel unit to an available USB port on your PC.
The system should automatically detect and install the necessary drivers. If not, manual driver installation may be required (refer to DOYO support webసైట్).

4.1.2 PS3/PS4 Connection

Ensure your console is powered off.
Connect the USB cable from the steering wheel unit to an available USB port on your PS3 or PS4 console.
Power on your console. The wheel should be recognized as a controller.

4.1.3 నింటెండో స్విచ్ కనెక్షన్

Go to System Settings > Controllers and Sensors > Pro Controller Wired Communication and set it to 'On'.
Connect the USB cable from the steering wheel unit to the Nintendo Switch dock's USB port.
The wheel should be recognized and ready for use.

4.2 Connecting the Pedal Unit

Connect the cable from the pedal unit to the designated port on the back of the steering wheel unit.

DOYO Racing Wheel foot pedal unit with sensitivity adjustment and suction cups

Figure 4.2: Connection point for the foot pedal unit.

4.3 Mounting the Steering Wheel

The steering wheel base is equipped with four large suction cups for secure mounting.

Place the steering wheel unit on a clean, flat, and smooth surface (e.g., a desk or table).
Press down firmly on the steering wheel base to engage the suction cups.
Ensure the wheel is stable before use.

Video 4.3: Demonstration of the DOYO 180 Degree PC Racing Wheel and its features, including setup and usage.

5. ఆపరేటింగ్ సూచనలు

5.1 Steering Wheel Rotation

The steering wheel provides 180 degrees of rotation, allowing for 90 degrees to the left and 90 degrees to the right from the center position.

DOYO Racing Wheel showing 180 degree rotation capability

Figure 5.1: The steering wheel's 180-degree rotation range.

5.2 Height and Tilt Adjustment

To adjust the steering wheel's position for optimal comfort:

Locate the adjustment knob or lever on the steering wheel base.
Rotate the knob or release the lever to unlock the adjustment mechanism.
Adjust the tilt angle and telescopic length (up to 5cm) to your desired position.
Secure the adjustment by rotating the knob or engaging the lever.

DOYO Racing Wheel with adjustable height and tilt mechanism

Figure 5.2: Steering wheel height and tilt adjustment.

5.3 Paddle Shifters

Use the paddle shifters located behind the steering wheel for manual gear changes in compatible games. The left paddle typically shifts down, and the right paddle shifts up.

DOYO Racing Wheel showing left and right paddle shifters for gear changes

Figure 5.3: Dual paddle shifters for gear control.

5.4 Pedal Unit Operation

The linear pedal unit provides progressive control for acceleration and braking. Press the right pedal for acceleration and the left pedal for braking.

5.5 వైబ్రేషన్ అభిప్రాయం

The dual motor vibration system provides immersive feedback, simulating road conditions, collisions, and other in-game effects.

DOYO Racing Wheel demonstrating double vibration feedback

Figure 5.4: Illustration of dual motor vibration feedback.

5.6 సున్నితత్వం సర్దుబాటు

The steering wheel features a multi-level sensitivity adjustment. Refer to the on-screen display or indicator on the wheel to select your preferred sensitivity level (e.g., Grade 1-7).

DOYO Racing Wheel showing multi-level sensitivity adjustment dial

Figure 5.5: Sensitivity adjustment dial on the steering wheel.

6. నిర్వహణ

To ensure the longevity and optimal performance of your DOYO Racing Wheel:

శుభ్రపరచడం: Use a soft, dry cloth to wipe down the steering wheel and pedal unit. Do not use abrasive cleaners or solvents.
నిల్వ: ఉపయోగంలో లేనప్పుడు ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో పరికరాన్ని నిల్వ చేయండి.
కేబుల్ కేర్: Avoid bending or twisting cables excessively.

7. ట్రబుల్షూటింగ్

If you encounter issues with your DOYO Racing Wheel, please refer to the following common solutions:

సమస్య	సాధ్యమైన పరిష్కారం
కన్సోల్/PC ద్వారా చక్రం గుర్తించబడలేదు.	అన్ని కేబుల్స్ సురక్షితంగా కనెక్ట్ అయ్యాయని నిర్ధారించుకోండి. వేరే USB పోర్ట్‌ని ప్రయత్నించండి. For Nintendo Switch, verify 'Pro Controller Wired Communication' is enabled in system settings. మీ కన్సోల్/PC ని పునఃప్రారంభించండి.
No vibration feedback	Check if the game supports vibration feedback. Ensure vibration settings are enabled in the game or console/PC settings.
పెడల్స్ స్పందించడం లేదు	Ensure the pedal unit cable is firmly connected to the steering wheel unit. Calibrate the pedals if your game or system allows.
Steering sensitivity too high/low	Adjust the sensitivity using the dial on the steering wheel (refer to Section 5.6). Check in-game controller settings for sensitivity options.

If the problem persists, please contact DOYO customer support for further assistance.

8. స్పెసిఫికేషన్లు

మోడల్ సంఖ్య: R180C-PC
ASIN: B0DXBNTWZG
భ్రమణ కోణం: 180 డిగ్రీలు
అనుకూలత: PC, PS4, PS3, నింటెండో స్విచ్
కంపనం: Dual Motor Feedback
స్థిరీకరణ: 4 చూషణ కప్పులు
వస్తువు బరువు: సుమారు 7.24 పౌండ్లు (3.28 కిలోలు)
ప్యాకేజీ కొలతలు: 13 x 11.5 x 10.5 అంగుళాలు (33 x 29.2 x 26.7 సెం.మీ.)
తయారీదారు: DOYO

9. వారంటీ మరియు మద్దతు

DOYO products come with a limited warranty. For detailed warranty information, product support, or to report any issues, please refer to the warranty card included with your product or visit the official DOYO website. Please have your model number (R180C-PC) and purchase information ready when contacting support.
