Frewico Window Cleaning Robot Model 2BGN8-D90 User Manual

1. పరిచయం

The Frewico Window Cleaning Robot Model 2BGN8-D90 is designed to provide an efficient and safe solution for cleaning various glass surfaces, including windows, mirrors, and shower doors. Featuring advanced AI path planning, powerful suction, and a 4-nozzle ultrasonic water spray system, this robot simplifies the task of maintaining clear views.

Image: The Frewico Window Cleaning Robot, shown with its remote control and a smartphone displaying its app interface, demonstrating its control options.

2. ఉత్పత్తి లక్షణాలు

• Ultra-Slim & Compact Design: Cleans narrow frames (<30cm), tilted/frameless glass, and windows with handles (50-80mm clearance). Its thin profile allows access to tight spaces.
• Advanced Ultrasonic Water Spray System: Atomizes water into a fine mist for streak-free cleaning, effectively removing grime, oil, and dust with minimal water usage.
• 9-Stage Safety Protection: Incorporates 6-layer hardware fall prevention, 2-stage AI safeguards, and accidental damage coverage for secure operation on high-rise windows. Features secure suction, drop sensors, and emergency brakes.
• Smart Path Planning (WIN-SLAM 3.0 Tech): Scans window size and frames, creates optimal cleaning routes, and avoids obstacles (4-50mm height). Offers three cleaning modes: Fast Clean, Deep Clean, or Spot Clean.
• Effortless & Cordless Operation: Control via app or WiFi (if applicable). Ideal for high windows, skylights, and glass doors.

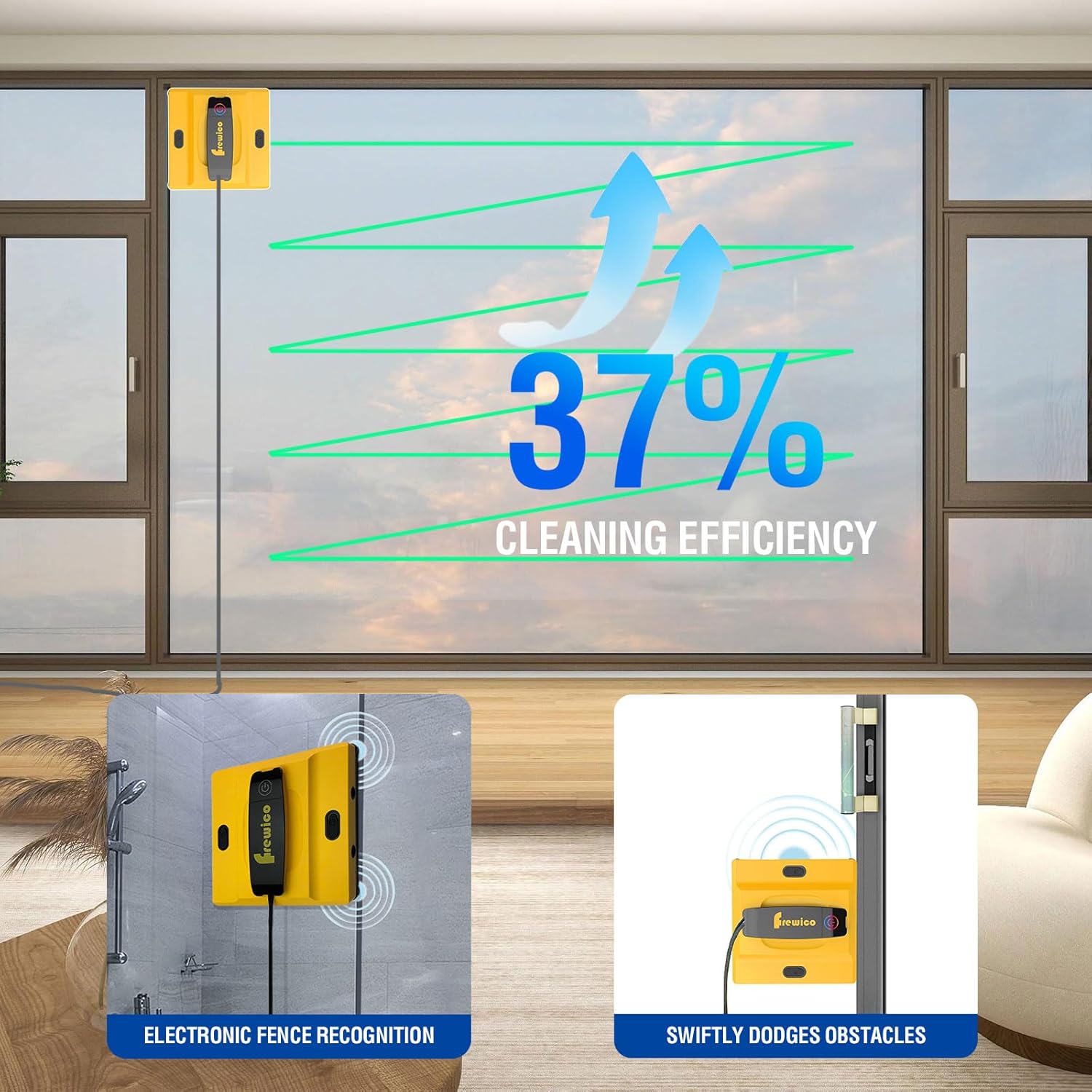

Image: The Frewico Window Cleaning Robot operating on a large window, illustrating its AI path planning and improved cleaning efficiency.

Image: A visual comparison demonstrating the advantages of the square-shaped Frewico robot over round designs, particularly its ability to clean corners effectively.

చిత్రం: వివరణాత్మక view of the robot's advanced 4-nozzle ultrasonic water spray system, designed for efficient and streak-free cleaning.

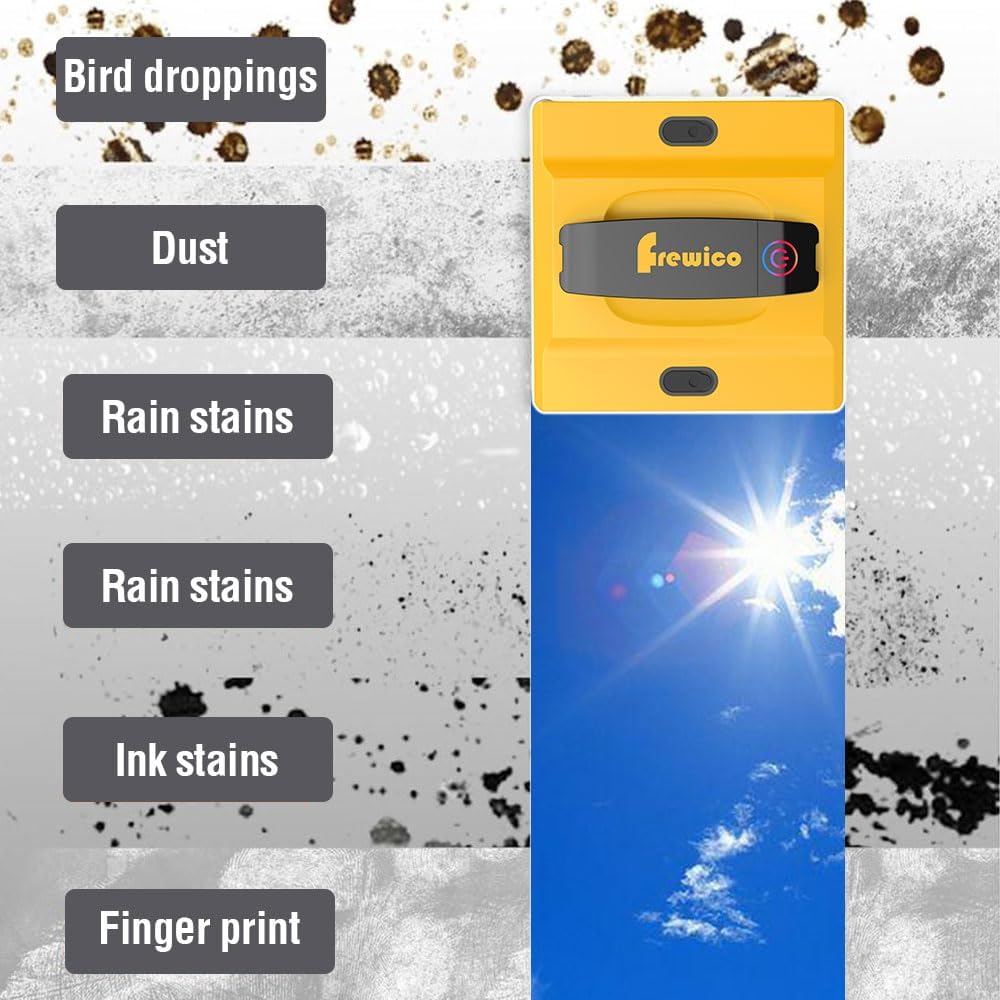

Image: The Frewico Window Cleaning Robot demonstrating its capability to remove various types of dirt and stains, including bird droppings, dust, rain stains, ink, and fingerprints.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని దయచేసి ధృవీకరించండి:

• Frewico Window Cleaning Robot (Main Unit)
• రిమోట్ కంట్రోల్
• పవర్ అడాప్టర్
• పవర్ కేబుల్
• Safety Rope with Carabiner
• Cleaning Pads (multiple pairs)
• Water Filling Bottle
• వినియోగదారు మాన్యువల్

చిత్రం: పూర్తి view of the Frewico Window Cleaning Robot and all its accessories, including the robot, remote control, power supply, safety rope, multiple cleaning pads, and a water bottle.

4. సెటప్

1. Attach Cleaning Pads: Securely attach the washable cleaning pads to the bottom of the robot. Ensure they are clean and slightly damp సరైన పనితీరు కోసం.
2. పవర్ కనెక్ట్ చేయండి: Plug the power adapter into the robot and then into a 100-240V AC power outlet. The robot requires continuous power during operation.
3. భద్రతా తాడును అటాచ్ చేయండి: For safety, especially when cleaning high windows, always attach the safety rope to a secure anchor point indoors.


   Image: A close-up of the safety rope and carabiner, highlighting the importance of securing the robot during operation.

4. వాటర్ ట్యాంక్ నింపండి: Open the water tank cap and fill it with clean water using the provided bottle. The robot features a 4-nozzle spray system for efficient cleaning.

5. ఆపరేషన్

1. పవర్ ఆన్: Press the power button on the robot or remote control to turn it on. The robot will initiate its suction mechanism.
2. Place on Window: Carefully place the robot onto the glass surface. Ensure it has a strong suction grip before releasing అది.
3. శుభ్రపరిచే మోడ్‌ను ఎంచుకోండి: Use the remote control or the smartphone app to select your desired cleaning mode (Fast Clean, Deep Clean, or Spot Clean). The robot's WIN-SLAM 3.0 technology will plan an optimal path.
4. పురోగతిని పర్యవేక్షించండి: The robot will automatically clean the window. It is designed to handle various window types, including narrow and vertical windows.

   Video: The Frewico Window Cleaning Robot efficiently cleaning a ceiling window, demonstrating its ability to adhere and navigate on various glass surfaces.

   Video: The Frewico Window Cleaning Robot cleaning a bathroom shower door, showcasing its versatility on different glass surfaces.

   Video: The Frewico Window Cleaning Robot navigating and cleaning a narrow, vertical window, highlighting its adaptability to challenging window shapes.
5. పూర్తి: Once cleaning is complete, the robot will return to its starting position and emit an alert. Carefully remove it from the window.

Image: The Frewico Window Cleaning Robot meticulously cleaning a large window, illustrating its programmed path for thorough coverage.

Image: The Frewico Window Cleaning Robot demonstrating its electronic fence recognition feature, allowing it to clean effectively around window frames.

6. నిర్వహణ

• Clean Cleaning Pads: After each use, remove and wash the cleaning pads. They are reusable and washable. Ensure they are dry before reattaching.
• ఖాళీ నీటి ట్యాంక్: After use, empty any remaining water from the tank.
• Wipe Down Robot: Gently wipe the robot's exterior with a soft, dry cloth to remove any dust or residue.
• నిల్వ: Store the robot and its accessories in a cool, dry place away from direct sunlight.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Frewico Window Cleaning Robot, please refer to the following common solutions:

• Robot not adhering: Ensure the glass surface is clean and dry. Check that the suction cups are free from debris. Verify the power connection is secure.
• Streaks on window: Replace or clean the microfiber pads. Ensure the water tank is filled with clean water. For heavily soiled windows, a pre-cleaning pass or a second cleaning cycle may be necessary.
• Robot stops unexpectedly: Check the power connection. The robot has a backup battery for emergencies (approx. 30 minutes), but it requires continuous power for normal operation.


  Image: An illustration depicting the robot's internal battery, which provides approximately 30 minutes of backup power in case of a power outage.
• రిమోట్ కంట్రోల్ పనిచేయదు: Check the remote control batteries. Ensure there are no obstructions between the remote and the robot.

8. స్పెసిఫికేషన్లు

బ్రాండ్	ఫ్రీవికో
మోడల్ పేరు	విండో క్లీనింగ్ రోబోట్
మోడల్ సంఖ్య	2BGN8-D90
ప్రత్యేక ఫీచర్	రోబోటిక్
రంగు	పసుపు
ఉత్పత్తి కొలతలు	8.66"L x 8.66"W x 2.76"H (22సెంమీ L x 22సెంమీ W x 7సెంమీ H) Image: A detailed diagram illustrating the physical dimensions of the Frewico Window Cleaning Robot.
చేర్చబడిన భాగాలు	Cable Tie, Charging Adapter
ఫిల్టర్ రకం	ఉతికిన
బ్యాటరీ లైఫ్	0.5 Hours (30 minutes emergency backup)
క్లీనింగ్ పాత్ వెడల్పు	8.66 అంగుళాలు
వాల్యూమ్tage	110 Volts (100-240V compatible)
నీటి సామర్థ్యం	100 మిల్లీలీటర్లు
శక్తి మూలం	Corded Electric (with included 12V battery backup)
నియంత్రణ పద్ధతి	యాప్, రిమోట్
అనుకూల పరికరాలు	స్మార్ట్ఫోన్లు
ఫారమ్ ఫ్యాక్టర్	దీర్ఘచతురస్రాకార
వస్తువు బరువు	2.68 పౌండ్లు
తయారీదారు	విపద
ఉపరితల సిఫార్సు	Glass, Mirror

9. భద్రతా సమాచారం

The Frewico Window Cleaning Robot is equipped with a 9-stage safety protection system to ensure secure operation:

• 6-Layer Hardware Fall Prevention: Multiple physical safeguards to prevent accidental falls.
• 2-Stage AI Safeguards: Intelligent algorithms to detect and prevent hazardous situations.
• Accidental Damage Coverage: Provides an additional layer of protection.
• Secure Suction: Powerful vacuum suction maintains a firm grip on the glass.
• Drop Sensors: Detects edges and potential drops, adjusting its path accordingly.
• Emergency Brakes: Activates immediately if a potential fall is detected.
• భద్రతా తాడు: Always use the provided safety rope, securely fastened to an indoor anchor point, especially for high-rise windows.

Image: A visual comparison highlighting the safety of using the Frewico robot for high-rise window cleaning against the risks associated with manual cleaning using a ladder.

10. వారంటీ మరియు మద్దతు

For warranty information, technical support, or to inquire about protection plans, please refer to the documentation included with your product or visit the official Frewico website. Protection plans are available for purchase separately to extend coverage for your device.

• 2-సంవత్సరాల రక్షణ ప్రణాళిక
• 3-సంవత్సరాల రక్షణ ప్రణాళిక
• Complete Protect: Monthly plan covering eligible purchases
