INFANS 4-in-1 Baby Walker Instruction Manual

1. ముఖ్యమైన భద్రతా సమాచారం

Please read and understand all instructions and warnings before assembling and using the INFANS 4-in-1 Baby Walker. Failure to follow these instructions could result in serious injury or death.

• పిల్లలను ఎప్పుడూ గమనించకుండా వదిలివేయవద్దు. పిల్లలను ఎల్లప్పుడూ లోపల ఉంచండి view వాకర్‌లో ఉండగా.
• మెట్లు, దశలు మరియు అసమాన ఉపరితలాలకు ప్రాప్యతను నిరోధించండి.
• Keep child away from hot liquids, electrical cords, stoves, heaters, and other hazards.
• వాకర్‌ను తిప్పడానికి కారణమయ్యే వస్తువులు లేని ఫ్లాట్, లెవెల్ ఉపరితలాలపై మాత్రమే ఉపయోగించండి.
• Discontinue use if any part of the walker is damaged or broken.
• The activity center requires 2 AA batteries (not included). Ensure batteries are installed correctly and kept out of reach of children.
• Suitable for children aged 6-18 months and weighing up to 26.5 lbs (12 kg).

2. ఉత్పత్తి ముగిసిందిview

The INFANS 4-in-1 Baby Walker is designed to support your child's development through various stages. It converts into four modes: a seated baby walker, a push-behind walker, a push car, and a rolling toy car. It features an adjustable height, a comfortable padded seat, and an interactive activity center.

ముఖ్య లక్షణాలు:

• 4-in-1 Convertible Design: Seated Walker, Push-Behind Walker, Push Car, Rolling Toy Car.
• 3-Position Height Adjustment for growing children.
• Interactive Activity Center with simulated steering wheel, shifter, rearview mirror, light buttons, and music.
• Stable base with 6 anti-slip pads for enhanced safety.
• Removable and washable padded seat for comfort and hygiene.
• సులభంగా నిల్వ చేయడానికి మరియు రవాణా చేయడానికి మడతపెట్టగల డిజైన్.
• Detachable toy tray that can be used for food or other toys.
• 360° swivel wheels for smooth movement.

Figure 1: The INFANS 4-in-1 Baby Walker demonstrating its four convertible modes.

3. అసెంబ్లీ సూచనలు

Follow these steps to assemble your INFANS 4-in-1 Baby Walker. Refer to the assembly video for visual guidance.

1. Step 1: Attach Small Wheels and Anti-Slip Pads.

   With the walker folded and upside down, attach the small red wheels and white wheels to the designated slots on the base. Ensure they click securely into place.



   Figure 2: Attaching the small wheels to the walker base.

   Next, attach the six white anti-slip pads to the underside of the base, ensuring they are firmly seated in their respective positions.

2. Step 2: Install Large Racing Car Wheels.

   Insert the large racing car wheels onto the axles on the main red body of the walker. Secure them with the grey caps by pushing them firmly until they lock.



   Figure 3: Installing the large racing car wheels.
3. Step 3: Attach Rearview Mirrors and Push Handle.

   Attach the two rearview mirrors to the sides of the red car body. Then, insert the push handle into the designated slots at the rear of the car body, ensuring it clicks into place.

4. Step 4: Install the Padded Seat.

   Carefully place the checkered padded seat into the seat opening. Secure the seat fabric by threading the loops through the slots and attaching the clips or fasteners provided around the seat frame. Ensure the seat is taut and securely fastened on all sides.



   Figure 4: Securing the padded seat.
5. Step 5: Attach the Activity Center.

   Place the activity center onto the front of the walker. Secure it by screwing it into place from underneath the walker using the provided screws and a screwdriver. Ensure it is firmly attached.



   Figure 5: The detachable activity center/toy tray.

4. ఆపరేటింగ్ సూచనలు

The INFANS 4-in-1 Baby Walker offers versatile functionality. Learn how to use its different modes and adjust its settings.

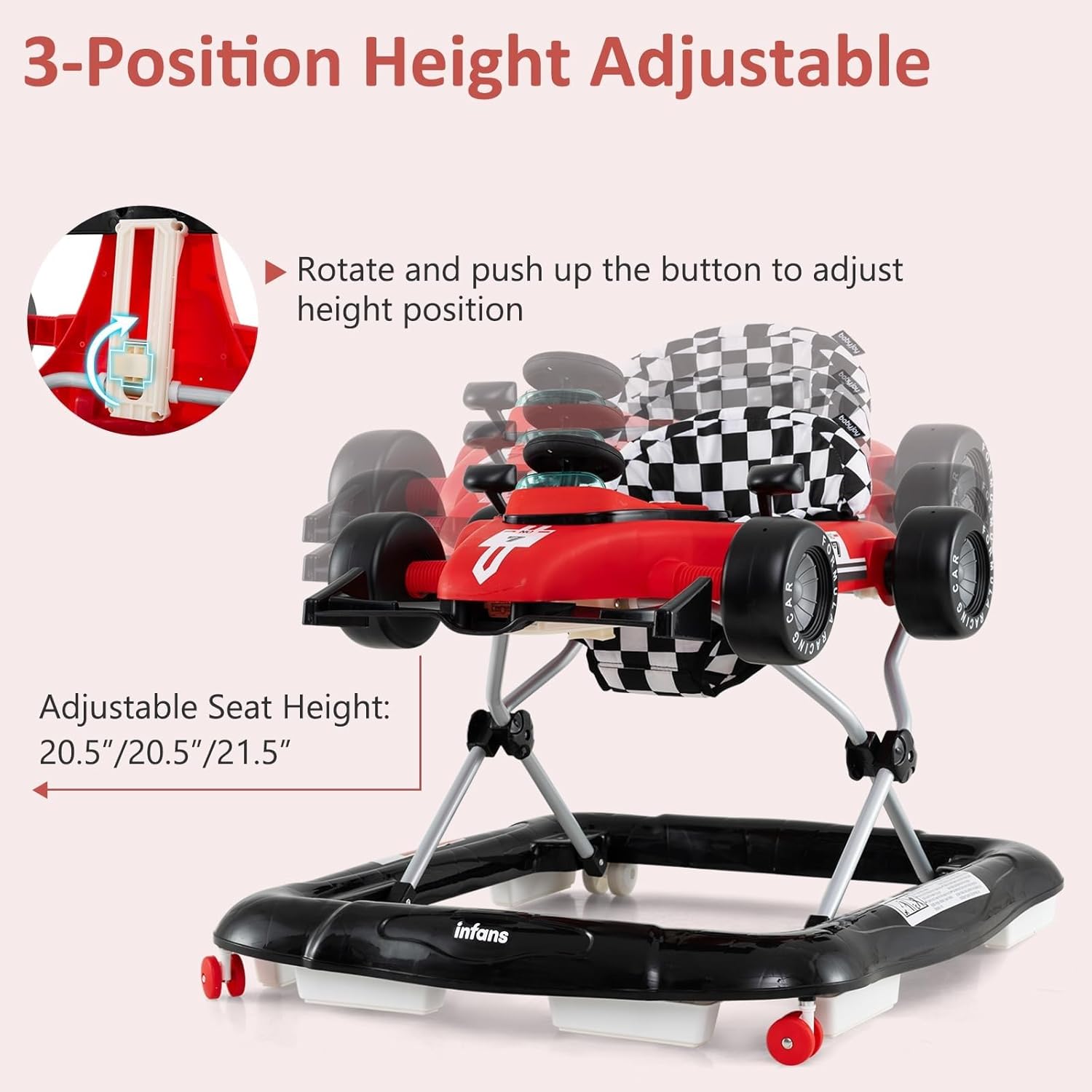

4.1 ఎత్తు సర్దుబాటు

The walker features 3 adjustable height positions to accommodate your child's growth. To adjust the height:

1. Locate the height adjustment mechanism, usually a button or lever, beneath the main car body.
2. Rotate and push up the button to release the locking mechanism.
3. Raise or lower the walker to the desired height (20", 20.5", or 21.5" from the ground).
4. Ensure the mechanism locks securely into place at the chosen height before placing your child in the walker.

చిత్రం 6: ఎత్తు సర్దుబాటు విధానం.

4.2 Converting Modes

The walker can be converted between its four modes:

• Seated Baby Walker: This is the primary mode for children learning to take their first steps. Ensure the seat is securely installed and the height is appropriate for your child, allowing their feet to touch the floor.
• Push-Behind Walker: For children who are more confident in standing and walking, the push handle can be used to guide them. The main car body can be lifted and secured to allow for push-behind use.
• Push Car: The walker can be transformed into a push car by adjusting the frame and securing the seat in an upright position, allowing a child to sit and be pushed.
• Rolling Toy Car: The walker can be fully lowered to become a floor-level toy car for imaginative play.

Refer to the assembly video (Video 1) and product overview video (Video 2) for visual demonstrations of mode conversions.

4.3 Using the Activity Center

The interactive activity center provides entertainment and stimulates cognitive development. It includes a simulated steering wheel, shifter, rearview mirror, light buttons, and music.

• The activity center requires 2 AA batteries (not included). Install them in the battery compartment, usually located on the underside of the tray.
• Press the light buttons to activate lights and music.
• The toy tray is detachable and can be removed to create space for food or other toys.

5. నిర్వహణ మరియు సంరక్షణ

5.1 శుభ్రపరచడం

• మెత్తని సీటు: The padded seat is removable and washable. Detach it from the walker frame and follow the care instructions on the label, typically machine wash cold on a gentle cycle and air dry.
• ప్లాస్టిక్ భాగాలు: Wipe down plastic surfaces with a damp cloth and mild soap. Rinse thoroughly and dry completely before use. Avoid abrasive cleaners.
• చక్రాలు: Periodically check wheels for debris and clean as needed to ensure smooth operation.

Figure 7: Removable and washable seat cushion.

5.2 నిల్వ

The INFANS Baby Walker features a compact folding design for easy storage.

• To fold, locate the folding mechanisms (usually buttons or levers) on the frame.
• Follow the instructions to collapse the walker into a compact form.
• Store in a dry, safe place away from direct sunlight and extreme temperatures.

Figure 8: Compact folding design for storage.

6. ట్రబుల్షూటింగ్

If you encounter any issues with your INFANS 4-in-1 Baby Walker, refer to the following common solutions:

• Walker not moving smoothly: Check wheels for debris or hair. Ensure all wheels are properly installed and rotate freely.
• Activity center not working: Verify that 2 AA batteries are correctly installed and are not depleted. Replace batteries if necessary. Check for any loose connections.
• Height adjustment not locking: Ensure the adjustment mechanism is fully engaged at the desired height. Wiggle the walker gently to confirm it is locked.
• Seat feels loose: Re-check all seat fasteners and clips to ensure they are securely attached to the frame.

If problems persist, please contact INFANS customer support.

7. స్పెసిఫికేషన్లు

చిత్రం 9: ఉత్పత్తి కొలతలు మరియు లక్షణాలు.

8. వారంటీ మరియు మద్దతు

INFANS products are manufactured with quality and safety in mind. For specific warranty information, please refer to the documentation included with your purchase or visit the official INFANS webసైట్.

For customer support, technical assistance, or to inquire about replacement parts, please contact INFANS directly through their official channels. Have your product model number (B0DXZW435Z) and purchase date ready for faster service.
