టీమ్ అసోసియేటెడ్ RC10GT క్లాసిక్ కిట్ (ASC7066) ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides essential instructions for the assembly, operation, and maintenance of your Team Associated RC10GT Classic Kit. The RC10GT is a high-performance, nitro-powered remote control truck designed for racing and enthusiast use. Please read this manual thoroughly before beginning assembly or operation to ensure proper function and safety.

The RC10GT Classic Kit is an authentic replica of the original RC10GT Gas Truck Kit, first released in 1993. It features a gold aircraft aluminum tub chassis and a Stealth ATC Transmission optimized for gas truck racing.

కీ ఫీచర్లు

• Authentic replica of the 1993 RC10GT Gas Truck Kit
• ప్రత్యేకమైన గోల్డ్ ఎయిర్‌క్రాఫ్ట్ అల్యూమినియం టబ్ ఛాసిస్
• Stealth ATC Transmission, optimized for gas truck racing, with 2.6:1 reduction
• Powerful rear disc brakes
• సర్దుబాటు చేయగల స్లిప్పర్ క్లచ్

Required to Complete (Not Included)

The RC10GT Classic Kit requires several components for completion and operation. Please ensure you have the following items:

• .12 or .15 non-pull start engine (O.S. type crank recommended)
• రేడియో కంట్రోల్ బ్యాటరీ ఛార్జర్
• స్టార్టర్ బాక్స్
• నైట్రో ఇంధనం
• 2-ఛానల్ RC సర్ఫేస్ ట్రాన్స్మిటర్ మరియు దాని బ్యాటరీలు
• 2-ఛానల్ రిసీవర్
• రిసీవర్ బ్యాటరీ ప్యాక్

సెటప్ మరియు అసెంబ్లీ

The RC10GT is a kit that requires assembly. Follow the detailed instructions provided in the separate assembly guide for step-by-step construction. This section outlines key setup considerations.

1. Chassis and Suspension Assembly

Assemble the gold aircraft aluminum tub chassis according to the assembly guide. Pay close attention to the installation of the four-wheel suspension components and the gold anodized coil-over shock dampening system. Ensure all screws are tightened to the specified torque values.

Image: The RC10GT chassis without the body, displaying the engine, fuel tank, exhaust, and suspension system. The gold aluminum tub chassis is visible.

2. Engine and Exhaust Installation

Install your chosen .12 or .15 non-pull start nitro engine into the chassis. Connect the exhaust system securely. Ensure all fuel lines are properly routed and secured to prevent leaks. Refer to your engine's specific manual for break-in procedures.

చిత్రం: ఎ view of the RC10GT chassis from the rear-left, showing the engine, exhaust pipe, fuel lines, and the detailed rear suspension with gold shocks.

3. Radio System Installation

Mount the 2-channel receiver and receiver battery pack securely within the chassis. Connect the steering servo and throttle/brake servo to the receiver. Ensure the antenna is routed correctly and not obstructed. Calibrate your transmitter and receiver according to their respective manuals.

చిత్రం: ఒక ఓవర్ హెడ్ view of the RC10GT chassis, illustrating the placement of the engine, fuel tank, exhaust, servos, and receiver on the gold tub chassis.

4. Transmission and Brakes

Assemble the Stealth ATC Transmission and ensure the adjustable slipper clutch is set correctly. Install the powerful rear disc brakes. Proper adjustment of the slipper clutch and brakes is crucial for optimal performance and control.

Image: A detailed close-up of the front suspension arm, steering linkage, and wheel hub assembly of the RC10GT, showing the robust construction.

ఆపరేటింగ్ సూచనలు

1. Engine Break-in

Before operating the vehicle at full performance, it is critical to properly break in the nitro engine. Follow the engine manufacturer's specific break-in procedure. This typically involves running the engine at rich fuel settings for several tanks to allow internal components to seat correctly. Failure to properly break in the engine can lead to premature wear and poor performance.

2. Fueling and Starting

Fill the fuel tank with appropriate nitro fuel (typically 20-30% nitro content). Use a starter box to crank the engine. Ensure the glow plug is properly heated. Once the engine starts, allow it to warm up before driving. Adjust the carburetor for optimal idle and performance.

3. Driving the RC10GT

Operate the vehicle in a safe, open area, away from people and obstacles. Use smooth throttle and steering inputs. The RC10GT is a powerful vehicle; practice gentle acceleration and braking to maintain control. Familiarize yourself with the vehicle's handling characteristics.

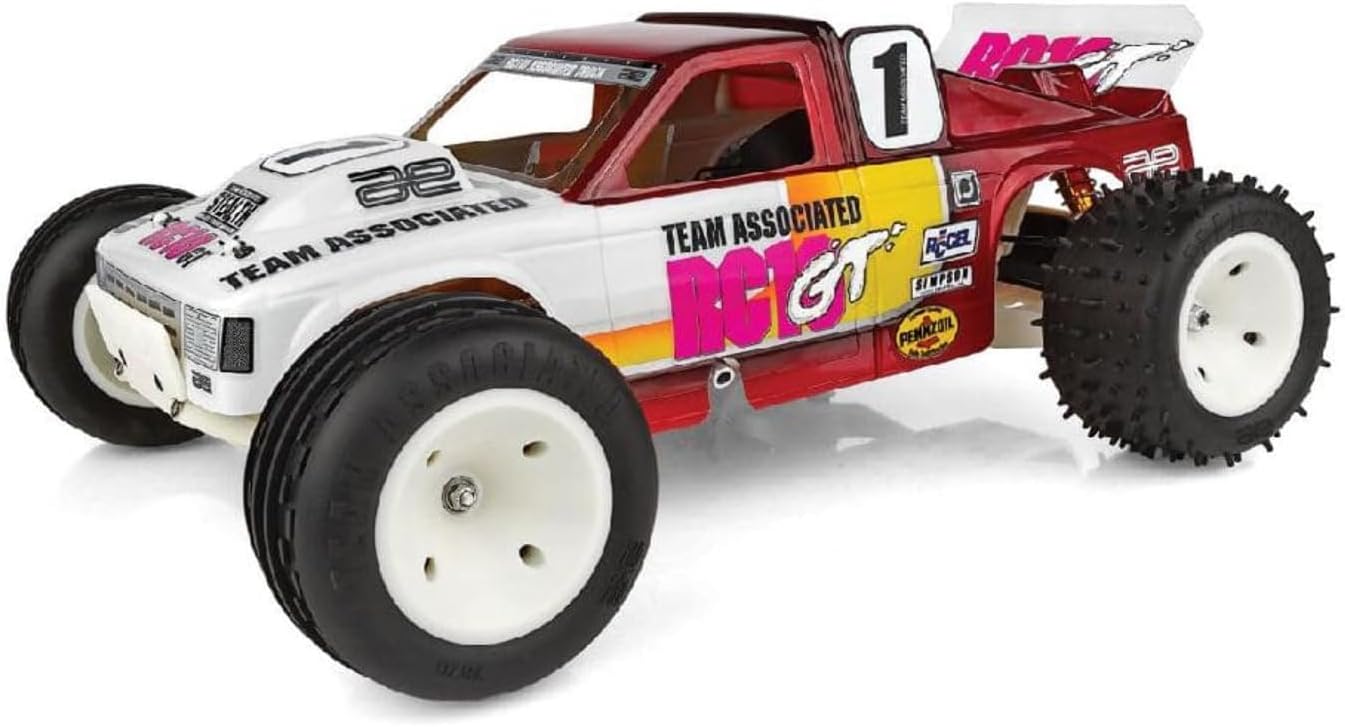

Image: The fully assembled Team Associated RC10GT Classic Kit, featuring its distinctive red, white, and yellow truck body with racing decals.

4. బ్రేకింగ్

The RC10GT features powerful rear disc brakes. Apply brakes smoothly to avoid locking up the wheels, which can lead to loss of control. Adjust brake bias and strength via your transmitter if supported.

Image: A rear-quarter view of the RC10GT with its body, highlighting the rear tires, truck bed, and part of the rear suspension.

నిర్వహణ

Regular maintenance is crucial for the longevity and performance of your RC10GT.

1. After Each Run

• Clean the vehicle: Remove dirt, dust, and debris from the chassis, suspension, and engine.
• Inspect for damage: Check for loose screws, bent parts, or worn tires.
• Empty fuel tank: Do not store the vehicle with fuel in the tank.
• Disconnect receiver battery: Prevent discharge.

2. ఇంజిన్ నిర్వహణ

Regularly clean the air filter. Check glow plug condition and replace as needed. After several hours of operation, consider disassembling and cleaning the engine, inspecting bearings and piston/sleeve for wear. Apply after-run oil to prevent corrosion during storage.

3. Chassis and Suspension

Lubricate moving parts of the suspension. Check shock oil levels and replace if necessary. Inspect drive shafts, universals, and wheel bearings for wear. Ensure all suspension links and pivot points move freely.

4. Transmission and Drivetrain

Periodically inspect the Stealth ATC Transmission gears for wear. Check the slipper clutch adjustment and condition. Ensure the disc brake pads are not excessively worn and the mechanism operates smoothly.

ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your RC10GT.

Engine Related Issues

• ఇంజిన్ స్టార్ట్ అవ్వదు: Check glow plug (replace if faulty), ensure fuel is reaching the engine, check fuel lines for kinks or leaks, verify starter box battery charge.
• Engine runs poorly/stalls: Adjust carburetor (lean/rich mixture), check for air leaks, ensure proper engine temperature, inspect air filter for clogs.
• వేడెక్కడం: Engine running too lean, insufficient cooling, excessive load. Adjust fuel mixture, check cooling head fins for obstructions.

Vehicle Control Issues

• Loss of control/erratic steering: Check radio system batteries, ensure receiver and transmitter are bound, inspect steering servo and linkages for damage or looseness.
• Poor braking: Adjust brake linkage, inspect disc brake pads for wear, ensure brake servo is functioning correctly.

స్పెసిఫికేషన్లు

మద్దతు మరియు వారంటీ

For technical assistance, replacement parts, or warranty information, please contact Team Associated directly through their official webసైట్ లేదా కస్టమర్ సర్వీస్ ఛానెల్‌లు. ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచుకోండి.
