1. ఉత్పత్తి ముగిసిందిview
The DESLOC C100 is a keyless entry smart deadbolt lock designed for enhanced home security and convenience. It features a keypad for PIN entry, a LockVue display for visual operation, and mechanical key access. The lock is built with durable materials and includes various security and convenience features.

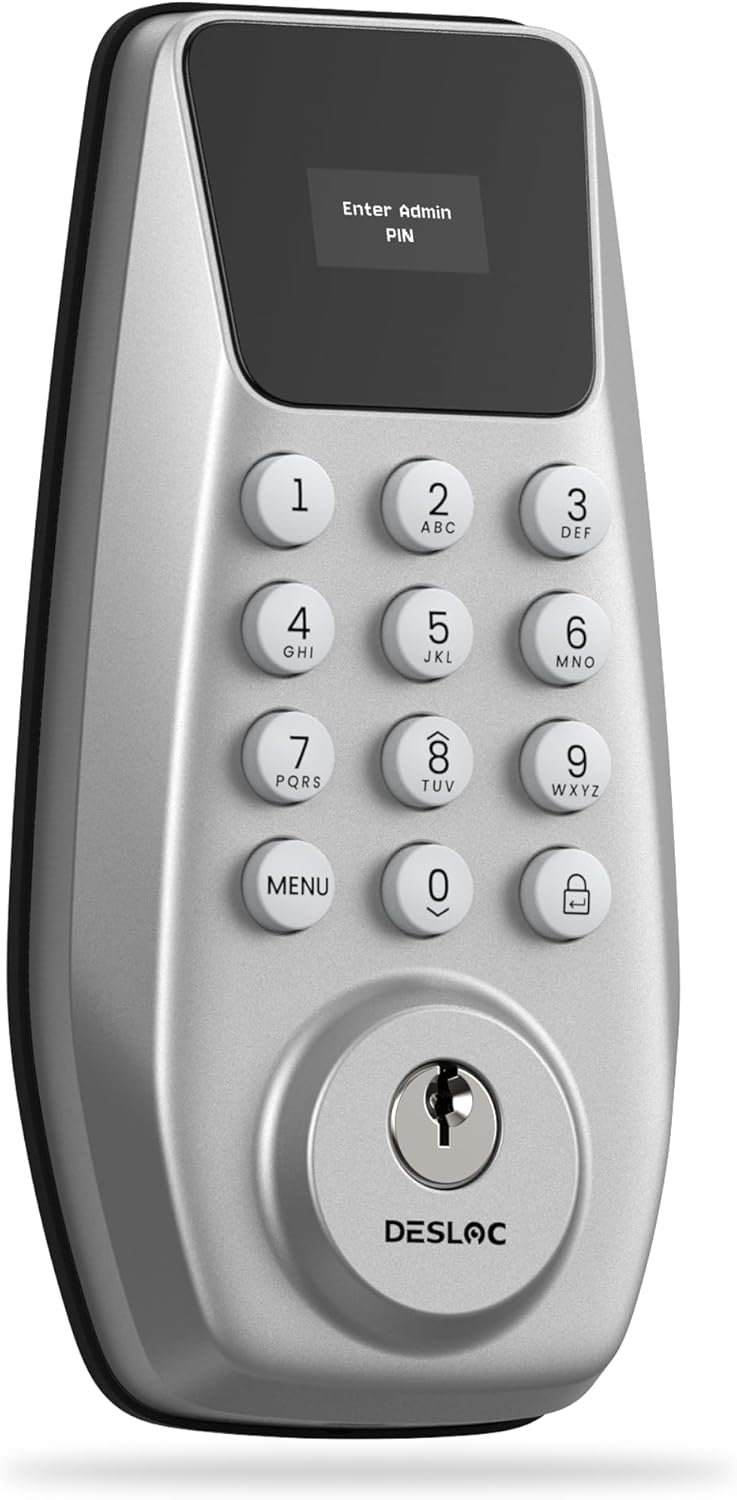

Figure 1: DESLOC C100 Keyless Entry Smart Deadbolt Lock (Silver)
2. సెటప్ మరియు ఇన్స్టాలేషన్
Installing the DESLOC C100 deadbolt lock is designed to be a straightforward process, typically requiring only a screwdriver. The lock features automatic door swing detection to simplify setup.
2.1 సాధనాలు అవసరం
- ఫిలిప్స్ హెడ్ స్క్రూడ్రైవర్
2.2 సంస్థాపనా దశలు
- Remove your existing deadbolt lock from the door.
- Insert the new deadbolt latch into the door edge and secure it with screws. Ensure the correct orientation as indicated in the instructions.
- Connect the cable from the exterior keypad unit to the interior unit.
- Align and attach the exterior keypad unit and the interior unit to the door, ensuring the spindle passes through the deadbolt mechanism.
- Secure the units with the provided mounting screws.
- Install 4 AA batteries into the interior unit.
Figure 2: Quick DIY Installation steps including auto-sensing detection, adhesive installation, accessory labeling, and extended cable connection.
ఇన్స్టాలేషన్ ప్రక్రియపై దృశ్య మార్గదర్శిని కోసం, దయచేసి అధికారిక వీడియోను చూడండి:
Video 1: How to Install DESLOC C100. This video demonstrates the step-by-step installation of the DESLOC C100 lock.
2.3 Door Compatibility
The DESLOC C100 is designed to fit a variety of door configurations. Please check the following dimensions for compatibility:
- Door Thickness: 1-3/8" to 2" (35 to 50mm)
- Hole Diameter: 2-1/8" (54mm)
- Backset: 2-3/8" or 2-3/4" (60 or 70mm)
Figure 3: Door compatibility diagram showing various measurements and compatible door types (both right and left doors).
3. ఆపరేటింగ్ సూచనలు
The DESLOC C100 offers multiple ways to operate, including PIN codes, mechanical keys, and smart app control.
3.1 Visualized Operation
The LockVue Display provides an intuitive on-device interface for managing users and configuring settings.
Figure 4: LockVue Display showing menu options for Add Admin, Add User, Del User, and Lock Settings.
3.2 PIN Code Management
The lock supports up to 100 permanent PIN codes and temporary one-time PINs for guests.
Figure 5: Flexible Passcode Access, illustrating the ability to add up to 100 codes for various users like family, renters, or guests.
3.2.1 Changing Initial PIN
It is recommended to change the initial administrator PIN (default is 123456) immediately after installation for security. The new PIN should be 6-8 digits.
Video 2: Change Initial PIN DESLOC C100. This video guides you through changing the default PIN.
3.2.2 Adding Admin and User PINs
You can add new administrator and regular user PINs through the lock's menu.
Video 3: Add Admin and User PIN DESLOC C100. This video demonstrates how to add new admin and user PINs.
3.2.3 Adding and Deleting Temporary PINs
Generate temporary PINs for visitors that expire after first use. You can also delete these temporary PINs.
Video 4: Add and Delete Temp PIN DESLOC C100. This video shows how to create and remove temporary access codes.
3.2.4 User Information and Deletion
Manage user information and delete existing users as needed.
Video 5: User Information and Delete User DESLOC C100. This video explains how to view and delete user data.
3.3 Auto-Lock and Passage Mode
Configure the lock to automatically secure itself after a set time (5-120 seconds) or enable Passage Mode to keep the door unlocked for easy access.
Figure 6: Auto-Lock feature ensures the door locks automatically after a set period (5-120 seconds).
Video 6: Open Direction, Passage Mode and Auto Lock. This video demonstrates how to set door opening direction, enable Passage Mode, and configure Auto Lock.
3.4 Anti-Peeping PIN Protection
Enhance security by entering random digits before or after your correct PIN. The total length of the entered digits must not exceed 16.
Figure 7: Anti-Peeping feature allows adding random digits before or after your correct password to prevent others from guessing your code.
3.5 Sound Setup
Adjust the sound settings of your lock, including turning sounds on or off.
Video 7: Sound Setup DESLOC C100. This video demonstrates how to configure the sound settings of the lock.
4. నిర్వహణ
4.1 బ్యాటరీ జీవితకాలం మరియు భర్తీ
The DESLOC C100 is powered by 4 AA batteries, offering up to 12 months of battery life. The lock provides proactive low-battery warnings. When replacing batteries, ensure correct polarity.
Figure 8: The lock offers up to 12 months of battery life with 4 AA batteries (not included).
4.2 అత్యవసర విద్యుత్
In case the batteries run out, an emergency Type-C port allows you to use a power bank to temporarily restore power and unlock the door.
Figure 9: Emergency Type-C port for temporary power when batteries are depleted.
5. ట్రబుల్షూటింగ్
5.1 ఫ్యాక్టరీ రీసెట్
If you encounter persistent issues or need to clear all user data, you can perform a factory reset. This will restore the lock to its default settings.
Video 8: Factory Reset DESLOC C100. This video demonstrates the steps to perform a factory reset on your lock.
6. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | DESLOC |
| మోడల్ పేరు | C100 Smart Lock with LockVue |
| లాక్ రకం | కీప్యాడ్ డెడ్బోల్ట్ డోర్ లాక్ |
| మెటీరియల్ | అల్యూమినియం |
| ప్రత్యేక ఫీచర్ | 0.96” LockVue Display, 12-Month Battery Life, Automatic Detection, BHMA Grade 3 Certified, IP54 Waterproof |
| అంశం కొలతలు L x W x H | 8.11 x 5.91 x 3.98 అంగుళాలు |
| వస్తువు బరువు | 2.11 పౌండ్లు |
| బ్యాటరీలు అవసరం | Yes (4 AA batteries) |
| నియంత్రణ పద్ధతి | టచ్ |
| చేర్చబడిన భాగాలు | Exterior Lock, Interior lock, Mounting Plate, Strike Plate, Deadbolt, Mechanical Key, Screws |
6.1 Durability and Security
Figure 10: BHMA Grade 3 certification ensures professional-level security, including 240h Salt Spray Test, 100,000 Cycle Tests, and 3000N Impact Test.
Figure 11: IP54 weather resistance ensures reliable performance in extreme conditions, with tests for waterproof, dustproof, high heat, low temperature, and salt spray.
7. వారంటీ మరియు మద్దతు
7.1 ఉత్పత్తి వారంటీ
DESLOC backs your purchase with a 1-year warranty from the date of purchase.
7.2 కస్టమర్ మద్దతు
For any assistance, please reach out to DESLOC customer support:
- కస్టమర్ హాట్లైన్: Available Monday-Friday, 9am-5pm EST
- ఇమెయిల్ మద్దతు: 24/7 అందుబాటులో ఉంటుంది
Figure 12: Dedicated customer service team available for 24/7 assistance.
