1. పరిచయం
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your MININGEEK S400 Pro 10.8L Portable Mini-ITX Computer Case. Please read this guide thoroughly before beginning installation to ensure proper setup and optimal performance.

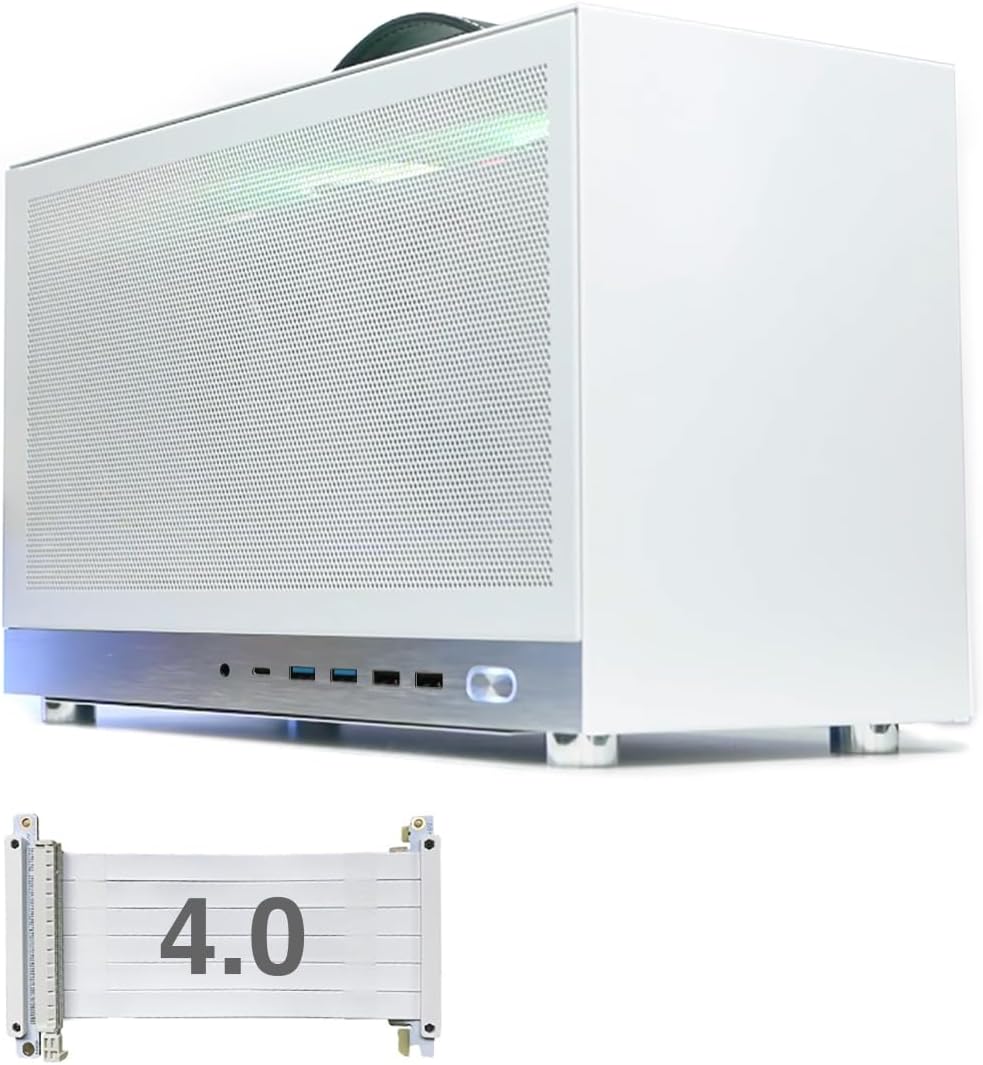

Figure 1: MININGEEK S400 Pro Mini-ITX Computer Case with included PCIe 4.0 riser cable.
2. భద్రతా సమాచారం
Always disconnect power before performing any installation or maintenance. Handle components with care to prevent electrostatic discharge. Wear anti-static gloves if available. Refer to individual component manuals for specific safety guidelines.
3. ప్యాకేజీ విషయాలు
- MININGEEK S400 Pro Mini-ITX Computer Case
- PCIe 4.0 Riser Cable
- Detachable Carrying Handle
- Accessory Kit (screws, zip ties, etc.)
4. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| మోడల్ పేరు | S400 ప్రో |
| కొలతలు (LxWxH) | 340 x 155 x 205 మిమీ (13.39 x 6.07 x 8.1 అంగుళాలు) |
| వాల్యూమ్ | 10.8L |
| మదర్బోర్డు అనుకూలత | మినీ-ITX |
| GPU మద్దతు | Triple slot graphics cards up to 337mm long |
| PCIe Riser Cable | PCIe 4.0 included |
| CPU కూలర్ ఎత్తు పరిమితి | 65మి.మీ |
| పిఎస్యు రకం | SFX/SFX-L (recommended) |
| అభిమానుల మద్దతు | Bottom: 1x 120x25mm or 3.5" HDD; Top: 2x 120x15mm |
| ఫ్రంట్ I / O పోర్ట్స్ | 2x USB 3.0, 2x USB 2.0, 1x Type-C, 1x Audio Jack |
| మెటీరియల్ | ఉక్కు మరియు అల్యూమినియం |
| వస్తువు బరువు | 5.18 పౌండ్లు |

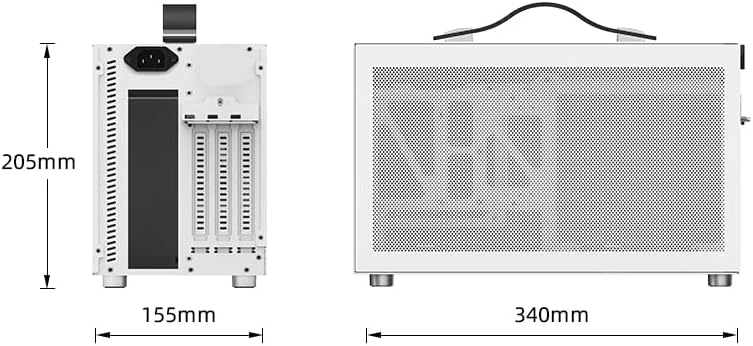

Figure 2: Case dimensions (Length: 340mm, Width: 155mm, Height: 205mm).
Figure 3: Internal layout showing component compatibility for SFX/SFX-L PSU, 2.5" SSD, ITX Board, CPU Cooler (max 65mm), and fan positions.
5. సెటప్ మరియు ఇన్స్టాలేషన్
Follow these steps for proper assembly of your computer components within the S400 Pro case.
5.1. Case Disassembly
- Remove the side panels by unscrewing the retaining screws.
- Carefully detach the side panels.

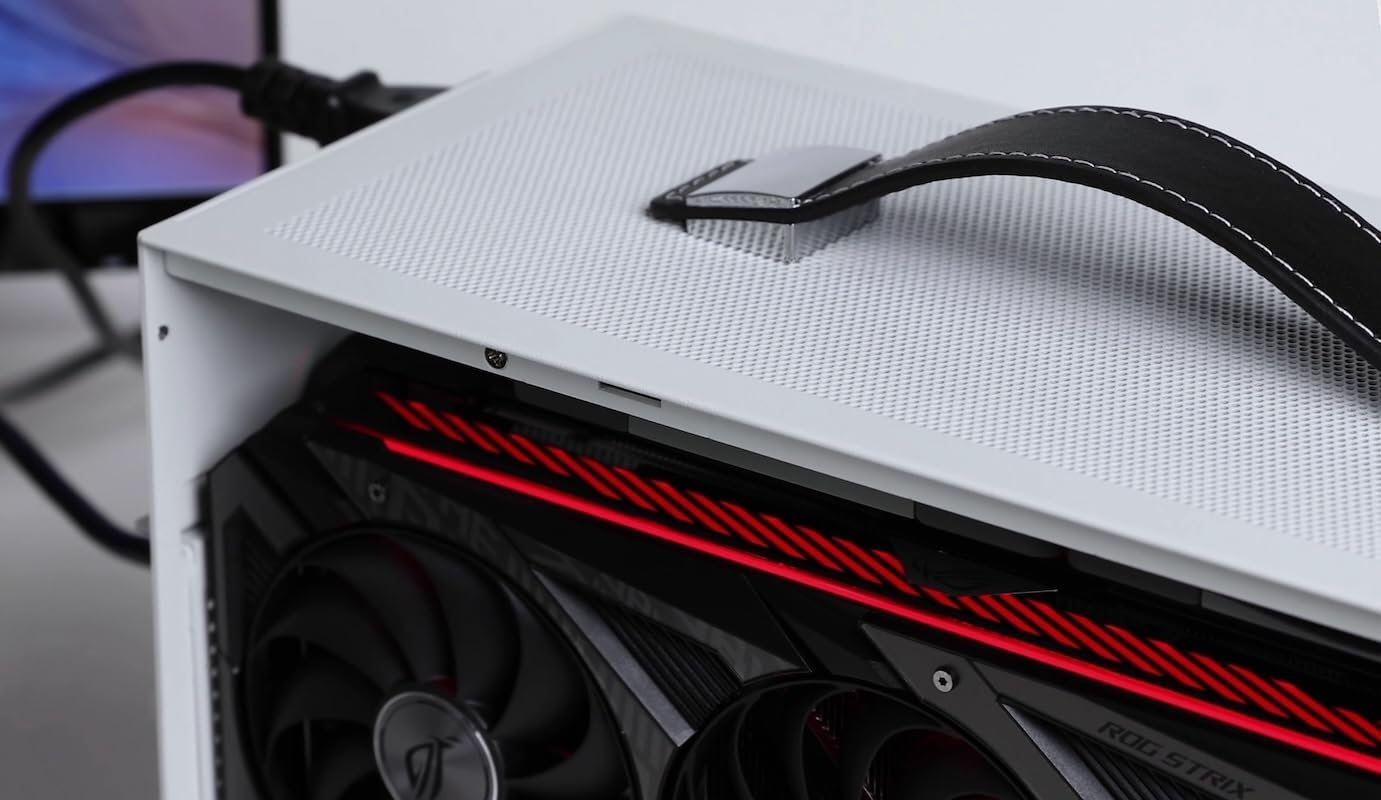

Figure 4: Removing the side panel to access the interior.
5.2. Motherboard, CPU, RAM, and SSD Installation
Install your CPU, RAM, and M.2 SSD onto the Mini-ITX motherboard before placing it into the case. Refer to your motherboard's manual for specific instructions.
Video 1: S300 - Mini-ITX Case Assembly Tutorial. This video demonstrates the assembly process for a similar Mini-ITX case, including CPU, RAM, and SSD installation on the motherboard.
5.3. PSU ఇన్స్టాలేషన్
Install the SFX/SFX-L power supply into its designated bracket. Ensure the PSU fan is oriented correctly (typically facing outwards or towards an intake area) to avoid thermal issues. Connect the necessary modular cables to the PSU before securing it in the case.
5.4. GPU ఇన్స్టాలేషన్
The S400 Pro supports triple-slot GPUs up to 337mm in length. Use the included PCIe 4.0 riser cable to connect your graphics card to the motherboard.
- Connect the PCIe riser cable to the motherboard's PCIe slot.
- Secure the GPU to the case's GPU bracket.
- Connect the other end of the PCIe riser cable to the GPU.
- Connect the GPU power cables from the PSU.
చిత్రం 5: అంతర్గత view showing a triple-slot GPU installed.
మూర్తి 6: వివరంగా view of GPU installation within the case.
5.5. ఫ్యాన్ ఇన్స్టాలేషన్
Install fans as per the specifications for optimal airflow. The case supports one 120x25mm fan or a 3.5" HDD at the bottom, and two 120x15mm fans at the top.
Figure 7: Installation of a 120mm fan at the bottom of the case.
5.6. కేబుల్ నిర్వహణ
Utilize zip ties and the case's internal routing options to manage cables effectively. Proper cable management improves airflow and aesthetics.
Video 2: KXRORS - Mini-ITX PC Gaming Case Assembly. This video provides a visual guide for assembling components and managing cables in a similar Mini-ITX case.
5.7. తిరిగి కలపడం
Once all components are installed and cables are managed, reattach the side panels and secure them with the screws.
మూర్తి 8: వైపు view of the assembled MININGEEK S400 Pro case with the detachable carrying handle.
మూర్తి 9: వెనుకకు view of the assembled MININGEEK S400 Pro case.
Figure 10: Close-up of the front I/O ports, including USB 3.0, USB 2.0, Type-C, and audio jack.
6. ఆపరేటింగ్ సూచనలు
Connect your monitor, keyboard, mouse, and power cable to the assembled computer. Press the power button on the front panel to start your system. Refer to your operating system's documentation for further usage instructions.
7. నిర్వహణ
To ensure longevity and optimal performance, regularly clean the dust filters and interior of the case. Use compressed air to remove dust from fans and heatsinks. Ensure all cables are securely connected.
8. ట్రబుల్షూటింగ్
- సిస్టమ్ ఆన్ చేయడం లేదు: Check all power connections, including the PSU to the wall outlet, PSU to motherboard, and front panel power switch header.
- ప్రదర్శన లేదు: Ensure the monitor is connected to the graphics card (not the motherboard's integrated graphics ports, unless no dedicated GPU is installed). Verify GPU power connections and PCIe riser cable connection.
- వేడెక్కడం: Confirm CPU cooler is properly installed with thermal paste. Check fan orientations and ensure sufficient airflow. Verify PSU fan orientation.
- లూజ్ కనెక్షన్లు: If experiencing intermittent issues, re-seat RAM, GPU, and all power/data cables.
9. వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the MININGEEK official webమీ సైట్లో లేదా మీ రిటైలర్ను సంప్రదించండి. వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.
