ANENG PN130 Clamp మల్టీమీటర్ యూజర్ మాన్యువల్

1. పరిచయం

The ANENG PN130 is a versatile, U-shaped clamp multimeter designed for efficient and accurate electrical measurements. Featuring a color LCD and a rechargeable lithium battery, this tool is ideal for diagnosing electrical issues in various settings, from automotive systems to household circuits. It offers a wide range of measurement capabilities including AC/DC current, voltage, resistance, capacitance, continuity, diode testing, and frequency. The non-contact voltage (NCV) detection function enhances safety during operation.

2. భద్రతా సమాచారం

Always observe basic safety precautions when using this device to avoid potential electric shock or personal injury.

• ఉపయోగించే ముందు అన్ని సూచనలను చదివి అర్థం చేసుకోండి.
• Do not exceed the maximum input values specified for each measurement function.
• వాల్యూమ్‌తో పని చేస్తున్నప్పుడు జాగ్రత్త వహించండిtag30V AC RMS, 42V పీక్ లేదా 60V DC కంటే ఎక్కువ. ఈ వాల్యూమ్‌లుtagషాక్ ప్రమాదాన్ని కలిగిస్తుంది.
• Always disconnect power to the circuit under test before making resistance, capacitance, or diode measurements.
• Ensure the test leads are properly connected and in good condition before each use.
• మీటర్ దెబ్బతిన్నట్లు కనిపిస్తే లేదా కేసు తెరిచి ఉంటే దాన్ని ఆపరేట్ చేయవద్దు.
• నాన్-కాంటాక్ట్ వాల్యూమ్‌ను ఉపయోగించండిtage (NCV) function to detect live wires without direct contact, enhancing safety.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and insulated gloves, when working with electrical circuits.

3. ప్యాకేజీ విషయాలు

The ANENG PN130 Clamp Multimeter package includes the following items:

• 1 x ANENG PN130 Multimeter
• 1 x Combination Test Lead Set (includes 4 connection jacks, 2 PVC cables, 2 copper needles, 2 U-shaped inserts, 2 test probes, 2 alligator clips, 2 piercing needles)
• 1 x Standard Multimeter Test Lead
• 1 x USB-C ఛార్జింగ్ కేబుల్
• 1 x ఇన్‌స్ట్రక్షన్ మాన్యువల్
• 1 x నిల్వ బ్యాగ్

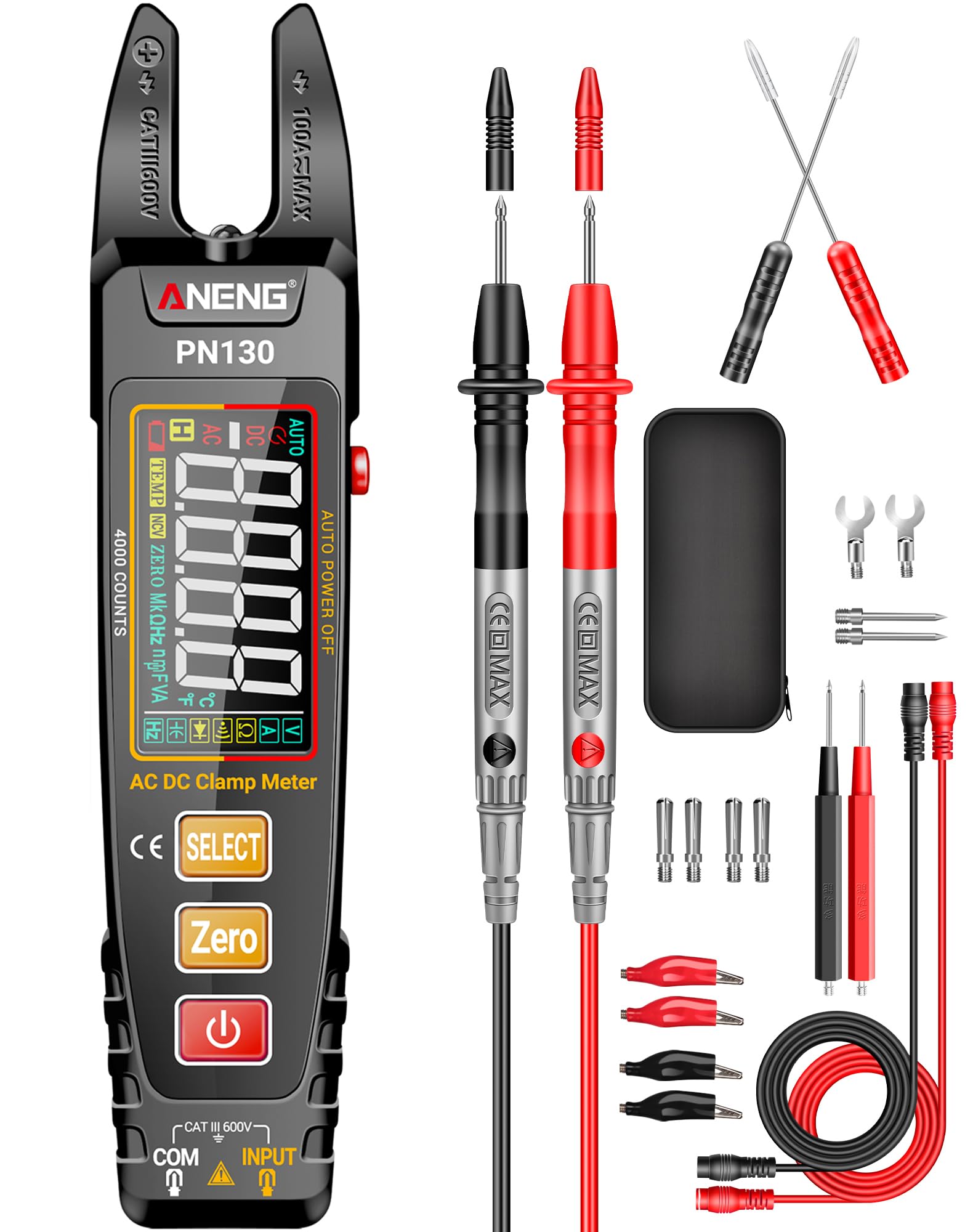

Image: Contents of the ANENG PN130 package, including the multimeter, various test leads, charging cable, manual, and storage bag.

4. ఉత్పత్తి లక్షణాలు

• Efficient Measurement and Troubleshooting: Equipped with True-RMS functionality, capable of measuring AC/DC current, voltage, resistance, capacitance, continuity, diode, frequency (Hz), and identifying phase/neutral lines. This digital clamp meter is an optimal tool for diagnosing electrical issues in vehicles and internal electrical systems, significantly improving work efficiency.
• U-ఆకారపు Clamp డిజైన్: The ANENG PN130 features a U-shaped design, allowing for easy clamping around wires without the need to cut them. This enables quick measurements in confined spaces. It also includes a data hold function for convenient recording and subsequent analysis of measured values.
• సంపర్కం కాని సంtage (NCV) Function: To utilize the NCV function, long-press the ఎంచుకోండి button to enter NCV mode. Hold the top of the clamp meter near the cable or circuit you wish to test. The device will emit an audible alert upon detecting an electromagnetic field. This feature allows for current measurement without direct contact with live conductors, reducing the risk of electric shock and enhancing user safety.
• పునర్వినియోగపరచదగిన మరియు పోర్టబుల్: The PN130 multimeter boasts a compact and portable design, powered by a USB-C rechargeable lithium battery. It can be charged even while performing measurements. This makes it suitable for a wide range of tasks, from simple DIY continuity checks to complex outdoor or garage work, providing stable measurement values without concerns about power supply.
• Color LCD with Backlight: The device features a clear color LCD display with backlight, ensuring readability in various lighting conditions.
• అంతర్నిర్మిత ఫ్లాష్‌లైట్: A built-in flashlight assists in illuminating dark work areas.

Image: The ANENG PN130 Multimeter highlighting its various measurement capabilities and display features.

5. సెటప్

5.1. బ్యాటరీ సంస్థాపన మరియు ఛార్జింగ్

The ANENG PN130 comes with a built-in rechargeable lithium battery.

• Before first use, ensure the battery is fully charged using the provided USB-C charging cable.
• Connect the USB-C cable to the multimeter's charging port and the other end to a standard USB power adapter (not included).
• The battery status will be indicated on the color LCD.

Image: The ANENG PN130 Multimeter connected to a USB-C charging cable, demonstrating its rechargeable feature.

5.2. టెస్ట్ లీడ్‌లను కనెక్ట్ చేయడం

For measurements requiring direct contact, connect the test leads to the appropriate input jacks on the multimeter.

• "COM" (సాధారణ) జాక్‌లోకి బ్లాక్ టెస్ట్ లీడ్‌ను చొప్పించండి.
• వాల్యూమ్ కోసం "VΩmA" జాక్‌లోకి ఎరుపు రంగు టెస్ట్ లీడ్‌ను చొప్పించండి.tage, resistance, capacitance, frequency, and diode measurements.
• Ensure a secure connection for accurate readings.

6. ఆపరేటింగ్ సూచనలు

6.1. పవర్ ఆన్/ఆఫ్

Press the power button to turn the multimeter ON or OFF. The device may have an auto-power-off feature to conserve battery.

6.2. ఫంక్షన్ ఎంపిక

Rotate the central dial to select the desired measurement function (e.g., AC current, DC voltage, resistance). Use the ఎంచుకోండి button to toggle between different sub-functions within a mode (e.g., AC or DC voltagమరియు).

6.3. AC/DC Current Measurement (Clamp ఫంక్షన్)

U- ఆకారపు clamp allows for non-invasive current measurement.

1. Turn the dial to the AC or DC current measurement mode (indicated by A~ or A=).
2. cl తెరవడానికి ట్రిగ్గర్‌ను నొక్కండిamp దవడలు.
3. cl లోపల ఒకే కండక్టర్ (వైర్ల కట్ట కాదు) ని మూసివేయండి.amp దవడలు.
4. కండక్టర్ చుట్టూ ఉన్న దవడలను సురక్షితంగా మూసివేయడానికి ట్రిగ్గర్‌ను విడుదల చేయండి.
5. డిస్ప్లేలో ప్రస్తుత విలువను చదవండి.

Image: The ANENG PN130 Multimeter being used to measure DC current in a vehicle's engine compartment.

Image: The ANENG PN130 Multimeter measuring AC current by clamping around a single wire in an electrical distribution panel.

6.4. AC/DC వాల్యూమ్tagఇ కొలత

వాల్యూమ్‌ను కొలవడానికిtage:

1. Connect the test leads to the appropriate jacks (black to COM, red to VΩmA).
2. డయల్‌ను వాల్యూమ్‌కి మార్చండిtage measurement mode (V~ for AC, V= for DC). Use the ఎంచుకోండి అవసరమైతే బటన్.
3. Touch the test probes to the points where you want to measure voltage.
4. సంపుటాన్ని చదవండిtagడిస్‌ప్లేలో ఇ విలువ.

Image: The ANENG PN130 Multimeter with test leads connected, measuring AC/DC voltage from a power strip.

6.5. Resistance, Capacitance, Diode, and Continuity Measurement

For these measurements, ensure the circuit is de-energized before connecting the test leads.

1. Connect the test leads (black to COM, red to VΩmA).
2. Turn the dial to the appropriate mode (Ω for resistance, ∔ for capacitance, ⇋ for diode, or )) for continuity). Use the ఎంచుకోండి button to cycle through these functions if they share a dial position.
3. Touch the test probes to the component or circuit points.
4. Read the value on the display. For continuity, an audible beep indicates a continuous circuit.

6.6. Frequency (Hz) Measurement

ఫ్రీక్వెన్సీని కొలవడానికి:

1. Connect the test leads (black to COM, red to VΩmA).
2. Turn the dial to the frequency mode (Hz).
3. Touch the test probes to the circuit points where you want to measure frequency.
4. డిస్ప్లేలో ఫ్రీక్వెన్సీ విలువను చదవండి.

6.7. నాన్-కాంటాక్ట్ వాల్యూమ్tagఇ (NCV) గుర్తింపు

The NCV function allows for safe detection of live voltagఇ ప్రత్యక్ష పరిచయం లేకుండా.

1. ఎక్కువసేపు నొక్కండి ఎంచుకోండి button to activate NCV mode. The display will show "NCV".
2. cl పై భాగాన్ని తరలించండి.amp meter close to the suspected live wire or electrical outlet.
3. AC వాల్యూమ్ అయితేtage is detected, the meter will emit an audible beep and the NCV indicator will light up, with intensity varying based on signal strength.

Image: The ANENG PN130 Multimeter's built-in flashlight providing illumination in a low-light environment.

6.8. Data Hold and Backlight

• నొక్కండి పట్టుకోండి డిస్ప్లేలో ప్రస్తుత రీడింగ్‌ను స్తంభింపజేయడానికి బటన్. విడుదల చేయడానికి మళ్ళీ నొక్కండి.
• Press the backlight button (often indicated by a light bulb icon) to turn the display backlight ON or OFF for improved visibility in dim conditions.

Image: The ANENG PN130 Multimeter's color LCD display showing a reading with the backlight activated and the data hold function engaged.

6.9. అంతర్నిర్మిత ఫ్లాష్‌లైట్

The multimeter includes a built-in flashlight to illuminate dark work areas. This is typically activated by a dedicated button or a long press of the backlight button.

Image: The ANENG PN130 Multimeter's built-in flashlight providing illumination in a low-light environment.

7. నిర్వహణ

• శుభ్రపరచడం: మీటర్‌ను పొడి, మృదువైన గుడ్డతో తుడవండి. అబ్రాసివ్‌లు లేదా ద్రావకాలను ఉపయోగించవద్దు.
• నిల్వ: When not in use for extended periods, store the multimeter in its protective storage bag in a cool, dry place.
• బ్యాటరీ సంరక్షణ: Recharge the lithium battery regularly to maintain its lifespan, even if the device is not frequently used.
• టెస్ట్ లీడ్స్: Inspect test leads for any damage (cuts, cracks) before each use. Replace damaged leads immediately.

8. ట్రబుల్షూటింగ్

If the multimeter is not functioning as expected, consider the following:

• డిస్ప్లే లేదు/బ్యాటరీ తక్కువగా ఉంది: Ensure the battery is charged. Connect the USB-C charging cable and allow it to charge for some time.
• సరికాని రీడింగ్‌లు:
  • Check if the correct function mode is selected for the measurement.
  • Verify that test leads are securely connected to the correct input jacks.
  • Ensure the circuit under test is de-energized for resistance, capacitance, and diode measurements.
  • For current measurements with the clamp, ensure only a single conductor is enclosed.
• NCV గుర్తించడం లేదు: Ensure NCV mode is activated (long-press SELECT). The sensitivity may vary with distance and electromagnetic field strength.
• No Continuity Beep: Check if the continuity mode is selected. Ensure the circuit is complete and has very low resistance.

If issues persist, refer to the detailed instruction manual provided in the package or contact ANENG customer support.

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

For warranty information, technical support, or service inquiries regarding your ANENG PN130 Clamp Multimeter, please refer to the contact details provided in the included instruction manual or visit the official ANENG webసైట్.
