The SKB iSeries Shaped Bow Case is designed to provide robust protection for your archery equipment. Constructed from military-grade materials, this case offers a streamlined, curved shape that minimizes bulk while maximizing interior storage for bows, arrows, and accessories. It is built to withstand harsh environmental conditions, ensuring your gear remains secure and protected during transport and storage.
ముఖ్య లక్షణాలు ఉన్నాయి:
- Curved Bow Design: Engineered to fit bows up to 41 inches long and 17 inches wide, reducing overall bulk.
- Rugged Protection: Military-grade, waterproof, crushproof, and resistant to UV, impact, dust, and corrosion.
- సురక్షిత నిల్వ: Features hook-and-loop straps for bow retention, a dedicated compartment for up to 12 arrows, and mesh lid pockets for accessories.
- ప్రయాణం-సిద్ధంగా: Equipped with a Trigger Latch system and stainless steel padlock protector clips for enhanced security.
- సౌకర్యవంతమైన నిర్వహణ: Includes a snap-down cushion grip handle and an ambient pressure equalization valve for high-altitude travel.
Figure 1: The SKB iSeries Shaped Bow Case in its closed state, showcasing its compact and durable exterior.
సెటప్ మరియు నిల్వ
- కేసు తెరవడం: Locate the Trigger Latch system latches on the front of the case. Press the release buttons and lift the latches to open the case.
- Placing the Bow: Carefully place your compound bow into the main compartment. Ensure the bow fits within the internal dimensions of 41 inches length and 17 inches width.

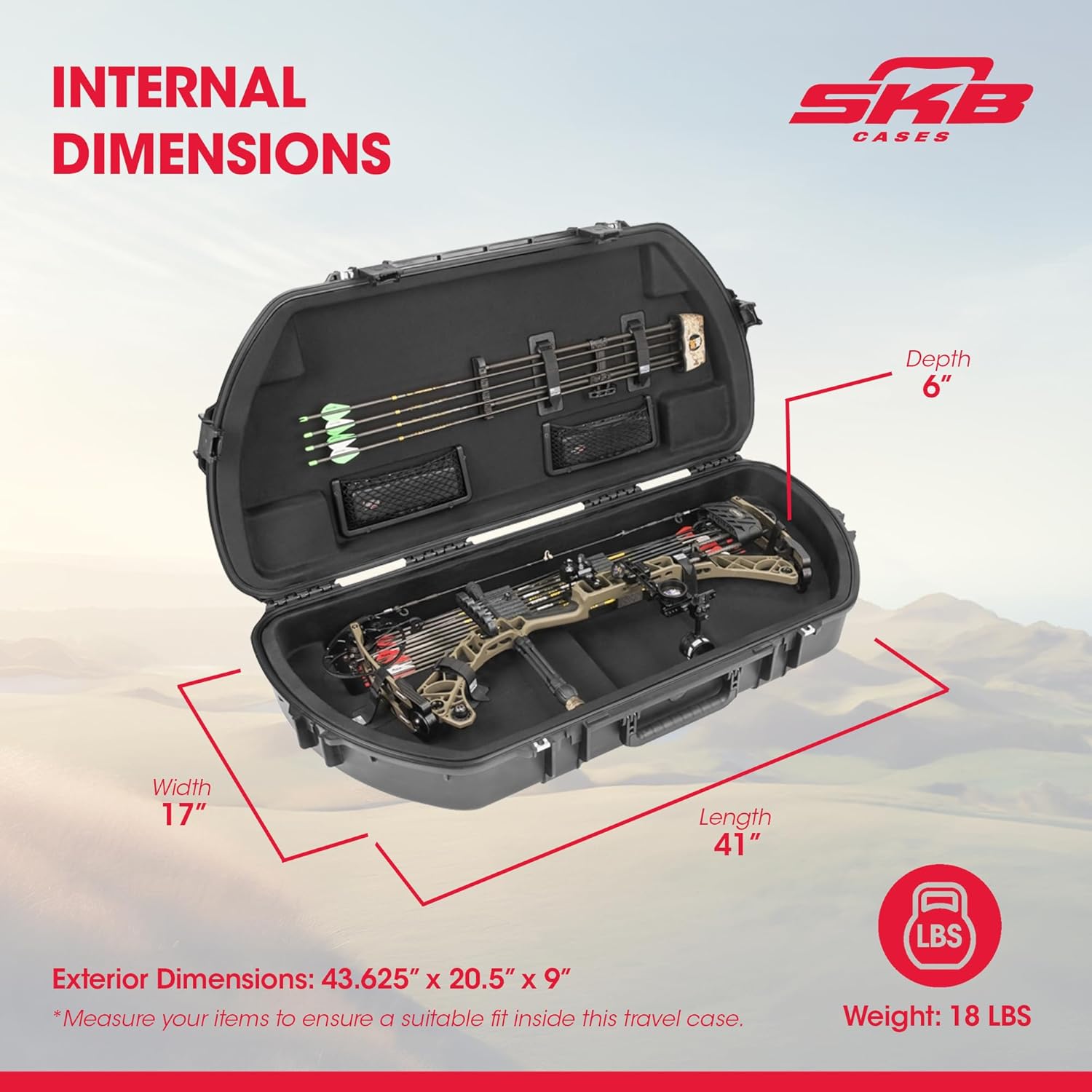

Figure 2: Illustration of the internal dimensions (Length 41", Width 17", Depth 6") for proper bow placement.
- Securing the Bow: Utilize the integrated hook-and-loop tie-down straps to firmly secure your bow in place, preventing movement during transport.
- Arrow Storage: Place up to 12 arrows in the dedicated lower compartment designed for arrow storage.
- అనుబంధ నిల్వ: Use the two mesh lid pockets to store accessory boxes, quivers, or other essential hunting gear.

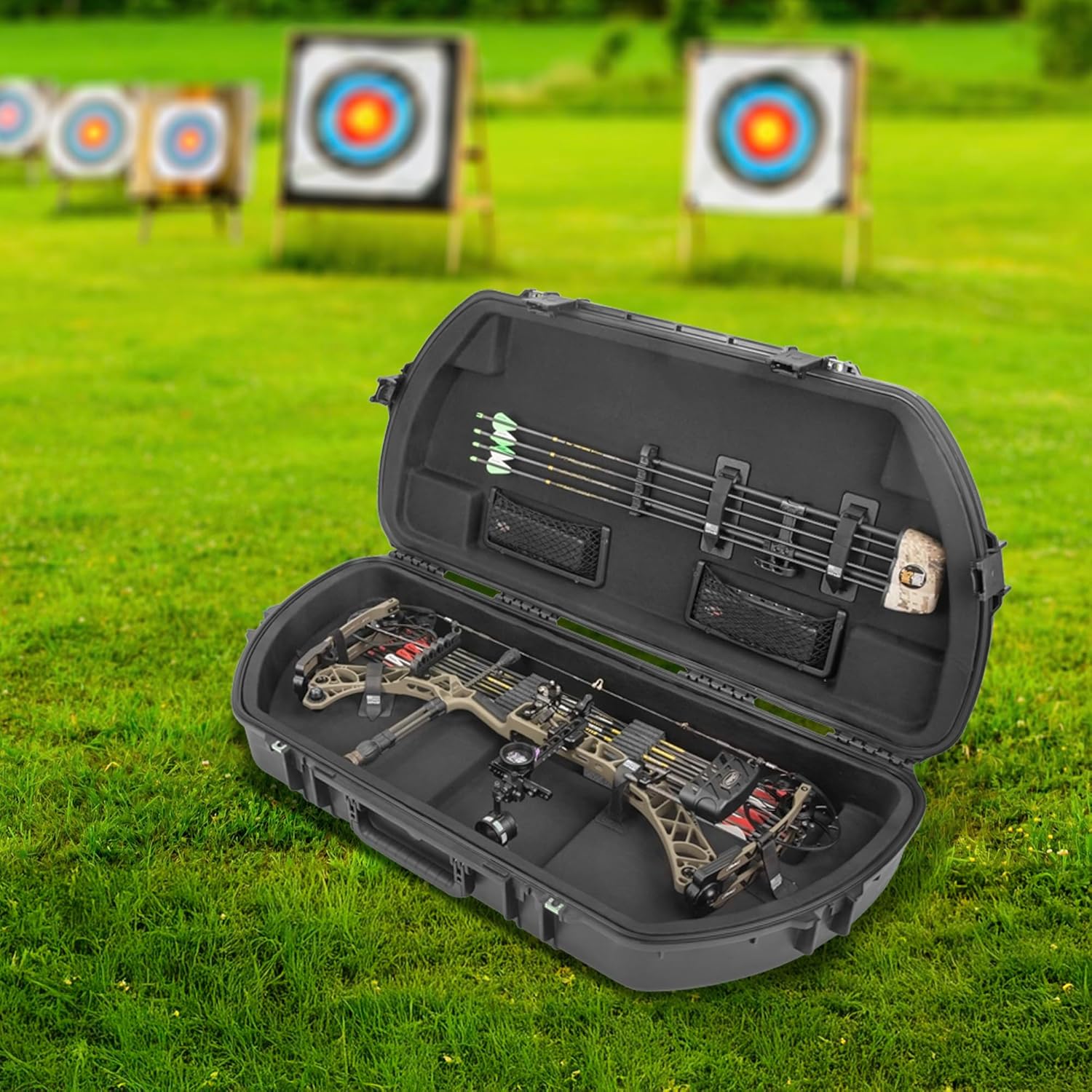

Figure 3: The interior of the case, demonstrating the secure placement of a bow, arrows, and the use of mesh accessory pockets.
- కేసును ముగించడం: Ensure all items are properly secured and the lid is aligned. Press down firmly on the lid until the Trigger Latches snap securely into place.
కేసును నిర్వహించడం
The SKB iSeries Shaped Bow Case is designed for ease of use and maximum protection.
- మోసుకెళ్ళడం: Use the snap-down cushion grip handle for comfortable and secure carrying.
Figure 4: The ergonomic snap-down cushion grip handle for comfortable transport.
- భద్రత: For added security, utilize the stainless steel padlock protector clips. These loops are designed to accept a customer-supplied lock.
Figure 5: The locking loops allow for the addition of a customer-supplied padlock for enhanced security.
- పీడన సమీకరణ: The automatic ambient pressure equalization valve self-regulates internal pressure, which is particularly useful during high-altitude travel or changes in atmospheric pressure. This ensures the case remains sealed and protected.
నిర్వహణ
The SKB iSeries Shaped Bow Case is built for durability and requires minimal maintenance. Following these guidelines will help ensure its longevity:
- శుభ్రపరచడం: ప్రకటనతో బాహ్య మరియు అంతర్గత ఉపరితలాలను తుడవండిamp cloth and mild soap as needed. Avoid harsh chemicals or abrasive cleaners, which can damage the polypropylene material.
- Gasket Seal Inspection: Periodically inspect the complete gasket seal around the lid for any signs of wear, cracks, or debris. A clean and intact gasket ensures the case remains watertight and dustproof.
Figure 6: The complete gasket seal ensures the case is watertight and dustproof.
- లాచ్ కార్యాచరణ: Ensure the Trigger Latches operate smoothly and securely. If they become stiff, a small amount of silicone lubricant can be applied.
- నిల్వ: When not in use, store the case in a cool, dry place away from direct sunlight to preserve the integrity of the materials.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Case does not close securely. | Obstruction in the seal area; latches are misaligned or stiff; contents are overfilling the case. | Check the gasket seal for debris and clean if necessary. Ensure contents are not overfilling the case. Verify latches are aligned and apply silicone lubricant if stiff. |
| Bow or accessories shift inside the case. | Hook-and-loop straps are not tightened sufficiently; items are not properly positioned. | Ensure all hook-and-loop straps are securely fastened. Reposition items to fit snugly within the designated compartments. |
| Difficulty opening latches. | Latches are stiff or dirty; pressure differential inside the case. | Clean latches and apply a small amount of silicone lubricant. Allow the ambient pressure valve to equalize pressure, especially after changes in altitude or temperature. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ పేరు | SKB Cases 3i-4318-pl: Iseries Shaped Bow Case |
| పార్ట్ నంబర్ | 3I-4318-PL |
| బ్రాండ్ | SKB |
| మెటీరియల్ | Ultra High-Strength Polypropylene Plastic |
| షెల్ రకం | హార్డ్ |
| రంగు | నలుపు |
| మూసివేత రకం | Hook & Loop, Trigger Latch System |
| Internal Dimensions (L x W x D) | 41" x 17" x 6" |
| బాహ్య కొలతలు (L x W x H) | 45" x 21.5" x 9.5" |
| బరువు | 18 పౌండ్లు (9.87 కిలోగ్రాములు) |
| కంపార్ట్మెంట్ల సంఖ్య | 4 (Main, Arrow, 2 Mesh Lid Pockets) |
| ప్రత్యేక లక్షణాలు | Waterproof, Crushproof, Dustproof, Corrosion Resistant, UV Resistant, Automatic Ambient Pressure Equalization Valve, Snap-Down Cushion Grip Handle, Lockable Latches |
| UPC | 789270008113 |
వారంటీ మరియు మద్దతు
For detailed warranty information and product support, please refer to the official SKB website or contact SKB customer service directly. SKB products are known for their robust construction and often come with comprehensive warranties.
SKB Official Webసైట్: www.skbcases.com
Please have your model number (3I-4318-PL) and UPC (789270008113) available when contacting support.
