OSCAL PowerMax 6000 Solar Generator Instruction Manual

ఉత్పత్తి ముగిసిందిview

The OSCAL PowerMax 6000 is a versatile solar generator designed to provide reliable power for various applications, from home emergency backup to outdoor activities. It features a 3600Wh capacity, 6000W AC output (9000W peak), and supports both 120V and 240V dual voltage output. Equipped with a durable LiFePO4 battery and advanced safety features, it offers multiple charging options including AC, solar, and car charging.

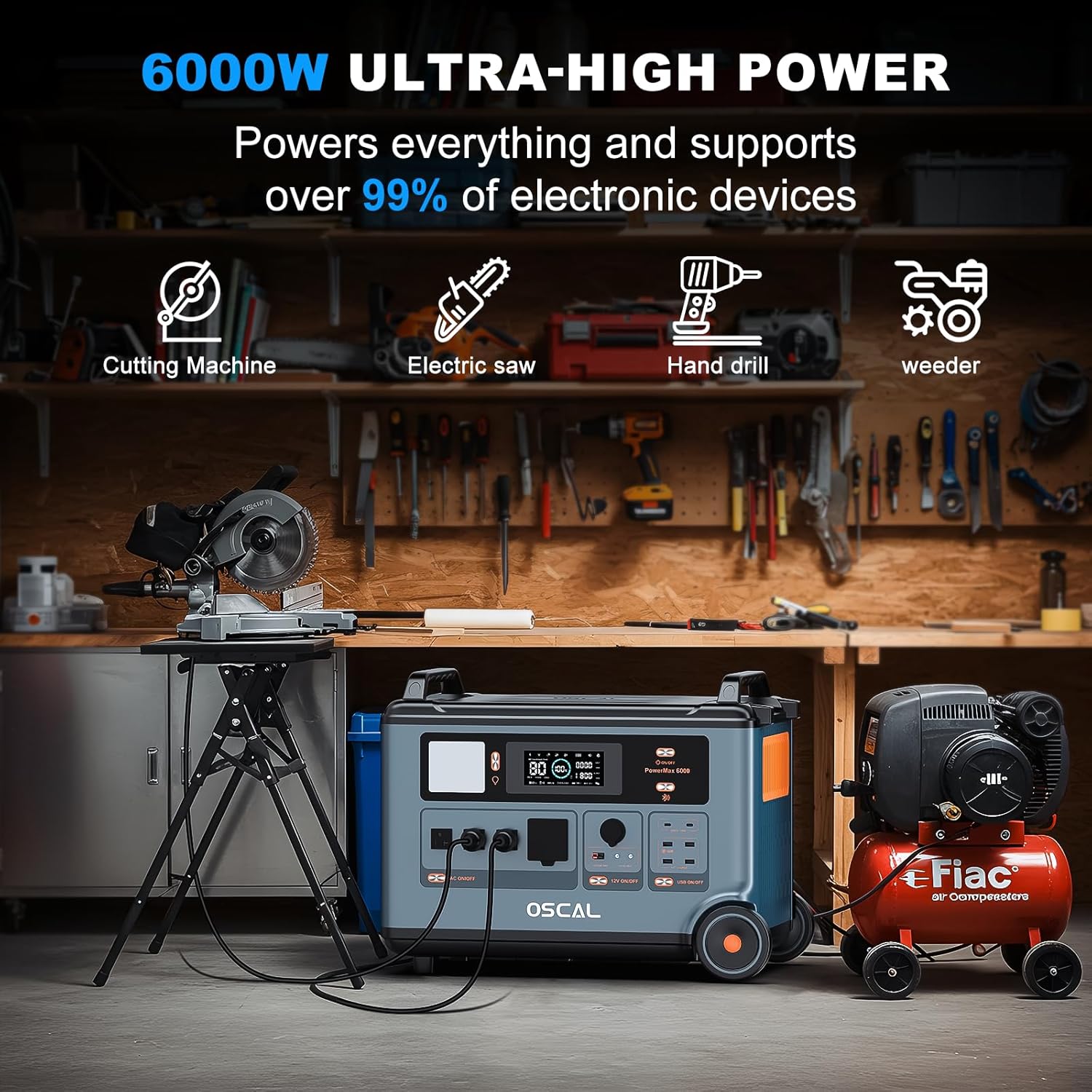

Image: The PowerMax 6000 powering multiple electronic devices and tools in a workshop setting, demonstrating its high power output.

చేర్చబడిన భాగాలు

అన్‌బాక్సింగ్ చేసేటప్పుడు, కింది అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• PowerMax 6000 Solar Generator Unit
• 3x 400W Solar Panels (if purchased as a bundle)
• ఎసి ఛార్జింగ్ కేబుల్
• కార్ ఛార్జింగ్ కేబుల్
• సోలార్ ఛార్జింగ్ కేబుల్
• వినియోగదారు మాన్యువల్
• వారంటీ కార్డ్

సెటప్

ప్రారంభ ఛార్జింగ్

Before first use, fully charge the PowerMax 6000. You can use the included AC charging cable to connect the unit to a standard wall outlet. The unit supports 2200W AC input, allowing a 0-100% charge in approximately 1.44 hours.

Alternatively, use the solar charging cable to connect the unit to compatible solar panels. The PowerMax 6000 supports up to 2400W solar input for fast charging.

సౌర ఫలకాలను కనెక్ట్ చేస్తోంది

To connect solar panels, use the provided solar charging cable. Ensure the panels are placed in direct sunlight for optimal charging efficiency. The unit's display will show the input wattage.

Image: The PowerMax 6000 connected in parallel with additional battery packs and solar panels, illustrating its expandable capacity and solar charging capability.

ఆపరేటింగ్ సూచనలు

పవర్ ఆన్/ఆఫ్

Press and hold the main power button on the front panel to turn the unit on or off. The digital display will activate upon power-on, showing battery percentage, ఇన్‌పుట్/అవుట్‌పుట్ వాట్tage, and estimated remaining time.

AC అవుట్‌లెట్‌లను ఉపయోగించడం

The PowerMax 6000 features four AC outlets, including one 240V outlet for high-power appliances. To activate AC output, press the AC power button. The unit provides 6000W continuous output with a 9000W surge capacity.

Image: The PowerMax 6000 providing 120V/240V dual voltage power to a household, illustrating its capability to run various home appliances.

Using DC and USB Outlets

The unit includes two USB-C ports and four USB-A ports for charging smaller electronic devices. It also has a 12V car outlet and two DC5521 ports for other DC-powered devices. Activate DC or USB output by pressing their respective power buttons.

Emergency Power Supply (EPS) Function

The PowerMax 6000 is equipped with an EPS function. In the event of a power outage, it automatically switches to battery power within 5-8 milliseconds, ensuring uninterrupted operation for connected devices. This is ideal for critical equipment like medical devices or network hardware.

Image: The PowerMax 6000 highlighting its 5-8ms EPS switchover feature, showing it can power devices like CPAP machines and laptops during outages.

అనువర్తన నియంత్రణ

Download the OSCAL application on your smartphone to monitor and control the PowerMax 6000 remotely. The app allows you to view power usage, battery status, and execute commands from your device.

Image: A smartphone displaying the OSCAL app interface, showing remote monitoring and control features for the PowerMax 6000.

Signal Light Function

The unit includes a signal light that can blink in Morse Code. This feature can be controlled via the Smart APP to communicate numbers from 0 to 9 and alphabets from A to Z.

నిర్వహణ

బ్యాటరీ సంరక్షణ

The PowerMax 6000 uses a long-lasting LiFePO4 battery, designed for up to 3500 charge and discharge cycles, ensuring a service life of up to 25 years. To maximize battery life, store the unit in a cool, dry place and recharge it periodically if not in regular use.

భద్రతా లక్షణాలు

The advanced eight-layer safety BMS (Battery Management System) protects against overcharge, over-discharge, over-voltage, over-current, short-circuit, and temperature fluctuations. In case of an overload, the unit will automatically shut down to protect connected devices and itself.

ట్రబుల్షూటింగ్

If you encounter any issues with your PowerMax 6000, please refer to the following common troubleshooting steps:

• యూనిట్ పవర్ చేయడం లేదు: Ensure the battery is charged. If the unit has been stored for a long period, it may require an initial charge.
• పోర్టుల నుండి అవుట్‌పుట్ లేదు: Verify that the specific output section (AC, DC, USB) is activated using its respective power button. Check cable connections.
• ఓవర్‌లోడ్ రక్షణ సక్రియం చేయబడింది: If the unit shuts down unexpectedly, it may be due to an overload. Disconnect some devices and restart the unit. Ensure the total wattage of connected devices does not exceed 6000W (or 9000W peak).
• నెమ్మదిగా ఛార్జింగ్: Ensure charging cables are securely connected. For solar charging, verify panels are in direct sunlight and free from obstructions.

తదుపరి సహాయం కోసం, కస్టమర్ సపోర్ట్‌ని సంప్రదించండి.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

The OSCAL PowerMax 6000 comes with a 2-year warranty, ensuring your satisfaction and peace of mind. For any technical support, warranty claims, or operational questions, please refer to the contact information provided in your warranty card or through the OSCAL application.

The OSCAL application also provides direct access to support resources and allows for remote monitoring and control of your device.
