PowMr 10000W Hybrid Solar Inverter (POW-SunSmart 10K) User Manual

1. పరిచయం

This manual provides essential information for the safe and efficient operation of your PowMr 10000W Hybrid Solar Inverter. It is designed for use in 48V DC to 110V/240V AC split-phase systems, featuring a 200A MPPT controller. Please read this manual thoroughly before installation and use, and retain it for future reference.

మూర్తి 1: ముందు view of the PowMr 10000W Hybrid Solar Inverter.

2. భద్రతా సూచనలు

హెచ్చరిక: విద్యుత్ షాక్ ప్రమాదం. సంస్థాపన మరియు నిర్వహణ అర్హత కలిగిన సిబ్బంది మాత్రమే చేయాలి.

• Ensure all power sources (PV, battery, AC utility) are disconnected before performing any wiring or maintenance.
• Use appropriate personal protective equipment (PPE) including insulated gloves and eye protection.
• Verify correct polarity for all DC connections (PV and battery). Incorrect polarity can cause severe damage to the inverter and connected equipment.
• Ensure proper grounding of the inverter as per local electrical codes.
• ఇన్వర్టర్ పాడైపోయినా లేదా సరిగ్గా పనిచేయనట్లు కనిపించినా దాన్ని ఆపరేట్ చేయవద్దు.
• Keep children and unauthorized persons away from the inverter and its connections.
• మండే పదార్థాలు మరియు ప్రత్యక్ష సూర్యకాంతికి దూరంగా, బాగా వెంటిలేషన్ ఉన్న ప్రదేశంలో ఇన్వర్టర్‌ను ఇన్‌స్టాల్ చేయండి.

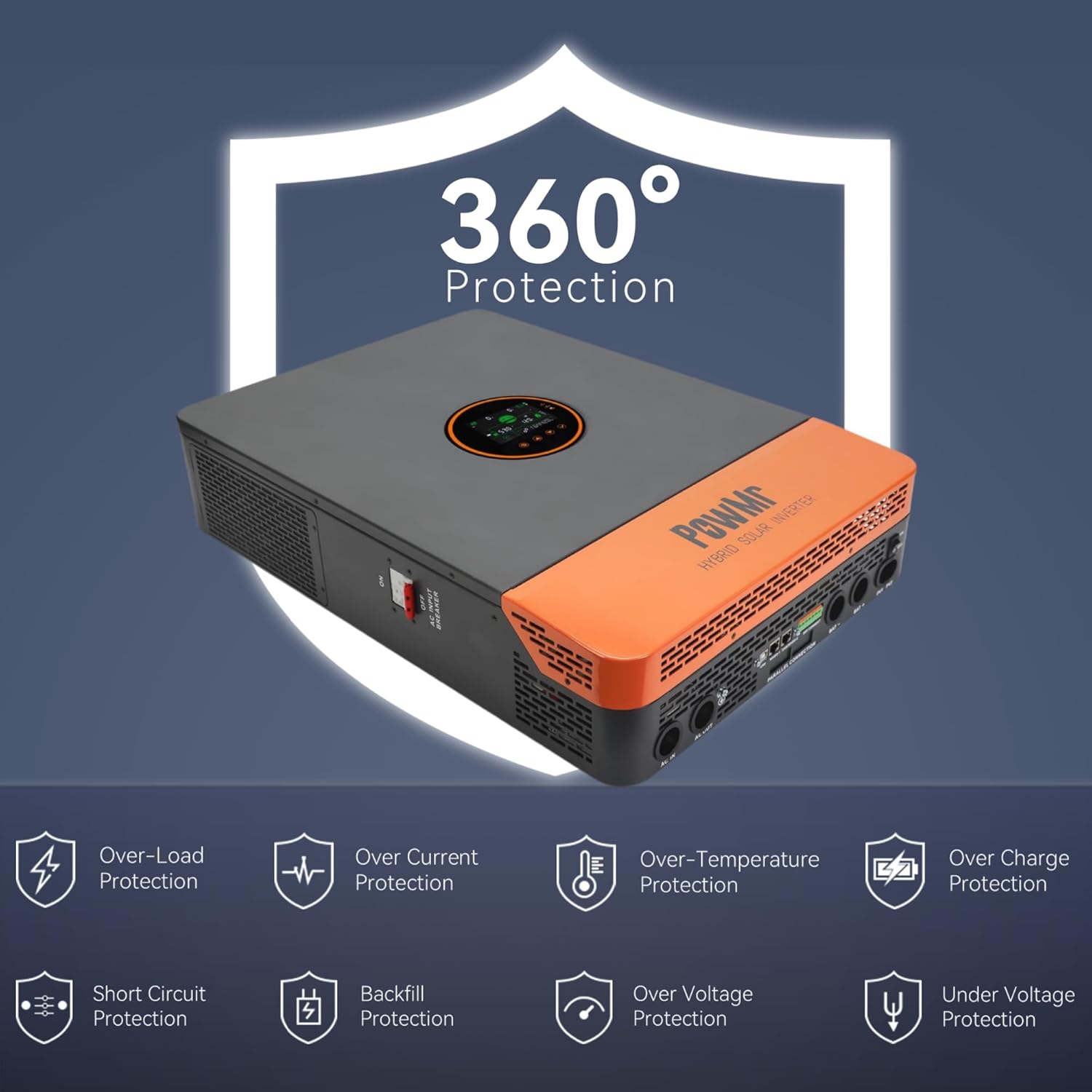

Figure 2: The inverter features comprehensive protection mechanisms including overload, over current, over temperature, over charge, short circuit, backfill, over voltagఇ, మరియు వాల్యూమ్ కిందtagఇ రక్షణ.

3. ఉత్పత్తి ముగిసిందిview

3.1 ముఖ్య లక్షణాలు

• Supports both split-phase (120V/240V) and single-phase (120V) pure sine wave AC output.
• Integrated dual 100A MPPT solar charge controllers with 99.9% efficiency.
• Maximum PV input power of 11KW (5500W per MPPT input), with a maximum PV input voltag500V DC యొక్క e.
• Four selectable battery charging modes: Only Solar, Utility Priority, Solar Priority, and Utility & Solar Hybrid.
• Four AC output working modes: PV Priority, Utility Priority, Inverter Priority, and Solar & Utility Hybrid.
• Compatible with 48V lead-acid (Seal, AGM, Gel, Flooded) and lithium batteries. Supports batteryless operation.
• Comprehensive protection features: short circuit, over-current, over/under voltage, overload, and backfeed protection.
• Communication ports: CAN, USB, RS485, Dry contact.

3.2 ఉత్పత్తి భాగాలు

Figure 3: Inverter components and connection points.

చిత్రం 4: పైగాview of the inverter's communication interfaces.

4. స్పెసిఫికేషన్లు

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

5.1 మౌంటు

• Mount the inverter vertically on a sturdy wall or surface.
• Ensure adequate clearance around the inverter for proper ventilation (at least 20 cm on all sides).
• Avoid mounting in direct sunlight, high humidity, or dusty environments.

5.2 వైరింగ్ కనెక్షన్లు

All wiring must comply with local and national electrical codes. Use appropriately sized conductors for all connections.

5.2.1 Split-Phase Wiring Diagram (120V/240V AC Output)

Figure 5: Split-phase wiring configuration for 120V/240V AC output.

• PV ఇన్‌పుట్: Max PV array power 11,000W, Max VOC 500V, MPPT voltage range 125-425VDC. Use 10AWG PV wire.
• బ్యాటరీ: వాల్యూమ్ రేట్ చేయబడిందిtage 48V. Use 1 AWG cable, 2P-250A circuit breaker.
• AC ఇన్‌పుట్: Use 6AWG (L1/L2/N) cable, 3P-63A circuit breaker.
• ఇన్వర్టర్ అవుట్‌పుట్: Rated power 10,000W, Surge power 20,000W. Default output voltage 120/240V. Use 6AWG (L1/L2/N) cable, 3P-63A circuit breaker.

5.2.2 Single-Phase Wiring Diagram (120V AC Output)

Figure 6: Single-phase wiring configuration for 120V AC output.

• PV ఇన్‌పుట్: Max PV array power 11,000W, Max VOC 500V, MPPT voltage range 125-425VDC. Use 10AWG PV wire.
• బ్యాటరీ: వాల్యూమ్ రేట్ చేయబడిందిtage 48V. Use 1 AWG cable, 2P-250A circuit breaker.
• AC ఇన్‌పుట్: Use 3AWG (N) cable, 2P-125A circuit breaker.
• ఇన్వర్టర్ అవుట్‌పుట్: Rated power 10,000W, Surge power 20,000W. Default output voltage 120V. Use 3AWG (N) cable, 2P-125A circuit breaker.

6. ఆపరేటింగ్ సూచనలు

6.1 LCD డిస్ప్లే మరియు సూచికలు

The inverter features an LCD HD display screen for real-time monitoring of photovoltaic system operating data. LED indicators provide quick status updates.

Figure 7: The LCD HD display screen provides real-time system data.

6.2 ఛార్జింగ్ మోడ్‌లు

The inverter offers four optional battery charging modes to suit different energy management strategies:

Figure 8: Four selectable battery charging modes.

1. సోలార్ ఫస్ట్: Priority is given to charging by PV. Mains charging will only start if PV fails.
2. Mains First: Priority is given to charging by Mains Power. PV charging will only start if Mains Power fails.
3. హైబ్రిడ్ ఛార్జింగ్: Hybrid charging of PV and Mains Power. Priority is given to PV MPPT charging, with Mains Power supplementing if PV energy is insufficient.
4. సౌరశక్తి మాత్రమే: Only PV charging is initiated; no mains charging occurs.

6.3 AC అవుట్‌పుట్ మోడ్‌లు

The inverter provides four AC output working modes for diverse application needs:

Figure 9: Four selectable AC output modes.

1. పివి ప్రాధాన్యత: Select this mode to maximize the use of green solar energy. Suitable for regions with relatively stable power grids.
2. యుటిలిటీ ప్రాధాన్యత: Switches to inverter power supply only when Mains Power has failed. This functions as a backup UPS and is used in regions with suitable power grids.
3. ఇన్వర్టర్ ప్రాధాన్యత: Switches to Mains Power supply only when the battery is under-voltage. Maximizes the use of DC energy and is suitable for areas with stable power grids.
4. Hybrid Output and Grid Connection: In the utility bypass state, when no battery is connected or when the battery is full, the load power is supplied by the PV and the utility together if the hybrid function is enabled. Surplus PV energy is fed back to the grid if the grid connection function is enabled.

6.4 అవుట్‌పుట్ కాన్ఫిగరేషన్

6.4.1 Split-Phase Mode (AC Output 120V/240V)

Figure 10: Split-phase output configuration details.

• దశ వాల్యూమ్tage (L-N): 100-120VAC, 120VAC (default)
• లైన్ వాల్యూమ్tage (L-L): 200-240VAC, 240VAC (default)

6.4.2 Single-Phase Mode (AC Output 120V)

Figure 11: Single-phase output configuration details.

• దశ వాల్యూమ్tage (L-N): 100-120VAC, 120VAC (default)
• L1 & L2 are in the same phase and can be used in parallel.

7. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your PowMr Hybrid Solar Inverter.

• శుభ్రపరచడం: Periodically clean the inverter's exterior and ventilation openings to prevent dust accumulation. Use a dry, soft cloth. Do not use liquid cleaners.
• కనెక్షన్ల తనిఖీ: Annually inspect all electrical connections (PV, battery, AC) for tightness and signs of corrosion. Tighten any loose connections.
• పర్యావరణ తనిఖీ: Ensure the installation environment remains within specified temperature and humidity ranges. Verify that ventilation is not obstructed.
• బ్యాటరీ తనిఖీ: If using lead-acid batteries, check electrolyte levels and terminal conditions as per battery manufacturer guidelines.
• ఫర్మ్‌వేర్ నవీకరణలు: Check the PowMr official webపనితీరును మెరుగుపరచగల లేదా ఫీచర్‌లను జోడించగల ఏవైనా అందుబాటులో ఉన్న ఫర్మ్‌వేర్ నవీకరణల కోసం సైట్.

8. ట్రబుల్షూటింగ్

This section provides basic troubleshooting steps for common issues. For complex problems, contact PowMr technical support.

Refer to the detailed error codes and advanced troubleshooting steps in the complete product manual, typically available on the manufacturer's webసైట్.

9. వారంటీ మరియు మద్దతు

For warranty information, please refer to the warranty card included with your purchase or visit the official PowMr webసైట్. వారంటీ నిబంధనలు సాధారణంగా కొనుగోలు తేదీ నుండి నిర్దిష్ట కాలానికి తయారీ లోపాలను కవర్ చేస్తాయి.

For technical support, product inquiries, or service requests, please contact PowMr customer service through their official channels. You can find contact information on the PowMr Store on Amazon లేదా వారి అధికారి webసైట్.
