BOSGAME P2 Mini PC Intel i5-12450H User Manual

1. పరిచయం మరియు ఓవర్view

The BOSGAME P2 Mini PC is a compact and powerful desktop computer designed for a variety of applications including office work, home theater, and industrial control. It features a 12th generation Intel Core i5-12450H processor, 16GB of DDR4 RAM, and a 512GB NVMe SSD, offering robust performance in a small form factor.

చిత్రం 1.1: ముందు మరియు వెనుక views of the BOSGAME P2 Mini PC, highlighting its compact design and various ports.

2. పెట్టెలో ఏముంది

Upon unboxing your BOSGAME P2 Mini PC, please verify that all the following items are included:

• 1x Bosgame P2 Neo Mini PC
• 1 x VESA మౌంట్ విత్ స్క్రూస్
• 1 x పవర్ అడాప్టర్
• 1 x HDMI కేబుల్
• 1 x వినియోగదారు మాన్యువల్

Image 2.1: All accessories included with the BOSGAME P2 Mini PC, neatly arranged for inspection.

3. ఉత్పత్తి లక్షణాలు మరియు మరిన్నిview

The BOSGAME P2 Mini PC is engineered with advanced components to deliver efficient performance:

• ప్రాసెసర్: Equipped with the 12th generation Intel Core i5-12450H processor (8 cores, 12 threads, Turbo Boost up to 4.4GHz).
• మెమరీ: 16GB DDR4 RAM (8GB x Dual Channel), expandable up to 64GB.
• నిల్వ: Dual PCIe 3.0x4 NVMe SSD slots, initially configured with a 512GB SSD.
• గ్రాఫిక్స్: Integrated Intel Iris Xe Graphics supporting triple 4K display output.
• కనెక్టివిటీ: Dual 2.5G LAN ports, Triple-band Wi-Fi 6E, and Bluetooth 5.2.
• పోర్టులు: 2x USB 3.2 Gen 2 Type-A, 1x Full Function USB-C (front), 2x USB 3.2 Gen 2 (rear), 1x HDMI, 1x DisplayPort.

చిత్రం 3.1: వివరణాత్మకమైనది view of the Intel Core i5-12450H processor and its key specifications.

Image 3.2: Visual representation of the 16GB DDR4 RAM and 512GB NVMe SSD, highlighting speed and capacity.

Image 3.3: The Mini PC's capability to support three independent 4K displays simultaneously for enhanced productivity.

Image 3.4: Comprehensive view of the rich interfaces on the front and rear panels of the Mini PC.

4. సెటప్ సూచనలు

Follow these steps to set up your BOSGAME P2 Mini PC:

1. శక్తికి కనెక్ట్ చేయండి: Plug the power adapter into the DC-in port on the rear of the Mini PC, then connect it to a power outlet.
2. డిస్ప్లేకి కనెక్ట్ చేయండి: Connect your monitor(s) using the HDMI, DisplayPort, or Full Function USB-C ports. The PC supports up to three 4K displays.
3. పెరిఫెరల్స్ కనెక్ట్ చేయండి: Plug in your keyboard and mouse to the available USB ports.
4. నెట్‌వర్క్ కనెక్షన్: For wired internet, connect an Ethernet cable to one of the Dual 2.5G LAN ports. For wireless, ensure Wi-Fi 6 is enabled.
5. పవర్ ఆన్: Press the power button on the front panel to start the Mini PC.
6. ప్రారంభ విండోస్ సెటప్: The PC comes pre-installed with Windows 11 Pro. Follow the on-screen instructions to complete the initial setup. It is recommended to perform a fresh, clean install of Windows and update all drivers for optimal performance.

Video: User Setup of Windows 11 Pro

Video 4.1: A step-by-step guide on how to perform the initial Windows 11 Pro setup on your Mini PC.

5. ఆపరేటింగ్ సూచనలు

The BOSGAME P2 Mini PC is designed for user-friendly operation:

• పవర్ ఆన్/ఆఫ్: Use the power button on the front panel for normal startup and shutdown procedures.
• ప్రదర్శన నిర్వహణ: Utilize the HDMI, DisplayPort, or USB-C outputs to connect up to three monitors. Configure display settings within Windows for extended or mirrored desktop modes.
• నెట్‌వర్క్ యాక్సెస్: Connect to the internet via the Dual 2.5G LAN ports for high-speed wired connections or use the integrated Triple-band Wi-Fi 6E for robust wireless connectivity.
• బ్లూటూత్ పరికరాలు: Pair Bluetooth 5.2 compatible devices such as headphones, speakers, or other peripherals through Windows Bluetooth settings.
• స్మార్ట్ విధులు: The Mini PC supports Wake-on-LAN (WOL) for remote wake-up and power-on self-start functions, allowing for convenient remote management.

Image 5.1: Illustration of the Mini PC's versatile wireless connectivity options with multiple devices.

6. నిర్వహణ

To ensure optimal performance and longevity of your BOSGAME P2 Mini PC, consider the following maintenance options:

• నిల్వ విస్తరణ: The Mini PC features dual PCIe 3.0x4 NVMe SSD slots. You can easily upgrade the existing 512GB SSD or add an additional PCIe3.0x4 NVMe 2280 SSD for increased storage capacity, configurable up to 4TB (additional SSD not included).
• RAM Upgrade: The 16GB DDR4 RAM (8GBx Dual Channel) can be expanded up to 64GB. Consult the user manual for specific instructions on accessing and replacing RAM modules.
• శుభ్రపరచడం: Regularly clean the exterior of the Mini PC with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to maintain proper airflow and cooling.

Image 6.1: Visual guide to the expandable storage options for the Mini PC.

7. ట్రబుల్షూటింగ్

If you encounter issues with your BOSGAME P2 Mini PC, consider these common troubleshooting steps:

• ప్రదర్శన లేదు: Ensure all display cables (HDMI, DisplayPort, USB-C) are securely connected to both the Mini PC and the monitor(s). Verify that the monitor is powered on and set to the correct input source.
• శక్తి లేదు: పవర్ అడాప్టర్ మినీ పిసికి మరియు పనిచేసే పవర్ అవుట్‌లెట్‌కి సరిగ్గా ప్లగ్ చేయబడిందో లేదో తనిఖీ చేయండి. అవసరమైతే వేరే అవుట్‌లెట్‌ని ప్రయత్నించండి.
• నెట్‌వర్క్ కనెక్టివిటీ సమస్యలు: For wired connections, check the Ethernet cable and router status. For Wi-Fi, ensure the Wi-Fi adapter is enabled in Windows settings and try restarting your router.
• నెమ్మదిగా పనితీరు: Close unnecessary applications. Check Task Manager for high CPU or RAM usage. Consider upgrading RAM or SSD if performance remains consistently slow.
• ఆపరేటింగ్ సిస్టమ్ సమస్యలు: The PC supports changing the OS to Windows 10 Pro or Linux. If experiencing OS-specific problems, consider reinstalling the OS or contacting support.

8. స్పెసిఫికేషన్లు

Detailed technical specifications for the BOSGAME P2 Mini PC:

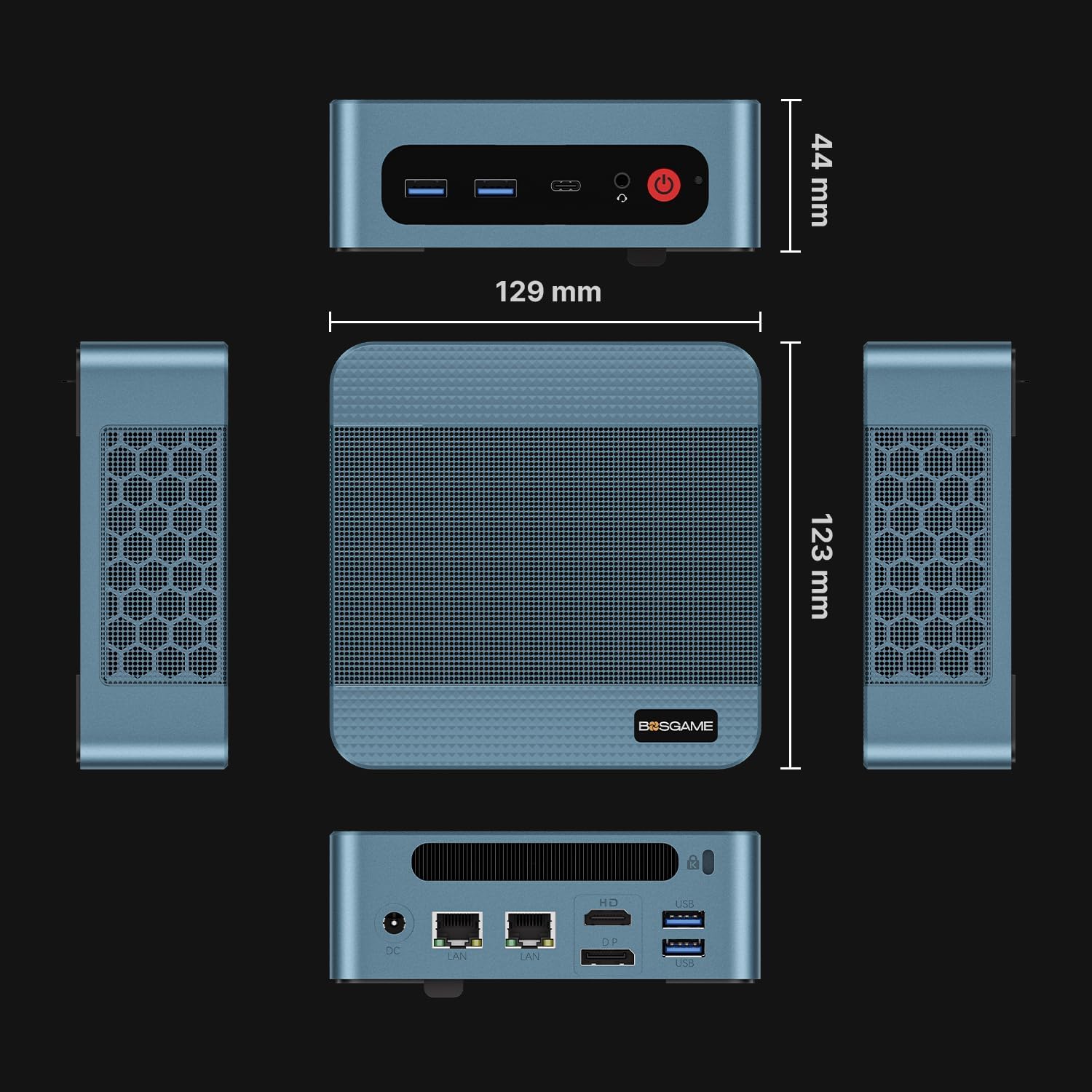

Image 8.1: Physical dimensions of the BOSGAME P2 Mini PC.

9. వారంటీ మరియు మద్దతు

BOSGAME provides comprehensive customer support for your Mini PC:

• ఆపరేటింగ్ సిస్టమ్: Pre-installed with Windows 11 Pro OS, with support for changing to Windows 10 Pro or Linux.
• సాంకేతిక మద్దతు: Professional technical department offers 24h/7d after-sales service and lifetime technical support.
• సంప్రదించండి: Please do not hesitate to contact the BOSGAME Support Center if you require assistance.
