Westbrass E507DUS-07 Universal Fit 7-inch Diverter Tub Spout

పరిచయం

Thank you for choosing the Westbrass E507DUS-07 Universal Fit 7-inch Diverter Tub Spout. This product is designed for durability and ease of installation, featuring a universal adapter system to accommodate various plumbing configurations. This manual provides essential information for safe installation, proper operation, and effective maintenance to ensure long-lasting performance.

ముఖ్యమైన భద్రతా సమాచారం

• ఏదైనా ప్లంబింగ్ పనిని ప్రారంభించే ముందు ఎల్లప్పుడూ ప్రధాన నీటి సరఫరాను ఆపివేయండి.
• సంస్థాపన సమయంలో భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి.
• లీకేజీలను నివారించడానికి అన్ని కనెక్షన్లు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోండి. అతిగా బిగించవద్దు.
• ఏదైనా దశ గురించి మీకు ఖచ్చితంగా తెలియకపోతే, అర్హత కలిగిన ప్లంబర్‌ను సంప్రదించండి.
• చిన్న భాగాలను పిల్లలకు దూరంగా ఉంచండి.

ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• 7-inch Diverter Tub Spout (Satin Nickel)
• టెఫ్లాన్ టేప్
• 1/2-inch Copper Pipe Fitting Adapter
• Brass Adapter (for 1/2-inch IPS or 3/4-inch IPS connections)
• హెక్స్ రెంచ్
• Extension Nipple (4-inch)

Image: The Westbrass E507DUS-07 tub spout with its diverter button, along with the included Teflon tape, 1/2-inch copper pipe fitting adapter, brass adapter, hex wrench, and 4-inch extension nipple.

స్పెసిఫికేషన్లు

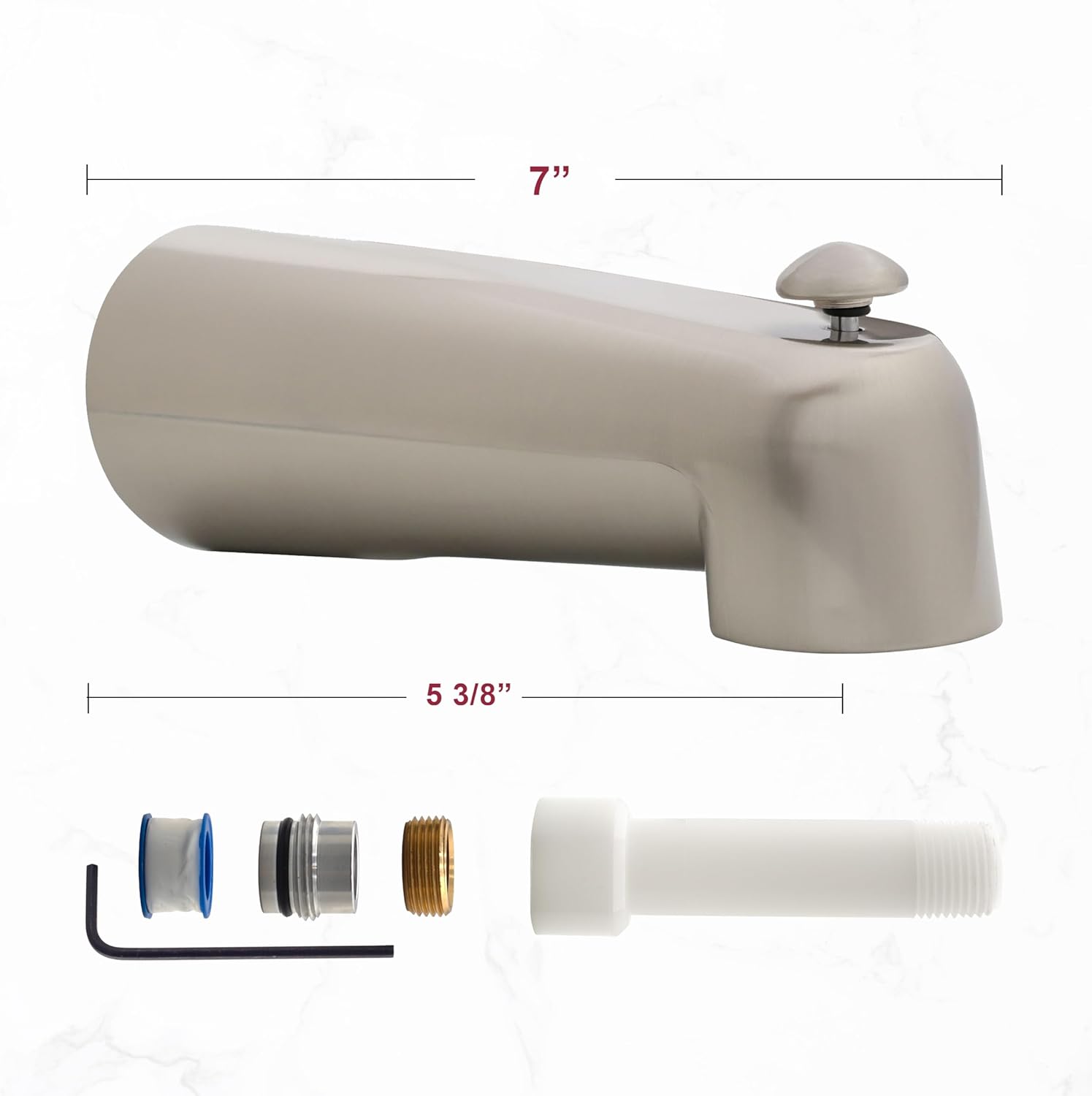

Image: The Westbrass E507DUS-07 tub spout showing its overall length of 7 inches and a base length of 5 3/8 inches, alongside the included installation components.

చిత్రం: పై నుండి క్రిందికి view of the Westbrass E507DUS-07 tub spout, indicating a 7-inch length and 2.5-inch height, with the diverter button visible.

సెటప్ మరియు ఇన్‌స్టాలేషన్

అవసరమైన సాధనాలు

• Adjustable Wrench or Pipe Wrench
• Screwdriver (if applicable for set screw)
• Teflon Tape (included)
• హెక్స్ రెంచ్ (చేర్చబడింది)

సంస్థాపనా దశలు

The Westbrass E507DUS-07 tub spout is designed for universal fit, accommodating 1/2-inch copper, 1/2-inch IPS, or 3/4-inch IPS connections. Follow the steps below based on your existing plumbing.

1. నీటి సరఫరాను ఆపివేయండి: Locate and turn off the main water supply to your bathroom or entire house. Open a faucet to relieve pressure.
2. Remove Old Tub Spout: If replacing an existing spout, loosen any set screws on the underside of the spout or unscrew it counter-clockwise from the wall pipe. Clean the area around the pipe.
3. Determine Connection Type: Identify if your existing pipe is 1/2-inch copper, 1/2-inch Male Threaded (IPS), or 3/4-inch Male Threaded (IPS).
4. Prepare the Connection:
   • For 1/2-inch Copper Pipe Connection: Ensure the copper pipe extends approximately 1-1/2 inches from the wall. Slide the 1/2-inch copper pipe fitting adapter onto the copper pipe. Secure it with the included hex wrench if there's a set screw.
   • For 1/2-inch Male Threaded Connection (IPS): Apply Teflon tape to the threads of the existing 1/2-inch male threaded pipe. Thread the brass adapter onto the pipe.
   • For 3/4-inch Male Threaded Connection (IPS): Apply Teflon tape to the threads of the existing 3/4-inch male threaded pipe.
5. Install Extension Nipple (if needed): If your pipe does not extend far enough from the wall, use the included 4-inch extension nipple. Apply Teflon tape to the threads and connect it to your wall pipe or adapter.
6. Attach Tub Spout:
   • For Slip-On (Copper) or Adapter Connections: Slide the tub spout onto the pipe/adapter assembly until it is flush with the wall. Secure it by tightening the set screw on the underside of the spout with the hex wrench.
   • For Threaded Connections (1/2-inch or 3/4-inch IPS): Carefully thread the tub spout onto the pipe/adapter assembly clockwise until it is hand-tight and properly aligned. Use a wrench for a final snug turn, but do not overtighten.
7. లీక్‌ల కోసం పరీక్ష: Slowly turn the main water supply back on. Check all connections for leaks. If leaks occur, turn off the water, re-tighten connections, and re-test.

Image: Diagram illustrating four common installation scenarios for the Westbrass E507DUS-07 diverter tub spout, including 1/2-inch copper pipe, 1/2-inch male threaded, 3/4-inch male threaded, and 1/2-inch male pipe with threaded end connections, showing how the adapters and extension nipple are used.

చిత్రం: పేలినది view diagram of the Westbrass E507DUS-07 tub spout, detailing its internal components such as the body, rod, O-rings, knob, gate, insert pipe, bushings, and set screw, along with a parts list.

ఆపరేటింగ్ సూచనలు

The Westbrass E507DUS-07 tub spout features a diverter mechanism to switch water flow between the tub spout and a showerhead.

• For Tub Fill: Ensure the diverter knob on top of the spout is in the down position. Water will flow from the tub spout.
• For Shower: Pull the diverter knob upwards. This will redirect water flow to your showerhead. Push the knob down to return water flow to the tub spout.

నిర్వహణ మరియు సంరక్షణ

To maintain the finish and functionality of your tub spout, follow these guidelines:

• శుభ్రపరచడం: Clean the spout regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the satin nickel finish.
• Diverter Maintenance: If the diverter mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts.
• లీకేజీ నివారణ: Periodically check for any signs of leaks around the base of the spout. Address any leaks promptly by re-tightening connections or replacing worn seals.

ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your tub spout.

వారంటీ మరియు మద్దతు

Westbrass products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official Westbrass webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.

For additional information and products, you may visit the Westbrass Storefront.
