పరిచయం
This instruction manual provides detailed guidance for the assembly, operation, maintenance, and troubleshooting of your Jocoevol Velvet Upholstered Twin LED Bed Frame. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation. Keep this manual for future reference.
సెటప్ మరియు అసెంబ్లీ
Your Jocoevol Twin LED Bed Frame is designed for straightforward assembly. All necessary tools, labeled parts, and clear instructions are included to facilitate the process. It is recommended to assemble the bed frame in the room where it will be used.
మీరు ప్రారంభించడానికి ముందు:
- అన్ని భాగాలను అన్ప్యాక్ చేసి, చేర్చబడిన ఇన్స్టాలేషన్ మాన్యువల్లోని భాగాల జాబితాతో సరిచూసుకోండి.
- అసెంబ్లీకి తగినంత స్థలం ఉందని నిర్ధారించుకోండి.
- చిన్న భాగాలను పిల్లలకు దూరంగా ఉంచండి.
అసెంబ్లీ దశలు ముగిశాయిview:
- Assemble the headboard components, including the adjustable height mechanism.
- సైడ్ రెయిల్స్ను హెడ్బోర్డ్ మరియు ఫుట్బోర్డ్కు అటాచ్ చేయండి.
- Install the wooden slats onto the bed frame. The slats feature Velcro straps for quick and secure attachment, and silent strips to prevent noise.
- Assemble and insert the storage drawer into the footboard.
- Adjust the three adjustable support legs for optimal stability and level positioning.
- Connect the LED lighting system and charging station power cord.

Figure 1: Overall dimensions (77.8"L x 41.1"W x 47.2"H) and weight capacity (800 lbs) of the Jocoevol Twin LED Bed Frame.

Figure 2: Detail of the sturdy steel and wood mixed support system, including wooden slats, metal frame, and adjustable legs, highlighting the silent strips for noise reduction and 360-degree adjustability of the legs.
ఆపరేటింగ్ సూచనలు
Smart RGB LED Lighting System:
The integrated RGB LED lighting system in the headboard offers extensive customization to enhance your room's ambiance. It features over 16 million colors and more than 20 dynamic light effects.
- నియంత్రణ పద్ధతులు: The LED lights can be controlled via a dedicated mobile application (iOS/Android) or the included remote control.
- సంగీతం సమకాలీకరణ మోడ్: Activate the music sync feature to have the lights dynamically change in rhythm with your audio, creating an immersive experience.
- సర్దుబాట్లు: Adjust brightness, select specific colors, and choose from various preset modes (e.g., Mic Mode, Music Mode, Timing Function) to suit your preference.

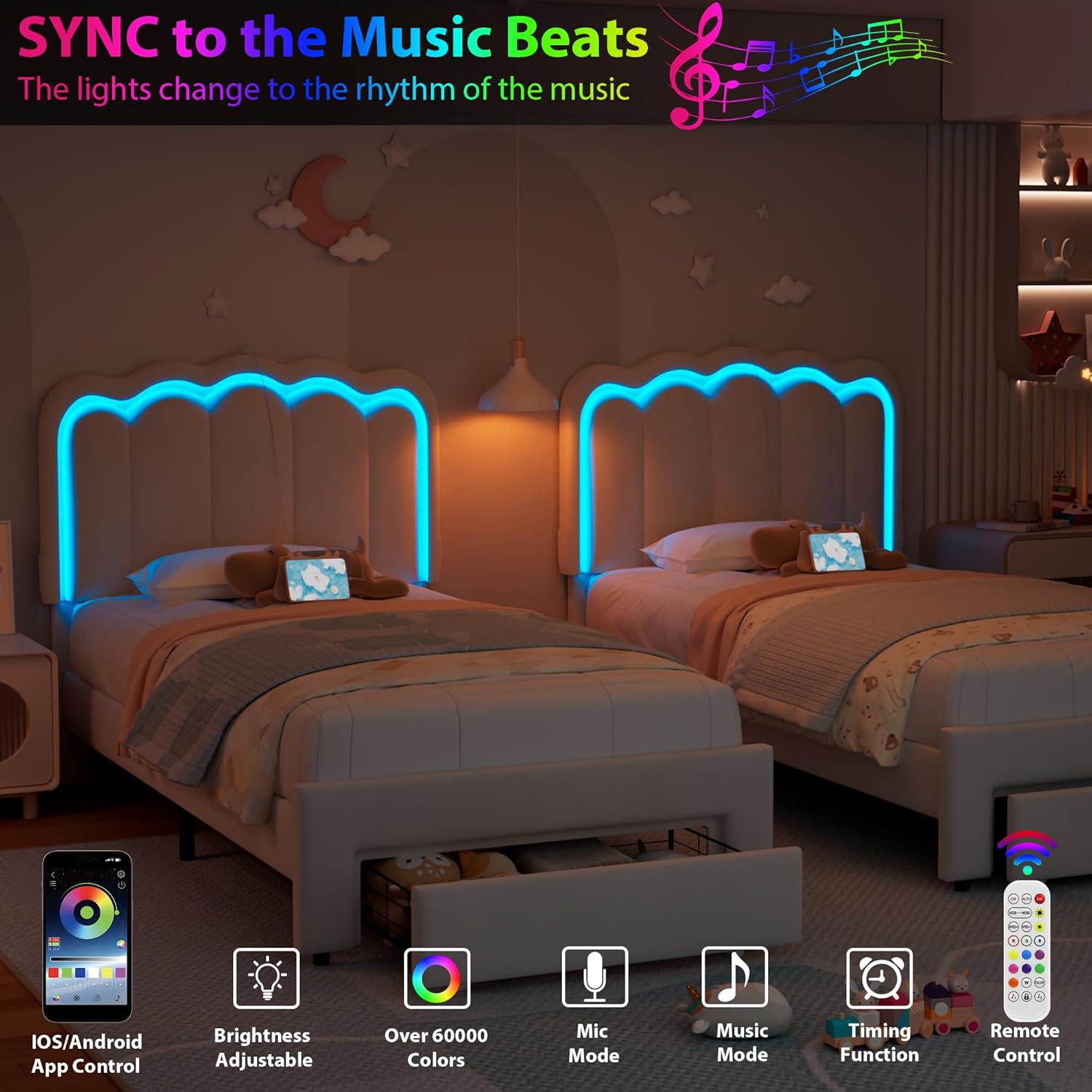

Figure 3: Illustration of the LED lighting features, including app and remote control options, color variations, and music synchronization capabilities.
Integrated Charging Station and Side Pockets:
The bed frame includes a convenient charging station and side pockets for easy access to your devices and essentials.
- ఛార్జింగ్ పోర్ట్లు: Utilize the built-in USB (5V/2A) and Type-C (5V/3A) ports located on the headboard to charge your electronic devices without leaving your bed.
- సైడ్ పాకెట్స్: Two side pockets are provided for storing small items such as glasses, remote controls, or mobile phones.

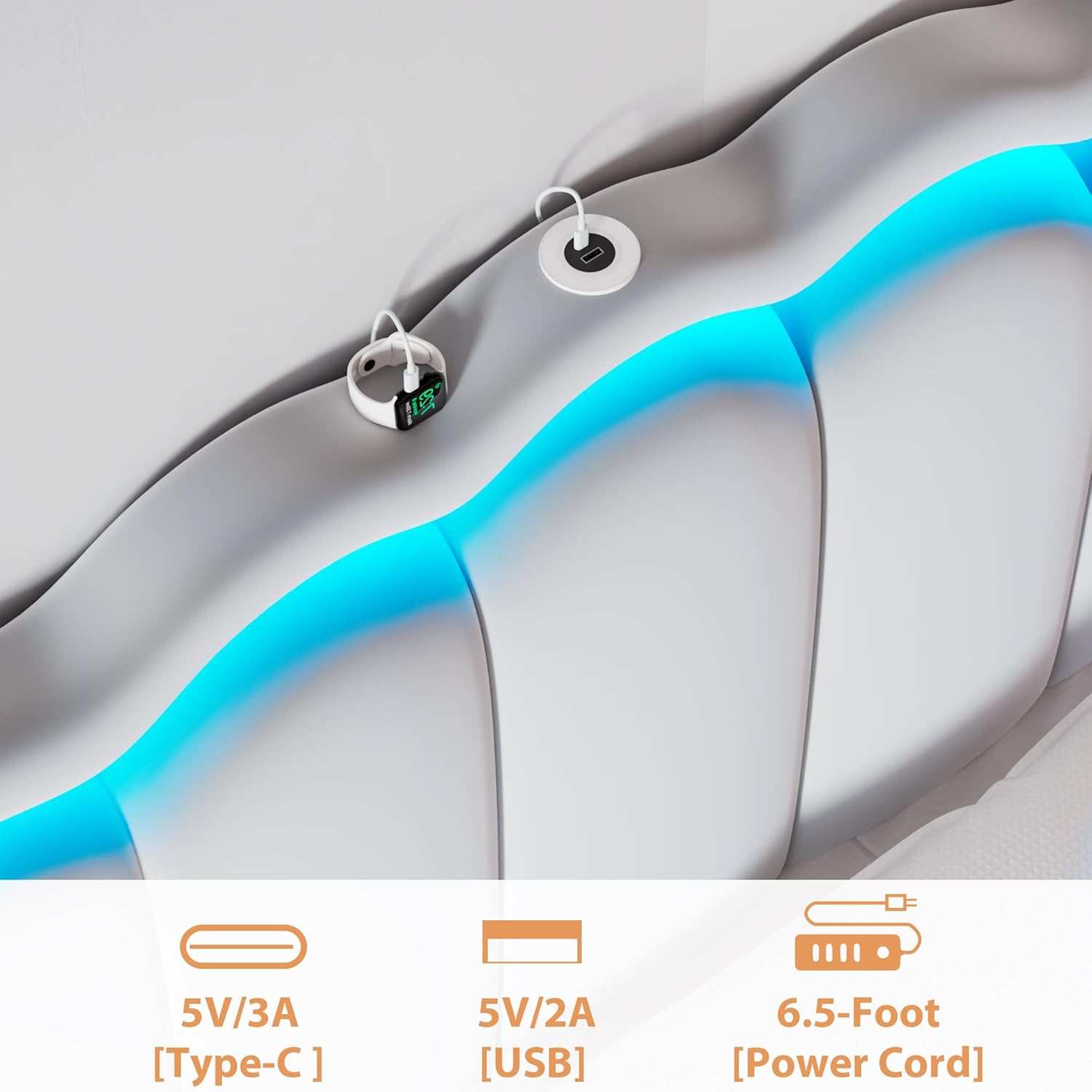

Figure 4: Close-up of the integrated USB and Type-C charging ports located on the headboard, along with the 6.5-foot power cord.
నిల్వ సొరుగు:
The large storage drawer at the footboard provides ampవివిధ వస్తువులను నిర్వహించడానికి స్థలం.
- యాక్సెస్: The drawer features silent-glide mechanisms for smooth and quiet operation.
- భద్రత: An EVA-free barrier design helps keep the drawer securely in place while allowing easy access.
- క్లియరెన్స్: The bed frame offers 6 inches of clearance on each side, facilitating easy cleaning and additional under-bed storage options.

మూర్తి 5: ముందు view of the bed frame with the storage drawer extended, showcasing its capacity for various items such as toys and blankets.

మూర్తి 6: వైపు view of the bed frame with the storage drawer extended, illustrating the smooth glide mechanism and the under-bed clearance.
సర్దుబాటు చేయగల హెడ్బోర్డ్:
The double wavy headboard is upholstered in soft velvet fabric and features an adjustable height to accommodate different mattress thicknesses.
- సౌకర్యం: The sponge-padded material provides comfort for leaning against while reading or watching TV.
- adjustability: Adjust the headboard height to ensure a snug fit with your mattress and preferred aesthetic.

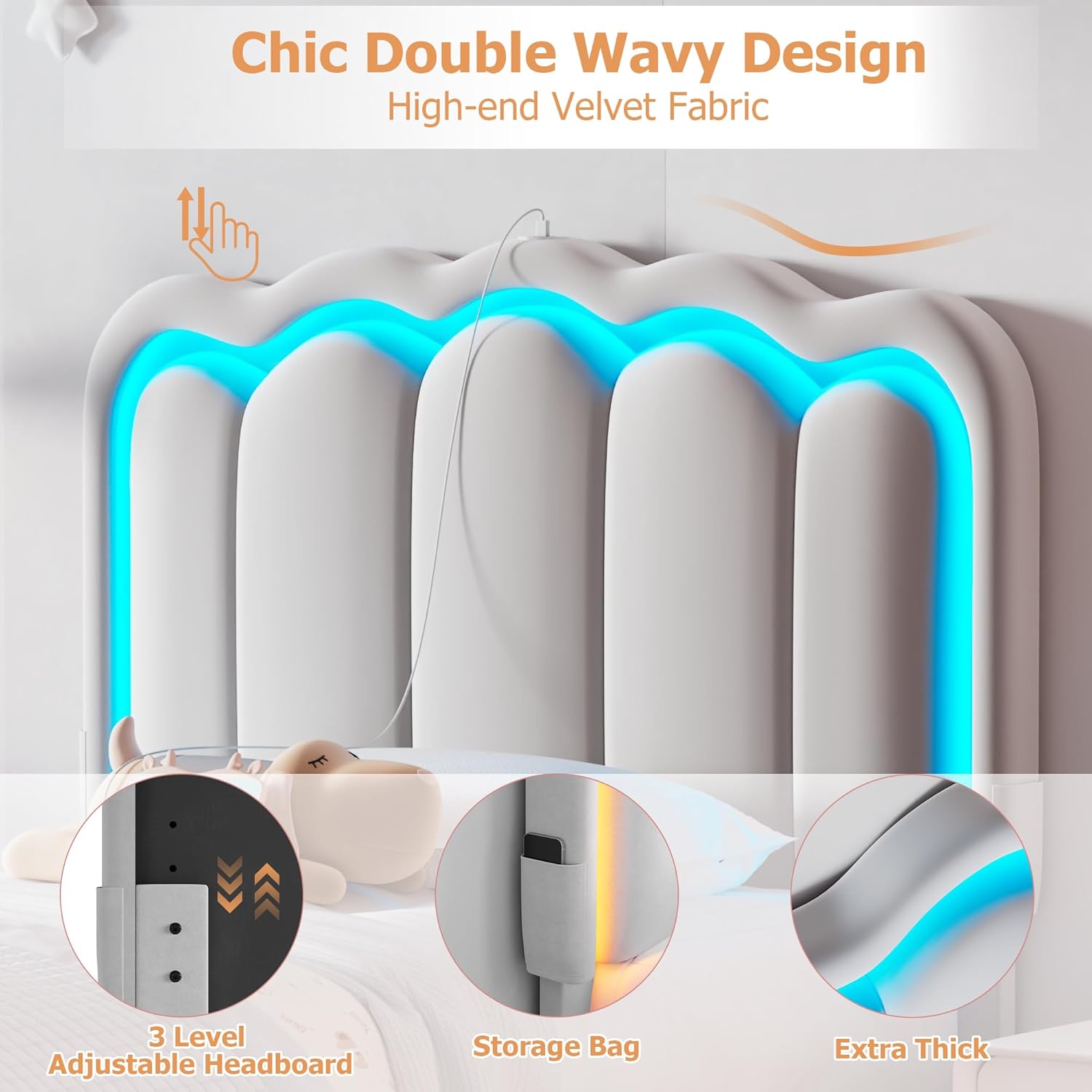

మూర్తి 7: వివరంగా view of the adjustable double wavy headboard, showing its plush velvet upholstery, three-level height adjustment, and integrated side storage bag.
నిర్వహణ
Regular maintenance will help prolong the life and appearance of your Jocoevol bed frame.
- అప్హోల్స్టరీని శుభ్రపరచడం: For general cleaning, gently vacuum the velvet fabric with a soft brush attachment. For spills, blot immediately with a clean, dry cloth. Do not rub. For stubborn stains, consult a professional upholstery cleaner or use a mild, pH-neutral fabric cleaner sparingly on an inconspicuous area first.
- LED లైట్లు: Ensure the LED light strip and connections are free from dust and debris. Do not attempt to disassemble the LED strip. If lights malfunction, check the power connection and remote/app settings.
- ఛార్జింగ్ పోర్ట్లు: Keep USB and Type-C ports free of dust and foreign objects. Use appropriate cables for charging.
- ఫ్రేమ్ మరియు స్లాట్లు: Periodically check all bolts and screws to ensure they are tight. Retighten if necessary. Inspect wooden slats for any signs of damage or wear.
- నిల్వ సొరుగు: Keep the drawer tracks clean to ensure smooth operation. Avoid overloading the drawer.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| LED లైట్లు వెలగడం లేదు లేదా వెలగడం లేదు. | Loose power connection, remote battery low, app not connected, or LED strip damage. | Check power cord connection to outlet and bed frame. Replace remote battery. Ensure Bluetooth is enabled and app is connected. If problem persists, contact customer support. |
| Storage drawer is difficult to open/close. | Overloaded drawer, debris in tracks, or misaligned. | Reduce contents in the drawer. Clean tracks of any dust or obstructions. Ensure the drawer is properly aligned on its runners. |
| Bed frame makes squeaking noises. | Loose bolts, misaligned slats, or uneven floor. | Tighten all assembly bolts. Ensure slats are properly seated and secured by the silent strips. Adjust the leveling feet on the support legs to compensate for uneven flooring. |
| ఛార్జింగ్ పోర్టులు పనిచేయడం లేదు. | Power cord disconnected, device cable faulty, or port damage. | Verify the bed frame's main power cord is securely plugged in. Try a different charging cable and device. If still not working, contact customer support. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | FZZH24103001 ద్వారా మరిన్ని |
| పరిమాణం | జంట |
| ఉత్పత్తి కొలతలు (L x W x H) | 77.8" x 41.1" x 47.2" |
| రంగు | బూడిద రంగు |
| ముగింపు రకం | వెల్వెట్ అప్హోల్స్టర్డ్ |
| ప్రత్యేక లక్షణాలు | Charging Station (USB & Type-C), Chic Double Wavy Headboard, Side Pockets, Smart RGB LED Lights, Storage Drawer |
| చేర్చబడిన భాగాలు | Drawer, Headboard, Slats, Installation Manual |
| వస్తువు బరువు | 70.5 పౌండ్లు |
| అసెంబ్లీ అవసరం | అవును |
| గరిష్ట బరువు సామర్థ్యం | 800 పౌండ్లు |
కస్టమర్ మద్దతు
For any questions or assistance regarding your Jocoevol Velvet Upholstered Twin LED Bed Frame, please do not hesitate to contact our dedicated support team. We are committed to providing prompt assistance and will respond to inquiries within 24 hours.
మీరు అధికారిక వెబ్సైట్లో మరిన్ని వివరాలు మరియు సంప్రదింపు వివరాలను పొందవచ్చు. Jocoevol Store on Amazon.
