DEEPOWER Electric Bicycle User Manual

1. భద్రతా సమాచారం

Before operating your DEEPOWER Electric Bicycle, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or damage to the bicycle.

1.1 సాధారణ భద్రతా మార్గదర్శకాలు

• Always wear a helmet that meets safety standards when riding.
• అన్ని స్థానిక ట్రాఫిక్ చట్టాలు మరియు నిబంధనలను పాటించండి.
• Perform a pre-ride inspection before each use, checking brakes, tires, battery, and all connections.
• మద్యం, డ్రగ్స్‌ తాగి వాహనాలు నడపొద్దు.
• మీ పరిసరాల గురించి తెలుసుకోండి మరియు రక్షణాత్మకంగా ప్రయాణించండి.

1.2 బ్యాటరీ భద్రత

• Use only the charger provided by DEEPOWER.
• బ్యాటరీని తీవ్రమైన ఉష్ణోగ్రతలు లేదా ప్రత్యక్ష సూర్యకాంతికి బహిర్గతం చేయవద్దు.
• Do not puncture, drop, or disassemble the battery.
• మండే పదార్థాలకు దూరంగా, బాగా వెంటిలేషన్ ఉన్న ప్రదేశంలో బ్యాటరీని ఛార్జ్ చేయండి.

1.3 Riding Conditions

• Avoid riding in heavy rain, snow, or icy conditions.
• Exercise caution on uneven or slippery surfaces.
• The maximum weight recommendation for the rider is 264 pounds. Do not exceed this limit.

2. ప్యాకేజీ విషయాలు

ప్యాకేజీని తెరిచిన తర్వాత, దయచేసి అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:

• DEEPOWER Electric Bicycle (95% pre-assembled)
• ఛార్జర్
• E Bike Accessory Kit

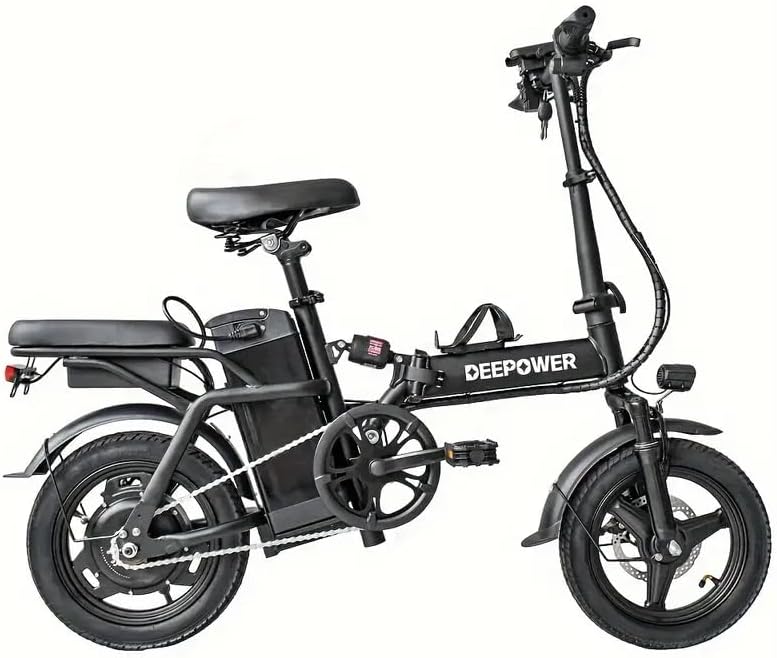

Image: The DEEPOWER Electric Bicycle, showcasing దాని కాంపాక్ట్ మరియు మడతపెట్టగల డిజైన్.

3. సెటప్ మరియు అసెంబ్లీ

Your DEEPOWER Electric Bicycle arrives 95% pre-assembled. The remaining steps are straightforward and designed for quick setup.

3.1 సైకిల్‌ను విప్పడం

1. సైకిల్‌ను దాని ప్యాకేజింగ్ నుండి జాగ్రత్తగా తొలగించండి.
2. Locate the main frame hinge and unfold the bicycle until it locks into place. Ensure the locking mechanism is securely engaged.
3. Raise the handlebar stem and secure it with the quick-release lever. Adjust the handlebar height to your preference.
4. Adjust the seat post height using the quick-release lever for a comfortable riding position.
5. పెడల్స్ విప్పు.

Image: The DEEPOWER Electric Bicycle in its upright, ready-to-ride configuration.

Image: Demonstration of the bicycle's folding mechanism for compact storage.

3.2 బ్యాటరీ ఇన్‌స్టాలేషన్ మరియు ఛార్జింగ్

The 48V 10Ah lithium battery is removable for convenient charging.

1. To remove the battery, unlock it with the provided key and slide it out from its compartment.
2. ఛార్జర్‌ను బ్యాటరీ ఛార్జింగ్ పోర్ట్‌కు కనెక్ట్ చేయండి, ఆపై ఛార్జర్‌ను ప్రామాణిక వాల్ అవుట్‌లెట్‌లోకి ప్లగ్ చేయండి.
3. The charging indicator on the charger will show the charging status. A full charge typically takes 5-6 hours.
4. Once fully charged, disconnect the charger and re-install the battery securely into the bicycle, ensuring it locks into place.

చిత్రం: క్లోజప్ view of the removable 48V 10Ah lithium battery, indicating its capacity and charging time.

Image: A hand demonstrating the removal or installation of the electric bicycle's battery.

4. ఆపరేటింగ్ సూచనలు

Familiarize yourself with the controls and features of your DEEPOWER Electric Bicycle for an optimal riding experience.

4.1 పవర్ చేయడం ఆన్/ఆఫ్

To power on the bicycle, insert the key into the ignition and turn it to the 'ON' position. To power off, turn the key to the 'OFF' position and remove it.

4.2 స్పీడ్ మోడ్‌లు

The electric bike features 3 adjustable speed gears. Use the speed gear selector on the left handlebar to switch between modes:

• మోడ్ 1: Lowest assist/speed, ideal for casual riding or conserving battery.
• మోడ్ 2: Medium assist/speed, suitable for general commuting.
• మోడ్ 3: Highest assist/speed, for maximum power and acceleration (up to 20 MPH unlocked).

చిత్రం: View of the handlebar controls, including the speed gear selector and other operational buttons.

4.3 లైటింగ్ సిస్టమ్

The bicycle is equipped with an LED bright headlight, tail light, and turn signals for enhanced visibility and safety, especially during night riding. Operate these lights using the controls on the handlebar.

4.4 USB ఛార్జింగ్ పోర్ట్

A USB cell phone holder with a 2.1A fast charging port is integrated for convenient charging of your mobile devices during your journey.

4.5 బ్రేకింగ్ సిస్టమ్

The DEEPOWER Electric Bicycle utilizes mechanical disc brakes for reliable stopping power. Apply both brake levers simultaneously for effective and controlled braking.

చిత్రం: వివరణాత్మకం view of the mechanical disc brake system, highlighting its components.

4.6 Motor and Tires

The bicycle is powered by a 400W motor, providing ample power for daily commutes. It features 14-inch thickened rubber vacuum tires designed for anti-skid and wear-resistant performance, suitable for various terrains.

చిత్రం: ఒక అంతర్గత view of the 400W variable frequency high-speed motor.

Image: The 14-inch vacuum anti-blowout tire, emphasizing its durability and grip on various surfaces.

5. నిర్వహణ

Regular maintenance ensures the longevity and safe operation of your DEEPOWER Electric Bicycle.

5.1 టైర్ సంరక్షణ

• Check tire pressure regularly. Maintain appropriate pressure as indicated on the tire sidewall for optimal performance and safety.
• Inspect tires for wear, cuts, or punctures before each ride.

5.2 బ్రేక్ సిస్టమ్

• బ్రేక్ ప్యాడ్‌లు అరిగిపోయాయా అని క్రమం తప్పకుండా తనిఖీ చేయండి మరియు అవసరమైనప్పుడు వాటిని మార్చండి.
• Ensure brake levers are responsive and provide adequate stopping power. Adjust brake cables if needed.

5.3 బ్యాటరీ నిర్వహణ

• Charge the battery fully after each ride, especially if it has been significantly discharged.
• If storing the bicycle for an extended period, charge the battery to 50-70% and store it in a cool, dry place. Recharge every 1-2 months to prevent deep discharge.

5.4 శుభ్రపరచడం

• ప్రకటనతో సైకిల్ శుభ్రం చేయండిamp వస్త్రం మరియు తేలికపాటి సబ్బు. అధిక పీడన వాషర్లను నేరుగా విద్యుత్ భాగాలపై ఉపయోగించకుండా ఉండండి.
• Lubricate the chain regularly to ensure smooth operation.

5.5 సస్పెన్షన్ సిస్టమ్

The bicycle features a center shock absorber for a comfortable ride. Periodically inspect the suspension components for any signs of wear or damage.

Image: Visual representation of the comprehensive damping system, including fork, spring, and hydraulic damping components.

6. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your DEEPOWER Electric Bicycle.

6.1 సాధారణ ప్రశ్నలు

• Is this bike complicated to assemble?
  This bike is 95% pre-assembled. You only need to complete the remaining simple assembly steps, such as unfolding and adjusting the handlebars and seat.
• The motor is not engaging.
  Ensure the battery is fully charged and properly seated. Check all electrical connections for looseness. Verify the key is in the 'ON' position.
• లైట్లు పనిచేయడం లేదు.
  Check the battery charge level. Ensure the light switch is in the 'ON' position.
• బ్రేకులు బలహీనంగా అనిపిస్తాయి.
  Inspect brake pads for wear. Adjust brake cable tension if necessary.

For issues not covered here, please refer to the warranty and support section for contact information.

7. స్పెసిఫికేషన్లు

Key technical specifications for the DEEPOWER Electric Bicycle Model K301:

Image: Diagram illustrating the dimensions and weight capacity of the DEEPOWER Electric Bicycle.

Image: The folded dimensions of the DEEPOWER Electric Bicycle, emphasizing its lightweight, portability, and space-saving design.

8. వారంటీ మరియు మద్దతు

DEEPOWER provides comprehensive support for your electric bicycle.

8.1 వారంటీ సమాచారం

Your DEEPOWER Electric Bicycle comes with a one-year warranty service. This warranty covers free replacement of damaged major parts, including the battery, motor, and controller.

When returning the product, please retain the original packaging.

8.2 కస్టమర్ మద్దతు

If you need to purchase extra spare parts (such as a battery or brake pads) or require assistance with returns, please contact the seller directly. For general inquiries or technical support, refer to the DEEPOWER store on Amazon or contact their customer service.
